Technical Specifications for FC-TSDI-16UNI
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Input current
|
≤ 15mA
|
|
Part Number
|
FC-TSDI-16UNI
|
Number of channels
|
16
|
|
Product Name
|
Field termination
|
Output voltage
|
48 Vdc
|
|
Manufacture Year
|
2021
|
Rating
|
250 mAT
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

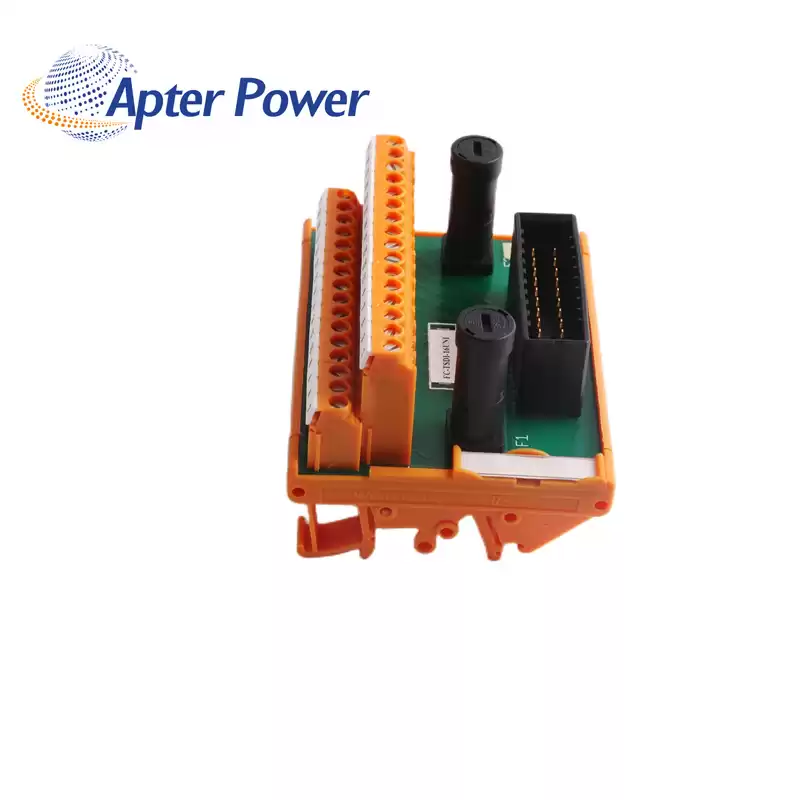

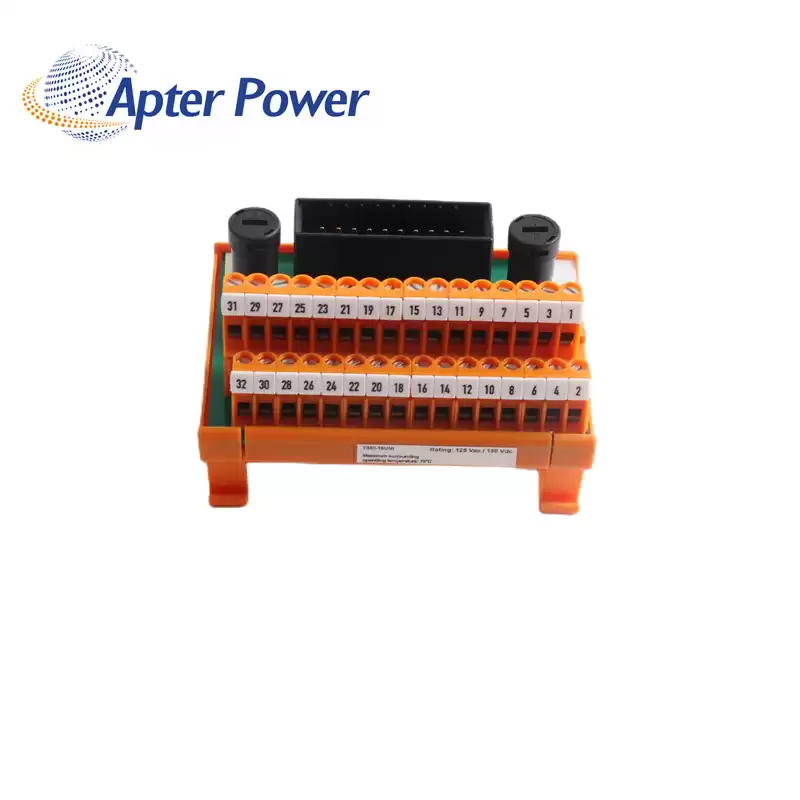

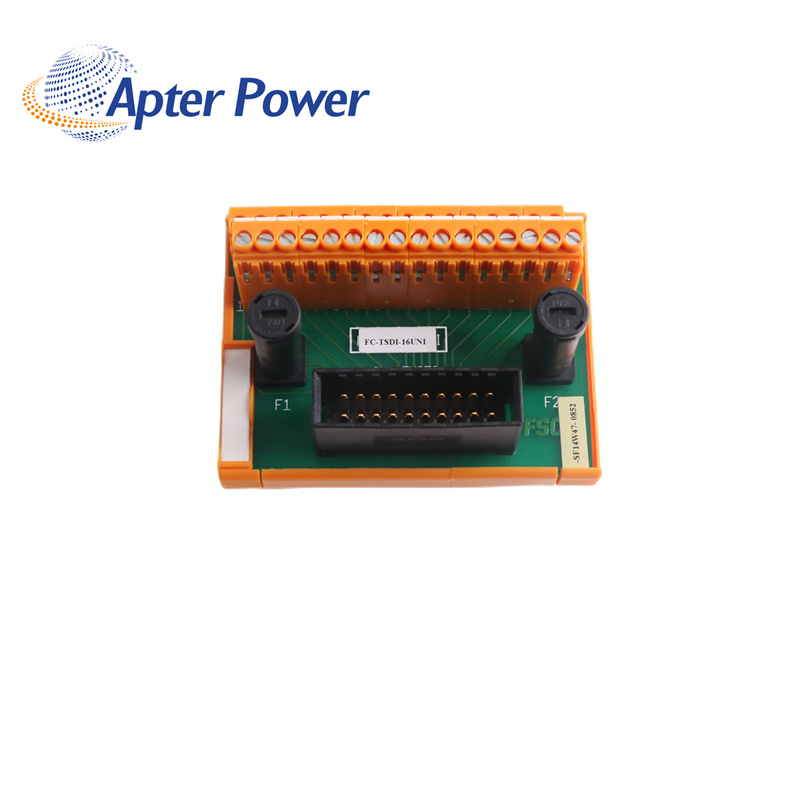

About FC-TSDI-16UNI
|
The FC-TSDI-16UNI module is a Safe Digital Input Field Termination. Field termination assembly module TSDI-16UNI is the interface between system
interconnection cable SICC-0001/Lx and the external field wiring (screw
terminals).Sixteen channels (separated into two groups of eight channels with a 250 mA fuse
in the common +) can be connected to the TSDI-16UNI module via a system
interconnection cable (SICC-0001/Lx).
This cable is plugged into the SIC
connector on the FTA module, and connects to a (redundant pair of) SDIL-1608
module(s).The FTA module has a universal snap-in provision for standard DIN EN rails, and
screw terminals for connecting field wiring.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
