Product Description:

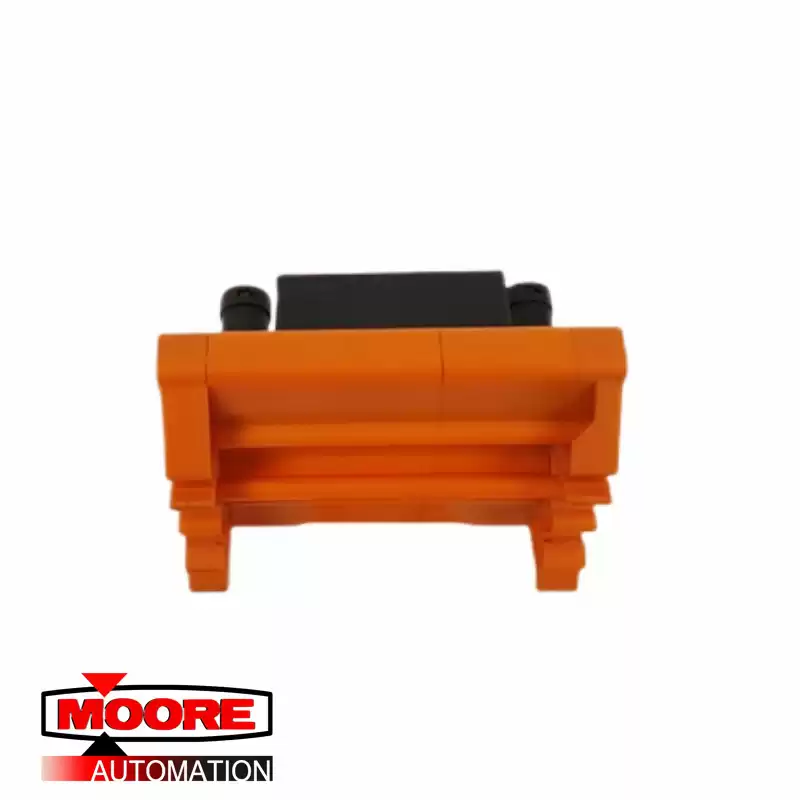

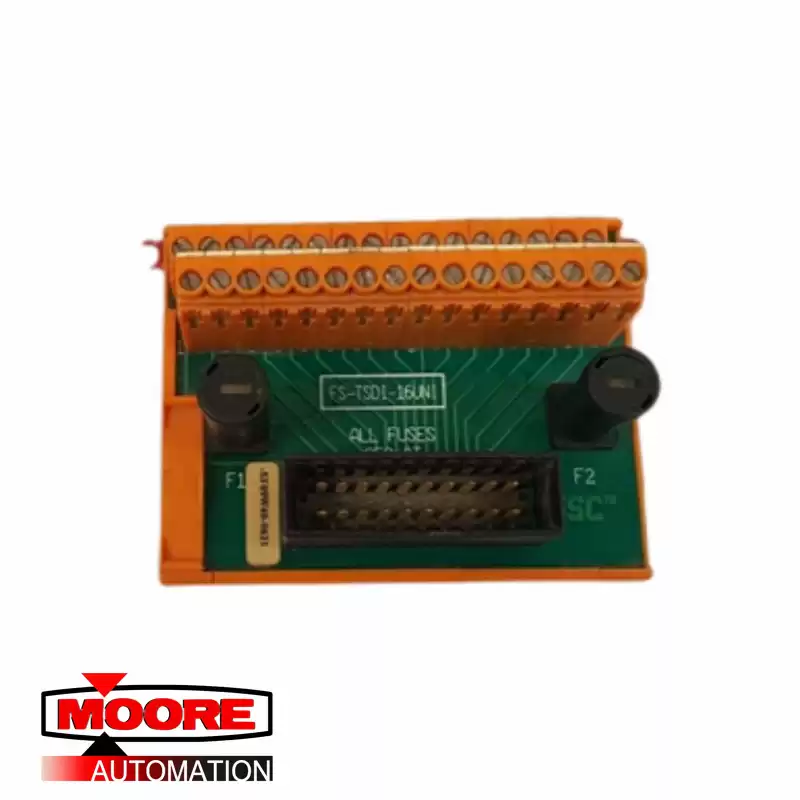

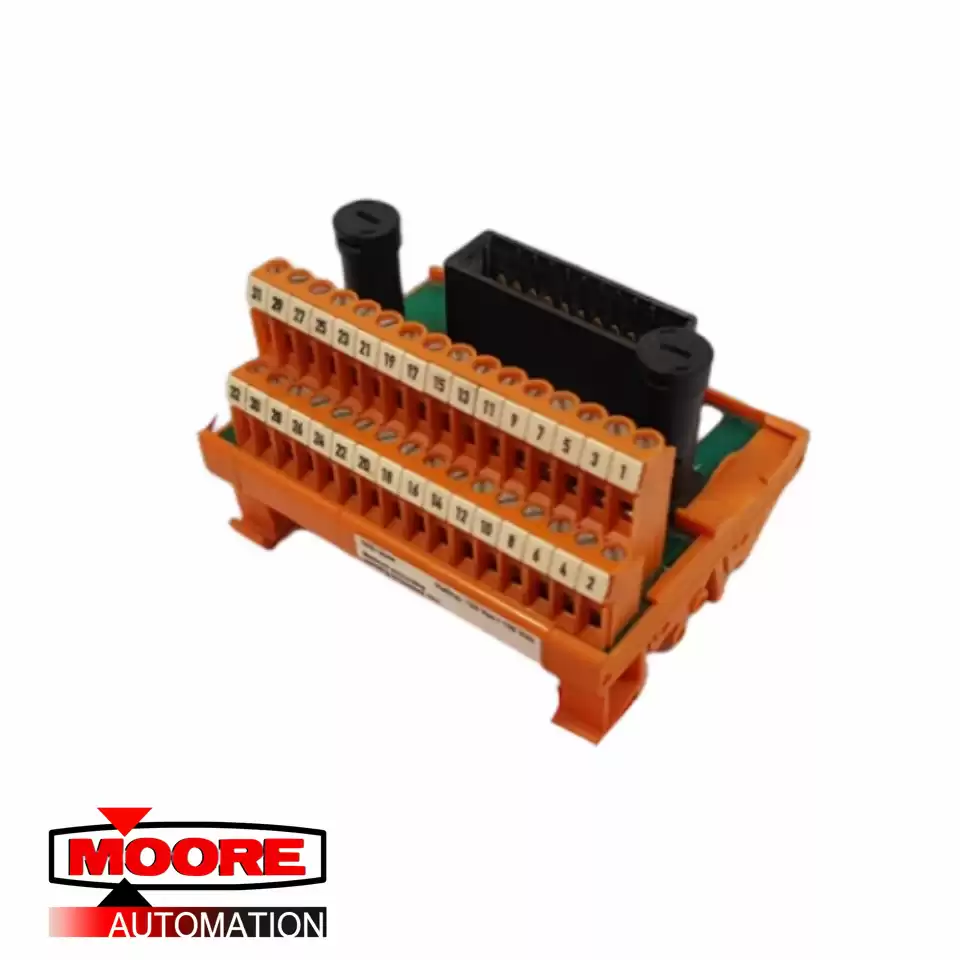

Field termination assembly module TSDI-16UNI is the interface between system interconnection cable SICC-0001/Lx and the external field wiring (screw terminals). Sixteen channels (separated into two groups of eight channels with a 250 mA fuse in the common +) can be connected to the TSDI-16UNI module via a system interconnection cable (SICC-0001/Lx). This cable is plugged into the SIC connector on the FTA module, and connects to a (redundant pair of) SDIL-1608 module(s).
The FTA module has a universal snap-in provision for standard DIN EN rails, and screw terminals for connecting field wiring.
General Type numbers1 :
1 FS-type modules are non conformal coated modules.
FC-type modules are conformal coated modules.
FS-TSDI-16UNI
FC-TSDI-16UNI
