Specification
|
Details
|
|

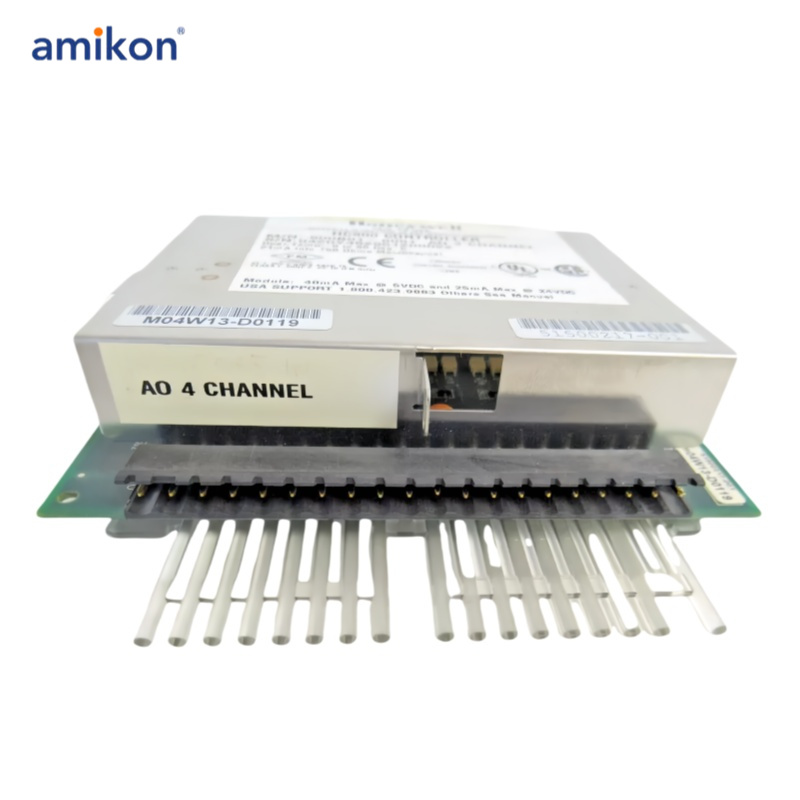

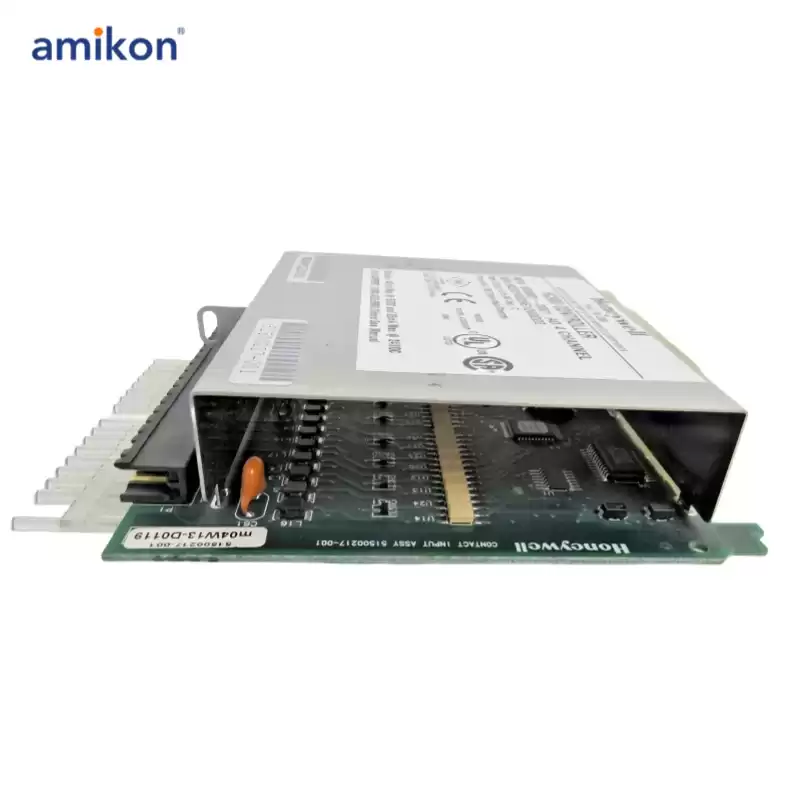

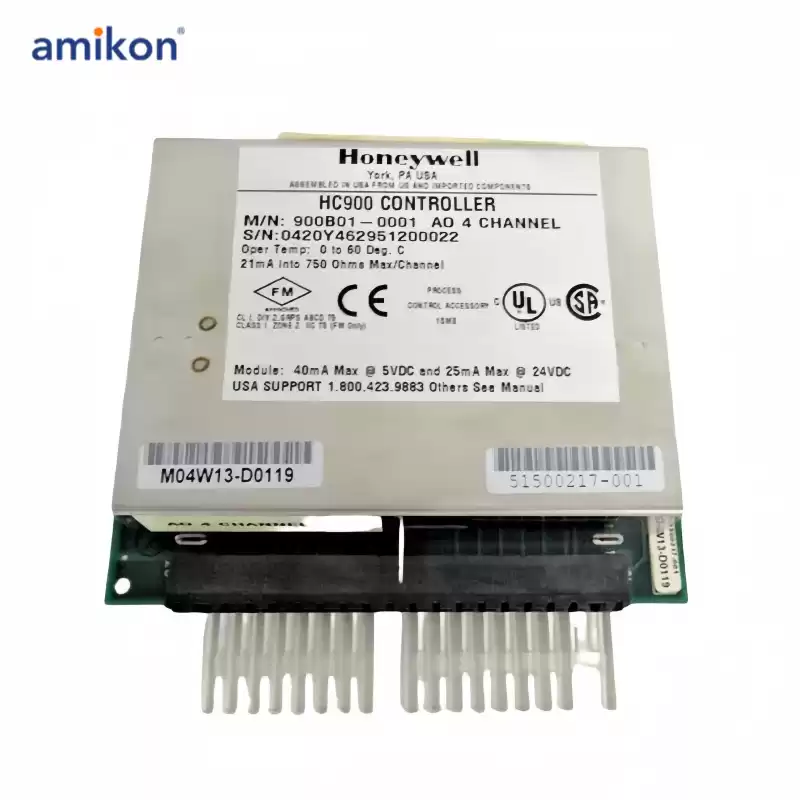

Part Number
|
900B010001
|
|
Status
|
DISCONTINUED BY MANUFACTURER
|
|
Module Type
|
Output Module
|
|
Type
|
Analog
|
|
Number of Channels
|
4 Channels
|
|
Model
|
HC900
|
|
Voltage
|
24 VDC
|
|
Current
|
21/40 mA
|
|
Resistance
|
750 Ohms
|
|
Category
|
PLCs/Machine Control
|
|
Subcategory
|
PLC Module/Rack
|
|
Weight
|
0.75 lbs
|
|
Additional Information
|
Factory warranty may not apply
|
The Honeywell ControlEdge HC900 Controller is an advanced loop and logic controller offering a modular design sized to satisfy the control and data acquisition needs of a wide range of process equipment
Insert and Removal of I/O under Power
For ease of maintenance, the ControlEdge HC900 controller supports removing and inserting I/O modules from the module rack without removing power from the controller.
Each module is sensed for validity by the controller and auto-configured on insertion.
Failsafe
All ControlEdge 900 Platform I/O modules support a user specified failsafe value (analog) or state (digital) that the module outputs or inputs will assume if communication between the controller and the module is interrupted. Output modules are also disabled if the controller fails to start. Module diagnostics are not initiated if the control strategy does not call for the inputs or outputs on the modules to execute.
