Technical Specifications for MC-TAMR04 51305907-175
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Channel bandwidth
|
0 to 4.7 Hz (-3 dB)
|
|
Part Number
|
MC-TAMR04
|
No of
chnls
|
64
|
|
Product Name
|
Terminal board
|
Long term drift
|
500 ppm
|
|
Manufacture Year
|
2021
|
Input impedance
|
1 megohm at dc
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

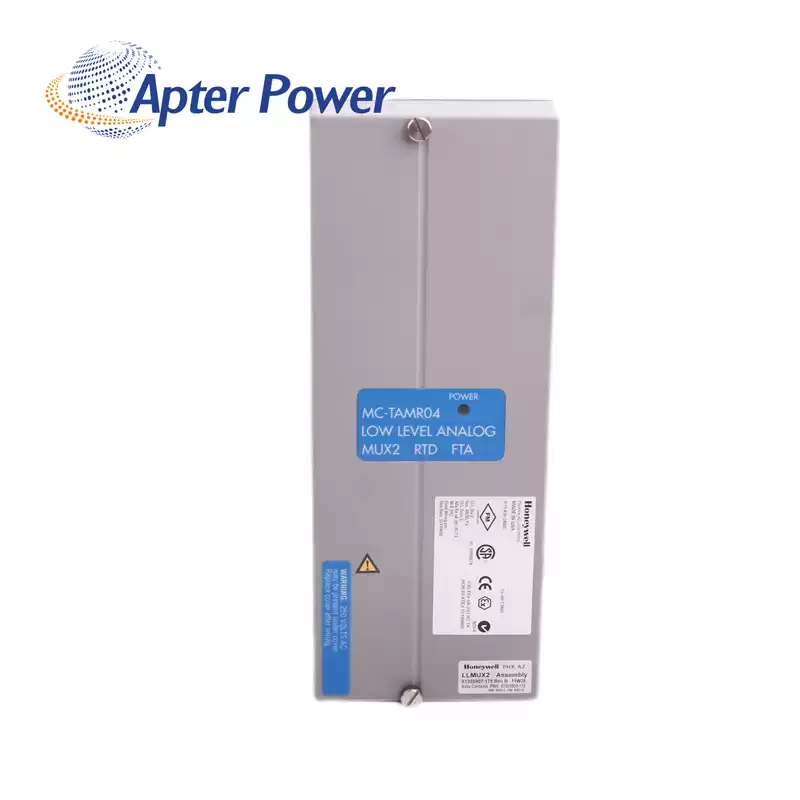

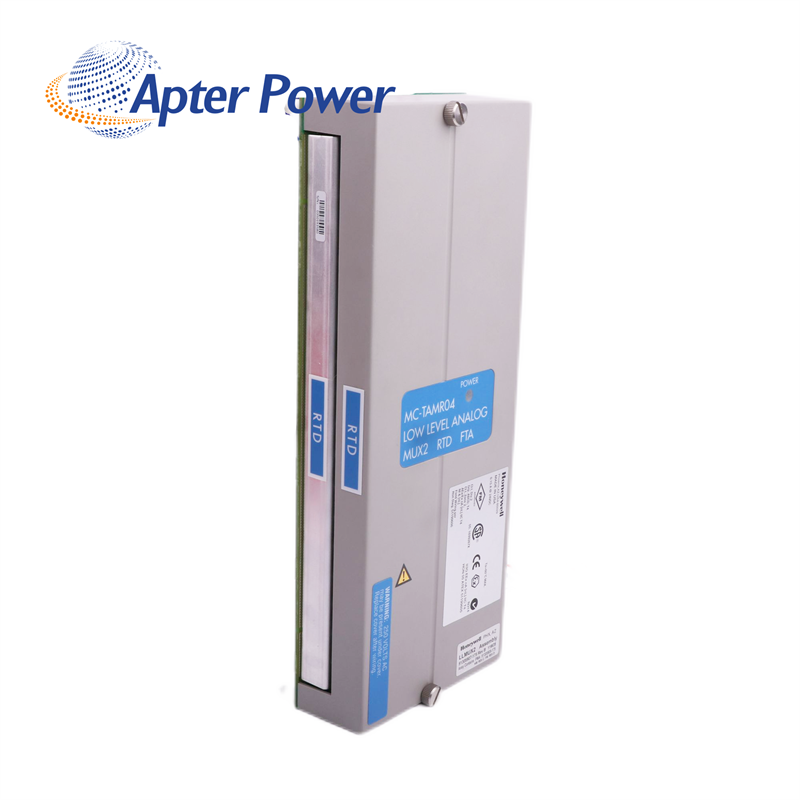

About MC-TAMR04 51305907-175
|
The MC-TAMR04 51305907-175 is a UCN Low Level Analog Input Multiplexer.The LLMUX IOP module supports up to 64 channels of temperature inputs. Low level inputs use the Honeywell PMIO
LLMUX FTA. Each FTA supports 16 channels. Two types of LLMUX FTA are supported. One provides 16 RTD
inputs. The other provides 16 TC or MV inputs. Any combination of FTAs may be used to provide the mix of TC, mV
or RTD points required.
The Temperature Input LLMUX supports the existing solid state PMIO LLMUX FTA. The PMIO LLMUX FTA supports
RTD and Thermocouple (TC) inputs. The Temperature variable is collected from all points at a 1 second rate. The 1
second update includes a configurable check for Open Thermocouple Detection (OTD) (see below) before propagation of
the temperature variable.
• TC and RTD operation
• Remote cold junction capability
• 1 Second PV scanning with OTD protection
• Configurable OTD protection (See below)
• Temperature points can be added in 16 point increments
|
