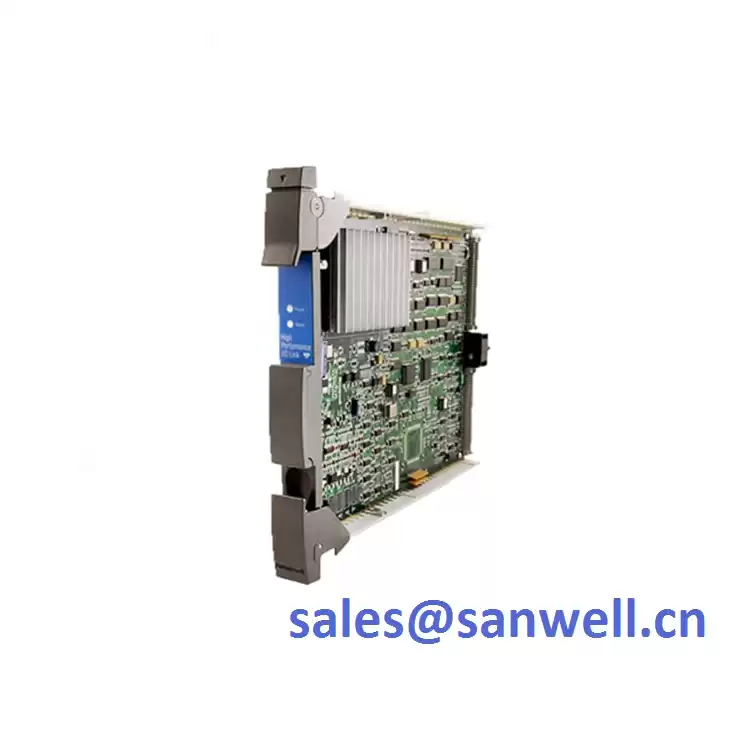

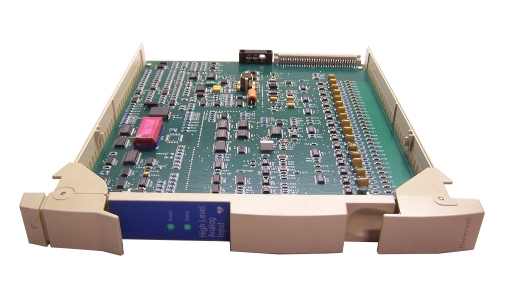

Honeywell MU-TAIH03 High Level Analog Input Processor new and Fast Shipping

Honeywell MU-TAIH03 High Level Analog Input Processor Good Quality/ In stock







Honeywell MU-TAIH03 High Level Analog Input Processor Fast ship/ Brand new



Manufacturer : Honeywell

Product No. : 51304754-150

Product type : MC-PAIH03 High Level Analog Input Processor-16 Inputs

FTA Models: MU-TAIH02, TAIH12, TAIH52, TAIH03, TAIH13, TAIH23, TAIH53, TAIH22, TAIH62

Input Type: Voltage, current (2-wire or self-powered transmitters)

Input Channels : 16 differential input channels

Common Mode Rejection Ratio, dc to 60 Hz (500 source imbalance): 70 dB

Common Mode Voltage, dc to 60 Hz(1): -6 to +5 V peak

A/D Converter Resolution: 16 bits (14 bits used)

Input Range 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 )

Normal Mode Rejection Ratio, at 60 Hz: 32 dB

Normal Mode Filter Response : Single-pole RC, -3 dB @ 1 Hz

Maximum Normal Mode Input(differential inputs, no damage): ± 30 Volts

Crosstalk, dc to 60 Hz(channel-to-channel): 60 dB

Input Impedance (Voltage Inputs): > 10 M powered

Maximum Input Voltage(any input referenced to common, no damage): ± 30 Volts

Input Scan Rate: 4 samples per second per channel.All channels sampled within a 250 ms window

Hardware Accuracy (@ CMV = 0 V): ± 0.075% full-scale (23.5°± 2°C), ± 0.15% full-scale (0 to 50°C)

Surge withstand capability (Common mode) ANSI/IEEE C37.90.1-1978

Weight : 0.60 Kg

Shipping Weight : 6 Kg



Specification:

Brand:HONEYWELL

Product Origin: USA

Warranty: 1 Year

Payment: T/T, Western Union

Condition: New with original package

Lead Time: In stock

Model: MU-TAIH03
