Technical Specifications for TSAI-1620M FC-TSAI-1620M
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Accuracy
|
0.1%
|
|
Part Number
|
FC-TSAI-1620M
|
Output resistance
|
270 Ω (± 5%)
|
|
Product Name
|
Analog Input Module
|
Input current
|
0—25 mA
|
|
Manufacture Year
|
2021
|
Input resistance
|
250 Ω (± 1%)
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

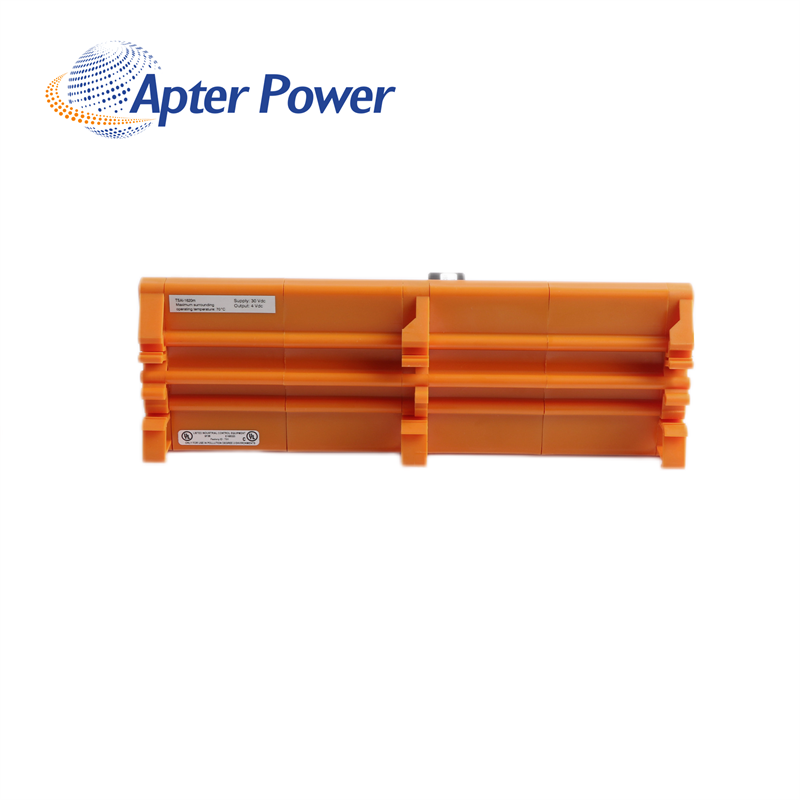

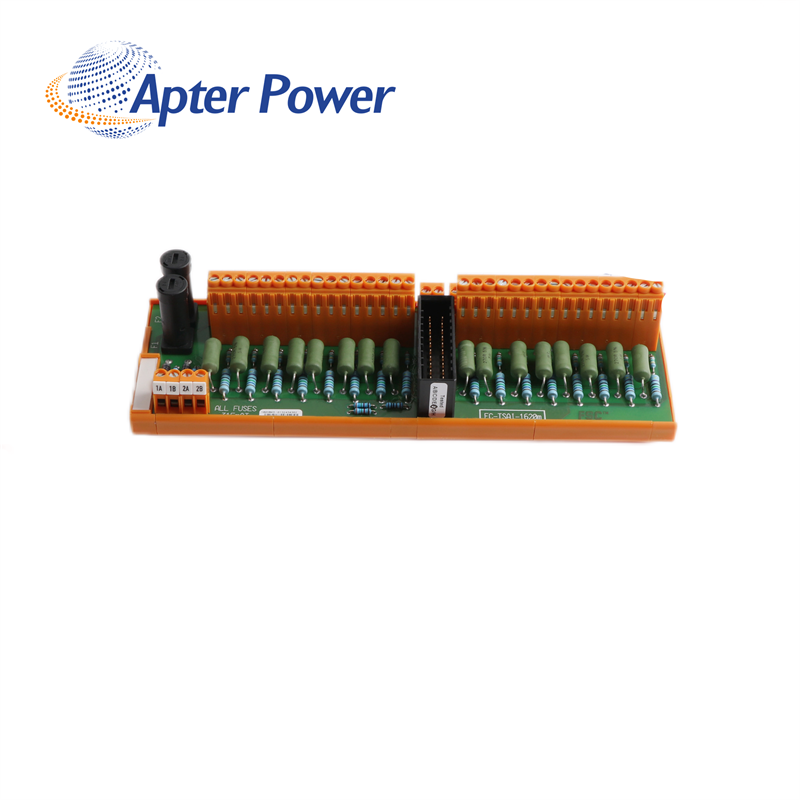

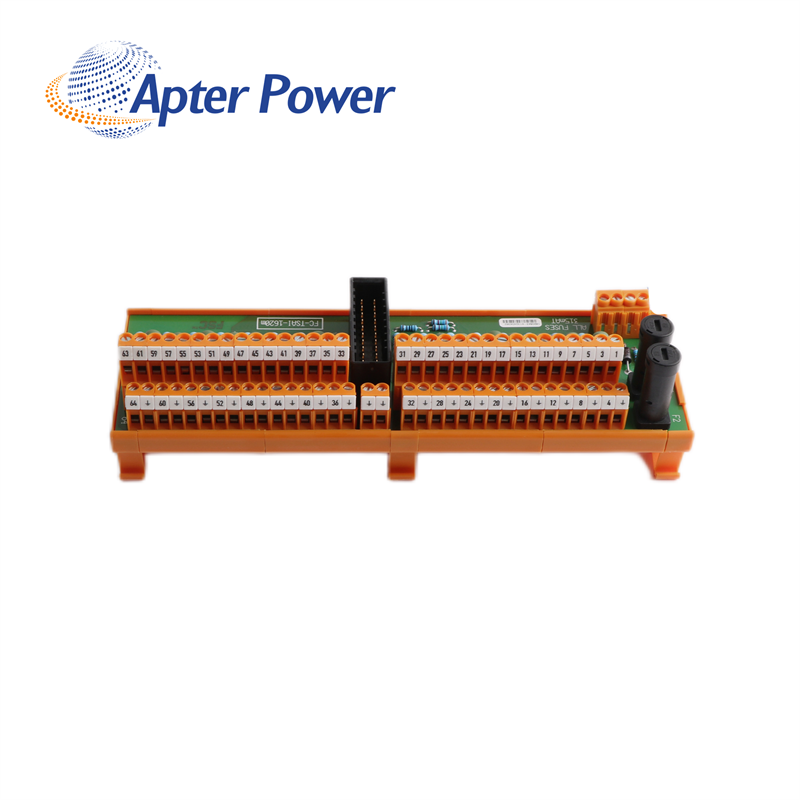

About FC-TSAI-1620M
|
The TSAI-1620m module has sixteen analog input channels, which may be used
for both safety-related and non-safety-related applications. These sixteen
channels (separated into two groups of eight channels with common 0 V) are
connected via a system interconnection cable (SICC-0001/Lx), which is plugged
into the SIC connector on the FTA module.
The FTA module has a universal snap-in provision for standard DIN EN rails, and
screw terminals for connection of power supply, ground and field wiring.TSAI-1620m module has three main functions:
• Linear direct conversion of 0(4)—20 mA DC field signals to the signal levels
of the safe high-density analog input module SAI-1620m
• Power supply distribution to each transmitter with voltage-current limitation
in compliance with Hazardous Area Class I Division 2
• Enabling monitoring of the external power connected to the FTA module
|
