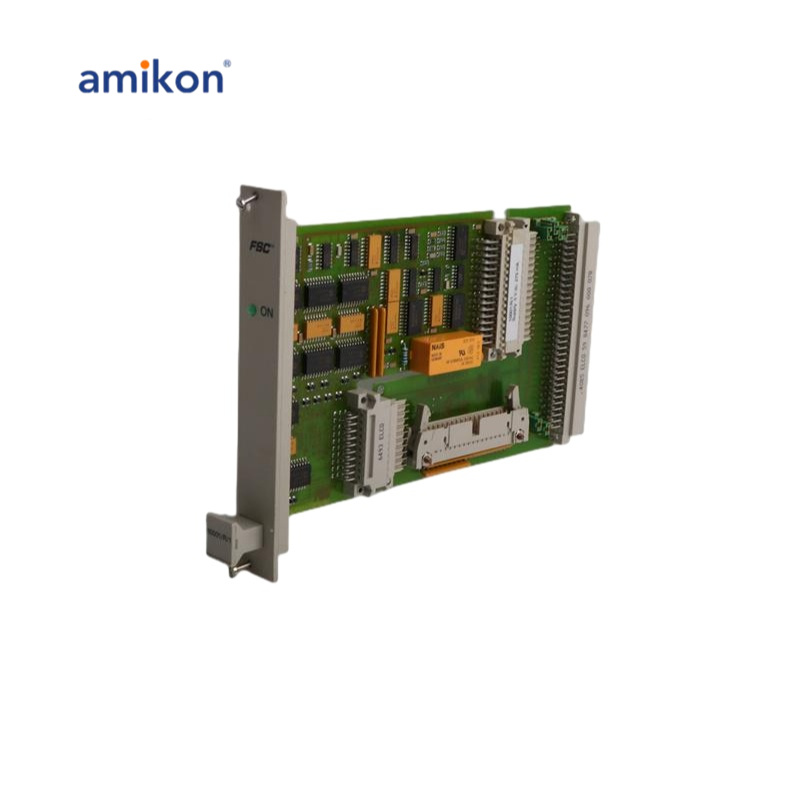

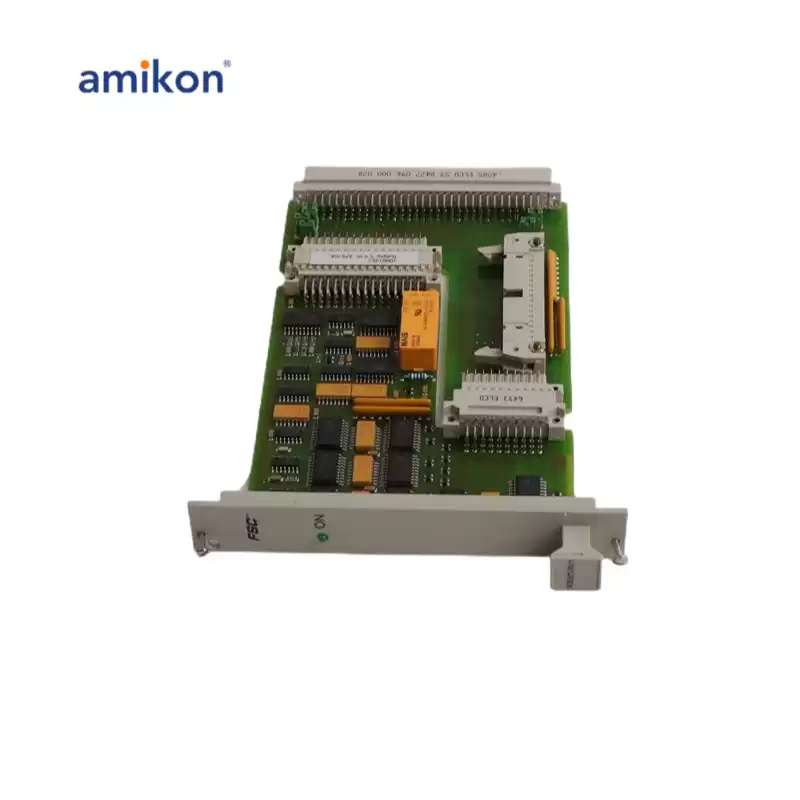

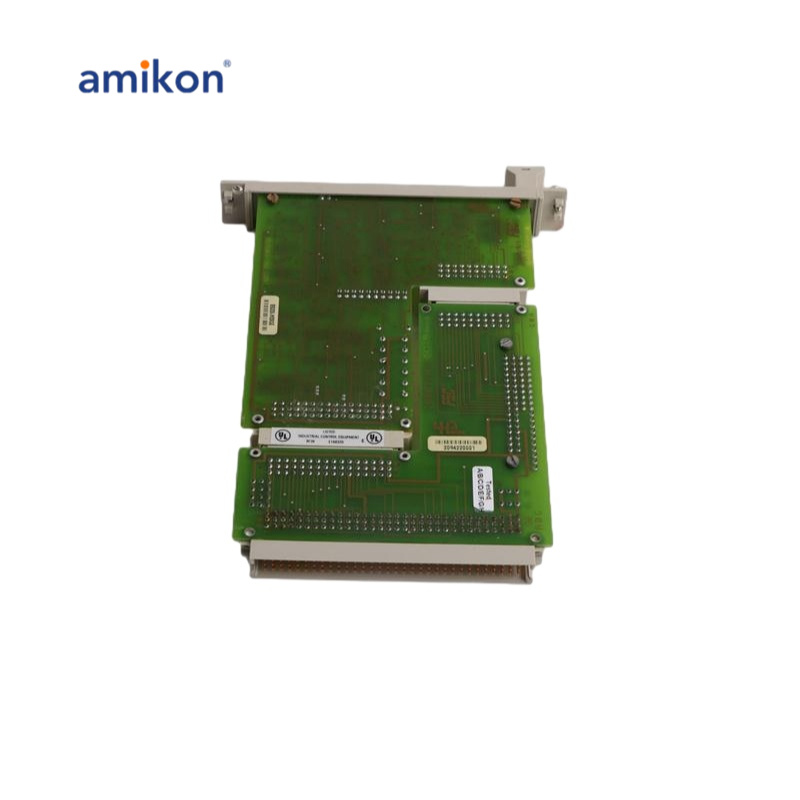

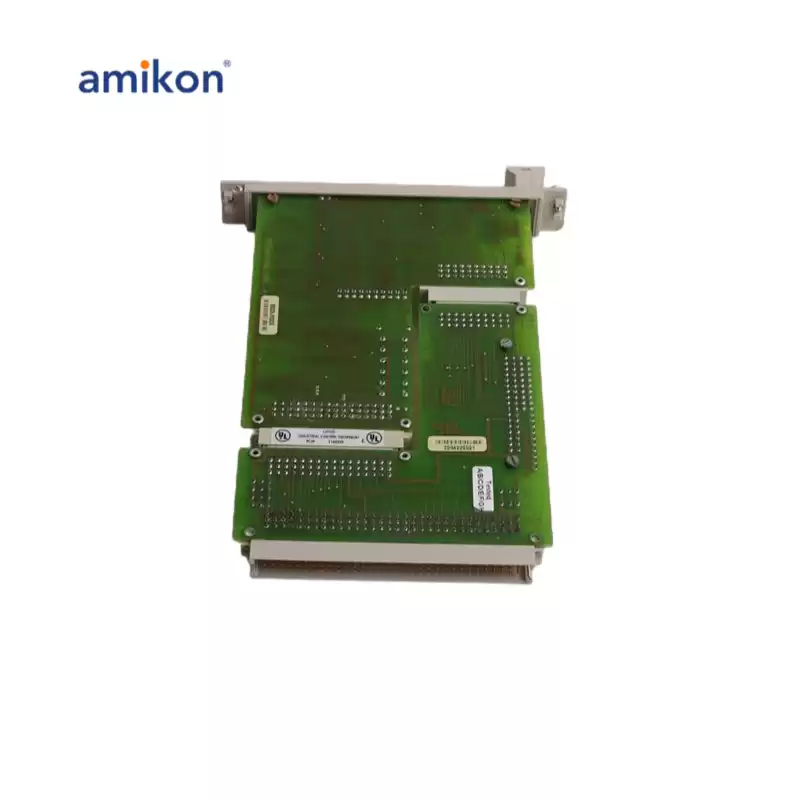

The Central Part (CP) of the FSC system is connected to the I/O level via the vertical bus driver (VBD) modules, which are located in the Central Part rack.
|
|
|
10001/R/I Data sheet
|
A maximum of 14 vertical bus drivers can be installed per Central Part. Each vertical bus driver can support up to 10 horizontal bus driver (HBD) modules.
|
|
The bolts on the 96-pin connector are used to secure the 10001/A/1 part of the VBD to the 19-inch rack.
|
|
This allows exchange of the electronic part of the VBD without disconnecting the vertical bus flatcable.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
