Hook slots diamond circular saw blade for cutting ceramic

JINSHAN hook slots diamond circular saw blade is designed to cut various ceramic tiles, like antique tiles, polished tiles, vitrified tiles and glazed tiles, etc.



HOOK SLOTS DIAMOND CIRCULAR SAW BLADE FOR CUTTING CERAMIC


DESCRIPTION:

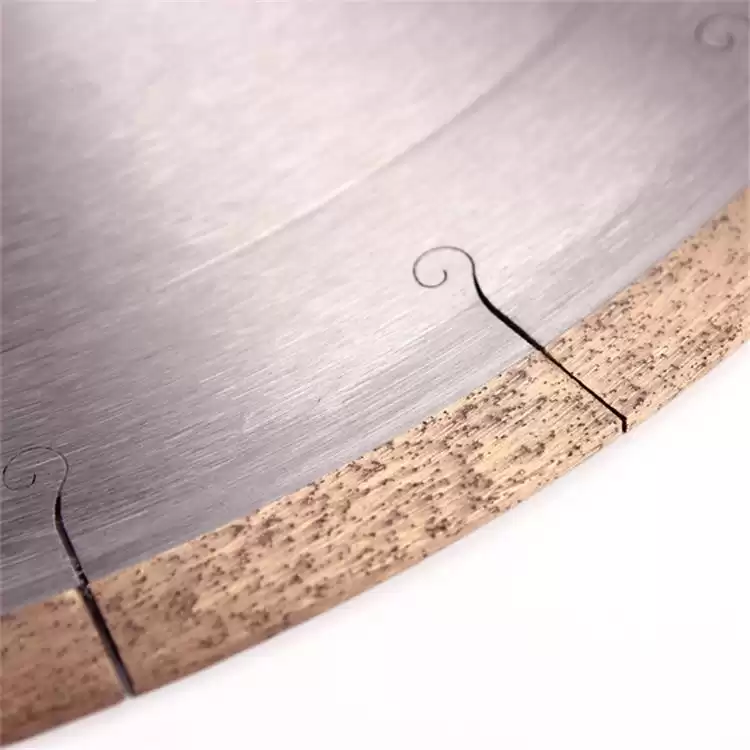

JINSHAN hook slots diamond circular saw blade is designed to cut various ceramic tiles, like antique tiles, polished tiles, vitrified tiles and glazed tiles, etc. The hook slot design ensures the segments to dissipate heat easier when cutting, and it is more silent compared to the regular blade.


SPECIFICATIONS:

Diameter Size of Segment No. of Segment Thickness
300mm 45.21/42.82x2.4x8mm 21pcs 1.8mm
350mm 44.37/42.11x2.4x8mm 25pcs 1.8mm
400mm 43.50/41.77x2.8x8mm 29pcs 2.2mm

Blade Material: Tungsten Carbide Steel Diamond

Usage: wet cutting

Type: circular saw blade

Machine: bridge cutting machine

Inner Hole: 25.4/50/60mm

Application: for cutting ceramic


PACKING DETAILS:

The blades are packed with wooden cases, the cases are made according to the blade quantity while normally it packs less than 10pcs in one case to prevent overweight packing.


FEATURES:

1.The hook slot designed ensures the segments to dissipate heat easier when cutting and it is more silent.

2.It has high cutting efficiency and is very durable, the cutting surface is smooth and clean.


FAQ:

1. What hook-slot design is benefit for ceramic tile cutting?

The hook-slot design around the blade edge is to help dissipate heat, increase durability, extend blade lifespan and speed up cutting.

2. I need clean and no chip ceramic tiles cutting, is this blade suitable for me?

Yes, this hook-slot saw blade is widely used for cutting all kinds of ceramics. It’s the best way to cut porcelain tiles without chipping.
