Product Introduction

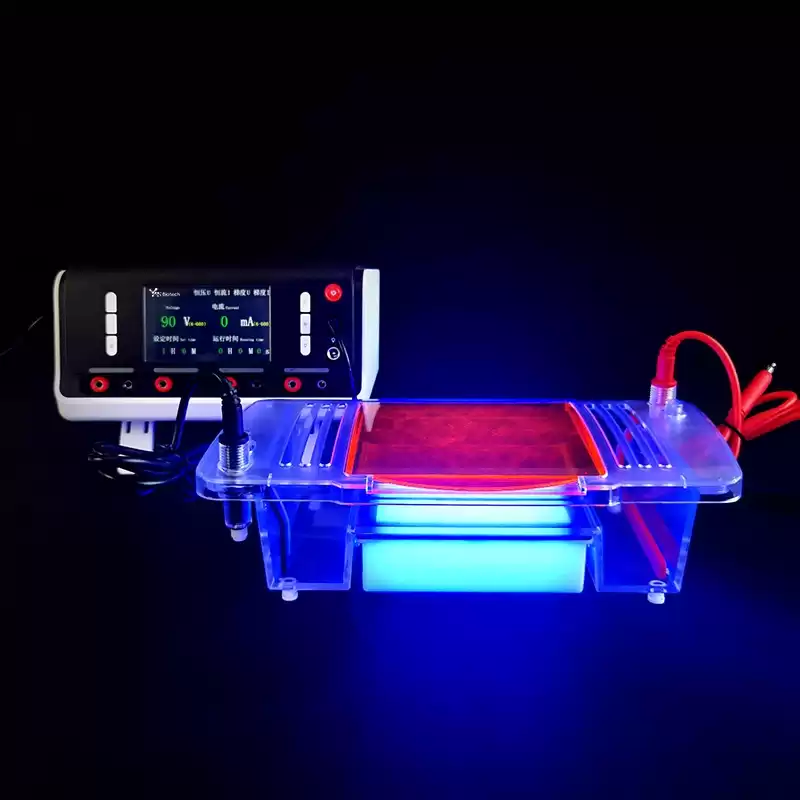

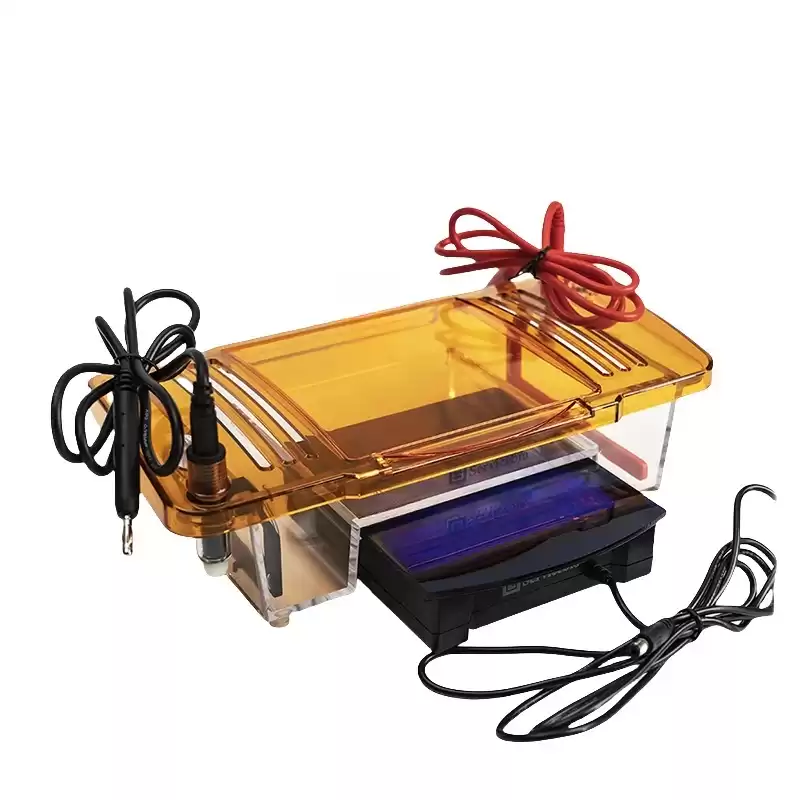

Horizontal electrophoresis tank is a laboratory equipment used for the separation of biomolecules, such as proteins, nucleic acids (DNA or RNA), or other charged molecules, based on their size and charge. In a horizontal setup, the samples are usually placed in wells at one end of a gel matrix (usually agarose or polyacrylamide), and an electric current is applied, causing the molecules to migrate through the gel.
Product Specifications
| Product Name |
Horizontal Electrophoresis Tank |
| Cat. No. |
YB-HET |
| Gel Tray Specification |
Large gel 120mm X 120mm;
Width gel 60mmX120mm;
Long gel 120mm X 60mm;
Small gel 60mmX60mm
|
| Comb Specifications |
1.0mm 25/11 teeth
1.5mm 13/6 teeth
2.0mm 3/2 tooth |
| Blue light wavelength |
470nm |
| Weight |
1kg |
Key Features

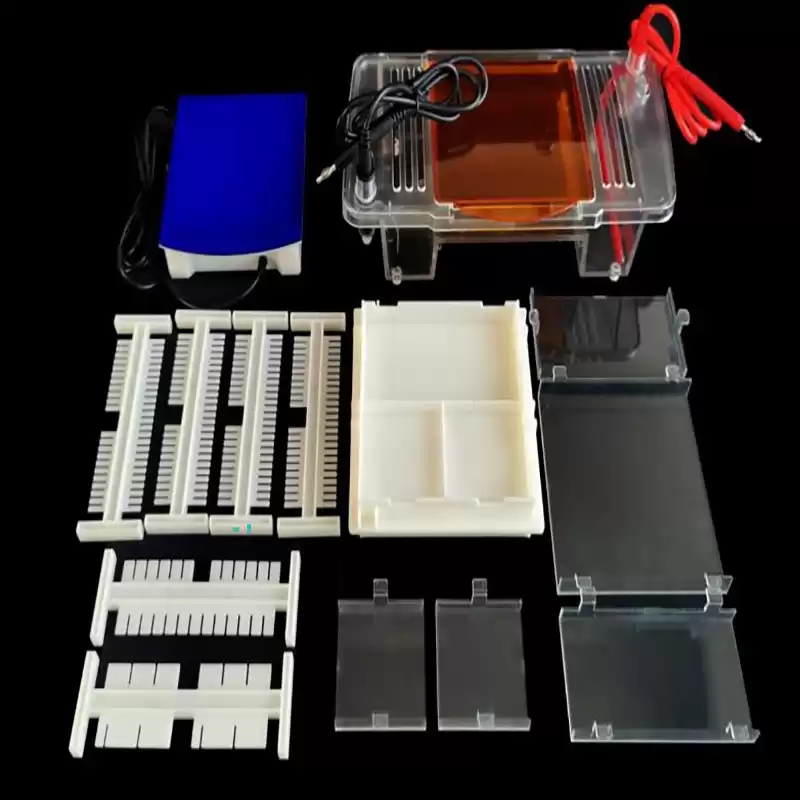

Gel Maker Mold is Integrally Formed: can make four different sizes of gel blocks.

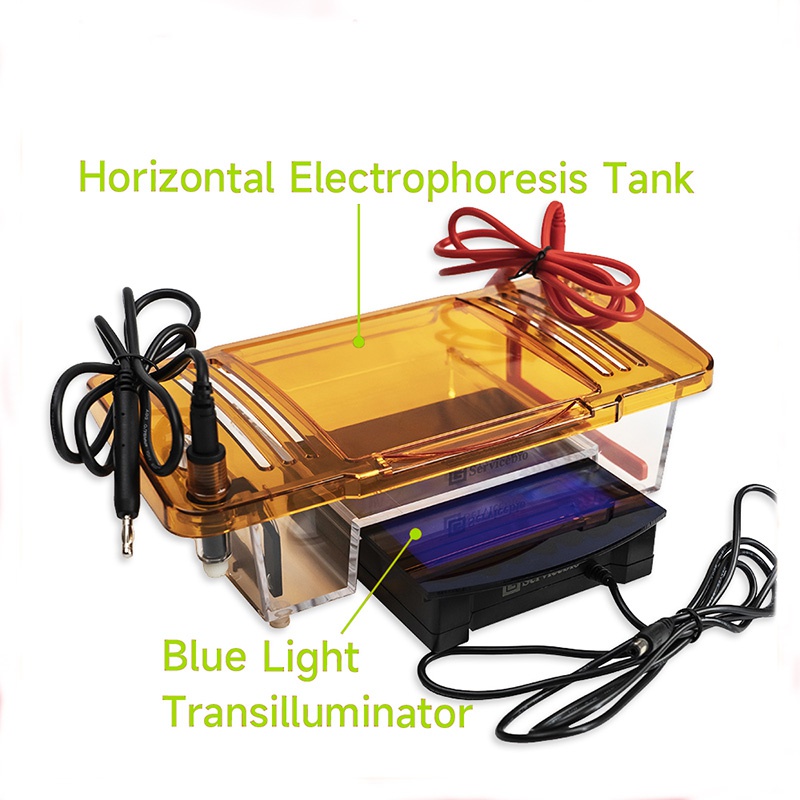

Standard blue light transilluminator: can directly observe the band during the electrophoresis process.
Transparent Upper Cover has a hole design: convenient for heat dissipation and observation.
Card slot limit function, accurate operation.
Applications
- DNA Analysis: Used to check the size and quantity of DNA fragments after PCR, restriction enzyme digestion, or other manipulations.
- RNA Analysis: Helps in checking the integrity and quality of RNA samples.
- Quality Control: In many molecular biology experiments, GDS is crucial for quality control of nucleic acids and proteins.
FAQ
Q.What is the delivery time?
A.Sample orders: Typically prepared within 5 days.
Bulk orders: Delivery usually takes 20-30 days, depending on the quantity.
Q.Do you offer custom-made products?
A.Yes, we offer both OEM and ODM services. We can also assist with product design. Customization options include:
Silk printing your logo on the product.
Customized color packaging.
Designing and producing products based on your ideas and drafts.
Q.How do you handle shipping?
A.For sample orders: We typically use express couriers such as UPS, DHL, FedEx, or TNT. If you have your own express account, you can use it for shipping.
For bulk orders: Shipments are generally sent by sea freight. We work with reliable freight forwarders, but you can also use your own preferred forwarder.
Q.What is your after-sales service?
A.We offer the following after-sales services:
All inquiries will be replied to within 24 hours.
We are a professional manufacturer, offering high-quality products at competitive prices.
All products undergo strict quality checks and are well-packaged before shipment.
If the breakage rate of FCL (Full Container Load) orders exceeds 2%, we will replace the damaged products in the next order.
