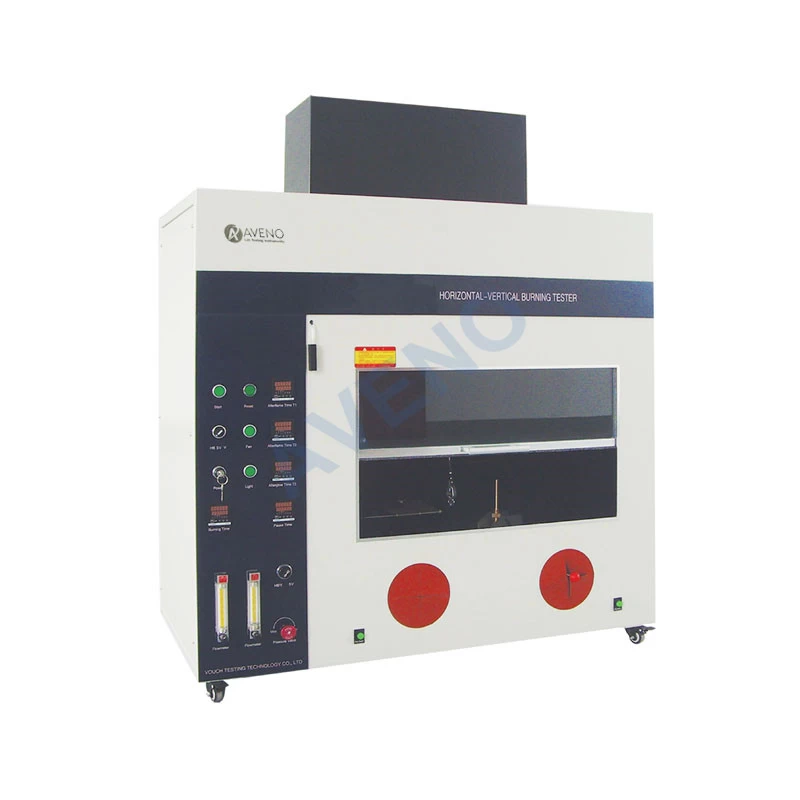

AT21-Horizontal and Vertical Flame Chamber
Application Of Horizontal and Vertical Flame Chamber
Horizontal and Vertical Flame Chamber is used to test the flammability of toys, textiles, plastics, and other nonmetallic materials.
Test Principle Of Horizontal and Vertical Flame Chamber
Sample in a horizontal or vertical state should be burned at regular intervals several times for a certain flame height and a certain flaming angle, then according ignite, burning duration, and whether the ignition material under the sample is ignited to assessment of its combustibility and risk.
Feature Of Horizontal and Vertical Flame Chamber
-
Multi-function adjustment fixture
-
One-click operation, easy to understand
-
High-power exhaust system to effectively prevent smog corrosion
-
Tempered glass perspective window, sliding mute chamber door.
Standards Of Horizontal and Vertical Flame Chamber
UL 94, IEC 60695-11, IEC 60950, IEC 707, GB/T 2408, GB/T 5169, ISO 9772.3, ISO 1210,
ASTM D635, D3801, D4804, D4986.
Key Specification Of Horizontal and Vertical Flame Chamber
|
Model
|
AT21 Horizontal and Vertical Flame Chamber
|
|
Chamber
internal volume
|
0.8m2
|
|
Chamber
internal dimension
|
120*60*112cm
|
|
Flame
height adjust range
|
10-200mm
|
|
Gas
flow adjust range
|
20-1000mm/min
|
|
Gas
pressure difference adjust range
|
5-200 spout
|
|
Flame
angle adjust range
|
0-45degree
|
|
Burner
height adjust range
|
50mm
|
|
Sample
vertical move range
|
450mm
|
|
Sample
horizontal move range
|
180mm
|
|
Burning
time
|
0.00-99.99s
|
|
Residual
flame time
|
0.00-99.9s
|
|
Time
precision
|
0.01s
|
|
Power
supply
|
AC220V, 50/60HZ
|
|
Dimension
|
120*60*115cm
|
|
Weight
|
125kg
|
Accessories Of Horizontal and Vertical Flame Chamber
|
Standard Accessories
|
Flame height calibration scale
|
1pc
|
|
Sample angle calibration fixture
|
1set
|
|
Horizontal combustion test fixture
|
1set
|
|
Vertical combustion test fixture
|
1set
|
