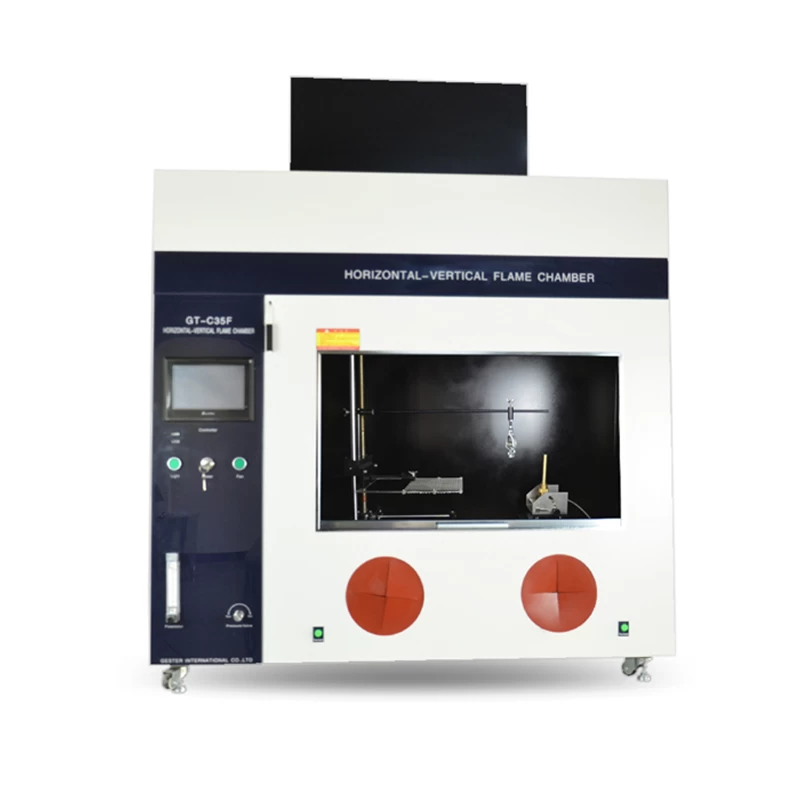

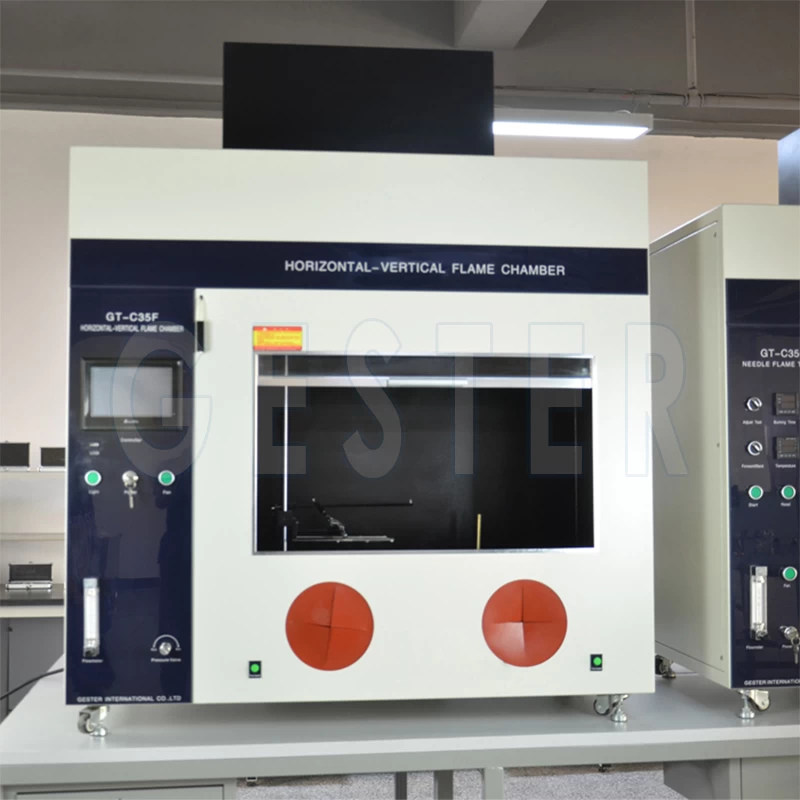

Horizontal and Vertical Flame Chamber GT-MC35F-2

Internal dimensions

120 x 60 x 112cm (WxDxH)

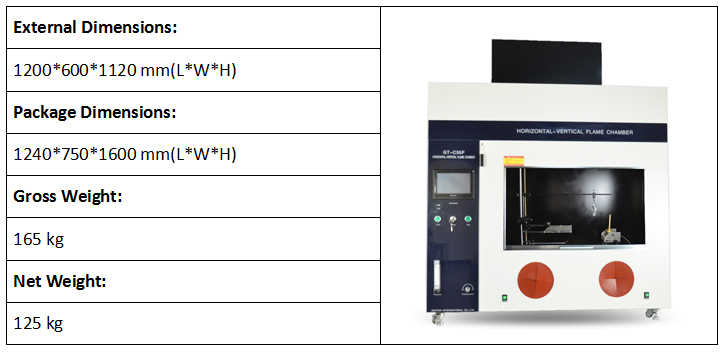

External dimensions

120 x 65 x 150cm (WxDxH)

Inside cubage

0.8m³

Flame height:

15-175mm/min (can be adjustment)

Gas flowmeter

20-200ml/min (can be adjustment)

Gas press

5-200mm (can be adjustment)

Flame angle

0-45degree (can be adjustment)

Burner height adjust

50mm

Sample vertical move distance

450mm

Sample horizontal move distance

180mm

Burn time

0-99.99s (can be adjustment)

After flame time / after glow time

0.1s-99.99s (can be adjustment)

Precision

0.01s

 Box material

The test vehicle both inside and outside use of 2mm cold plate CNC forming

 Inside lamp source

Explosion-proof light ( Osram or Philips 40W halogen lamp)

 Exhaust system

Standard 180W exhaust fan

 Viewing window

5mm armoured glass ( 60 x 40cm)

 Design of viewing window

Adopt principles of electrical counterweight, Mute rail design,  weightlessness, without noise

Transmit mechanism

Axis linear bearing drive with chrome design

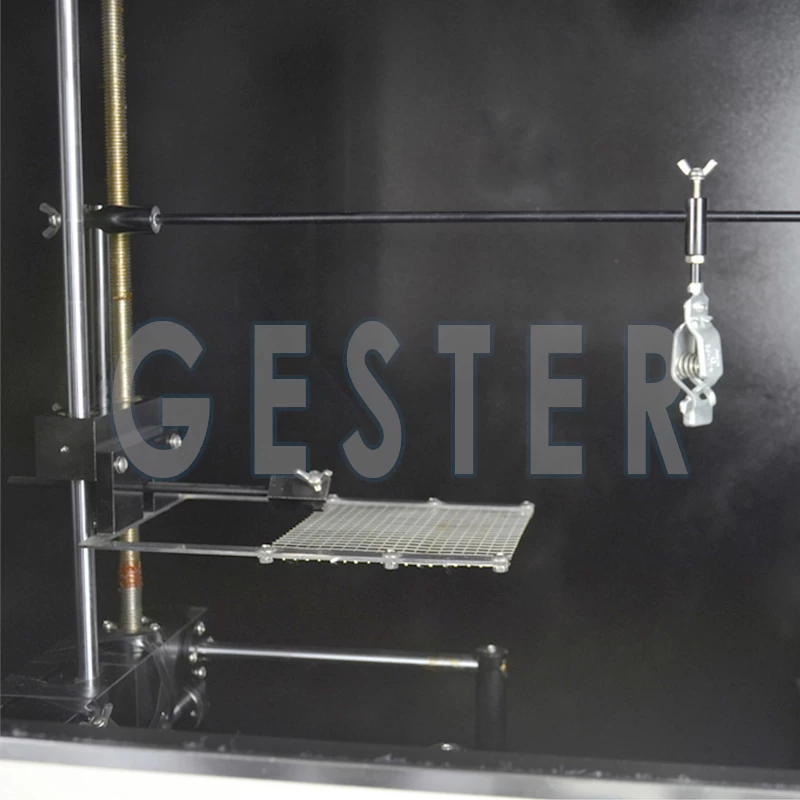

Clamp design

Imported anodized aluminum
