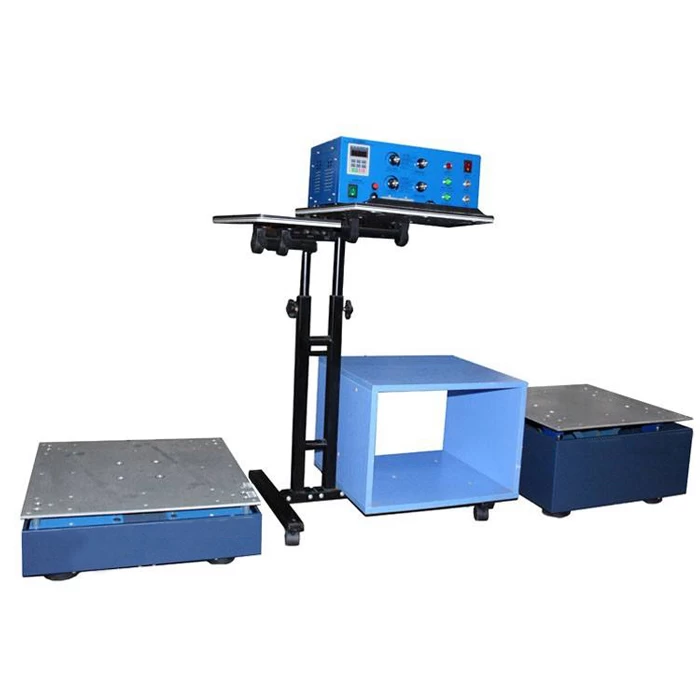

Horizontal and Vertical Vibration Test Machine GT-M11-2

Model

GT-M11-2

Function

Sine wave, amplitude modulation, sweep frequency

Maximum test load (KG)

0-100

Frequency range

0.5-600HZ, Amplitude/frequency/time/acceleration can be set freely

Sweep range

0.5-600HZ, frequency / speed / time / amplitude / acceleration can be set freely. Real, standard, sweep back and forth and can be recycled.

Amplitude

0—5mm

Max Acceleration

0-22g

Vibration Direction

Vertical + horizontal (X + Y + Z axis)

Vibration waveform

Sine wave

Programmable

0.5-600HZ, Programmable frequency / time / amplitude / acceleration can be set

Octave coverage

0.5-600HZ, Octave frequency / time / amplitude / acceleration can be set freely

485 Communication interface

Scalable computer control models

Time control

Any time can be set

Vibration machine power (KW)

2.2KW

Dimension

Vertical 50*20*50cm   Horizontal 50*25*50cm

Bed dimension (L*W)

500mm*6mm*500mm

Supply voltage (V)

220±20%

Max Current (A)

10

Note: 1g=9.8m/s2  Acceleration=0.002*f2*D(g)  f=frequency(Hz)
