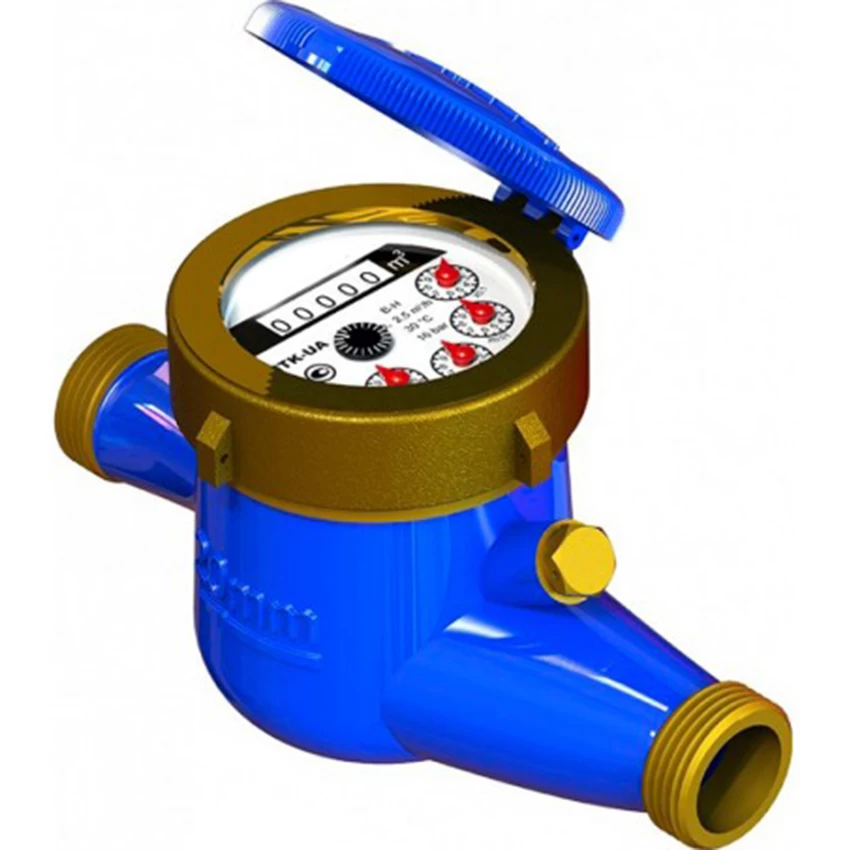

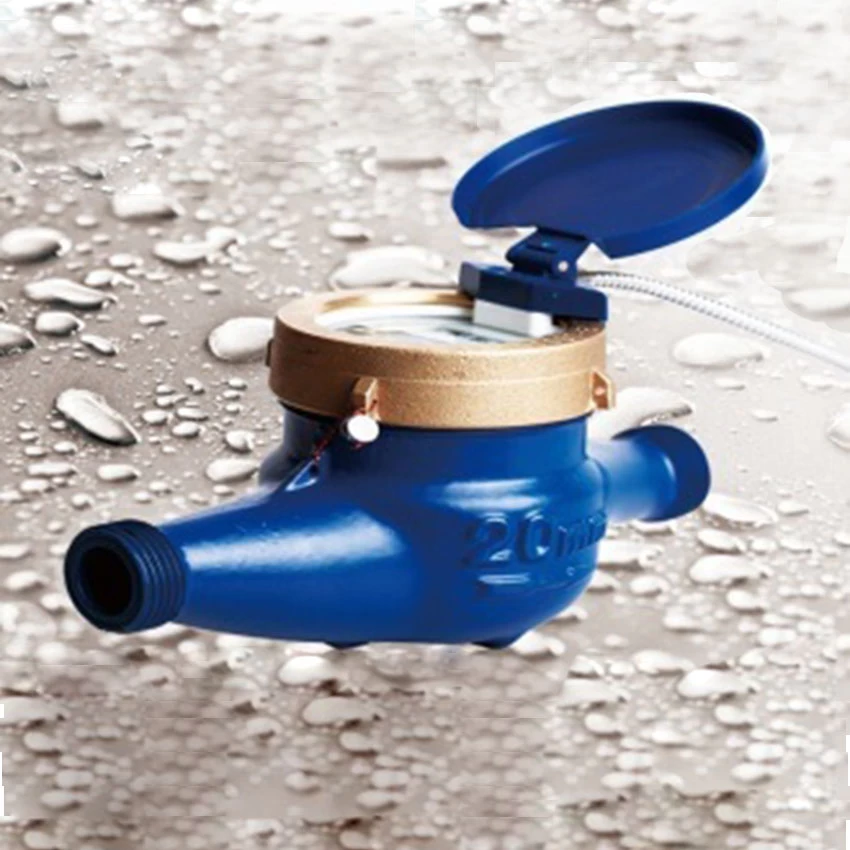

Horizontal multi jet water meter Housing material brass port size DN32 Mbus communication
Domestic Water Meters - Water Flow Meters are unit flow meters of cold and hot water with an emphasis on maximum accuracy. Our automatic meter reading AMR, consists of multi jet water meter, and wired Mbus communication. Available in sizes 15mm to 50 mm for residential application, and DN 50 to DN 300 for commerical and industrial applications. It's for cold water volumetric measurement, or hot water up to 90 ℃.
The magnetic coupling reliably transmits the rotation of the blade wheel to the counter. The water meter is a classic compact water meter over the plaster. It is available as a hot and cold water meter as well as with various flow rates and building lengths and is so versatile.
As a basic version, the water meter is delivered with the empty module installed and secured. Thanks to the modular design of the device, the empty module can be quickly and easily removed and replaced with other modules, with the contact, radio or M-Bus modules available.
Product Name: Automatic Meter Reading Multi Jet Water Meter
Caliber Size: 1-1/2"
Trhead Connection: Thread Remote Reading: Wired Mbus
Type: Dry Dial
Accuracy: + / - 2% @ Cold Water
Operation Pressure: 150 Psi / 1.0 Mpa
Material: Brass/cast iron/plastic
Function: Totalizer , Flow Rate
Key Features:
R value is R80 / 100 / 125 / 160 as requested
Suitable for both cold and hot water applications
Replaceable meter inserts available
Good readability even at extreme operational conditions
Optionally retrofittable with pulse contactors
Operate condition:
Water temperature:0.1℃～40℃ for cold water
30℃～90℃ for hot water meter.
Water pressure: ≤1.0 Mpa
water meter for cold water up to 30 ° C and for hot water up to 90 ° C
maximum working pressure 10 bar
magnetic protection
metrological class B for horizontal mounting and class A for vertical installation according to ISO 4064
approval of a type of meter for the EU
Note:
Measuring accuracy conform to ISO 4064 class B standard..
Available with different length on request. Available in hot water meter on request.
Maximum Permissible Error:
(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.
