Product Item:

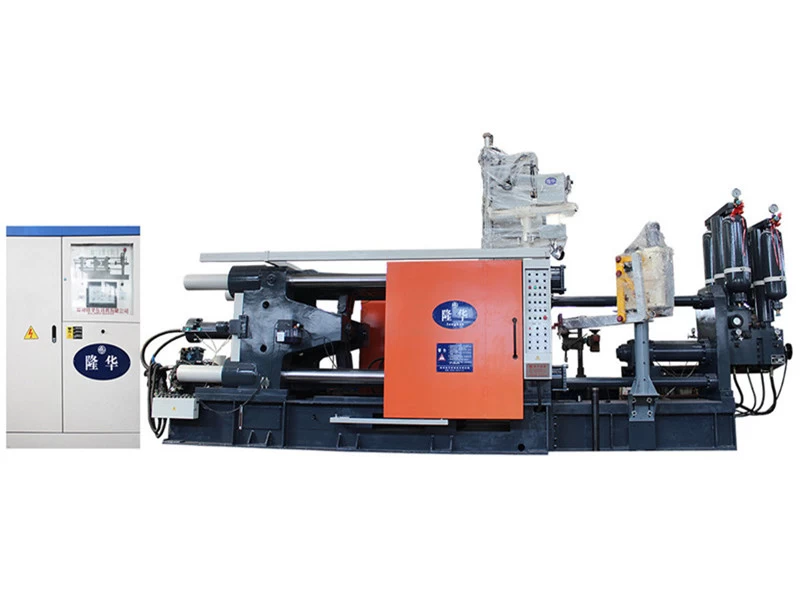

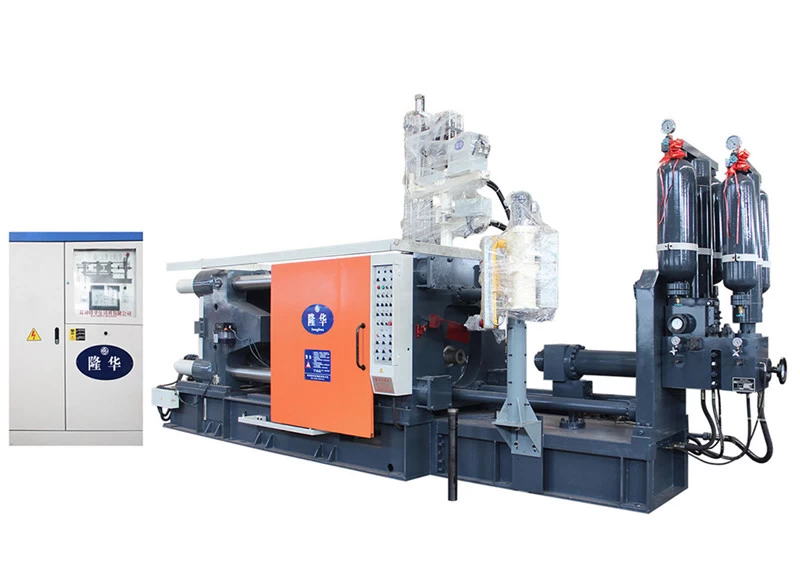

Horizontal cold chamber die casting machines for making LED street light housings(LH-900T)
Die casting machine, to some extent, due to the advantages of size accuracy and surface smoothness of products, generally no mechanical processing but direct use or small amount of processing, so it not only improves the utilization rate of metal, but also reduces a lot of processing equipment and working hours. Easy casting price; Combination die casting can be used for other metallic or nonmetallic materials. It saves assembly time and metal.
LH SERIES OF STANDARD PARAMETER TABLE (LH-900 T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
14
|
|
CLAMPING FORCE
|
KN
|
9000
|
|
SPACE BETWEEN TIE BARS
|
MM
|
910*910
|
|
TIE BAR DIAMETER
|
MM
|
￠180
|
|
DIE OPENING STROKE
|
MM
|
760
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
750
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
295
|
|
INJECTION POSITION
|
MM
|
-- 250
|
|
PLUNGER DIAMETER
|
MM
|
￠80 ￠90 ￠100
|
|
INJECTION STROKE
|
MM
|
760
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
154/121/81
|
|
CASTING FIANGE PROTRUSION
|
MM
|
20
|
|
CASTING FIANGE DIAMETER
|
MM
|
200
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
2150
|
|
INJECTION WEIGHT(AL)
|
KG
|
7.1/9/14
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
350～950
|
|
EJECTOR FORCE
|
KN
|
315
|
|
EJECTOR STROKE
|
MM
|
180
|
|
MOTOR CAPACITY
|
KW
|
30
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
9.1*2.4*3.3
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
40
|
|
OIL TANK CAPACITY
|
L
|
1500
|
PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE
Aluminum alloy die casting machine advantages
Aluminum alloy die casting machine in operating process and the comparison to the other die-casting machine performance will have their own advantages.
The development of aluminum alloy die casting machine has been going on, the equipment technology has been mature, the characteristics of the aluminum alloy die casting machine because of its high pressure rapid solidification makes is often accompanied by the improvement of the performance of the die casting aluminum alloy mechanical casting process to reduce the performance of this particular, aluminum alloy die casting machine are being widely used.
Company Files
Bengbu Longhua Die Casting Machine Co.,Ltd is a high-tech enterprise integrating scientific research and sales, adopting the new generation of Japanese die casting technology, specializing in the production of computer precision control cold chamber die casting machine and its peripheral equipment.
Longhua series cold chamber die casting machine mainly includes: LH125T-LH3500T and more than 20 types of models, suitable for aluminum alloy, magnesium alloy, zinc alloy, copper alloy, using all imported famous hydraulic, electrical, sealing parts, high standard design and precision processing.Any of the models produced can be configured according to customer preference.
Longhua die casting machine is reasonable in design and safe in use.Widely used in automobile, motorcycle, home appliances, communications, gifts, toys, hardware, kitchen, IT and other industries, fully meet the requirements of various types of die-casting production technology.
Longhua technology has been carrying out the spirit of "treating customers with integrity", with the enterprise management style of "realistic, refined, innovative and progressive", and striving to create a newer and more perfect die casting machine to serve our customers.
