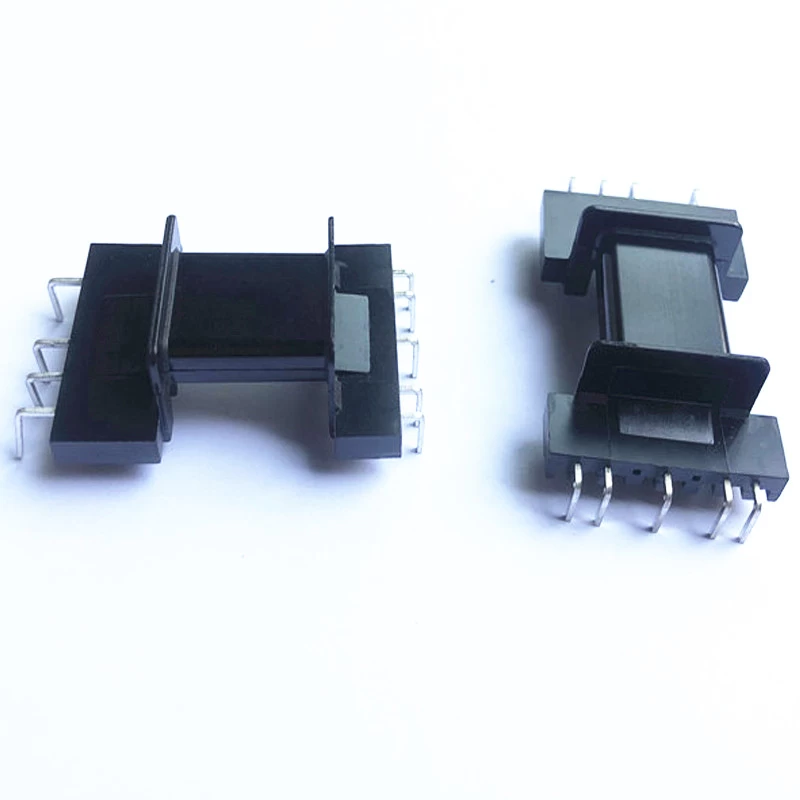

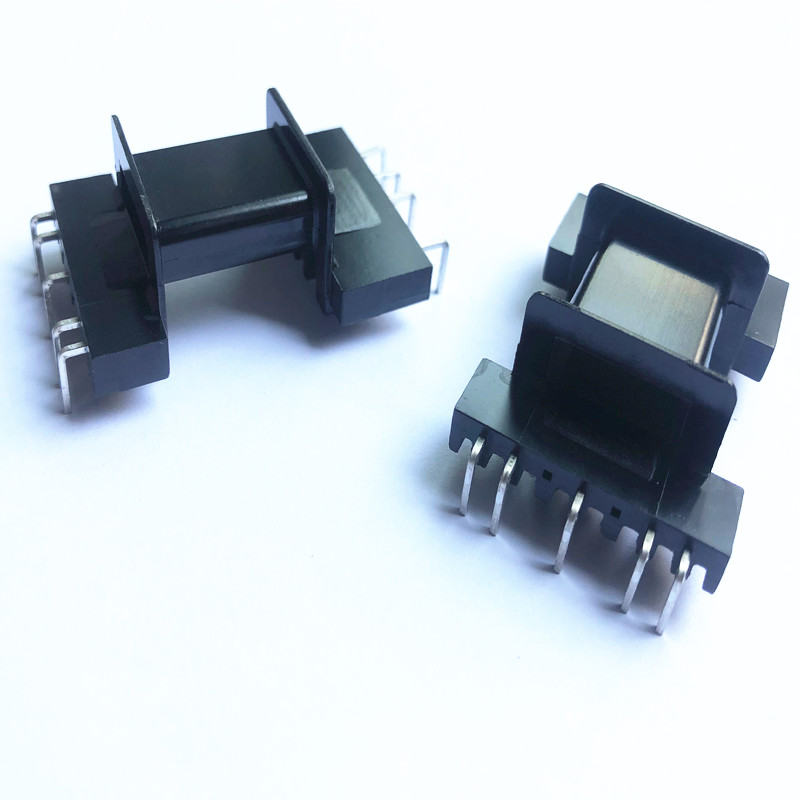

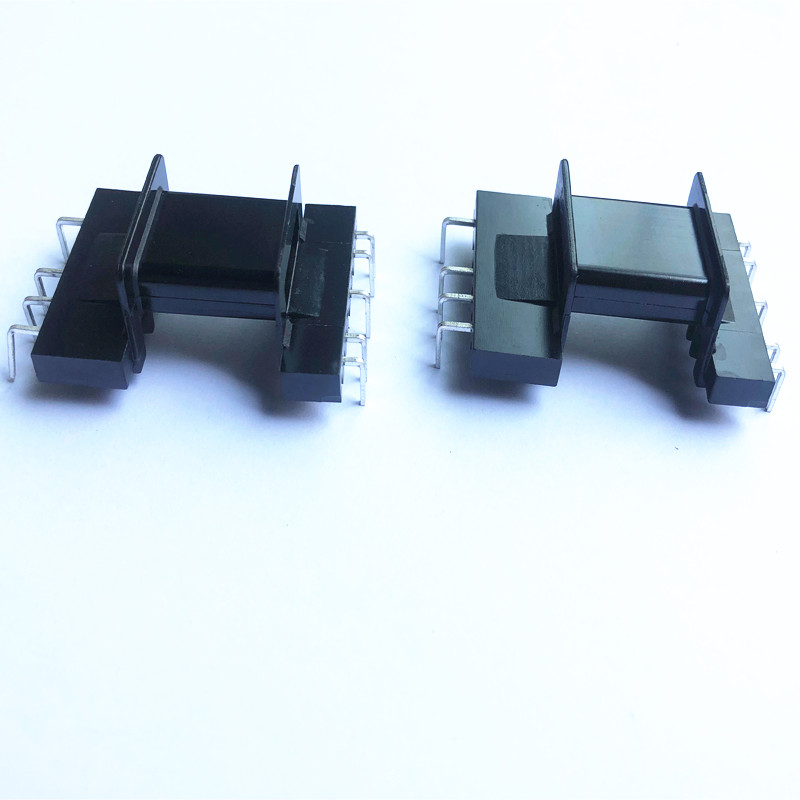

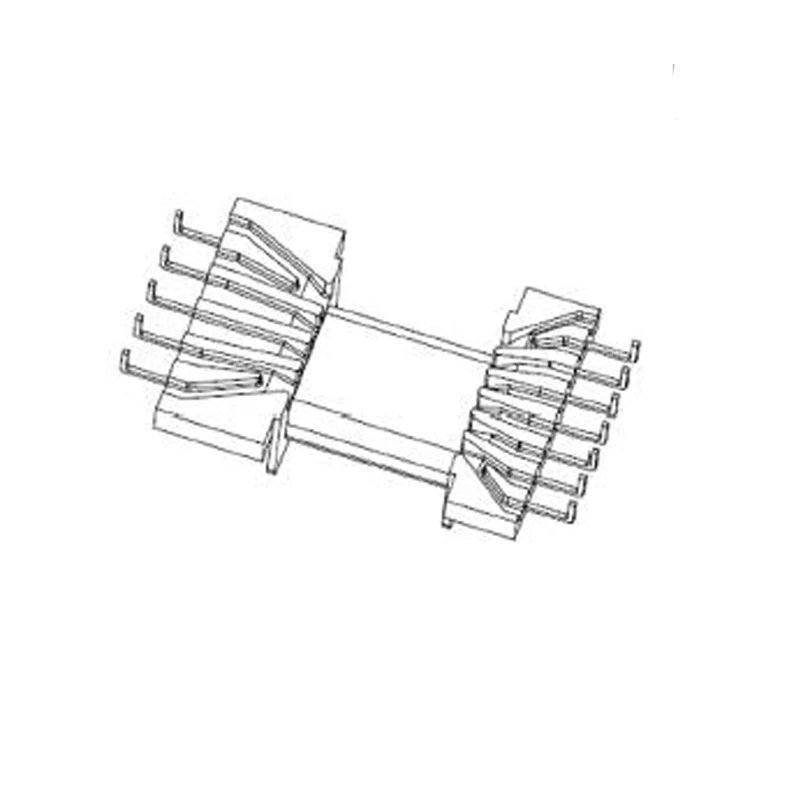

Horizontal EFD30 High Frequency Transformer Frame

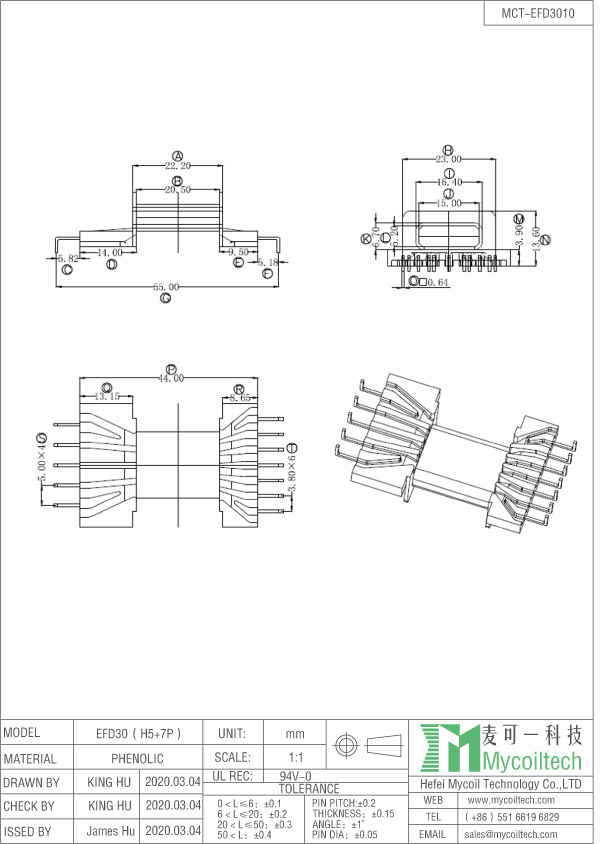

EFD30 switching transformer coil bobbin. 5+7 pin wire slot horizontal bobbin. EFD30 MnZn power ferrite core. Row distance=44.0mm. Pin pitch=5.0mm. Pin pitch2=3.8mm. Bobbin Size=55.0mmX23.0mmX13.6mm. EFD30 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
