Transformer factory hot selling high quality switch mode transformers, low leakage inductance ETD34 transformers, custom design and OEM service also available.
Quick Details
|
Part No: Flexible SMPS-Transformer ETD34
|
Brand name: MCT
|
|
Insulation test voltage: 3750V
|
Custom made: Available
|
|
Low leakage inductance
|
Logo: Can be customized
|
|
Transformer with multi-winding
|
Packing: Carton, can custom
|
|
Operating temperature -40°C~+125°C
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
|
Lead time: 25 days after payment
|
Shipping: Air, Ship, etc
|
Part Information

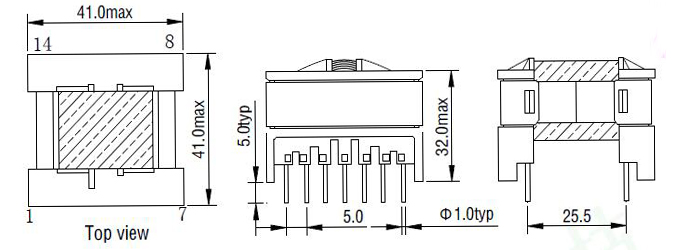

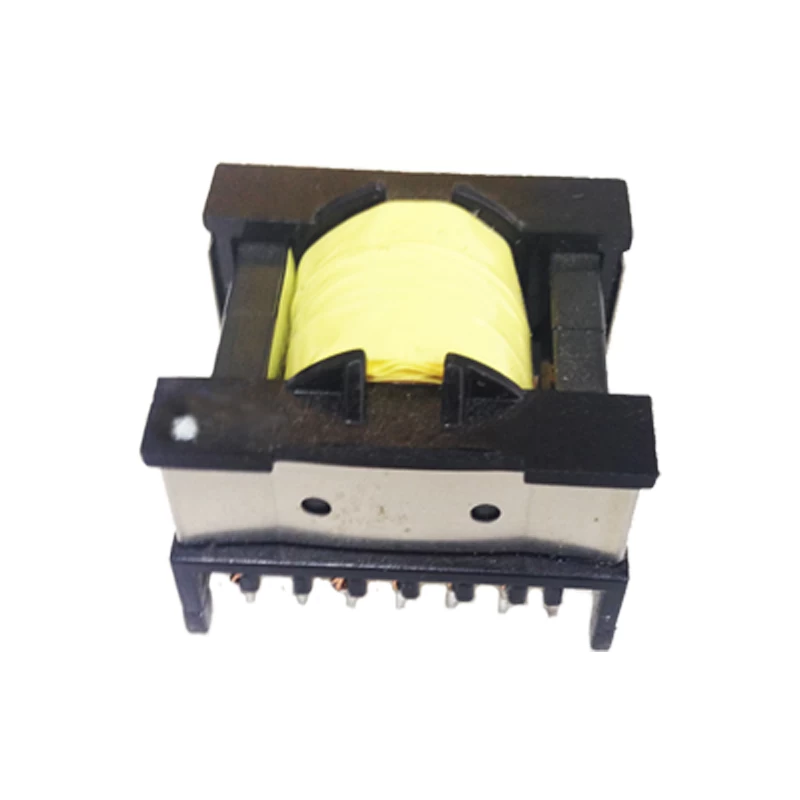

Product Name: Horizontal ETD34 High Voltage Transformer for Switching Power Supply
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specifications
Electrical Data and Part Number(PN)
|
Lp in uH
|
L1..L6 in mA
|
Lsat in mA
|
DCR/mΩ
|
MCT PN
|
|
115.0
|
2200
|
320
|
50
|
MCT-ED115
|
|
65.0
|
2200
|
660
|
50
|
MCT-ED065
|
|
35.0
|
2200
|
1550
|
50
|
MCT-ED035
|
|
22.0
|
2200
|
3000
|
50
|
MCT-ED022
|
