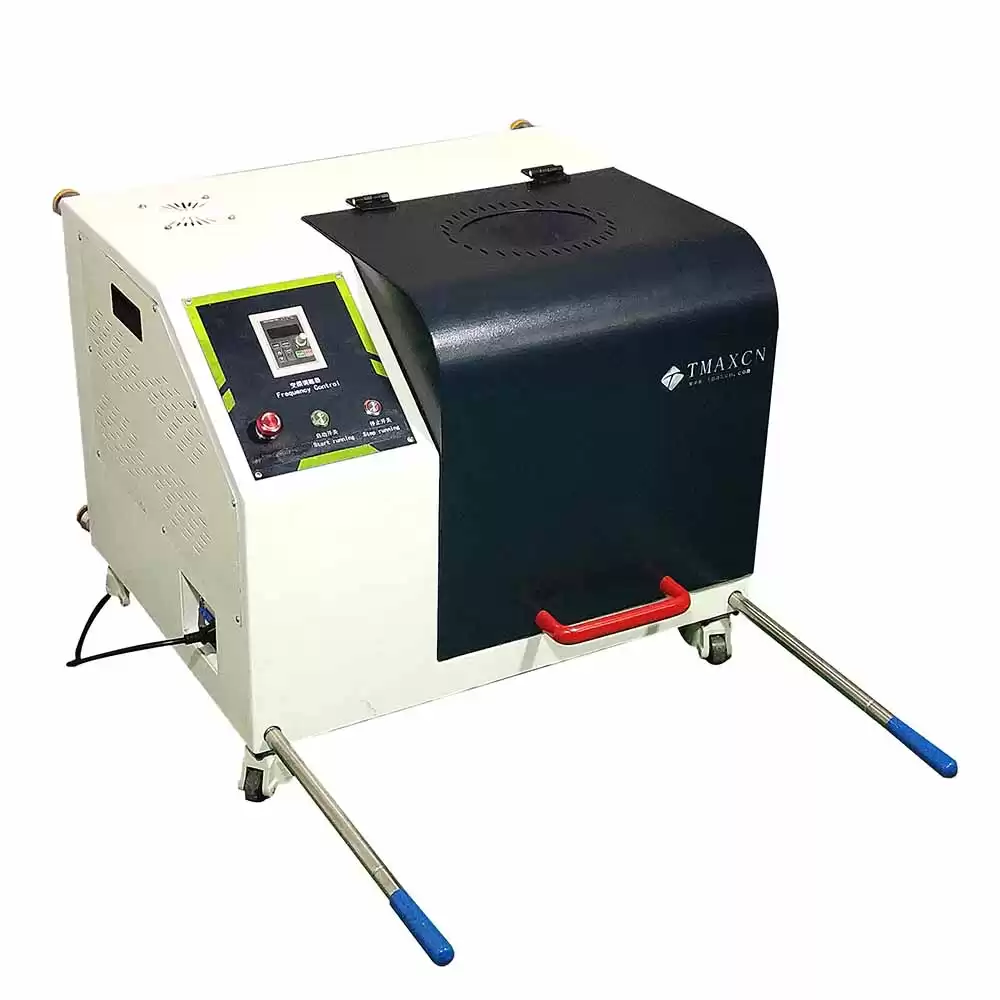

Horizontal Planetary Ball Mill Designed for Some Materials Easy Sink to The Bottom

Product introduction

 series planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm).

1. Fast grinding with variable speeds up to 900 rpm

2. Minimum granularity can be reached to 0.1 micron meter

3. Convenient to operate,safe and reliable

4. Grinding jars and balls in different materials to suit the property of your material

5. Ultrafine grinding

6. Mixing

7. Small sample preparing

8. New product development

9. Small volume high-tech material production

Technical parameters
Drive Mode: gear drive and belt drive
Operation Mode: two or four grinding tanks working together
Maximum Loading Capacity: 2/3 of the capacity of milling tank
Feeding Granularity: soil material ≤10mm, other materials ≤3mm
Output Granularity: Minimum 0.1um
Rotational speed ratio (revolution: rotation): 1:2 (0.4L,2L,4L);1:1.5(12L,20L)
Rotation Speed: 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280 rounds/min
Speed Regulation Mode: variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed positive or negative revolving
Max. continuous operating time (full-load): 72 hours

Technical Parameters of Horizontal Planetary Ball Mill
