Horizontal Porcelain Tile Hook Solar PV Panel Fixing Solution for Tile Roof

Common accessories for photovoltaic brackets.



  • Payment :T/T,Paypal

  • Product Origin : China

  • Color : Natural

  • Shipping Port :Xiamen

  • Brand : Egret Solar

  • Certification :ISO/SGS/CE

  • Material :SUS304

  • Lead Time:
  • Quantity (sets) 1-5000 >5000
    EST. Time(days) 10 To be negotiated

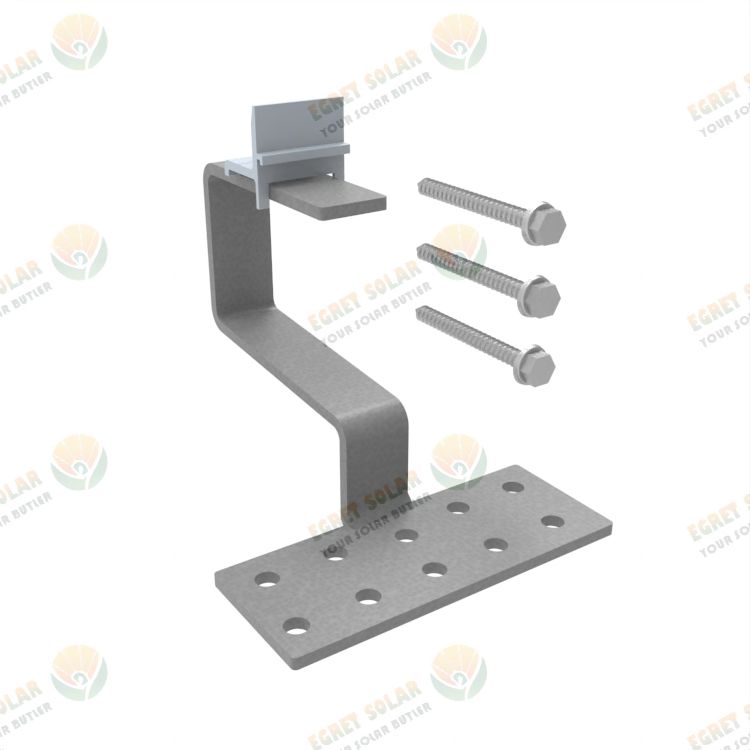

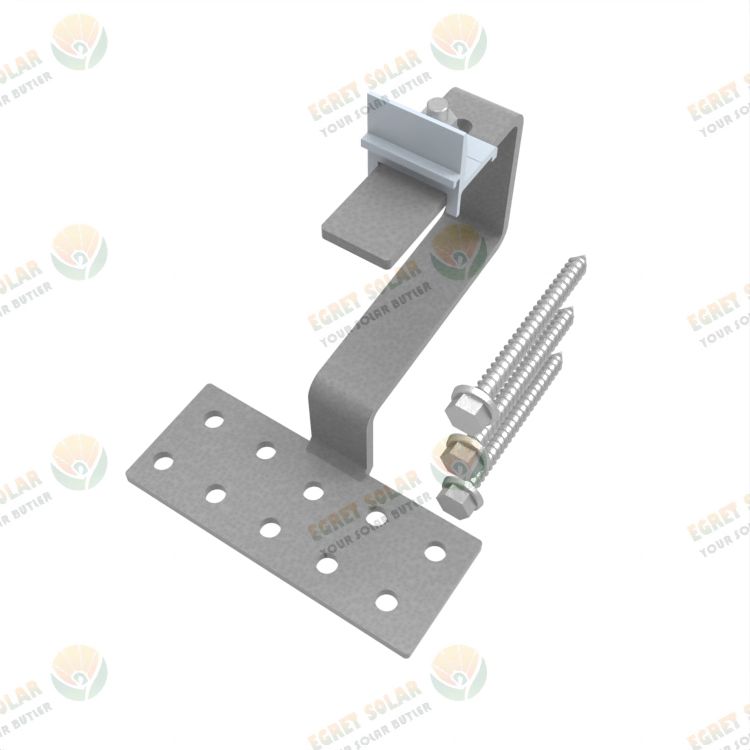

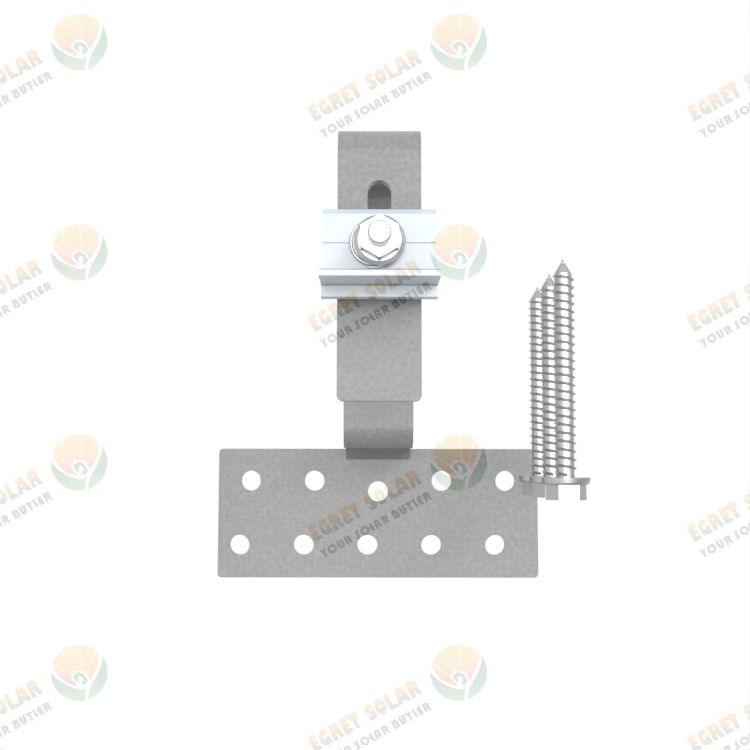

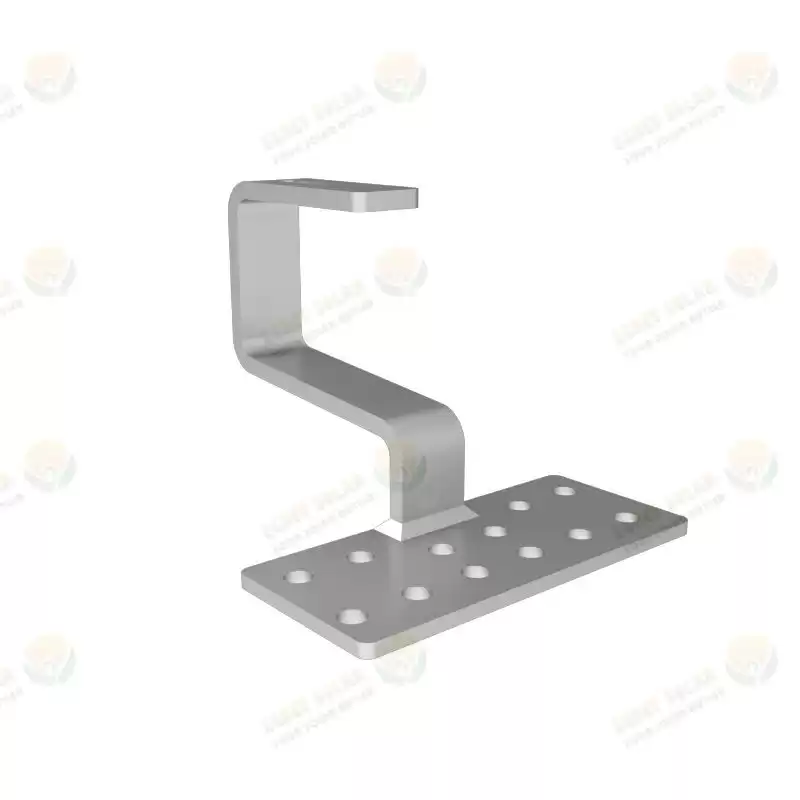

Product name 01# Horizontal Porcelain Tile Hook
Model Number EG-TR-SH02
Installation Site Tile Roof
Surface Treatment Sandblasted
Warranty 12 years
Snow Load 1.4KN/M²
Wind Speed 60M/S
OEM Service Avaliable



Product Description



Horizontal porcelain tile hooks are suitable for porcelain tile roofs, and can be used with H-type rails or 40 rails. Different bolts and widths are selected according to the type of bottom beam and different types of hooks are selected.

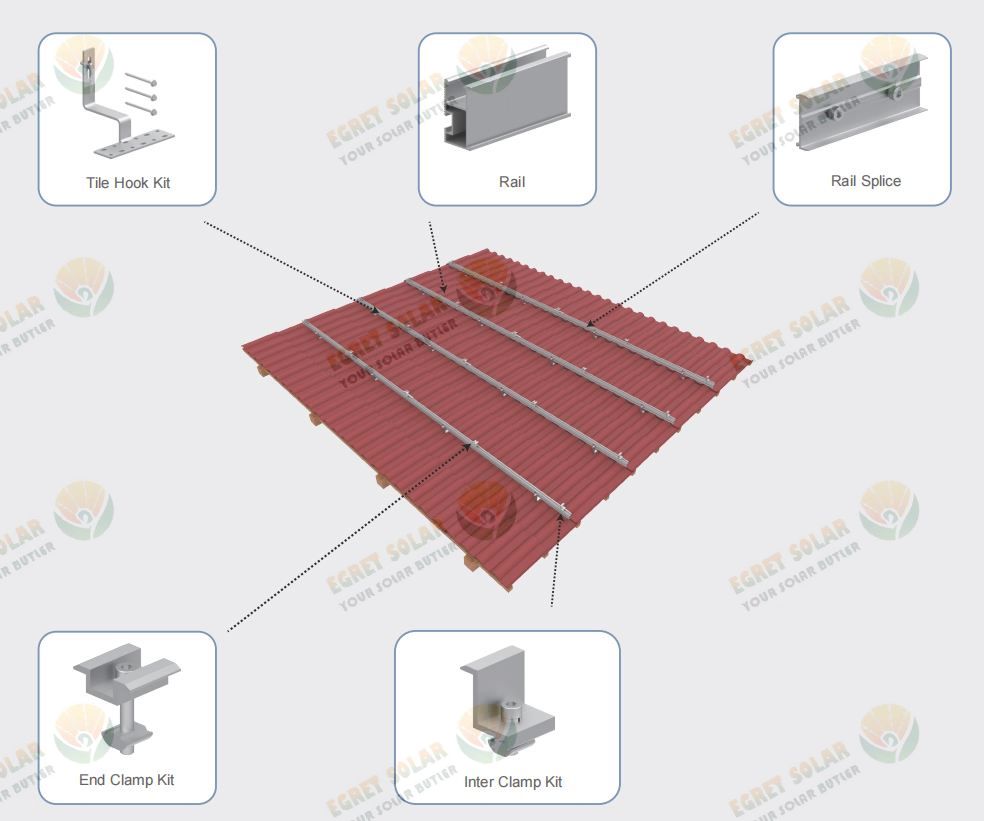

Product Show

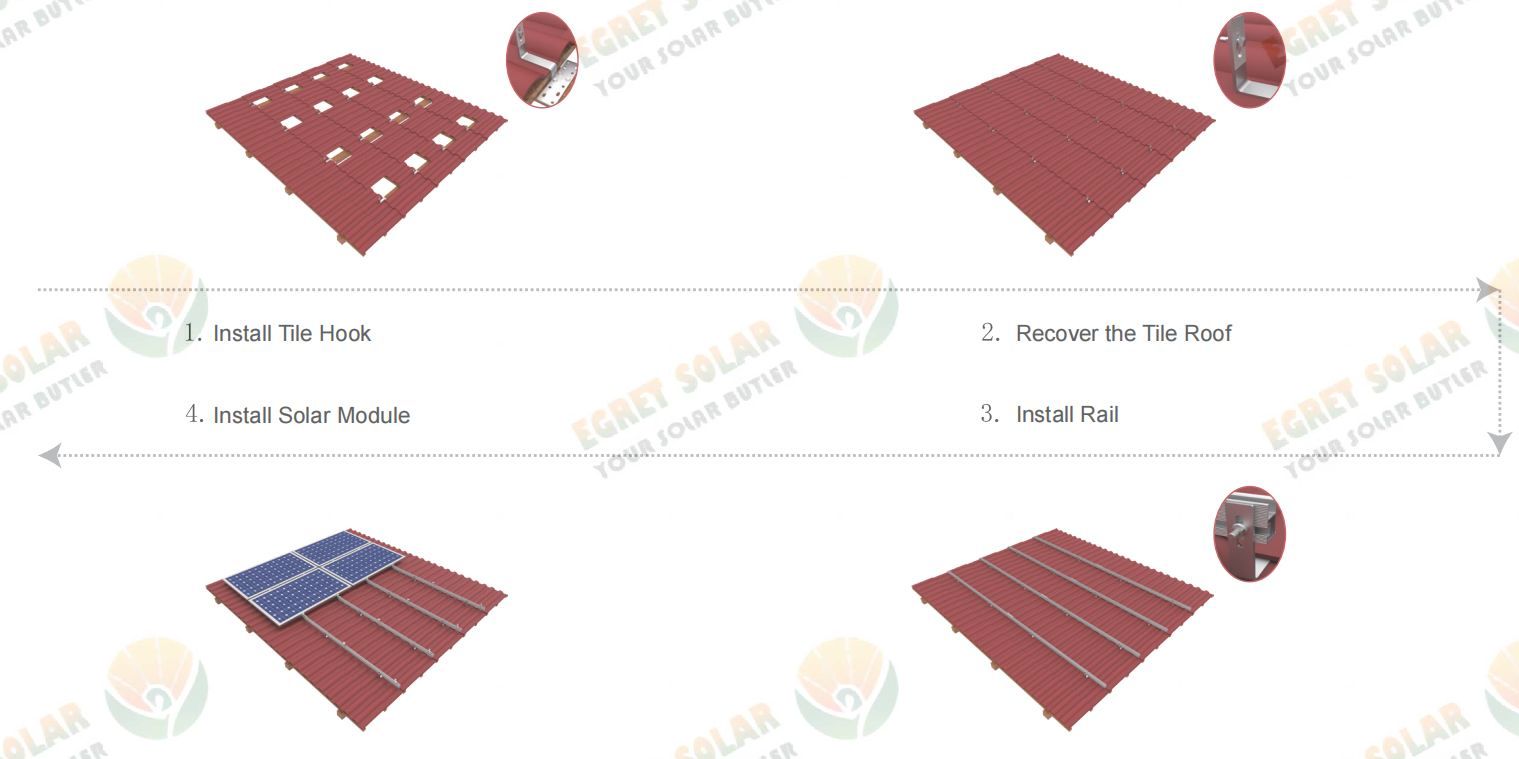

Installation Steps

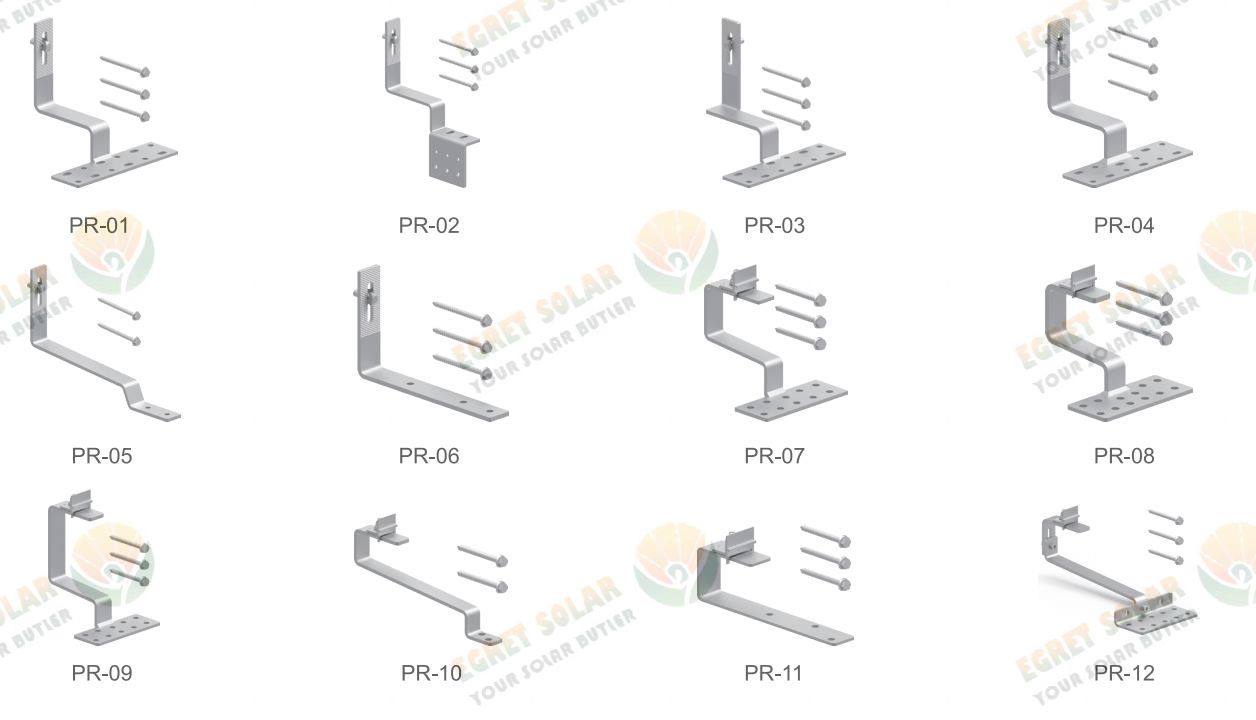

Others Model Hook



FAQ

1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______

2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?

1)Ground

Structure Type:Common Ground,Carport or Solar Farm?

Foundation:Concrete,Ground Screw,C Pile or U Pile?

Minimum Ground Clearance:______mm

Earth report or not

2)Roof

Roof Type:Tin Roof,Tile Roof or Concrete?

Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?

Purlin Span:______mm


Product Tags Solar hook          mounting solar panels to roof          solar panel roof hook          aluminium solar panel roof mounting systems          Tile Roof Solar Mounting System          tile roof mounting systems          tile roof solar panel brackets          solar panel tile roof mounts
