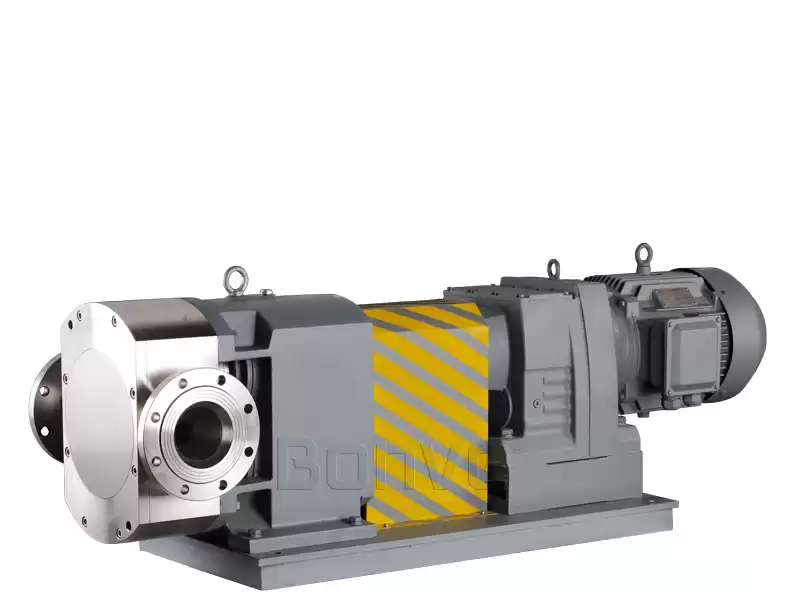

Horizontal Port Paper Sizing Agents Pumps
Paper Sizing Agents Pumps
Application for Paper Sizing Agents Industry
Although the pump only account as for a small part of the
investment in papermaking equipment, it plays a key role in the overall
operating period of the equipment. In any case, the reliability of pump
operation and low maintenance costs have become the most basic requirements.
Bonve pumps are widely used and recognized in the paper industry, thanks to the
modular design, qualified material used, reliable sealing, no shearing, no
pulsation, less wearing parts and low maintenance.
Bonve conducts analysis and research on various media (materials)
in papermaking and has developed Paper Sizing Agents Pumps.
Typically pumped media: Calcium Carbonate(up to 70% solid content), Coatings (Pre-Coating,
Intermediate Coating, Top Coating, Back Coating).
Applications: Up loading, Transfer.
What Pump We Offer?

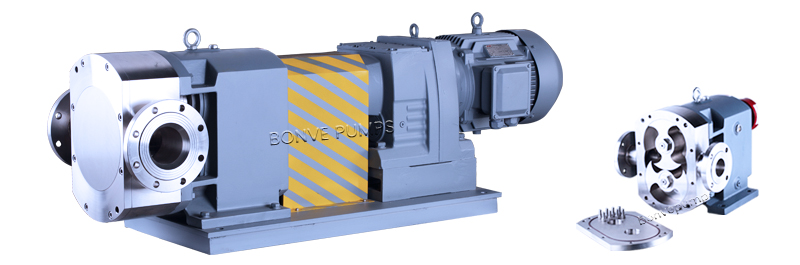

Bonve offers the broadest range of its Rotary Lobe Pumps for paper
industry. As an excellent pump manufacturer, our hard technical barriers have
become a powerful help for our Bonve pumps reform and innovation. So far, Bonve
pumps have developed to the fourth generation and are mature.
Interchangeable
-
Interchangeable rotors,
one pump multi-purpose.
-
Targeted seal for specific
application, ensure zero leakage.
Easy maintenance
-
Compact structure, easy
assembling and disassembling
-
Maintenance in place, easy
cleaning, CIPable and SIPable.
-
Few wearing parts, low
maintenance.
Long life
-
All main parts proceed by
CNC, high precision fabrication.
-
No contact between the
rotors, rotors and pump chamber.
-
Six bearings with separate
arrangement, high balance.
-
Adjustable seal ring
extends the shaft life.
-
Axis key synchronous
adjustment, no rotor collision problem.
Working Principle

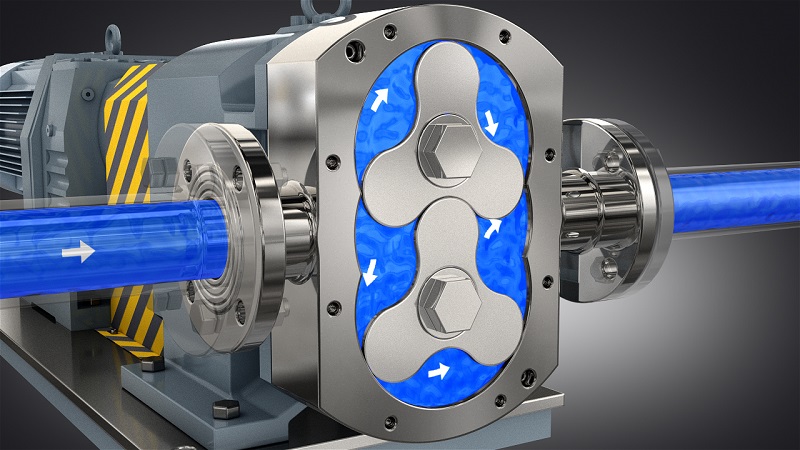

Bonve lobe pumps basically consist of two lobe rotors, which
rotate synchronously driven by a pair of synchronous gears in the gearbox. The
rotors are driven by the main shaft and sub-shaft to rotate in a synchronous
reverse direction, which changes the pump capacity, builds up high vacuum and
discharge pressure, thus an efficient pumping is formed. Gap is kept between
the rotors and between the pump casing, no friction, long life, no damage, no
physical and chemical reaction to the pumped products.
Bi-wing rotor diagram
Main Parts of the Complete Pump

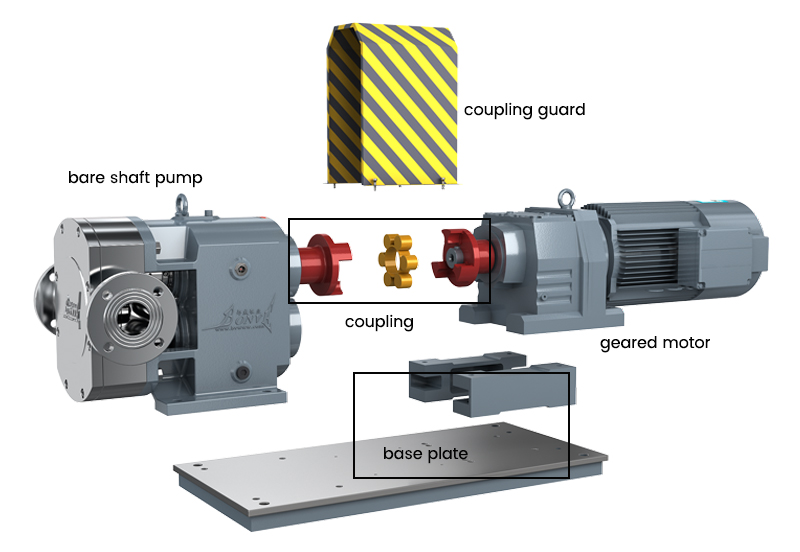

Bonve complete pumps are usually composed of bare shaft pump,
coupling and its guard, geared motor and baseplae. With your order, bare shaft
pump or complete pump is supplied.
Bare Shaft Pump Structure

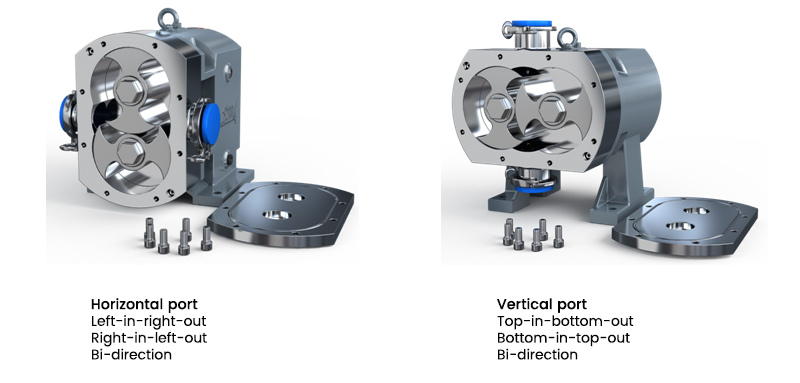

Based on the port direction, we have the pump with horizontal
port and vertical port to meet your site installation.
Structure Details

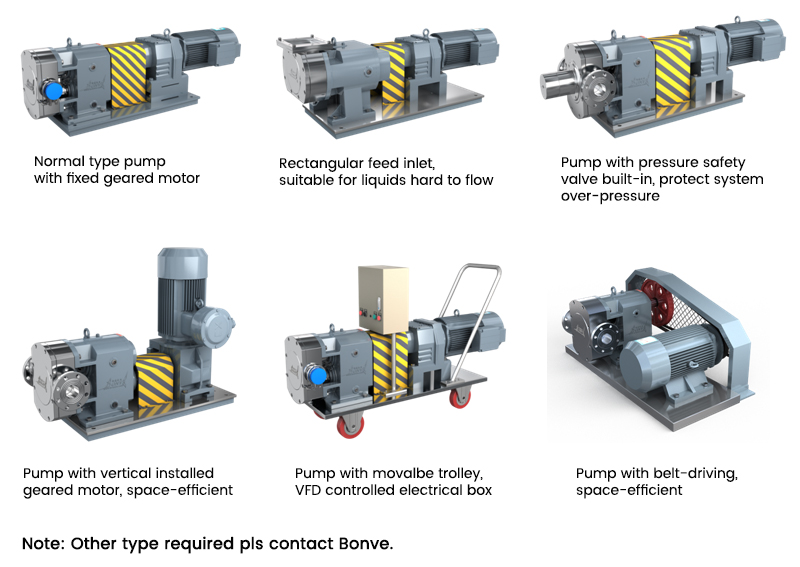

Complete Pump Types
Technical Parameters
|
Model
|
Displace
-ment
|
RPM
|
Flow
|
Dis. Pre.
|
Power
|
Vacuum
|
Port size
|
Max
viscosity
|
|
|
(L/r)
|
(r/min)
|
(m³/h)
|
(Mpa)
|
(kW)
|
(Mpa)
|
(mm)
|
(cp)
|
|
25BV12-05
|
0.06
|
10-1000
|
0-0.5
|
0-1.2
|
0.37-1.1
|
-0.080
|
25
|
1,500,000
|
|
40BV12-2
|
0.15
|
10-1000
|
0-2
|
0-1.2
|
0.75-2.2
|
-0.080
|
40
|
1,500,000
|
|
50BV12-5
|
0.32
|
10-800
|
0-5
|
0-1.2
|
1.5-4
|
-0.085
|
50
|
1,500,000
|
|
65BV12-10
|
0.65
|
10-600
|
0-10
|
0-1.2
|
2.2-7.5
|
-0.085
|
65
|
1,500,000
|
|
80BV12-20
|
1.74
|
10-500
|
0-20
|
0-1.2
|
4-15
|
-0.095
|
80
|
1,500,000
|
|
90BV12-30
|
2.60
|
10-500
|
0-30
|
0-1.2
|
5.5-22
|
-0.095
|
100
|
1,500,000
|
|
100BV12-40
|
3.65
|
10-500
|
0-40
|
0-1.2
|
7.5-30
|
-0.095
|
100
|
1,500,000
|
|
125BV12-50
|
4.60
|
10-500
|
0-50
|
0-1.2
|
7.5-37
|
-0.095
|
125
|
1,500,000
|
|
140BV12-70
|
6.10
|
10-500
|
0-70
|
0-1.2
|
11-45
|
-0.095
|
150
|
1,500,000
|
|
150BV12-80
|
7.63
|
10-500
|
0-80
|
0-1.2
|
11-55
|
-0.095
|
150
|
1,500,000
|
|
200BV12-120
|
11.56
|
10-400
|
0-120
|
0-1.2
|
15-75
|
-0.095
|
200
|
1,500,000
|
|
250BV12-150
|
14.22
|
10-400
|
0-150
|
0-1.2
|
18.5-90
|
-0.095
|
250
|
1,500,000
|
|
300BV12-200
|
20.80
|
10-300
|
0-200
|
0-1.2
|
22-110
|
-0.095
|
300
|
1,500,000
|
|
350BV12-300
|
32.60
|
10-250
|
0-300
|
0-1.2
|
45-160
|
-0.095
|
350
|
1,500,000
|
|
400BV12-400
|
50.40
|
10-250
|
0-400
|
0-1.2
|
55-200
|
-0.095
|
400
|
1,500,000
|
Note:
1. Tested medium: water. Your liquid's
density, viscosity and temperature are necessary to supply when choose the
pump.
2. Speed, flow rate, electrical power and
pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.
Selection Guidelines
|
Your Industry
|
|
|
About pump medium
|
Name:
|
|
Density (g/m³):
|
|
Viscosity
(mPa.s):
|
|
Temperature (℃):
|
|
PH value:
|
|
Solid content
(%):
|
|
Solid size (mm):
|
|
Suction side
|
Pressure:
Positive ( ) bar; Negtive ( ) bar
|
How high (m):
|
|
Suction pipe
length (m):
|
Diameter (mm):
|
|
Bends (Pcs):
|
T-piece (Pcs):
|
Valves (Pcs):
|
|
Discharge side
|
Pressure (Mpa):
|
|
Vertical delivery pipe length (m):
Total delivery pipe length (m):
|
Diameter (mm):
|
|
Bends (Pcs):
|
T-piece (Pcs):
|
Valves (Pcs):
|
|
Required flow
rate (L/H)
|
Operating flow:
|
Max. flow:
|
|
Pump material
required
|
SS304 (
) SS316 ( ) SS316L ( )
Duplex stainless steel ( )
|
|
Motor required
|
Phase: Single ( )
Three ( )
|
Voltage (V):
|
Frequency (Hz):
|
|
IP grade:
|
Energy
efficiency:
|
Anti-explosive:
|
|
Installation type
|
Fixed (
)
|
Movable (
)
|
Fixed with
adjusting feet ( )
|
|
Others
|
|
