Hose Protection Polyester Textile Sleeve Description
PPS polyester hydraulic hose protection sleeve is woven from polyester multifilament. With the particularly smooth inner wall, it could reduce the frictional resistance problems, provides easy installation. The tight woven construction helps dispense the flow of fluid in a ruptured hose.
Hose Protection Polyester Textile Sleeve Features
It has the characteristics of excellent stretch resistance, corrosion resistance, explosion proof, abrasion proof, reducing noise, moisture absorption, dust proof, etc.
Hose Protection Polyester Textile Sleeve Application
It is widely used to protect hydraulic pipes, rubber hose ,plastic pipes, wire harness from damage, this kind of sleeve can also be used in industrial and construction fields where outstanding hose productions are needed.
Hose Protection Polyester Textile Sleeve Specifications
|
DATASHEET
|
|
Part number
|
Flat Width
|
Inside Diameter
|
Meter for spool
|
|
mm
|
mm
|
meter
|
|
PPS-20
|
20
|
12
|
100
|
|
PPS-25
|
25
|
15
|
100
|
|
PPS-30
|
30
|
18
|
100
|
|
PPS-35
|
35
|
21
|
50
|
|
PPS-40
|
40
|
24
|
50
|
|
PPS-45
|
45
|
28
|
50
|
|
PPS-50
|
50
|
31
|
50
|
|
PPS-60
|
60
|
37
|
50
|
|
PPS-70
|
70
|
44
|
50
|
|
PPS-80
|
80
|
50
|
50
|
|
PPS-90
|
90
|
56
|
50
|
|
PPS-100
|
100
|
62
|
50
|
|
PPS-115
|
115
|
72
|
50
|
|
PPS-145
|
145
|
90
|
50
|
|
PPS-176
|
176
|
110
|
50
|
|
PPS-200
|
200
|
125
|
50
|
|
Technical Datasheet
|
|
Material
|
polyester
|
|
Working temperature
|
-50℃ to +150℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+240℃
|
|
Standard Color
|
Black
|
|
Standard Thickness
|
1 mm
|
|
MOQ
|
500 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special color upon request.
Special size, length, package upon request.
Customs LOGO upon request.

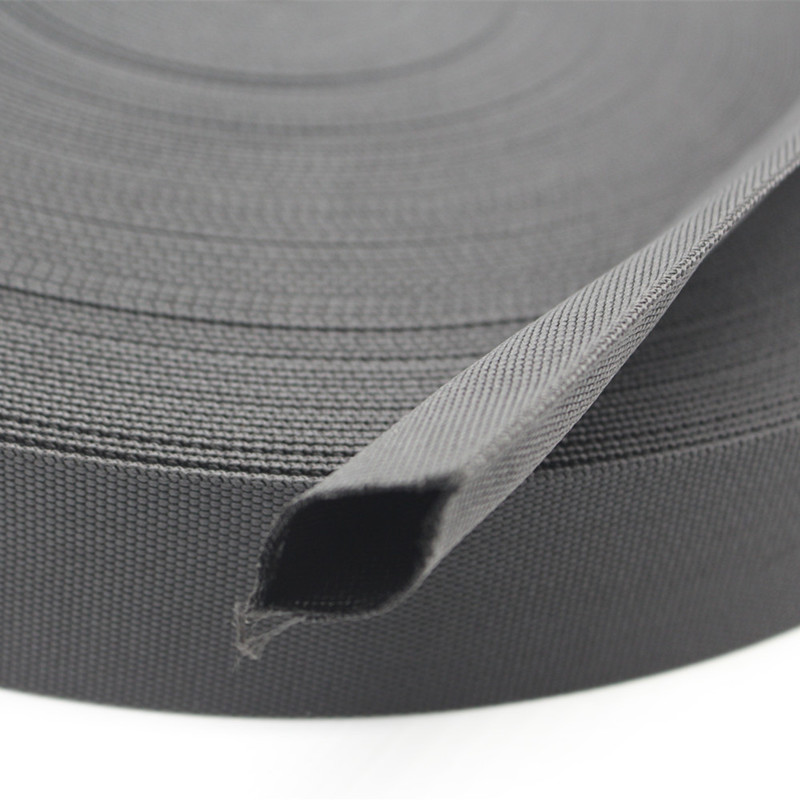

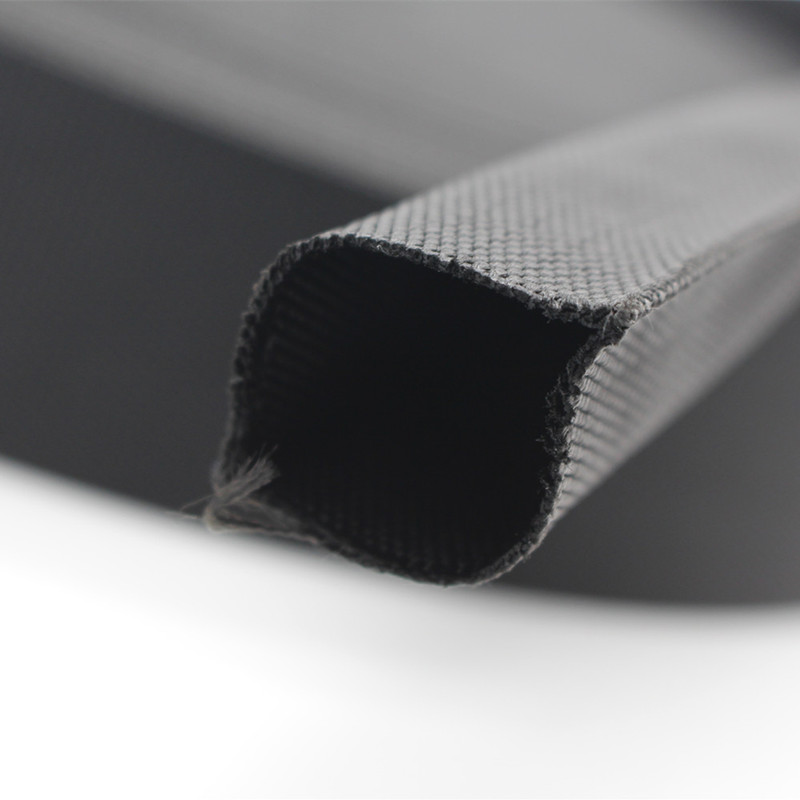

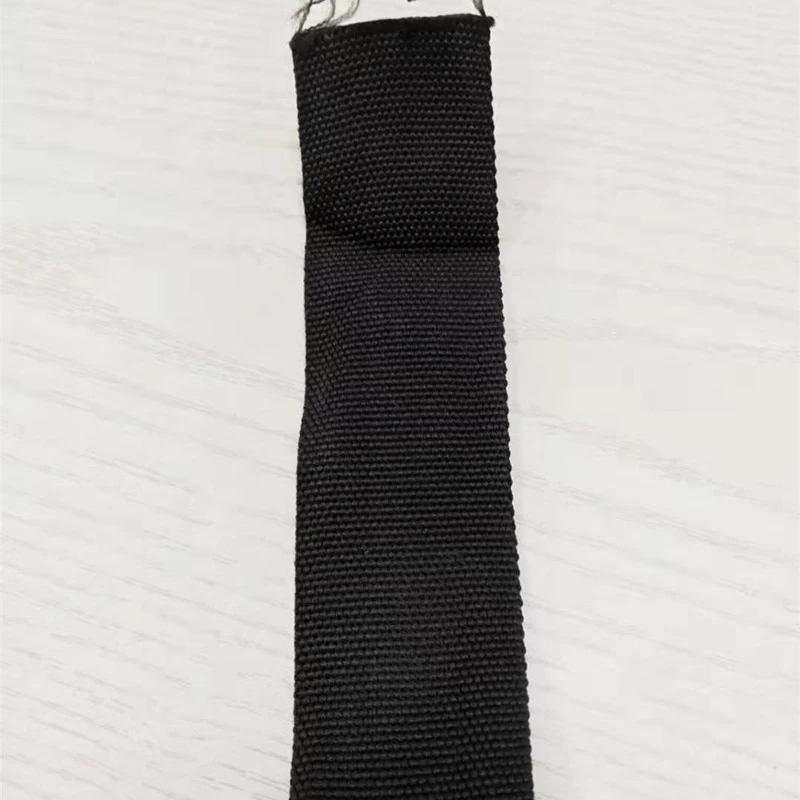

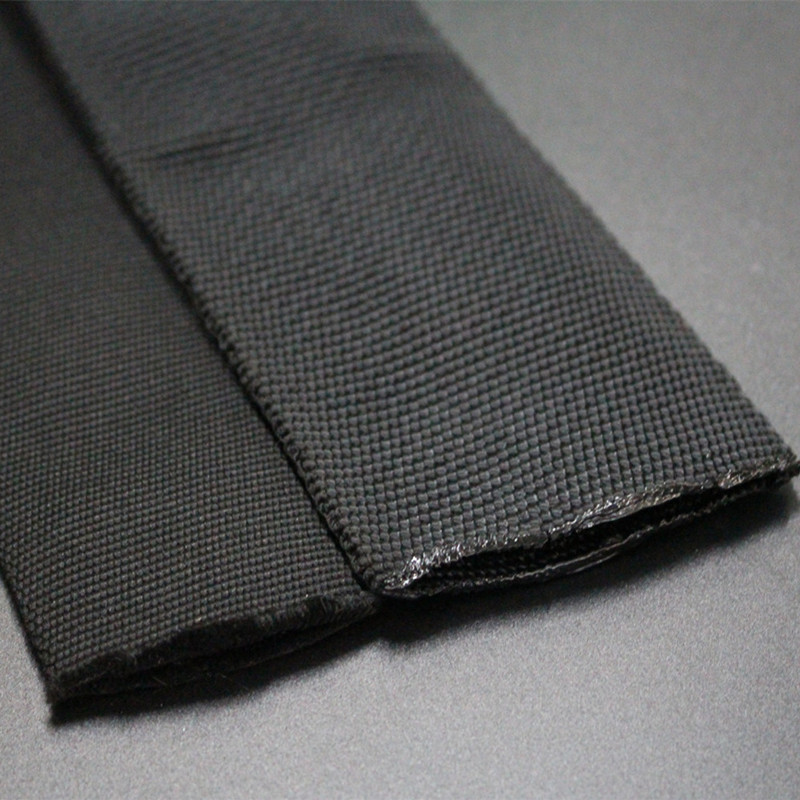

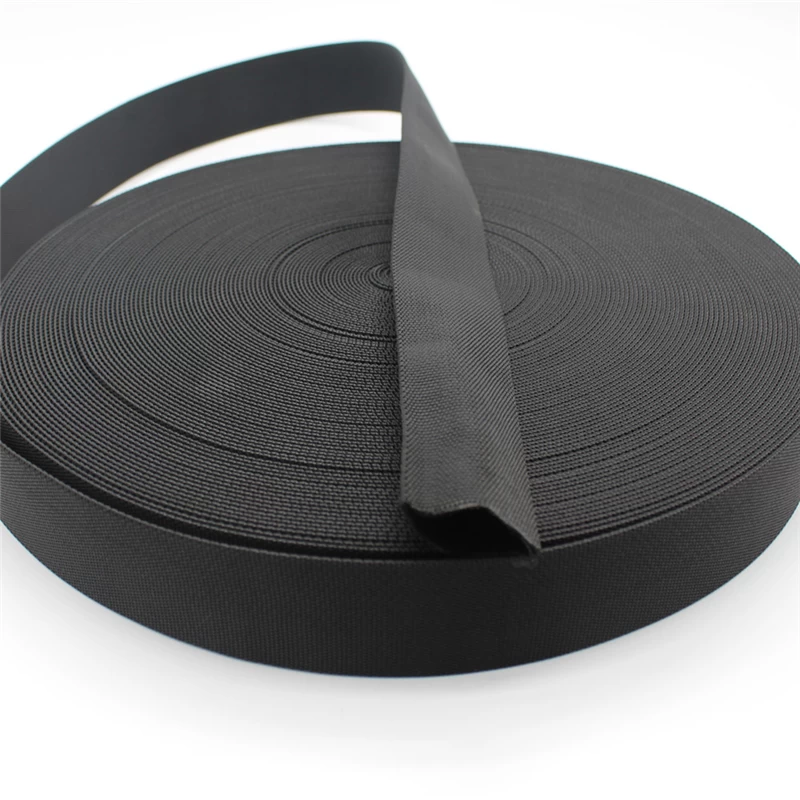

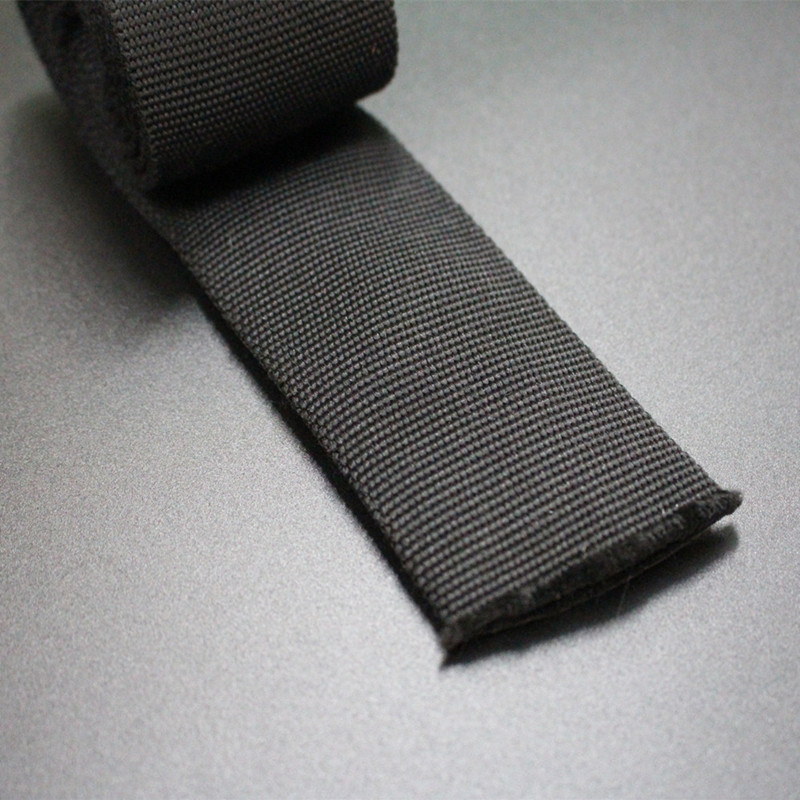

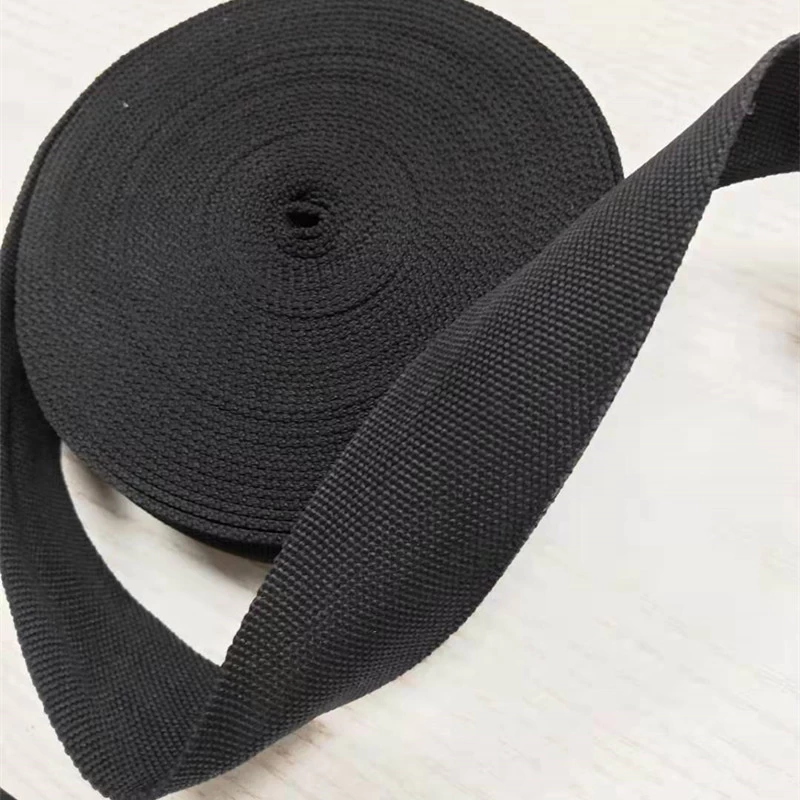

Hose Protection Polyester Textile Sleeve Img
