Hot Dip Galvanized Screw Pile system is a modern foundation system, using the drilling machine to install which makes it as the most efficient and cost-saving footing solution. It can be widely applied to different soil conditions.
|

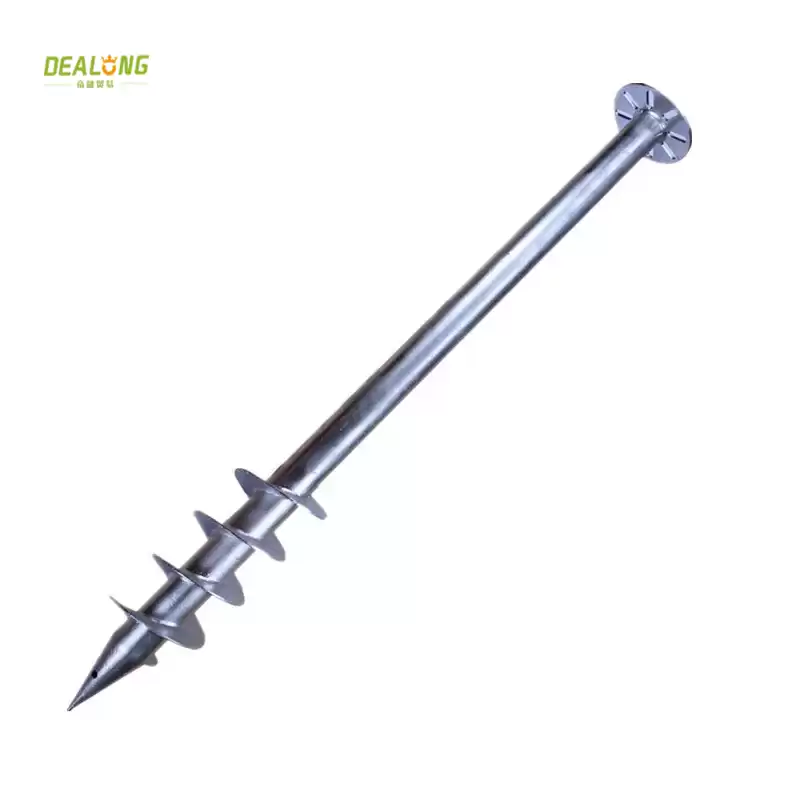

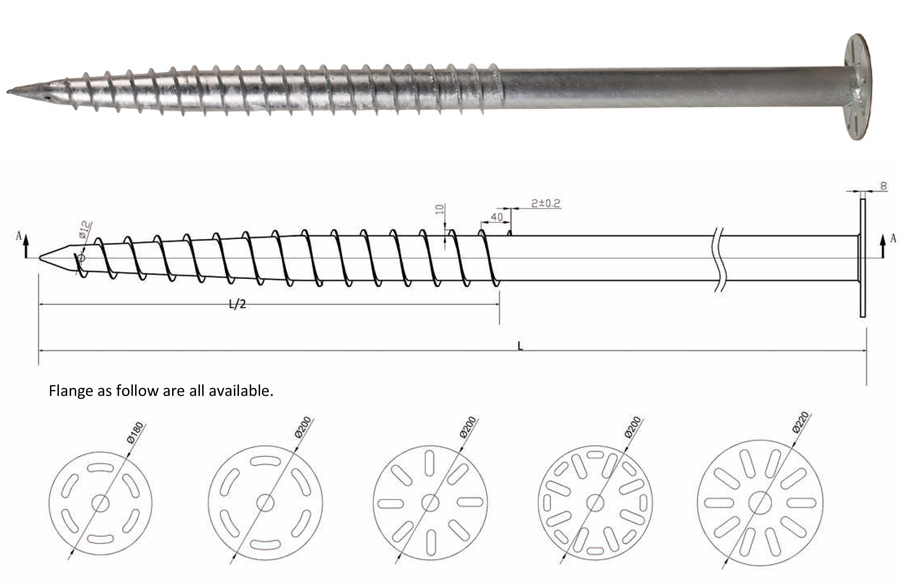

Normal ground screw with flange
|
|
Item NO.
|
Length(mm)
|
Dia.of flange(mm)
|
Minium galvnized thickness (um)
|
OD(mm)
|
Thickness of tube(mm)
|
Remarks(mm)
|
|
F76-1200-T3
|
1200
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1400-T3
|
1400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1600-T3
|
1600
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-1800-T3
|
1800
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2000-T3
|
2000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2400-T3
|
2400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-2500-T3
|
2500
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
F76-3000-T3
|
3000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-1600-T3
|
1600
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-1800-T3
|
1800
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2000-T3
|
2000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2100-T3
|
2100
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2400-T3
|
2400
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-2500-T3
|
2500
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|
22F76-3000-T3
|
3000
|
200，T8.0
|
＞80
|
76
|
3（tolerances±0.25）
|
spiral piece Spec.12*T2
|
|

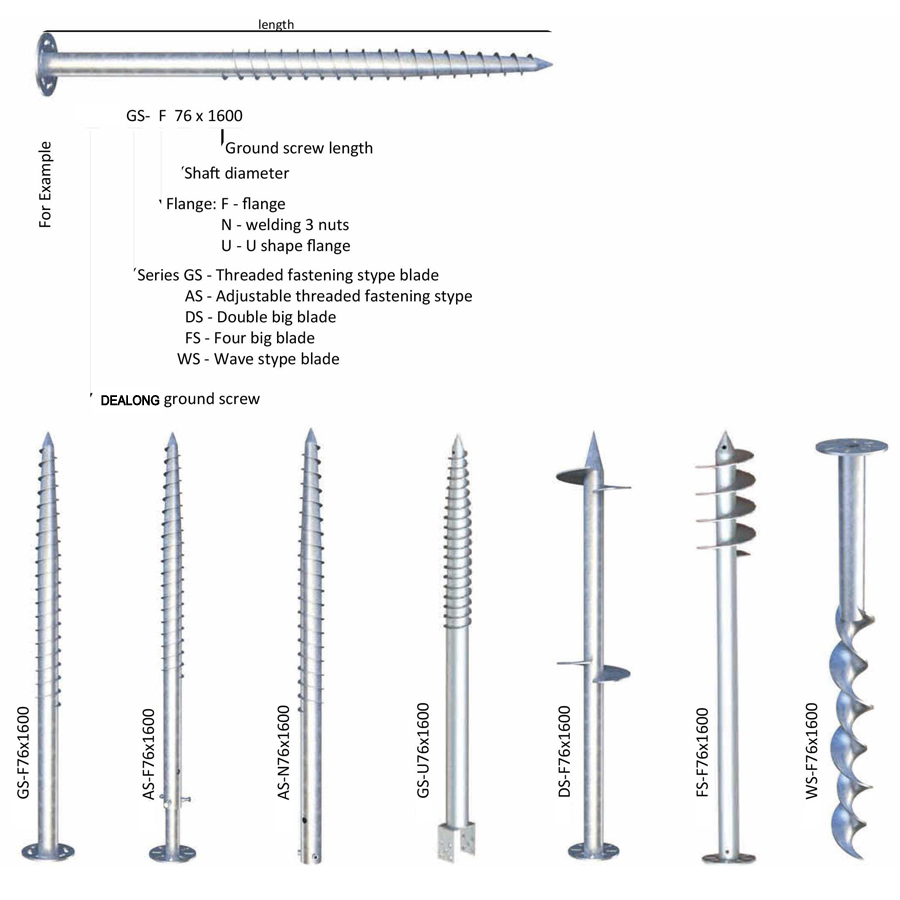

Note: Shuangheng offers different type of ground screw based on different installation conditions,dimension can be customized.
|

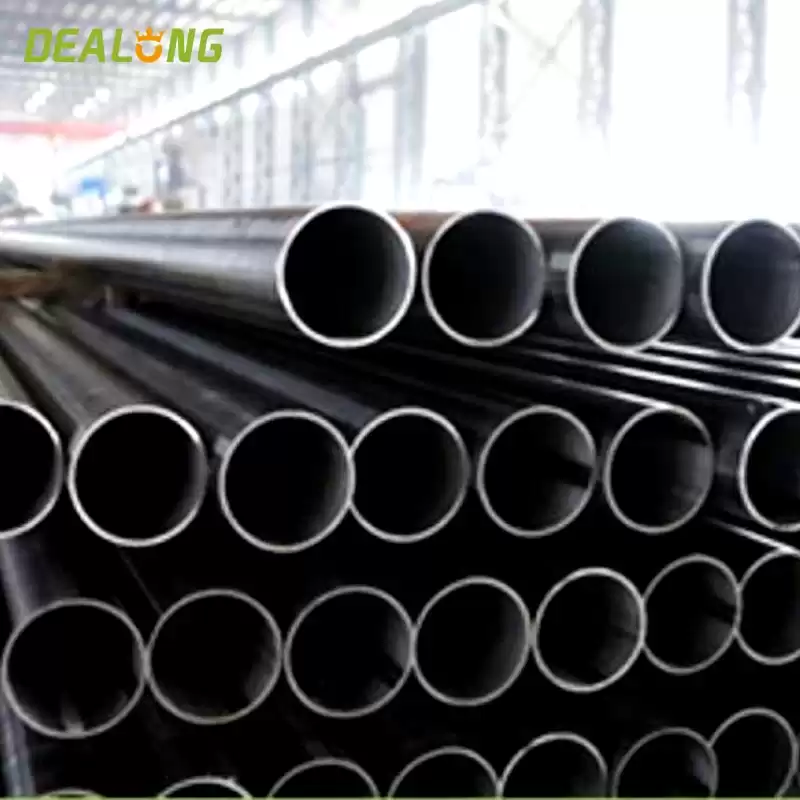

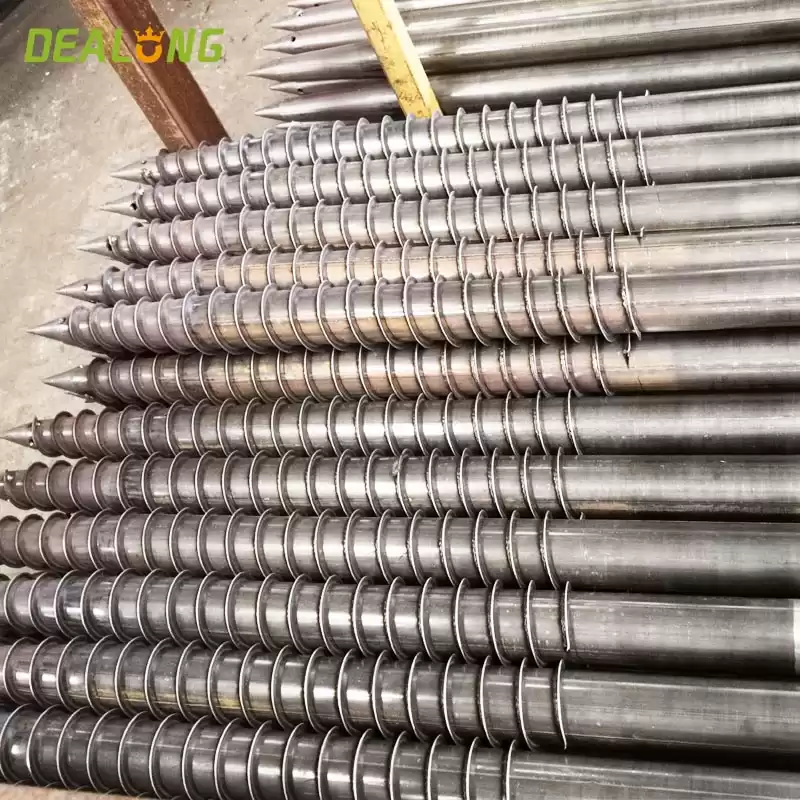

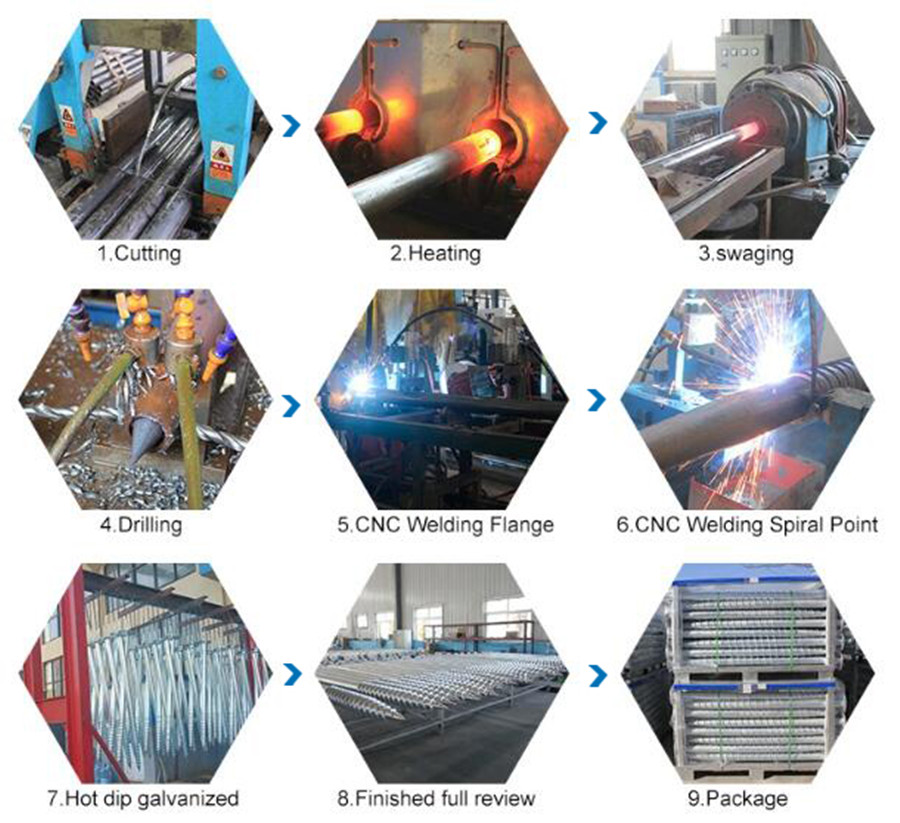

Production process of ground screws

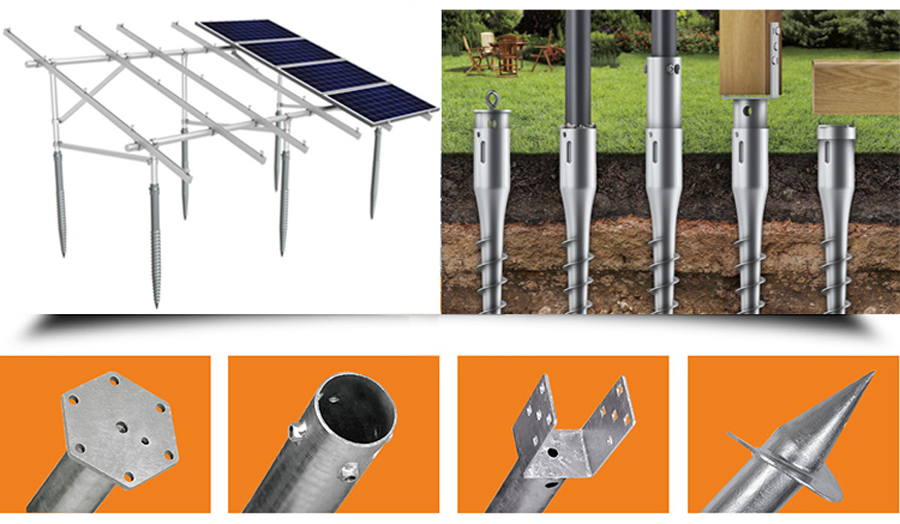

Ground screws application

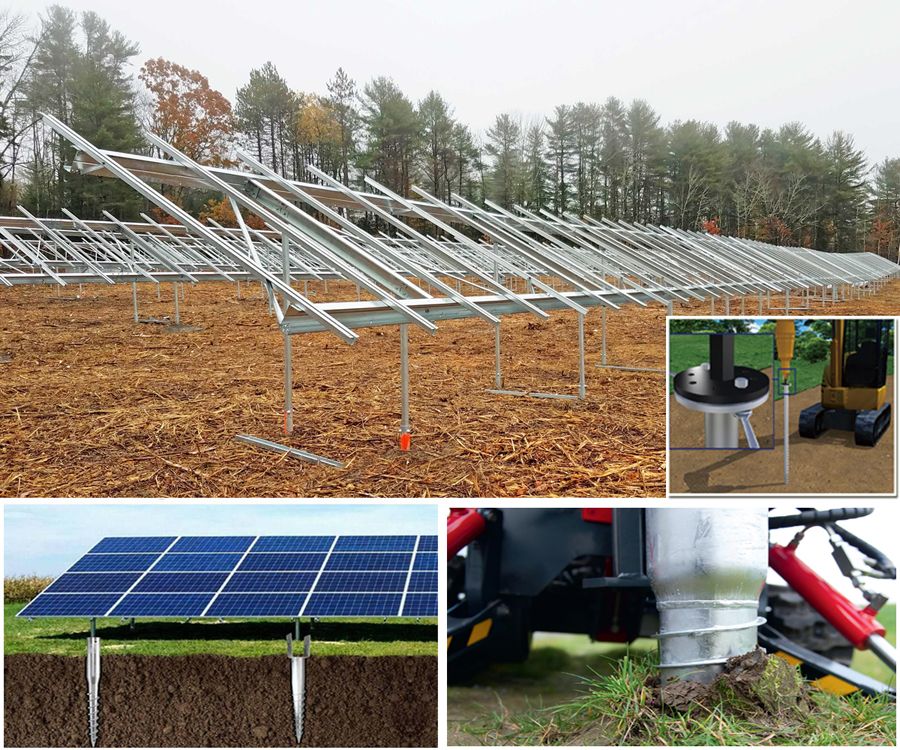

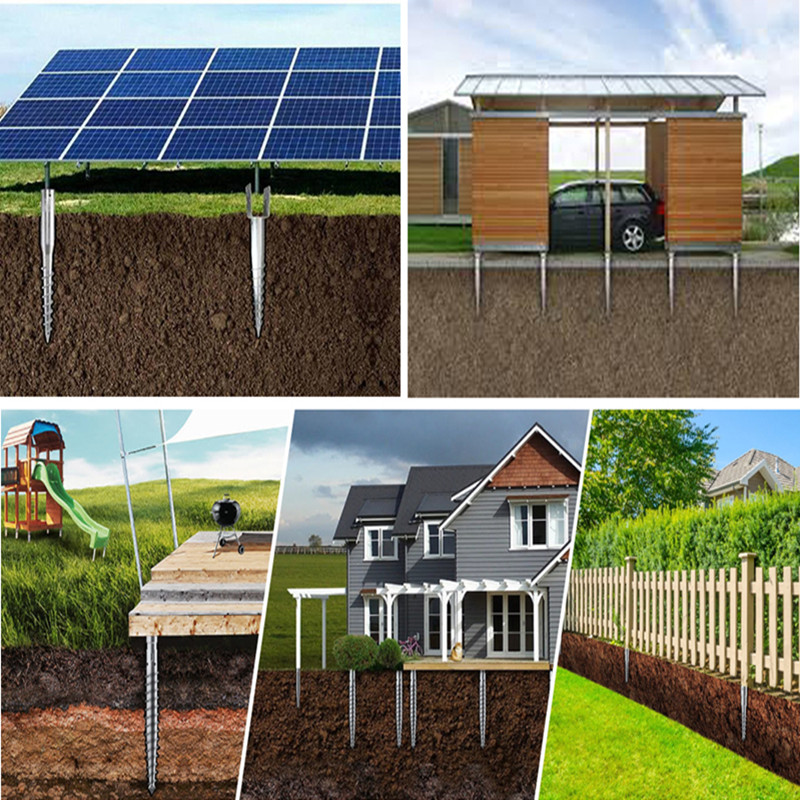

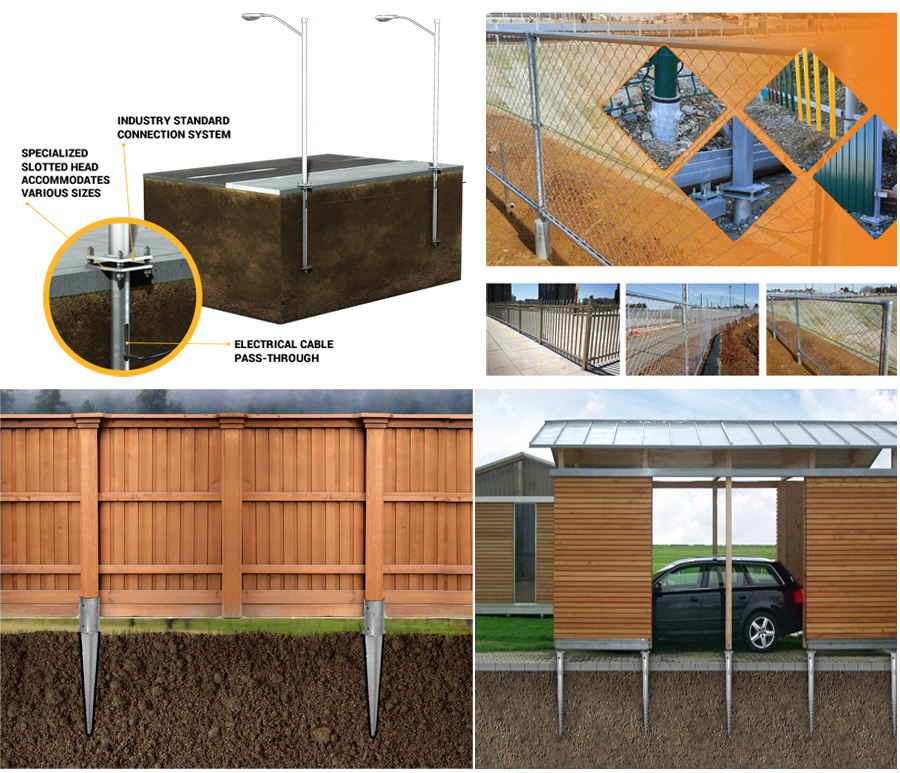

Hot Dip Galvanized Screw Pile have a wide variety of application,not only for solar mounting system foundation, but also for light industrial projects, wooden structures to fencing, streetlinghts and storage containers, etc. Install into ground without concrete save your labor and material cost, and its environment friendly and recycle.

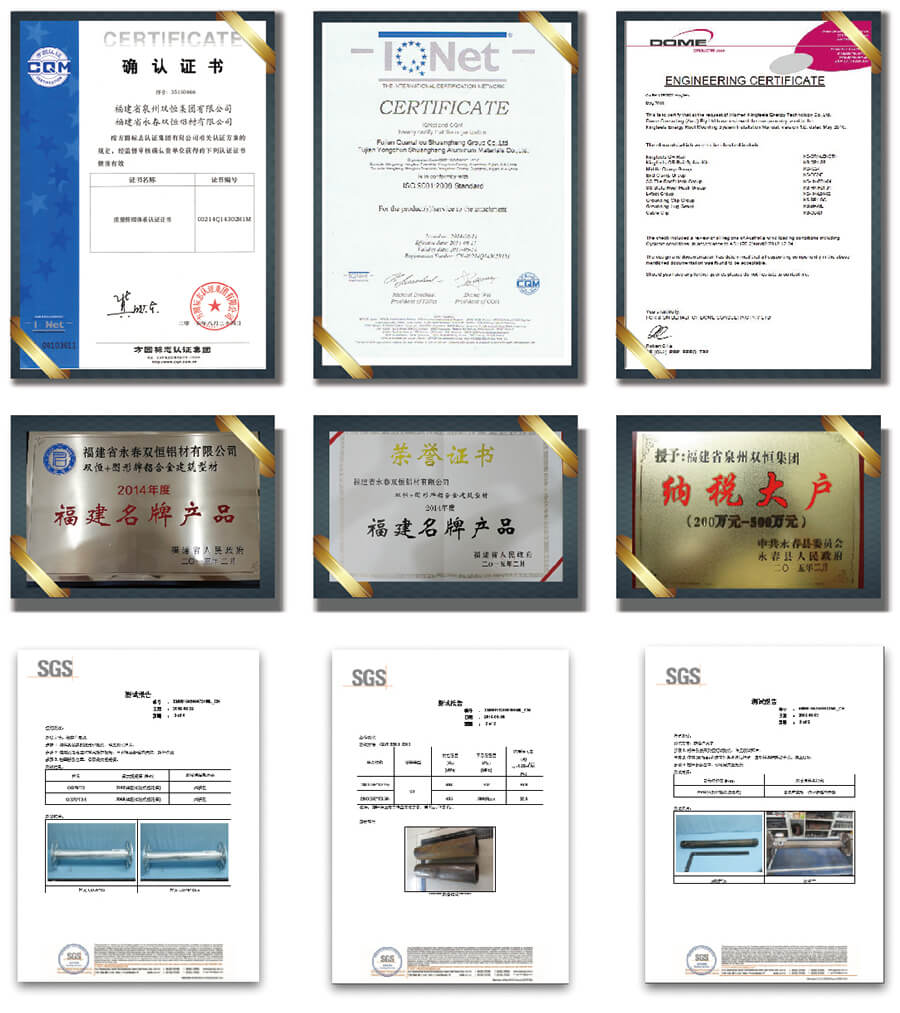

Company certifications
