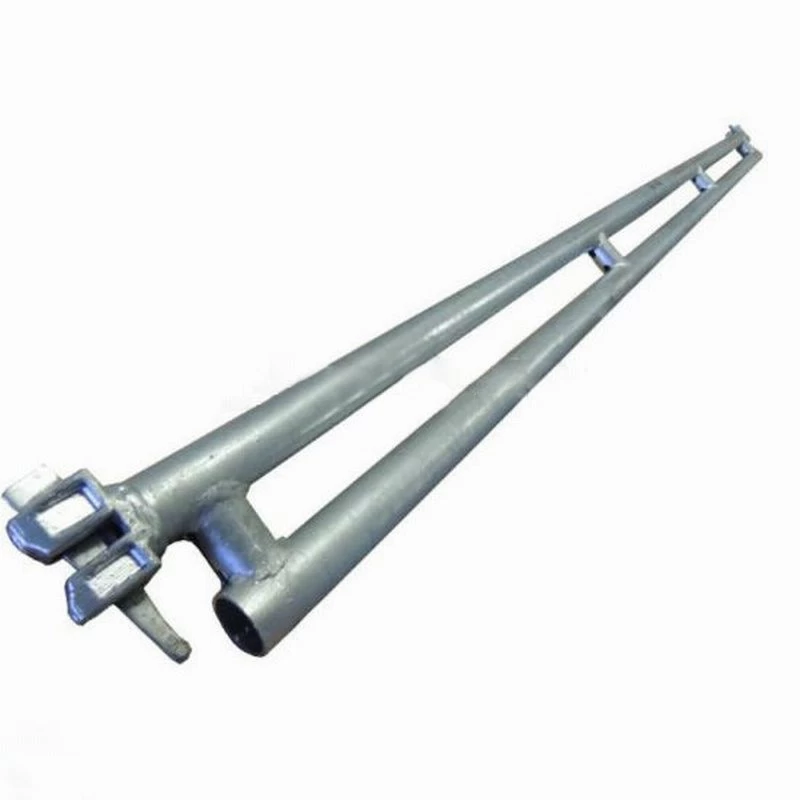

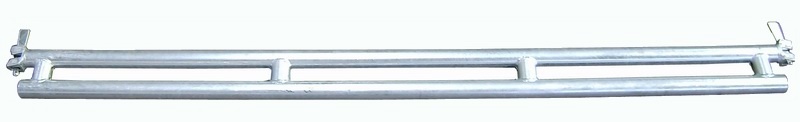

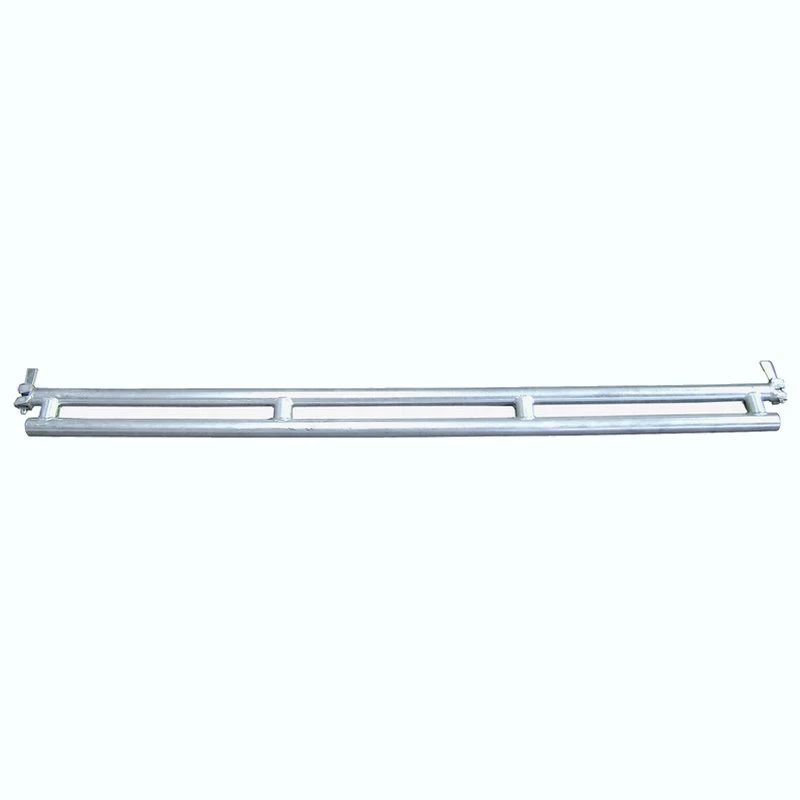

Ring Lock Scaffolding Double Ledger
|
Code
|
Description
|
Material
|
Size
|
Weight(kg)
|
Weight(lbs)
|
|
RS.DL.152
|
1.52M Double Ledger
|
Ø48.3x3.25mm; Q235-Q355
|
1524mm (5')
|
11.80
|
26.02
|
|
RS.DL.183
|
1.83M Double Ledger
|
1829mm (6')
|
14.26
|
31.44
|
|
RS.DL.213
|
2.13M Double Ledger
|
2134mm (7')
|
16.41
|
36.18
|
|
RS.DL.244
|
2.44M Double Ledger
|
2438mm (8')
|
18.87
|
41.6
|
|
RS.DL.305
|
3.05M Double Ledger
|
3048mm (10')
|
23.48
|
51.76
|
Features:
Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is available by request.
Steel Tube Grade: Q235-Q355
Ledger Head: 2pcs, Casting Steel
Wedge Pin: 2pcs, t=6mm
Surface Finishing: Hot dip Galvanized; Powder Coated, Painted
