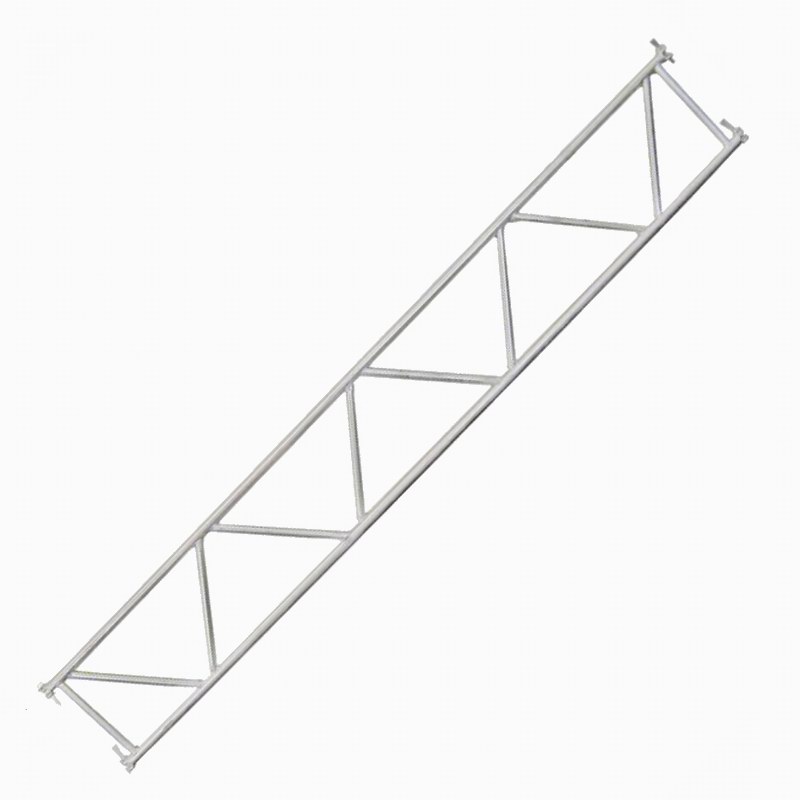

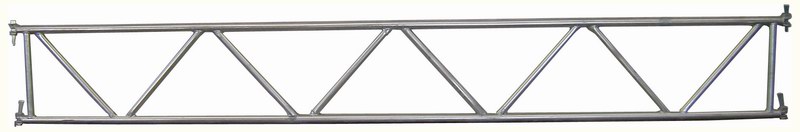

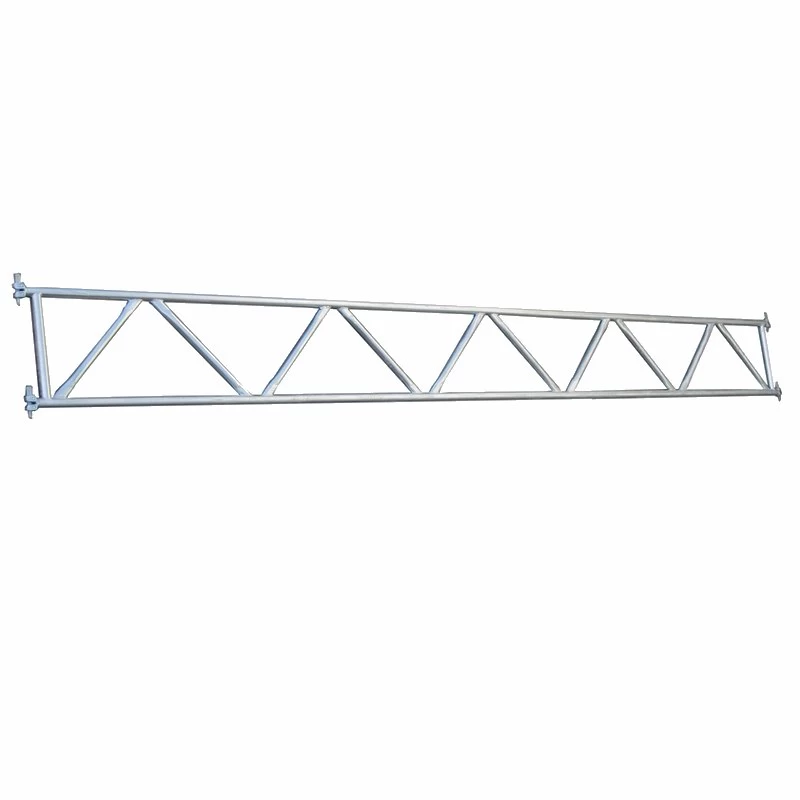

Ring Lock Scaffolding Girder Beam / Lattice Beam
|
Code
|
Description
|
Material
|
Size
|
Weight(kg)
|
Weight(lbs)
|
|
RS.GB.426
|
4.26M Girder Beam
|
Ø48.3x3.25mm; Q235-Q355
|
4270mm (14')
|
46.84
|
103.28
|
|
RS.GB.518
|
5.18M Girder Beam
|
5180mm (17')
|
56.20
|
123.92
|
|
RS.GB.610
|
6.10M Girder Beam
|
6100mm (20')
|
65.56
|
144.54
|
|
RS.GB.762
|
7.62M Girder Beam
|
7620mm (25')
|
90.15
|
198.76
|
|
RS.GB.852
|
8.52M Girder Beam
|
8520mm (28')
|
98.04
|
216.16
|
Features:
Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 4.0mm/3.5mm/3.0mm is also available by request.
Steel Tube Grade: Q235-Q355
Ledger Head: casting
Beam Depth: 500mm
Surface Finishing: Hot dip Galvanized; Powder Coated, Painted
