| Product name |

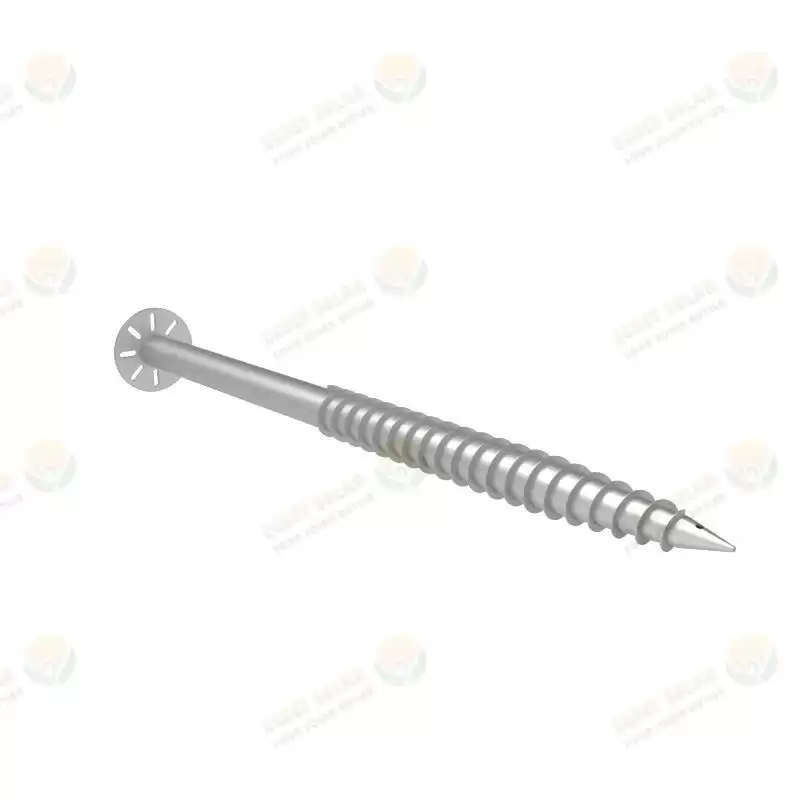

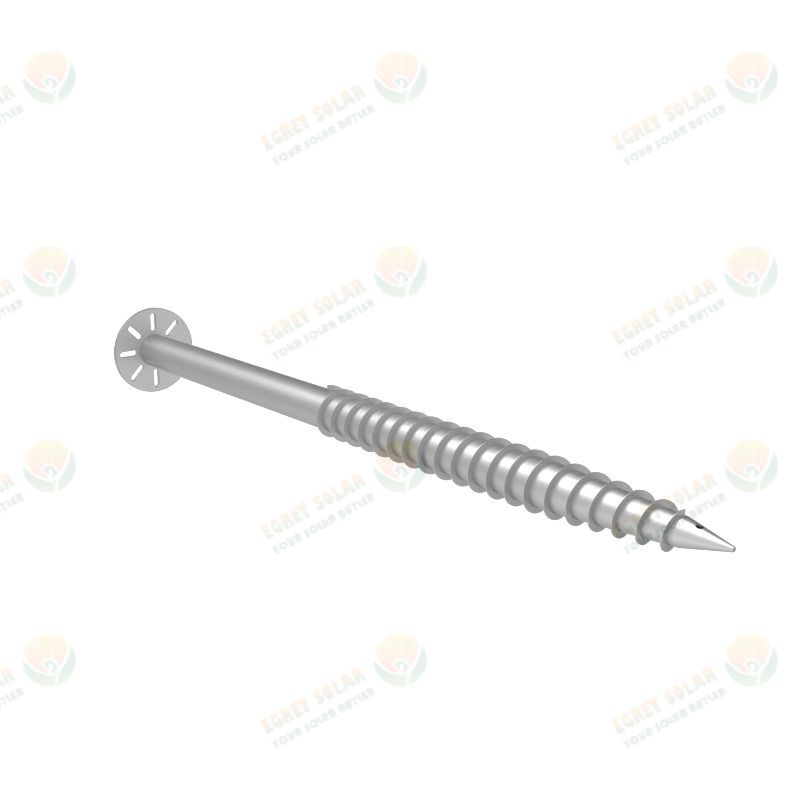

φ76 Ground Screw |
| Model Number |
EG-GS01-F200-1600mm/EG-GS01-F200-1800mm/EG-GS01-F200-2000mm/EG-GS01-F200-2200mm/EG-GS01-F200-2400mm |
| Installation Site |
Solar Panel Mounting system |
| Surface Treatment |
Anodised |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
12Years |
| Specification |
1600mm/1800mm/2000mm/2200mm/2400mm |
Product Description
It is used for ground mounting system cement pier foundation, flat roof cement pier system, carport system, etc. Different specifications of anchor bolts are selected according to different design conditions.
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
