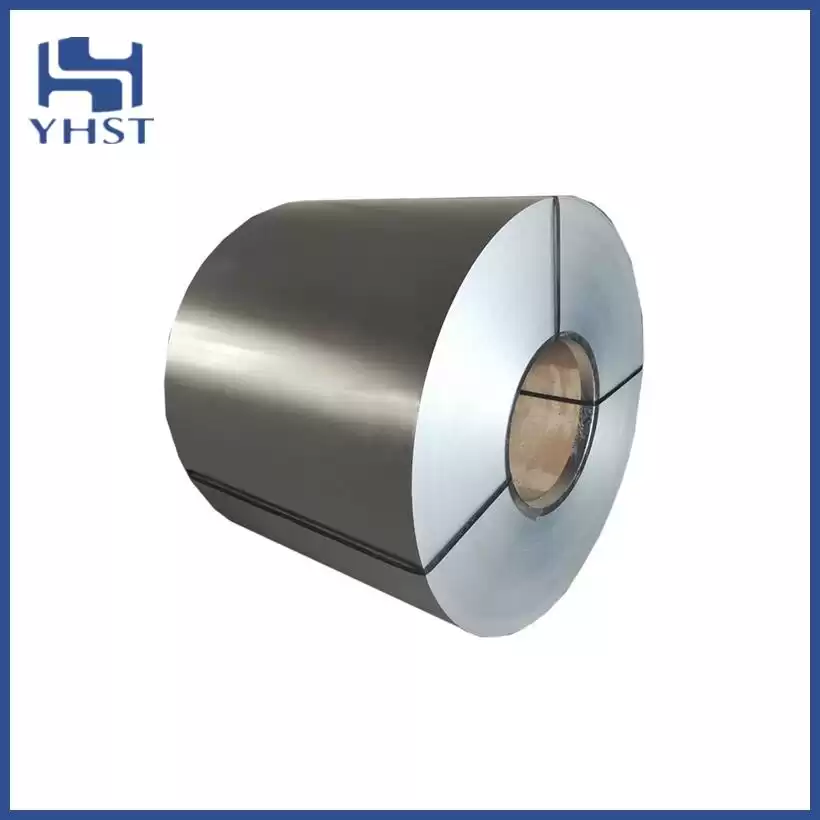

Color coated galvanized steel coils
The coating consists of 55% aluminum, 43.4% zinc and 1.6% silicon by weight. The production process of aluminized zinc steel plate is similar to that of galvanized steel plate and aluminized plate, which is a continuous molten coating process. When both sides are exposed to the same environment, the aluminum zinc plated steel plate with 55% aluminum zinc alloy coating has better corrosion resistance than the galvanized steel plate with the same thickness. The 55% aluminum zinc alloy coated aluminum zinc steel plate not only has good corrosion resistance, but also the color coated products have excellent adhesion and flexibility.
Product Specification
|
Raw material
|
SGCC,CGCC,DX51D,Q235,Q345
|
|
Alu--zinc coating
|
Galvanized(Zinc coating)
|
Thickness range
|
0.20mm~2.0mm
|
|
Coil width range
|
600mm~1250mm
|
Coil weigh
|
3--8MT
|
|
Surface treatment
|
Anti-finger printing,chromated,oiled/non-oiled
|
Painting standard
|
Normal,hard,full hard
|
|
Hardness
|
Normal,hard,full hard
|
Colors
|
Customized
|
Packing
|
Seaworth
|
MOQ
|
50MT per color&size
|
Features
1. Thermal reflectance:
The heat reflectivity of aluminized zinc steel plate is very high, which is twice that of galvanized steel plate. People often use it as heat insulation material.
2. Heat resistance:
Aluminum zinc alloy steel plate has good heat resistance and can withstand a high temperature of more than 300 degrees Celsius. It is very similar to the high-temperature oxidation resistance of aluminum plated steel plate. It is often used in chimney tubes, ovens, lighting fixtures and fluorescent lampshades.
3. Corrosion resistance:
The corrosion resistance of aluminized zinc steel coil is mainly due to the protective function of aluminum. When zinc is worn, aluminum forms a dense layer of alumina to prevent corrosion-resistant substances from further corroding the interior.
4. Economy:
Because the density of 55% Al Zn is smaller than that of Zn, when the weight is the same and the thickness of the gold plating layer is the same, The area of aluminized zinc steel plate is more than 3% larger than that of galvanized steel plate.
5. Easy to paint
The aluminized zinc plate has excellent adhesion to the paint and can be painted without pretreatment and weathering treatment.
6. The aluminum zinc plated steel plate has a gorgeous silver white surface.
7. Aluminized zinc steel plate has similar processing and spraying properties to galvanized steel plate.
Application
✔Construction: roofs, walls, garages, soundproof walls, pipes and modular houses, etc.
✔Automobile: muffler, exhaust pipe, wiper attachment, fuel tank, truck box, etc.
✔Home appliances: refrigerator back panels, gas stoves, air conditioners, electronic microwave ovens, LCD frames, CRT explosion-proof belts, LED backlights, electrical cabinets, etc.
✔Agricultural: pig houses, chicken houses, granaries, greenhouse pipes, etc.
✔Others: thermal insulation cover, heat exchanger, dryer, water heater, etc.
✔About price: The price of steel fluctuates frequently, but our operating principle is to provide customers with the most competitive prices on the premise of ensuring product quality.
If you have any questions, please consult online or send us an email.

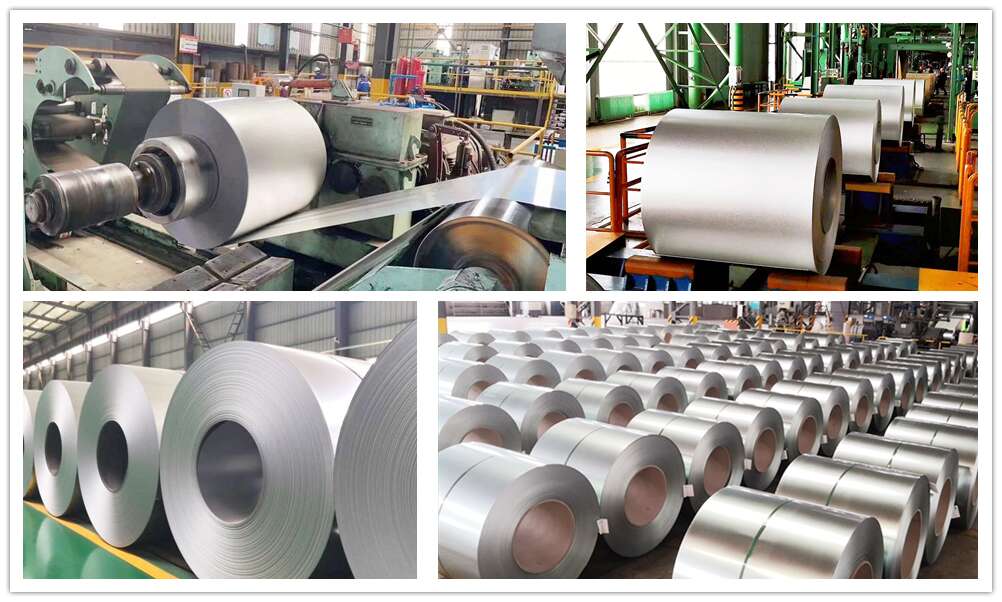

Product display
Packing &Delivery
◆Packing:
Seaworthy packing standards:
We will provide you with the products produced by Chinese top iron and steel group.
The packaging of the products conforms to the national unified standards.
When loading,we will put mould proof bags in the container.
◆Delivery:
Delivery time for regular colors,coating types and thickness:7-10 days;
Delivery time for special colors,coating types and thickness:20-30 days;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
