HQ-GM-GT3

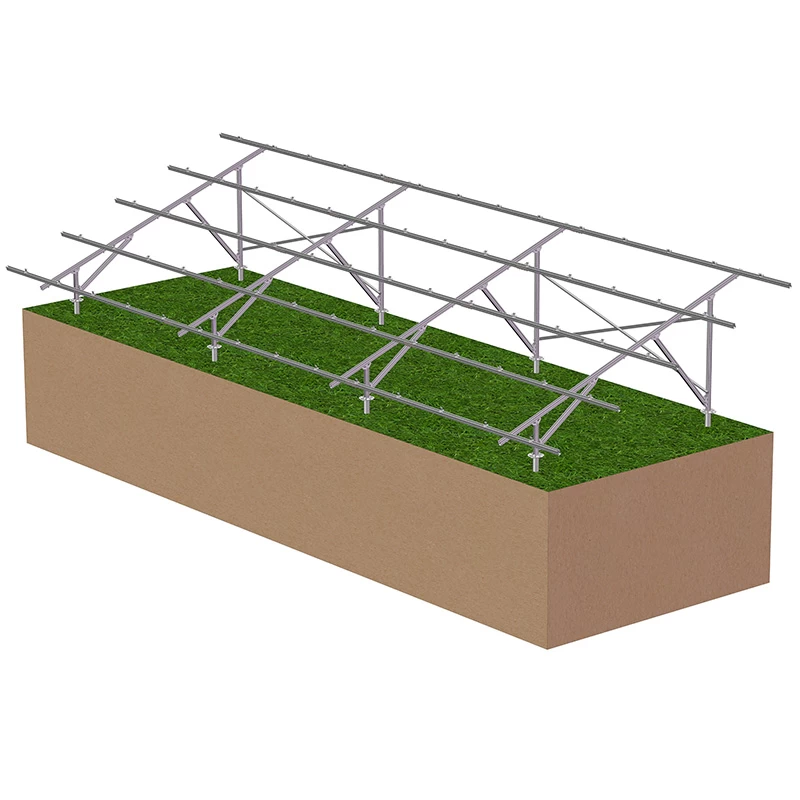

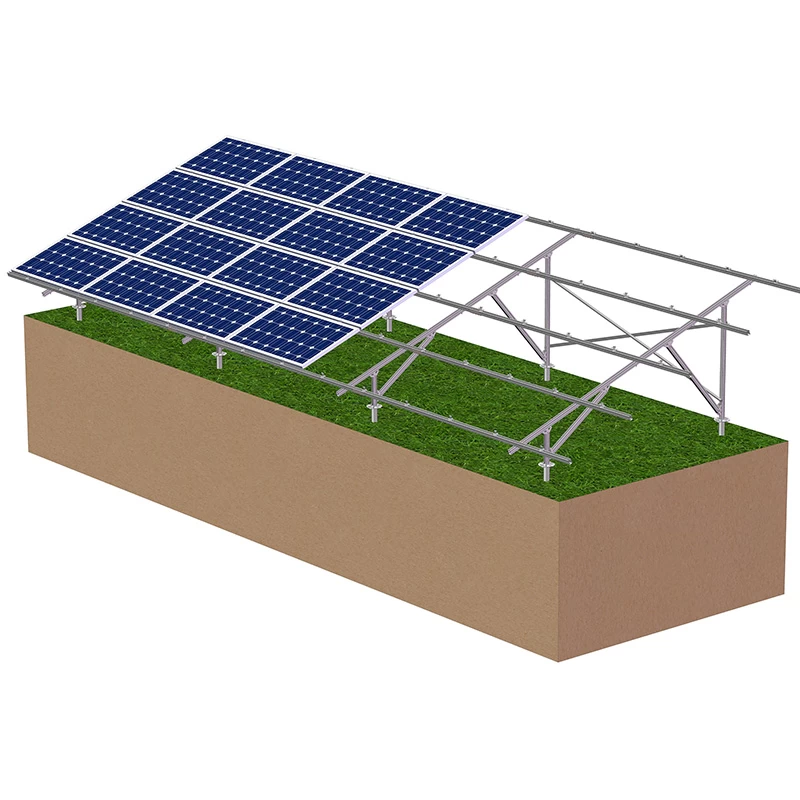

C-Steel Ground Mounting System is applicable for PV array system on the open fields.
For different foundation solutions, such as concrete with the pre-buried bolt, direct buried and ground screw, the system can be modified to install. The material used includes galvanized steel and anodized aluminium components, with great anti-corrosive suitable for outdoor using.
Mount Type
|
Ground Mounted Solar Panel Systems
|
Applicable site
|
Open field
|
Applicable Module
|
Framed or frameless panel
|
Module Orientation
|
Landscape or portrait
|
Wind load
|
Up to130mph(60m/s)
|
Snow load
|
Up to 1.4KN/m2
|
Material
|
Q235B and stainless steel 304
|
Tile angle
|
0-60 degrees
|
Warranty
|
12 years
|

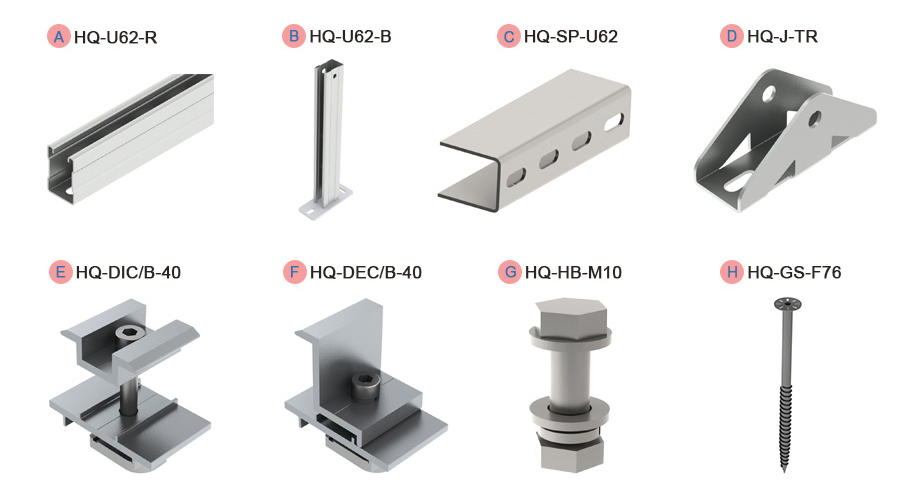

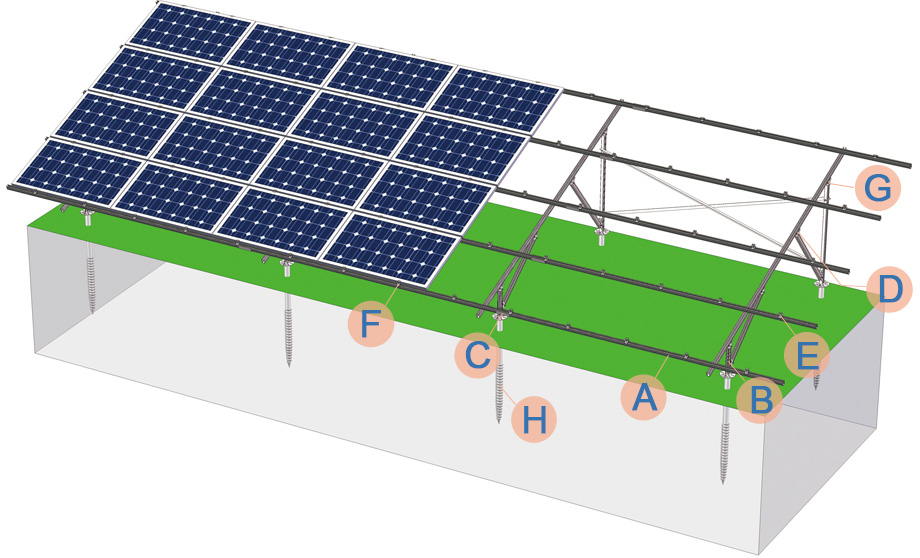

Components Parts
C-Steel Ground Mounting System is applicable for PV array system on the open fields.
For different foundation solutions, such as concrete with the pre-buried bolt, direct buried and ground screw, the system can be modified to install. The material used includes galvanized steel and anodized aluminium components, with great anti-corrosive suitable for outdoor using.

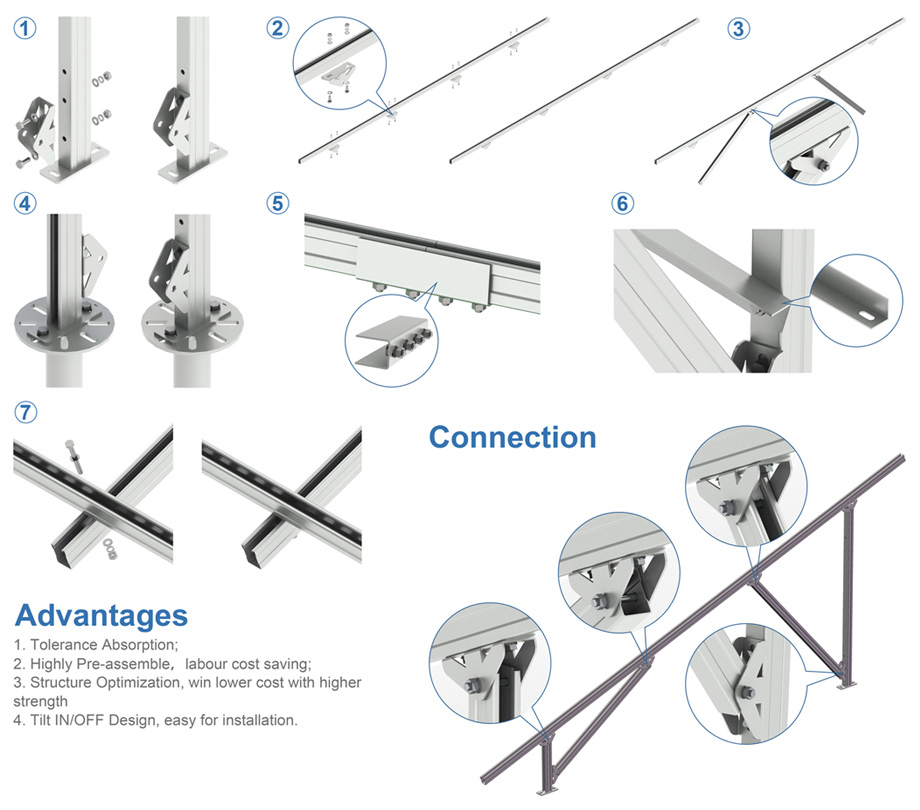

Highly Pre-assemble
