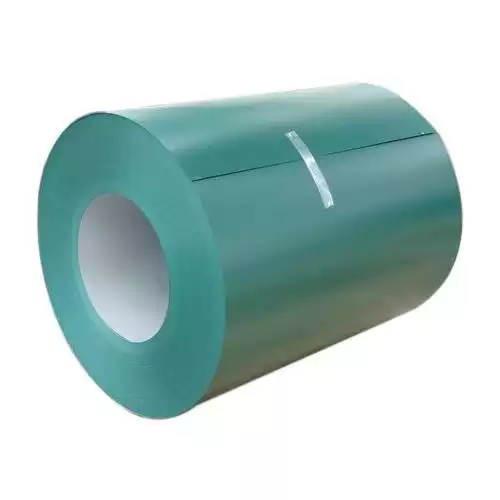

Hot Dipped Prepainted Steel Coil
China mild steel coils supplier and manufacture. Our processing lines produces best quality steel slit coils, strips, coils and sheets. We also keep ready stock in various grades of steel to deliver material on urgent basis with lowest lead times and high precision.
Product Information
|
Standard
|
JIS G3322 CGLCC ASTM A755 CS-B
|
Surface coating color
|
RAL colors
|
|
Back side coatingcolor
|
Light grey ,white and so on
|
Package
|
export standard package or as request
|
|
Type of coating process
|
Front: double coated&double drying. Back: double coated&double drying, single-coated&double drying
|
|
Type of substrate
|
hot dipped galvanzied, galvalume, zinc alloy, cold rolled steel, aluminum
|
|
Thickness
|
0.11-2.5mm
|
Width
|
600-1250mm
|
|
Coil Weight
|
3-9Tons
|
Inside Diameter
|
508/610mm
|
|
Zinc Coating
|
Z50-275g/㎡
AZ30-150g/㎡
|
Painting Coating Thickness
|
Top: 8-35 um
Back: 3-25 um
|
|
Painting Color Style
|
2/1,2/2
|
Length
|
As,require
|
|
Coating introduction
|
Top paint: PVDF, HDP, SMP, PE, PU
|
|
Prime paint: Polyurethane, Epoxy, PE
|
|
Back paint: Epoxy, Modified polyester
|
|
Productivity
|
150,000Tons/year
|
Advantages
-
Resistance to acid rain:
-
Coating protection mechanism: It is very easy to form acid rain in the high level of industrial emissions or pollutants environment. Acidic penetration is formed in the surface of pre-painted steel, and accelerates the corrosion, forming blistering, peeling and so on.
-
Resistance ultraviolet rays:
-
Coating protecting Mechanism: pre-painted sheet in ultraviolet or strong sunlight conditions, the coating will exhibit chalking degeneration, manifested as discoloration and loss of gloss, lose paint quickly.
-
Resistance to humid heat:
-
Coating protecting mechanism: in hot and humid environments, high osmotic pressure of water vapor accelerates penetration, forming the degeneration of painting film, then the corrosion of the substrate, with the phenomenon of bubbles and peeling.
-
Resistance to low temperature:
-
Coating protecting mechanisms: most of the paint can keep stable processing performance above 0 degree, but at alpine region, the temperature will be below 20-40 degree, normal paint will become brittle，bend cracking, or even lose paint, thus protection function is lost totally.
FAQ
why our steel?
We are China well known steel sheet manufacturer and supplier. Cooperated with professional and strength manufacturer,we can provide metal products that meet your requirements.
whats the biggest advantage?
We saves you time and money. With our cold rolled steel sheet you can achieve greater yields, improved equipment usage and fewer work hours to manufacture your parts.
what services do we provide?
We can provide customized service including slitting,steel sheet & plating painting,hot dipped coating,finishing treatment,custom size options. Please feel free to send us your requirements,we will reply very soon.
How do we package the products?
Triple packaging (anti-rust paper + plastic film + corrugated paper), fixed with fumigated wooden pallets, which can effectively protect the product from corrosion during ocean transportation.
When do we deliver the products?
Standard products within 15 days, customized products within 20-30 days.
Advantages to choose us
We partner with leading manufacturers to provide cold-rolled, hot-rolled, galvanized, pre-painted, coated and stainless steel for major home appliances.
Quality assured products at competitive price;
High quality assured & competitive price;
Customized service to meet your special requirements;
