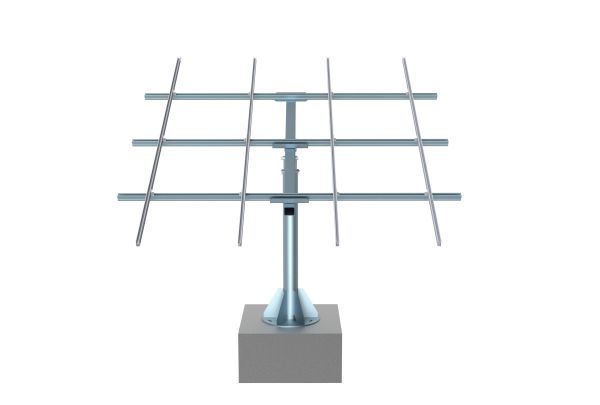

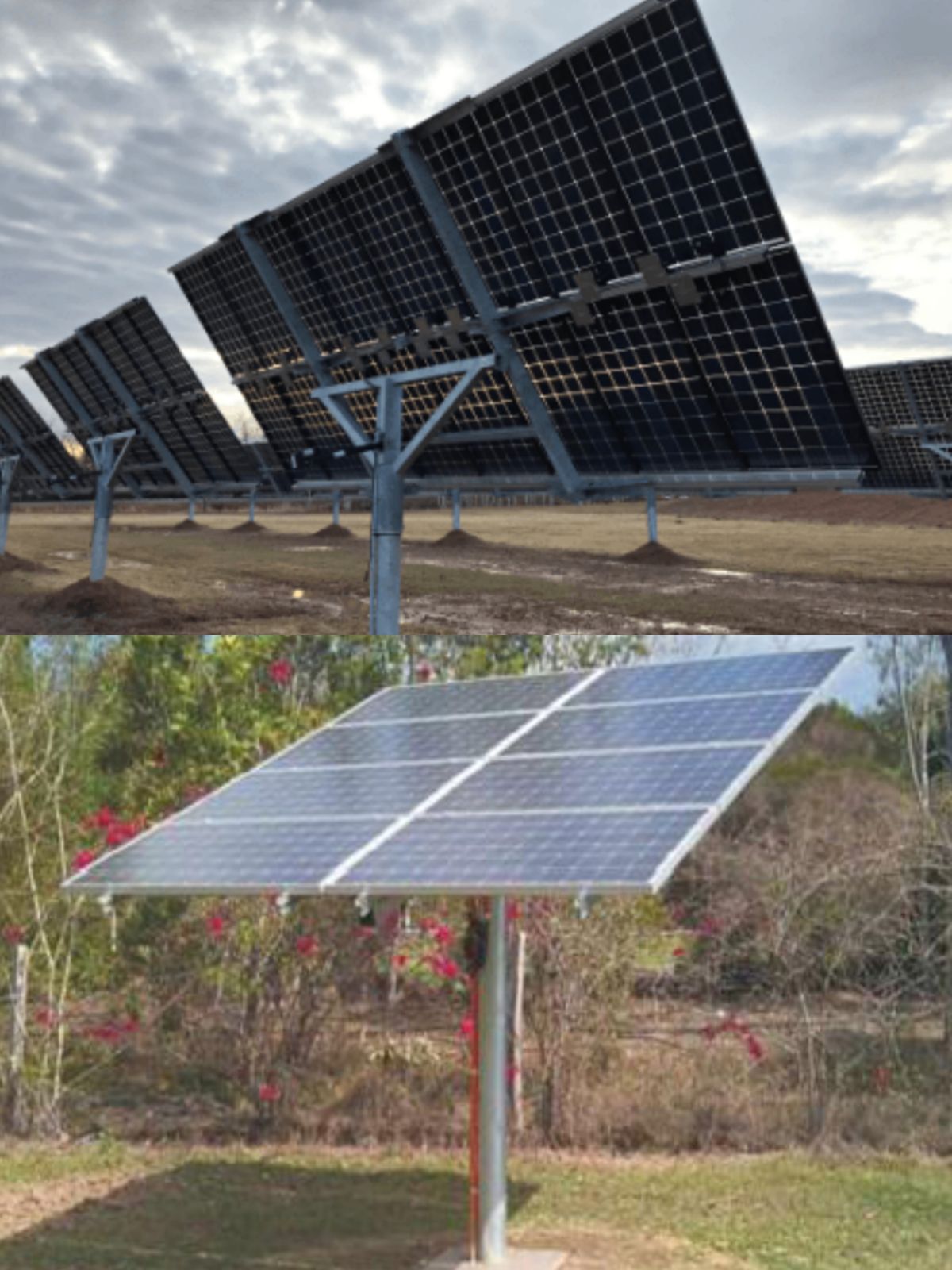

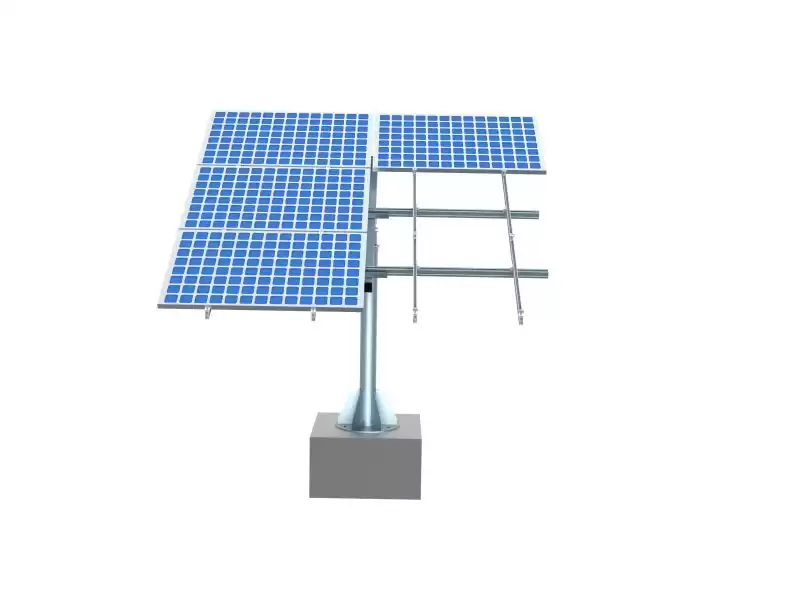

OurSolar Single Pole Ground Mounting Systemcan generate up to 20% more energy yield than a traditional fixed system;Take less time to install with minimal ground preparation cost;Provide years of trouble free operation with very little maintenance.
you can install 1-16 solar panels in different panel layout
|

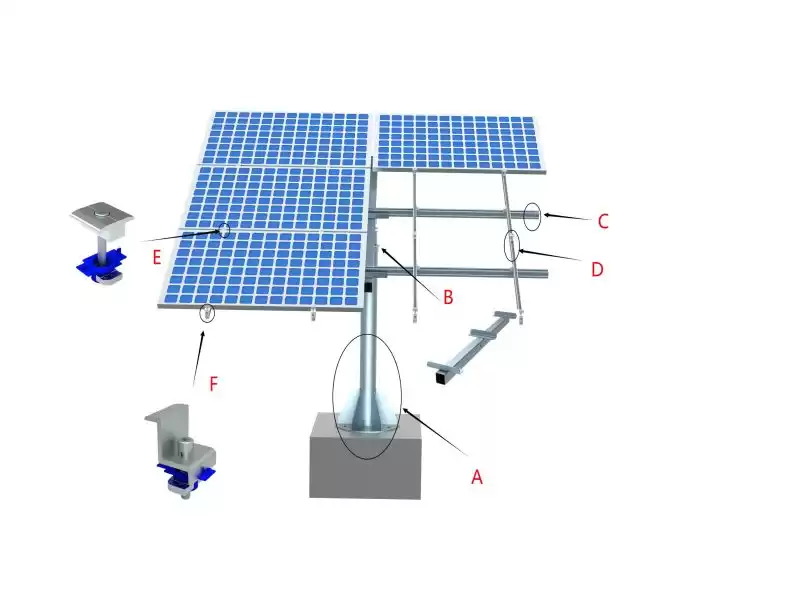

A
XHF-SG4-L, support leg
|
B

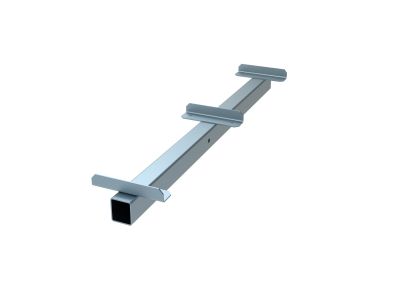

XHF-SG4-B1, 01# steel beam
|
C
XHF-SG4-B2, 02# steel beam
|
|
C

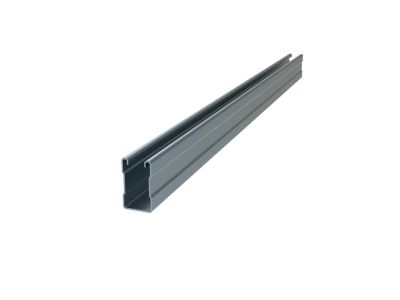

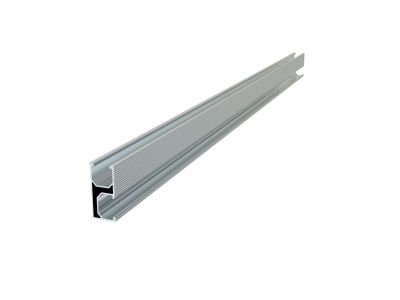

XHF-R04, steel ground rail
|
E

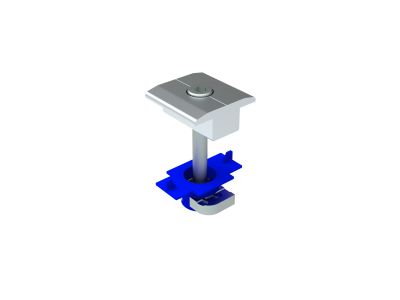

XHF-IC-40C, middle clamp
|
G

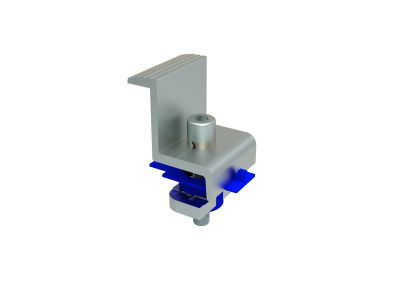

XHF-SC-40C, end clamp
|
|
Parameters
|
|
Application
|
Ground
|
Module Tilt Angle
|
10-60 degree
|
Panel Layout
|
2-10pcs panel
|
Max Wind Speed
|
60 m/s
|
Snow Load
|
1.4 KN/m2
|
Material
|
Q235 & Aluminum 6005-T5
|
Surface
|
Hot dipped galvanized & Anodized
|

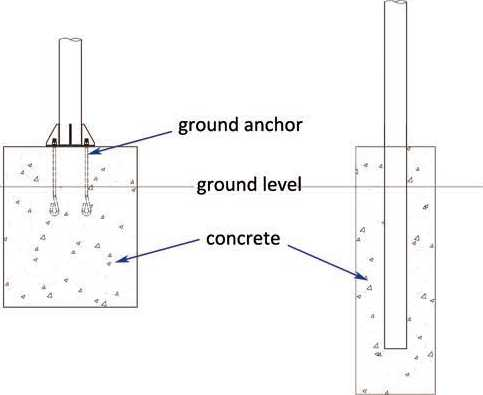

Foundation
|
Concrete base,Grounds screw
|
Rails are extruded from 6005-T5 Aluminum . the other parts are made from galvanized steel
Suitable for different regions , such as low-cost concretes and high wind and heavy snow regions
pre-assembly on factory to save your installation time and Concrete foundation can be acceptable
High quality galvanized steel material
Our system have been calculated compilable with the structural mechanics and test strictly.
Easy Installation :Integrated Design minimize the time and cost of installation
Flexibility:Tilt angle can be adjusted according to the actual needs on the install site.
Safety and Reliability:Suitable for wind, snow area. suitable for different geological conditions.especially in rock, sold, gravel, desert, dry and hard soil
|

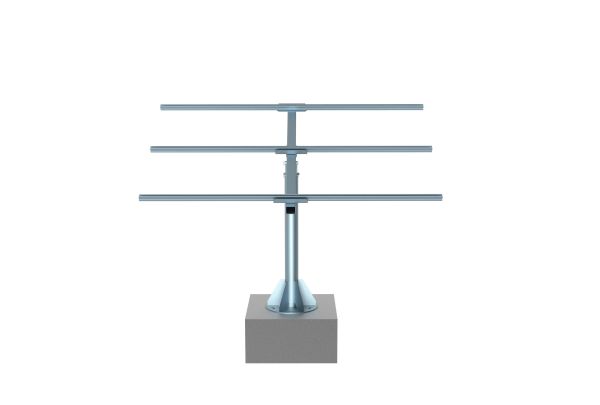

Step 1:
Install support leg、 01# steel beam and 02# steel beam .
|
Step 2:
Fix rail on beam one by one.
|
|
Step 3:
Fix panel on rail until finish.
|
|
Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.
We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000pcs.
Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.
Price
|
Because we are a factory with a large production scale, our price will be more competitive than other suppliers
|
Quality
|
At present, we have qualified the AS/NZS 1170, TUV, UL, CE, CPP and other international certifications , and we will strictly follow the requirements in the production process. What's more we can provide the production schedule to you so that you can understand the production schedule
|
Market
|
Up to now, we have exported to Africa, the Middle East, Southeast Asia, the United States, Japan and European markets
|
Delivery time
|
7-30 days
|
Payment term
|
Flexible
|
Tech support
|
OEM,OGM
|
After Service
|
10 years warranty+ 25 long service
|
