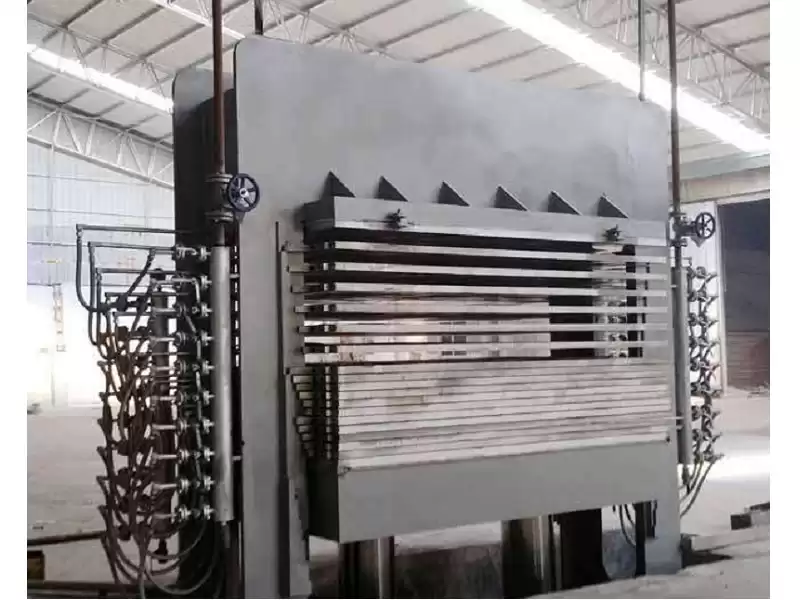

Product Name: Hot Press Machine for Plywood
Major Technical Parameters
|
Item NO.
|
Description
|
Unit
|
Model
|
Model
|
|
01
|
Products size
|
ft x ft
|
3x6
|
4x8
|
|
02
|
Total pressure (T)
|
T
|
400-600
|
400-800
|
|
03
|
Working layer
|
/
|
8-20
|
8-20
|
|
04
|
Platen size
|
mm
|
1150x2150x42/52
|
1370x2700x42/52
|
|
05
|
Main cylinder
|
mm
|
Φ360*2
Φ140*1
|
Φ360*2
Or Φ280*4
|
|
06
|
Heating way
|
/
|
Steam or
thermic oil
|
Steam or
thermic oil
|
|
07
|
Power
|
kw
|
15kw+7.5kw
|
15kw+7.5kw
|
Main Features
-
New designed frame, to ensure machine steady and use life.
-
Auto temperature-controlled system, accept heat even.
-
With hydraulic system for high speed movement, saving time and raising producing ability.
