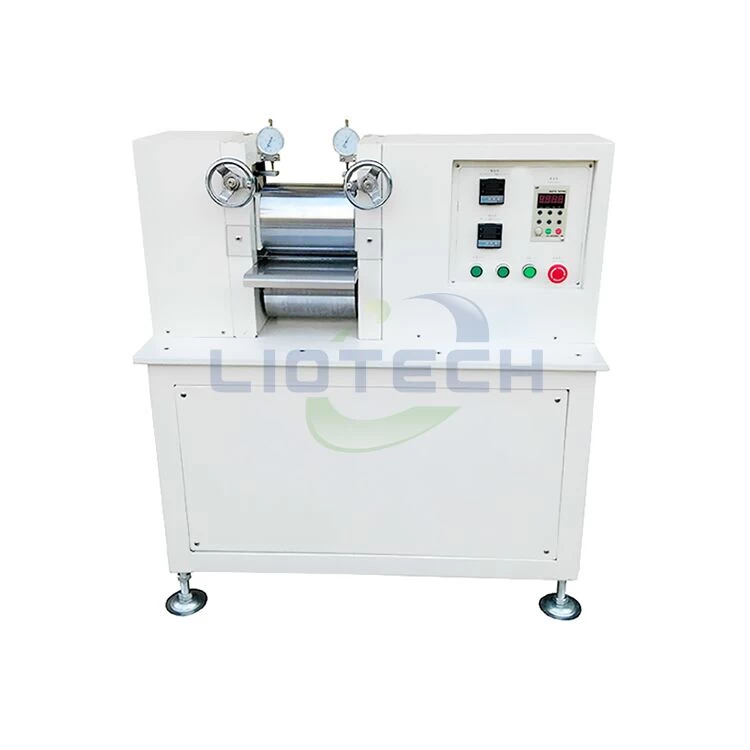

Hot Roll Press Machine for Battery Electrode
Product Specification
1.LIO-DR-H150-200 lab roll press machine is a compact precision roll heat press machine . It has dual rollers of 150mm dia. x 200mm width and dual grade micrometer. This lab roll press machine is an ideal Hot rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
2 This model electric calender is mainly used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.
3 It has a pair of 200mm width steel rollers. Such a roller can be heated up to 120℃.
|
Model
|
Φ150*200mm Roll Heat Press Machine LIO-DR-H150-200
|
|
Warranty
|
One year limited manufacture warranty with lifetime support
|
|
Working Voltage
|
110V / 220V AC single phase selectable
|
|
Roller Dimension
|
150mm(Dia.) x 200mm(W)
|
|
Power
|
6000w total
|
|
Rolling press accuracy
|
≤±0.005
|
|
Roller surface hardness
|
>HRC62
|
|
Roller surface finish
|
0.8
|
|
Roller surface
hardening depth
|
5mm
|
|
Rolling press thickness
|
0-3 mm adjusted with Dial gauge
|
|
Rolling press width
|
Max 200mm, Customized
|
|
Rolling press speed
|
0-6.5 m/min adjustable
|
|
Heating temperature
|
RT-120℃, can customized to 200C
|
|
Application Notes
|
This roller is specially designed for battery R&D in terms of its advantages
as affordable, compact and precise.
1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
2 Coated Rust-proof oil if machine were to be unused for a long period of time
3 The minimum thickness of the rolled sheet should depend on the physical
property of the materials.
|
