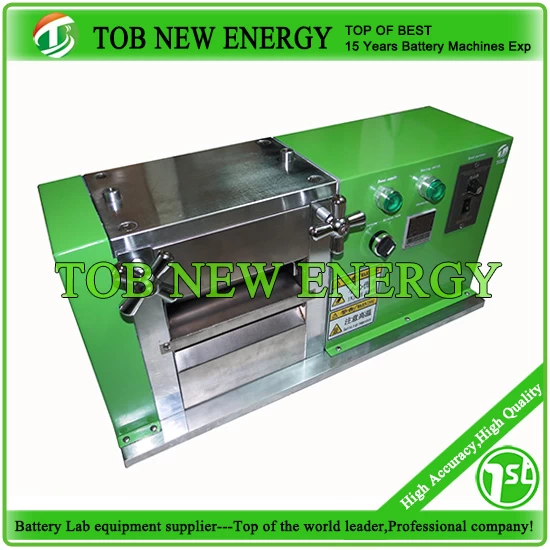

100mm Width Hot Roller Press Machine/Calender Machine With Heating Temperature up to 130°C
SPECIFICATIONS
1 TOB-JS-100LHot roller press machineis a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
2 Thehot roller press machinehas 100mm width steel rollers. Such a roller can be heated up to 130°C.
|
Model
|
Hot Roller Press Machine TOB-JS-100L
|
|
Source voltage
|
AC 110V-220V Customized, 50HZ
|
|
Power
|
800W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Roller temperature
|
RT-130℃, adjustable and digital display
|
|
Roller diameter
|
2 - Φ96mm
|
|
Roller surface hardness
|
HRC62
|
|
Roller finish degree
|
>0.8
|
|
Rolling press thickness
|
0-2mm, Adjustable
|
|
Working speed
|
0-40mm/s
|
|
Rolling press width
|
Max 100mm
|
|
Dimension(L*W*H)
|
500*220*320mm
|
|
Weight
|
About 55kg
|
|

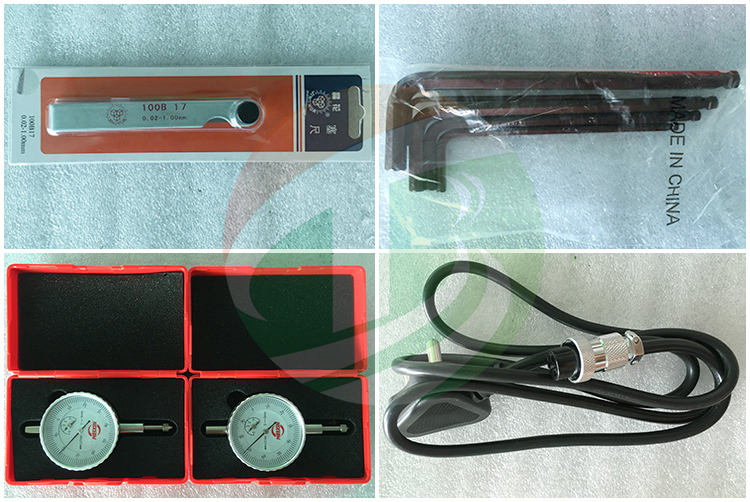

Accessories
|
1 “Customized power plug”-1pcs 2 “Dial gauge”-2pcs

3 “Socket head wrench”-1set 4 “Feeler gauge”-1pcs

|

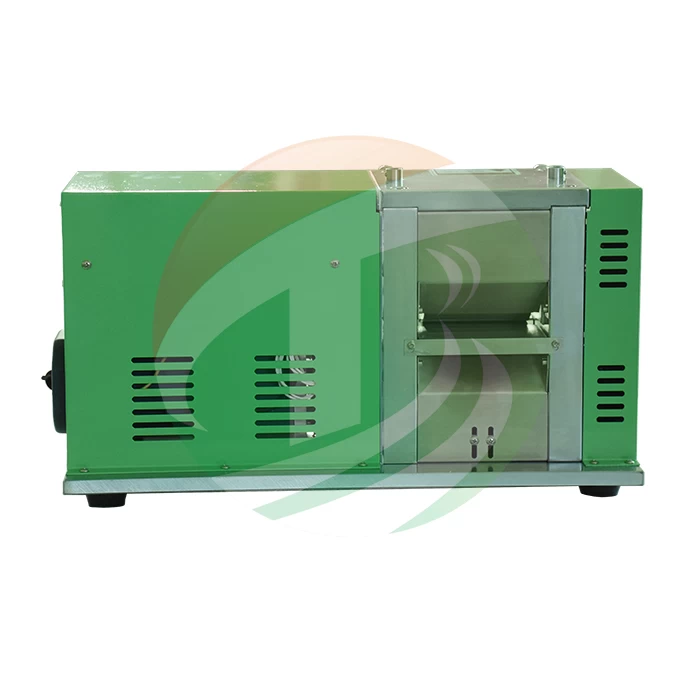

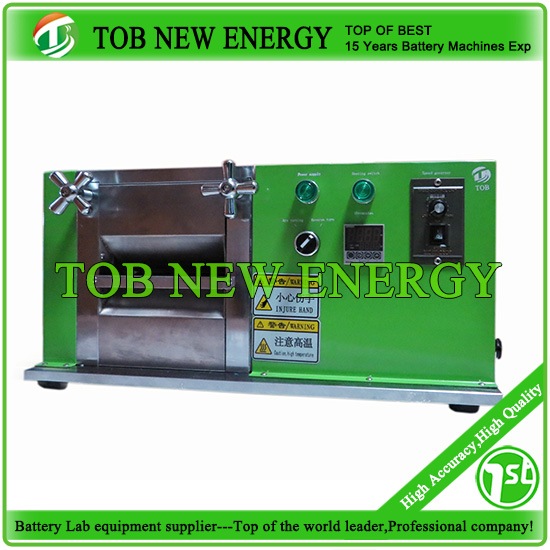

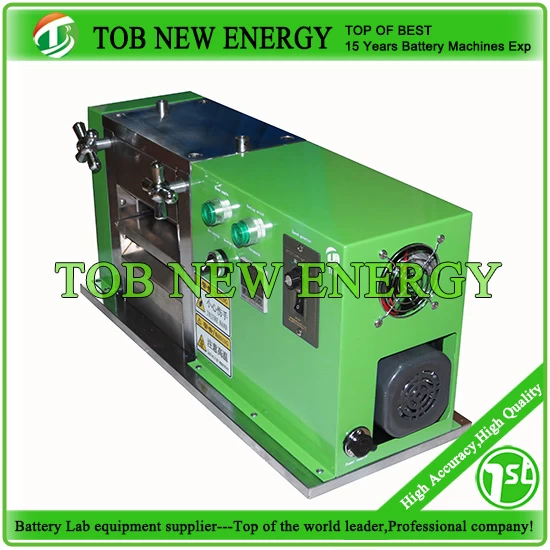

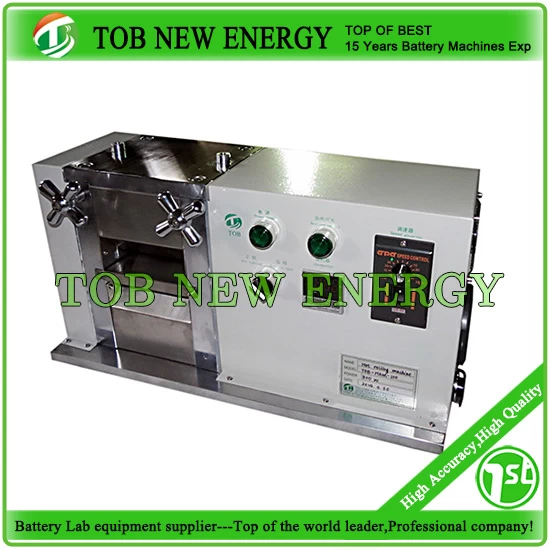

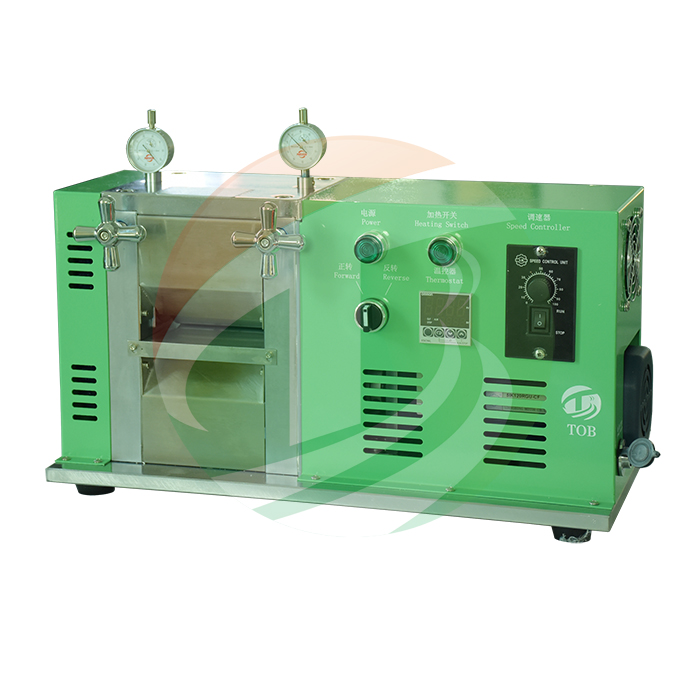

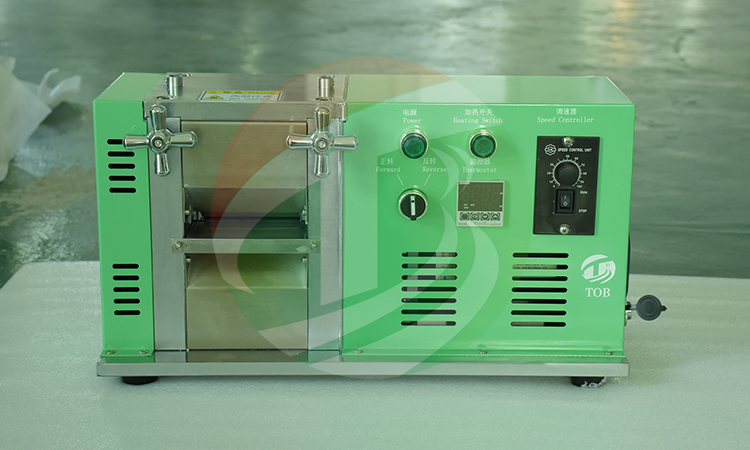

PRODUCT DISPLAY
PACKAGE
SERVICES
|
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.
|
