Hot Sale China Planetary Mixer 10 L Battery Slurry Planetary Mixer Machine
Product Specification
|
Model
|
LIO-XFZH10
|
|
Lower Barrel Parts
|
|
Design total volume
|
16L
|
|
Elective volume
|
5-10L
|
|
Container inner diameter
|
310mm
|
|
Container inside depth
|
220mm
|
|
Container material
|
The parts in connect with materials is 304 stainless steel
|
|
Tempering jacket form
|
The bottom and the barrel jacket can input water for cooling, heat preservation and heating
|
|
Tempering jacket port
|
G3/4",with quick opening movable joint,
jacket withstand pressure≤0.4MPa
|
|
Tempering jacket circulation system
|
prepared by customer,
jacket water inlet temperature≤8℃,
cooling water flow>7 L/min
|
|
Discharge materials form
|
bottom of a G1-1/2" three-piece discharge ball valve, equipped with 2 "standard ISO quick connect clamp connector
|
|
Design environment temperature
|
-10~+120°C
|
|
Move mode
|
Casters move
|
|
Mixing Parts
|
|
Working frequency
|
5-50hz
|
|
Mixing power
|
1.5kw
|
|
Mixing blade speed
|
10-100rpm
|
|
Planetary box rotate speed
|
5-50rpm
|
|
Mixing blade diameter
|
163mm
|
|
Mixing blade model
|
Variable cross-section spiral twist type, 90 ° helix
|
|
Mixing blade material
|
304 stainless steel
|
|
Mixing blade line speed
|
0.06-0.6m/s
|
|
Mixing blade number
|
2pcs
|
|
Dispersing Parts
|
|
Working frequency
|
5-50hz
|
|
Dispersing power
|
2.2kw
|
|
Dispersing rotate speed
|
600-6000rpm
|
|
Dispersing plate diameter
|
70mm
|
|
Dispersing model
|
Serrated
|
|
Dispersing plate material
|
304 stainless steel
|
|
Dispersing line speed
|
2.2-22m/s
|
|
Dispersing number
|
1pcs
|
|
Dispersing shaft number
|
1pcs
|

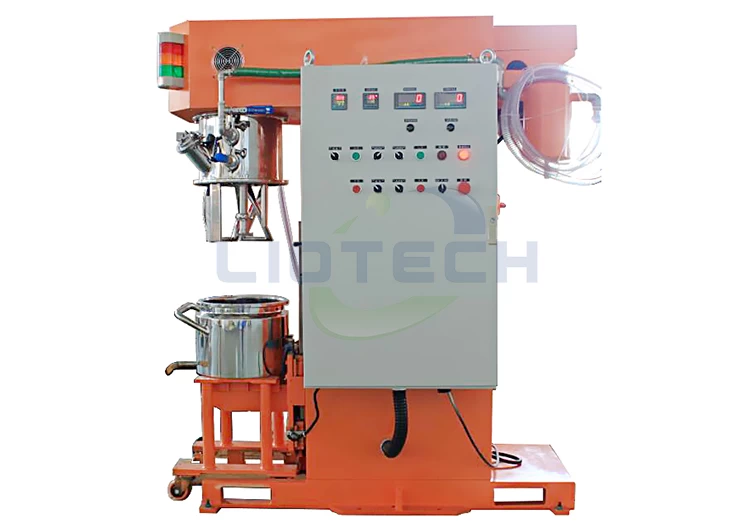

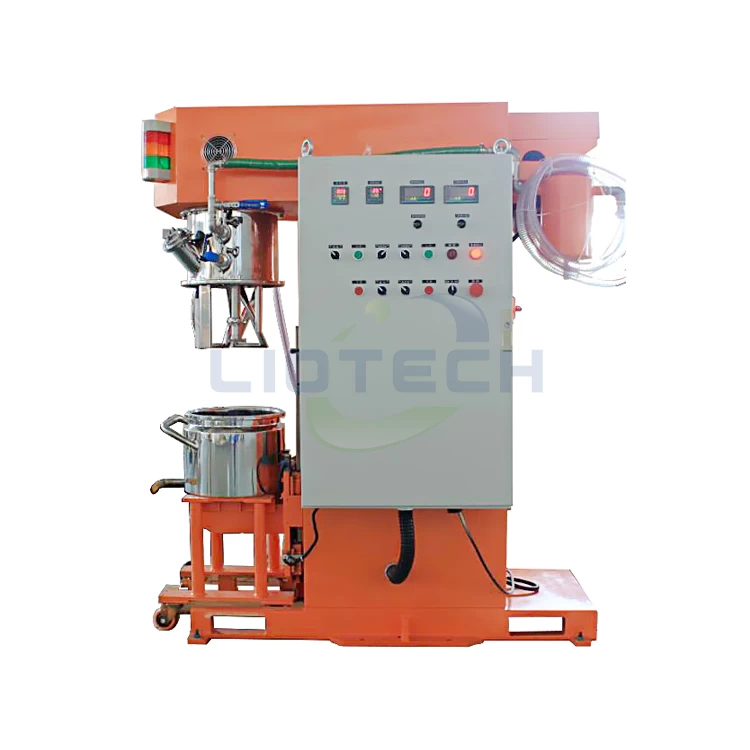

Product Image
