Technical Specification:
|
Applicable Mediums
|
kerosene, diesel and gasoline etc
|
Accuracy
|
±0.3%
|
Ambient Temperature
|
-40°C-+55°C
|
Relative humidity
|
≤95%
|
Flow rate
|
5-50L/Min
|
Inlet Pressure
|
≥54Kpa
|
Noise
|
≤80dB(A)
|
Power
|
380V 50Hz(220V 50Hz for option)
|
Unit Price Range
|
0.01-99.99
|
Single Volume Range
|
0.01-9999.99
|
Accumulative Volume Range
|
0.01-999999.99
|
Explosion-proof Sign
|
Exdmb ⅡAT3
|
Explosion-proof Certificate
|
CNEx10.3038
|
|
OEM
|
Feasible
|

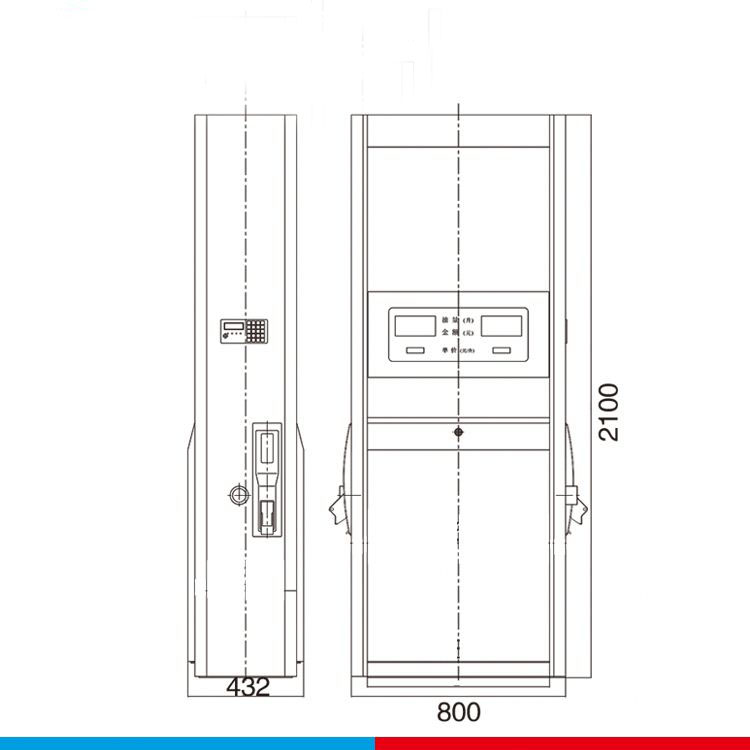

Size
|
800*432*2100mm
|
Optional configuration:
Ticket Printer, IC Card Function, Gas recovery function.
Standard for basic configuration:
|

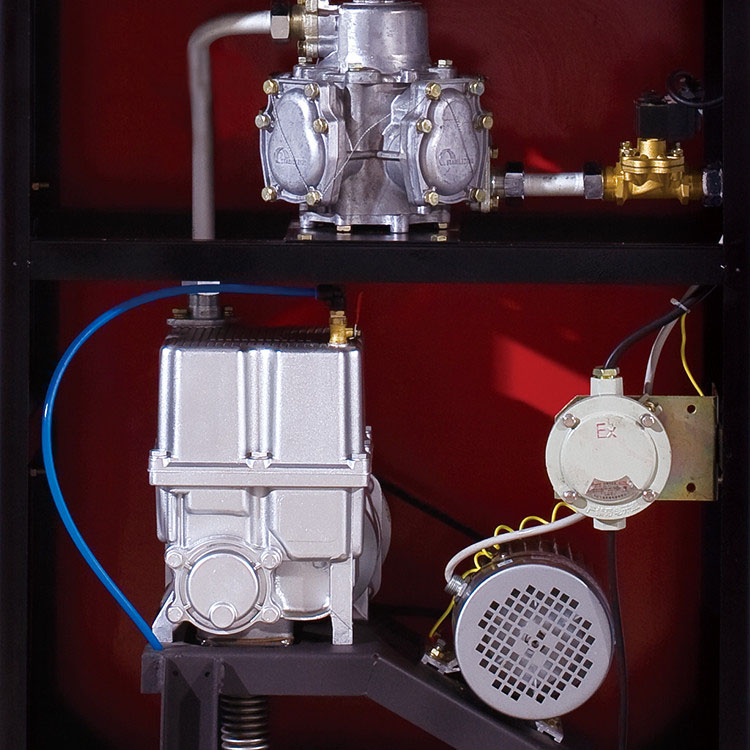

Combination pump
|
Combination pump
|
TY Combination pump
|
1
|
2
|
Stabiling flow meter
|
1
|
2
|
Tax control board
|
1
|
1
|
Large screen display
|
2
|
4
|
Magnetic valve
|
1
|
2
|
Self-styled oil gun
|
1
|
2
|
Appearance text patterns can be customized according to customer needs!
