Hot Sale Garden Grass Paving Grid Specification:
| Item Code |
LK-450A8 |
| Material |
HDPE |
| Size(L x W x H) |
465 x 535 x 50mm |
| Color |
Green |
| Picture |
 |

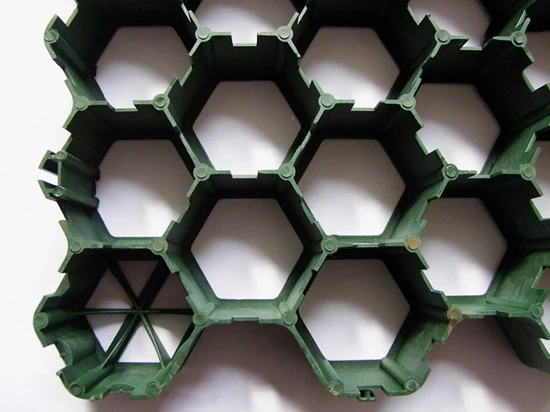

| Grass Grid Details |
 |
| Application |
- Grass driveways and grass shoulder;
- Overflow grass car parking lot;
- Fire truck access paths/fire lanes;
- Handicap access routes;
- Stabilising Verges;
- Golf buggy/trolley paths;
- Emergency Vehicle Access;
- Modern factory building;
- Noble living communities;
- Truck maintenance and equipment yards;
- Construction entrance soil stabilization;
- Residential driveways;
- Roof garden greening etc.;
|
| Compressive Strength |
1964KN/sqm (200ton/sqm) |
| Working Temperature |
Dimensionally stable for -40℃ to 90℃ |
| Weight |
5.5kg/sqm |
| Afforests Rate |
95%~100% |
| Porosity |
90% |
| Moisture Absorption |
0.1% |
| Environmental Compatibility |
Non toxic, harmless to plants, animals, and microorganisms, inert material, groundwater neutral |
| Anti HCL |
According to GB4218-1984, 30%x24h, no visible change |
| Anti NaOH |
According to GB4218-1984, 40%x24h, no visible change |
| Thermal Aging |
According to GB/T 7141-1999, 70ICx24h, no visible change |
| Anti UV |
According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified |
| Features and Benefits |
1. Manufactured from 100% recycled plastics, eco-friendly grass grids;
2. Flat plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change
3. Perfect greening, provides more than 95% grass area;
4. High compressive strength and durable,the plastic grass grids is permanent and long lasting;
5. Fast and easy to install, maintenance with low cost;
6. Permeability drainage performance, high water culvert;
7. Anti-UV, resistance to acid and alkali corrosion, anti-wear and pressure, anti-temperature -40℃ to 90℃;
8. Grass grids has an open cell structure allowing unrestricted healthy grass root growth;
9. The grass grids allow grass to grow with easy and binds firmly;
10. Unique interlocking plastic grass paving grids are chemically inert, non-toxic and rot free.
|
| Packing |
Bundle or Carton (or at your request), 8pcs=2sqm=1bundle |
| MOQ |
100sqm |
| Loading Capacity |
700sqm=1x20ft container; 1420sqm=1x40ft container; 1628sqm=1x40HC container |
| Shipping |
About 20 days after receipt the deposit.
FOB Xiamen, appointed shipping-terms and port accept.
|
| Installation Guide |
|
Manufactured from 100% recycled HDPE material, Leiyuan gravel stabilization grid are an interlocking celluar paving grid system for grass and ground reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.
Gravel stabilization grid provides the pavement strength with the natural beauty of grass, at the same time, it eliminates soil compaction, reduces reflective heat and allowing for all weather accessibility at a very cost effective price.
Plastic Grass Grids Construction:
Leiyuan Plastic Grass Grid: High Strength, Long Life Service !
