KAIHUI customized 12v 24v 36v 48v 150w single output power supply for LED lighting and electronic equipment
Description:
K18-U150S series 150W switching power supply has high efficiency, low temperature rise and 12v 24v 36v 48v output voltage adjustable with 2 years warranty, it can used in Stage lighting and other electronic products.
Features:
1, 150w power supply high efficiency and low temperature rise;
2, DC 12V 24V 36V 48V 150w power supply wide AC input voltage;
3, 24v 150w power supply short circuit, overload and over voltage protection.
4. Includes filters, low output noise.
|
Parameter
|
|
Item NO
|
K18N-UP300S12
|
K18N-UP300S24
|
K18N-UP300S36
|
K18N-UP300S48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
25A
|
12.5A
|
8.3A
|
6.25A
|
|
Current Range
|
0-25A
|
0-12.5A
|
0-8.3A
|
0-6.25A
|
|
Rated Power
|
300W
|
300W
|
300w
|
300W
|
|
Ripple
|
200mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
50ms,50ms,20ms
|
|
Input
|
Input Voltage Range
|
90~264V AC;110~360V DC
|
|
Input Current
|
3.2A/115V;1.6A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
>88%
|
|
Inrush Current
|
20A@115VAC,40A@230VAC
|
|
Leakage Current
|
<0.75mA@240V
|
|
Protection
|
Over Load Protection
|
110~150%,Hiccup protection, automatic recovery
|
|
Short Circuit Protection
|
TYPE:HICCUP RESET:AUTO RECOVER
|
|
Over Voltage protection
|
15~18V; 30-33V; 42-46V; 55-60V
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN61000-3-2,EN61000-3-3,EN55022 CLASS A
|
|
Others
|
Dimension
|
127*82*45mm CASE：K818N
|
|
Weight
|
0.5kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

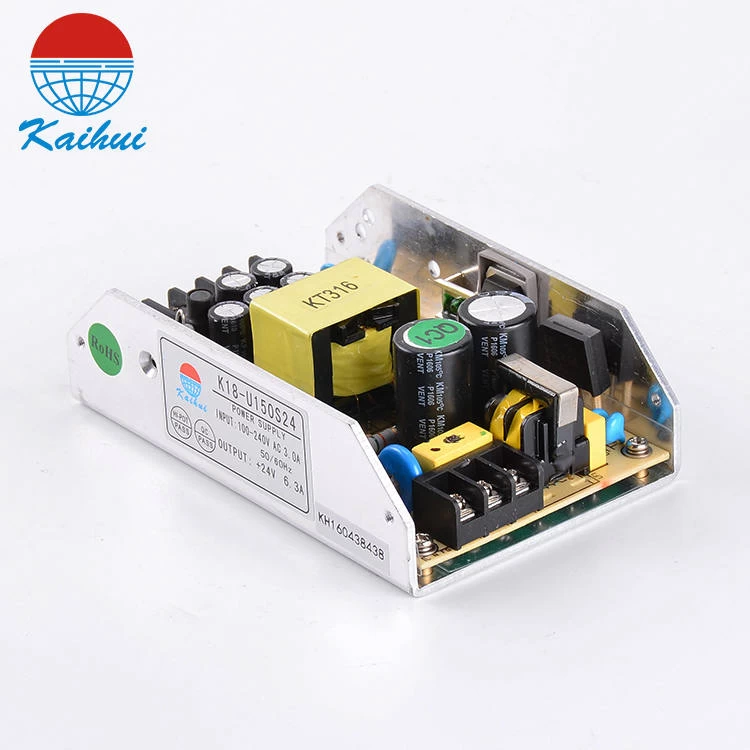

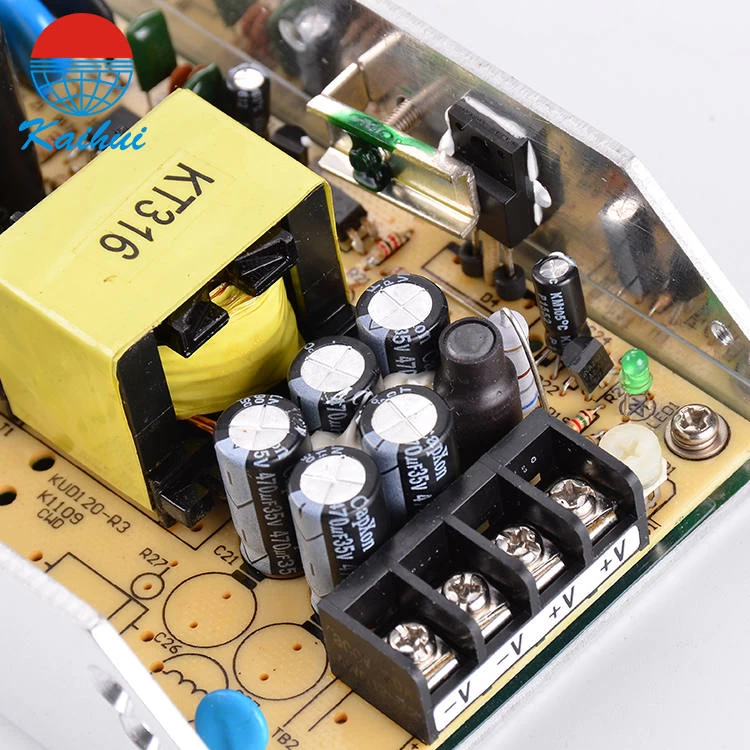

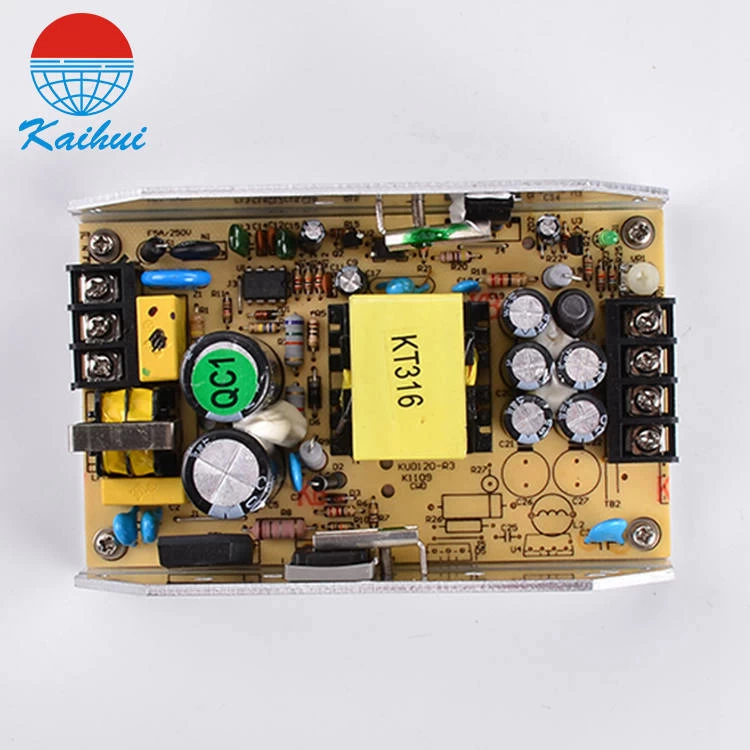

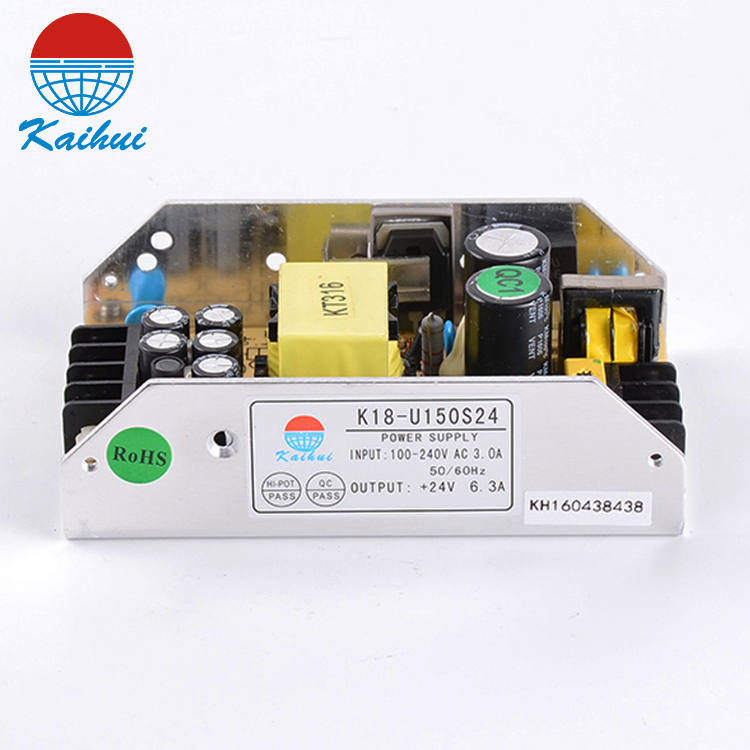

Product picture:
