| Product name |
02# Vertical Porcelain Tile Hook |
| Model Number |
EG-TR-SH05 |
| Installation Site |
Tile Roof |
| Surface Treatment |
Sandblasted |
| Warranty |
12 years |
| Snow Load |
1.4KN/M² |
| Wind Speed |
60M/S |
| OEM Service |
Avaliable |
Product Description

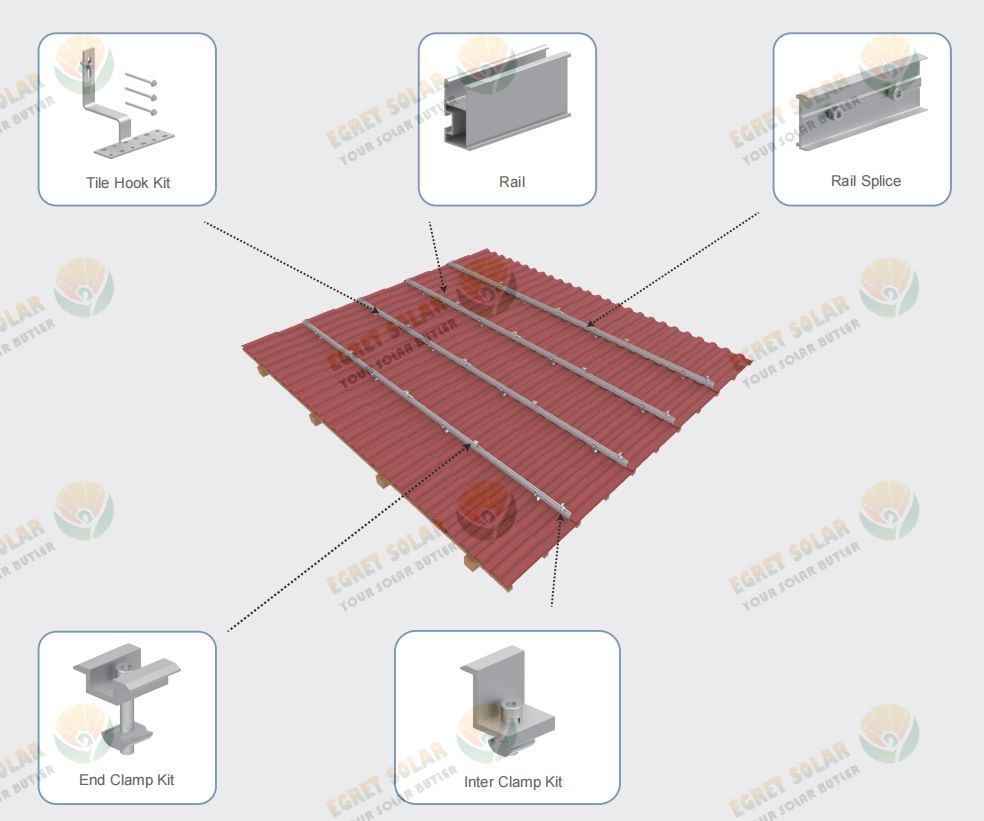

Vertical porcelain tile hooks are suitable for porcelain tile roofs and can be used with 47 rails or 50 rails. Different bolts and widths are selected according to the type of bottom beam and different types of hooks are selected.

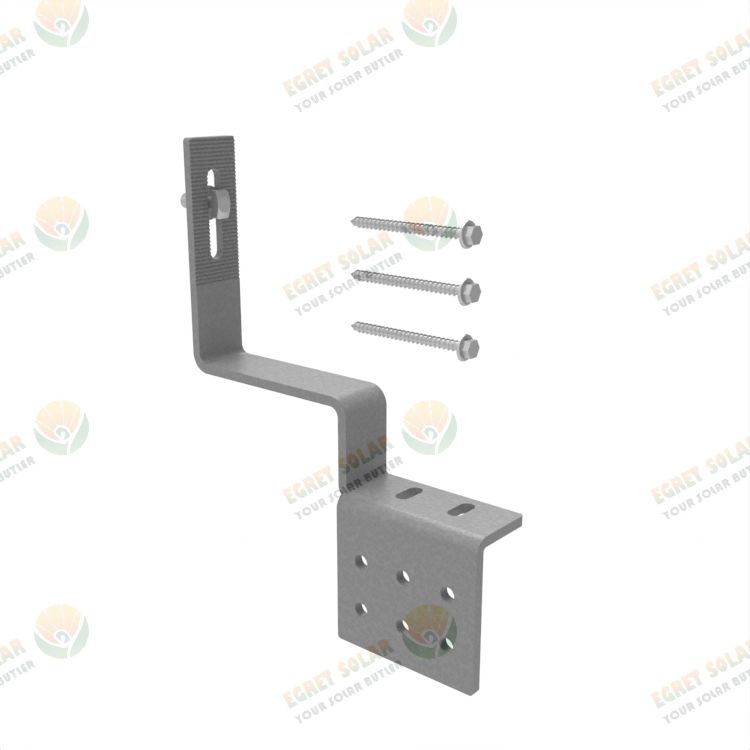

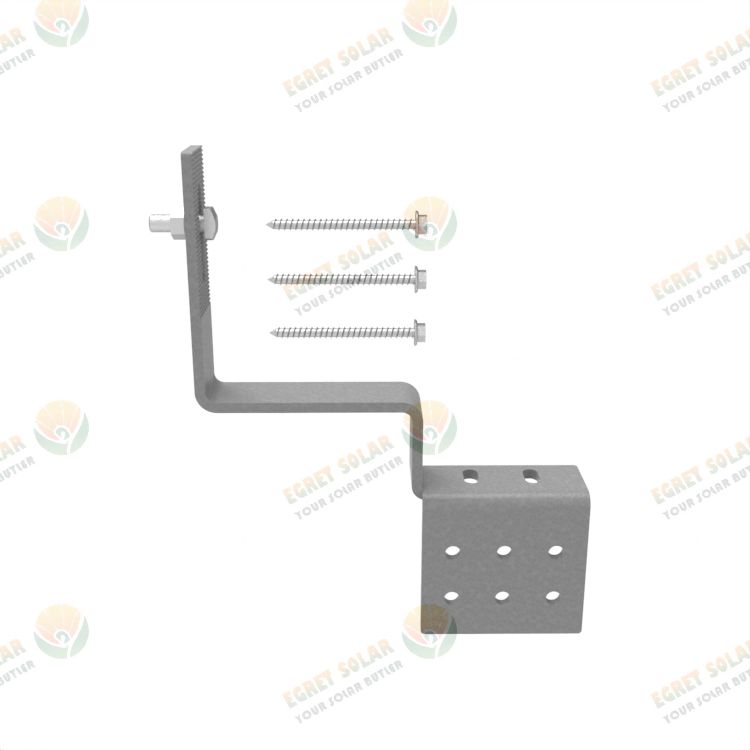

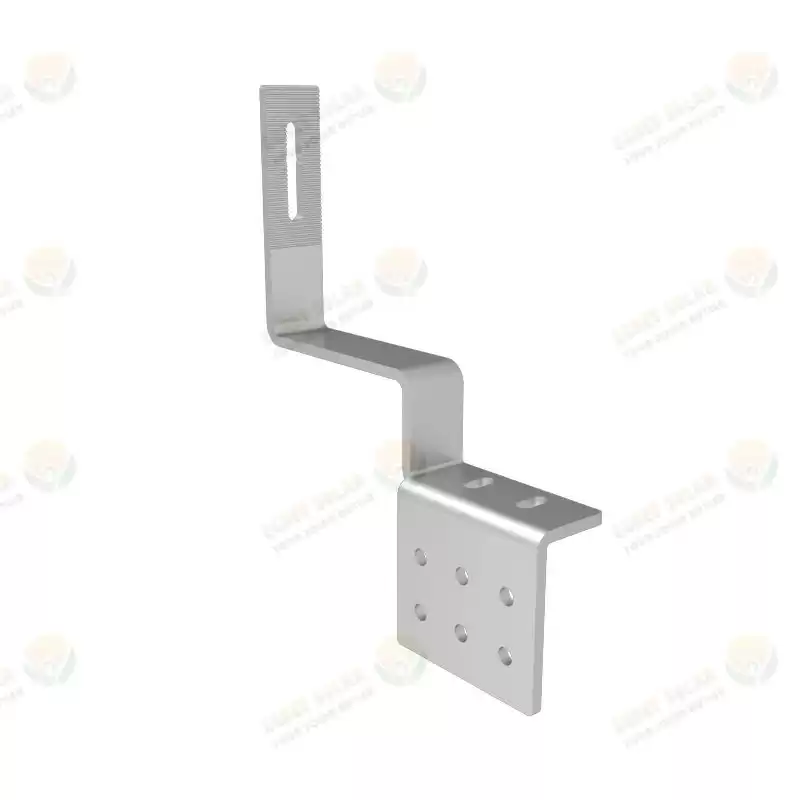

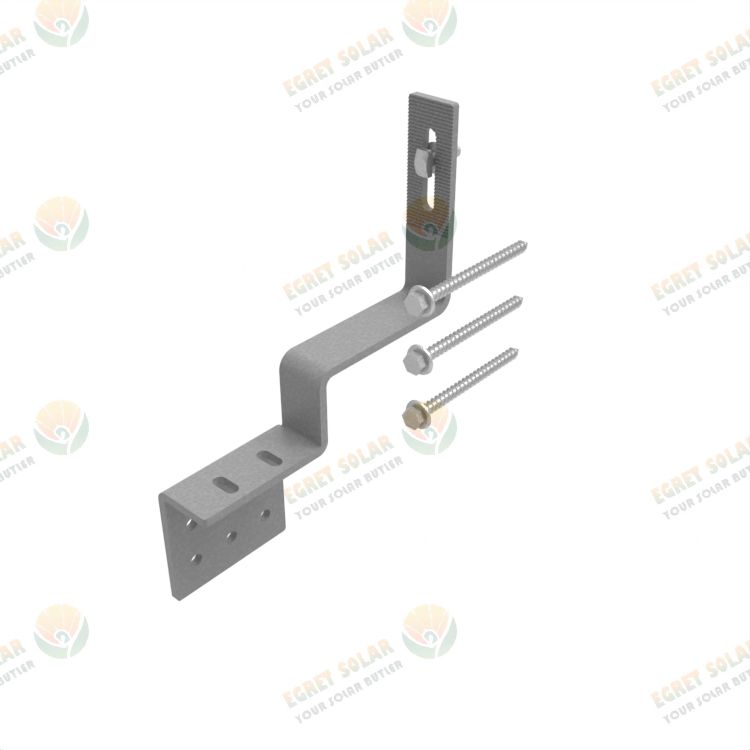

Product Show

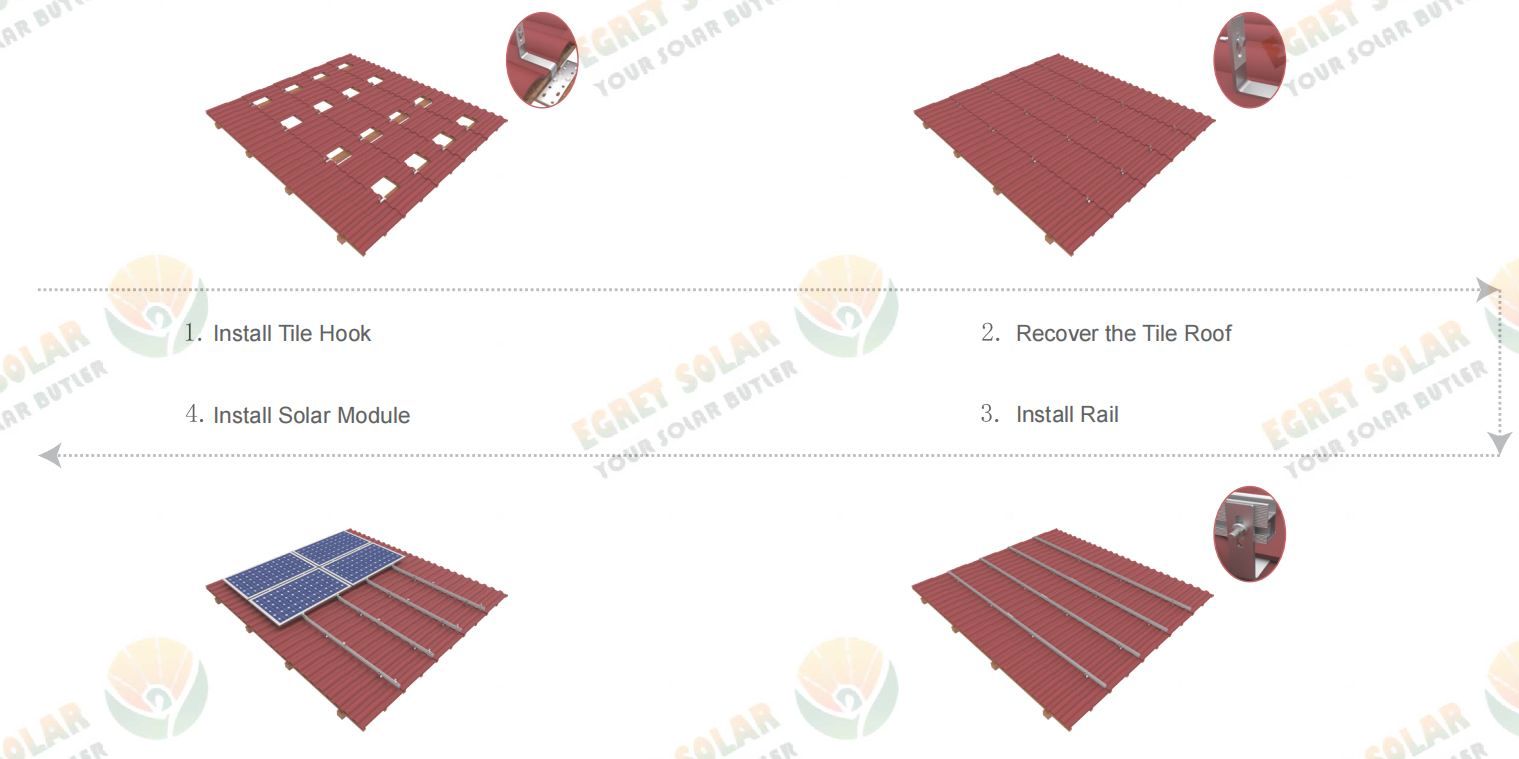

Installation Steps

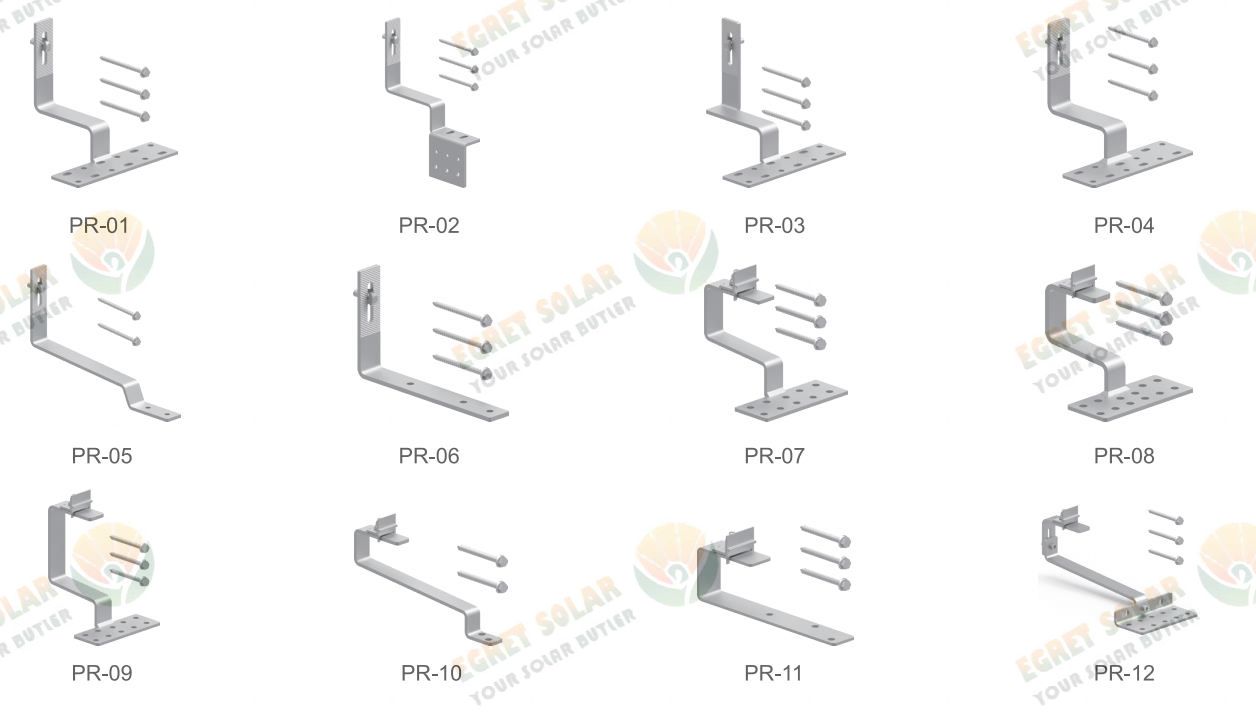

Others Model Hook
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
