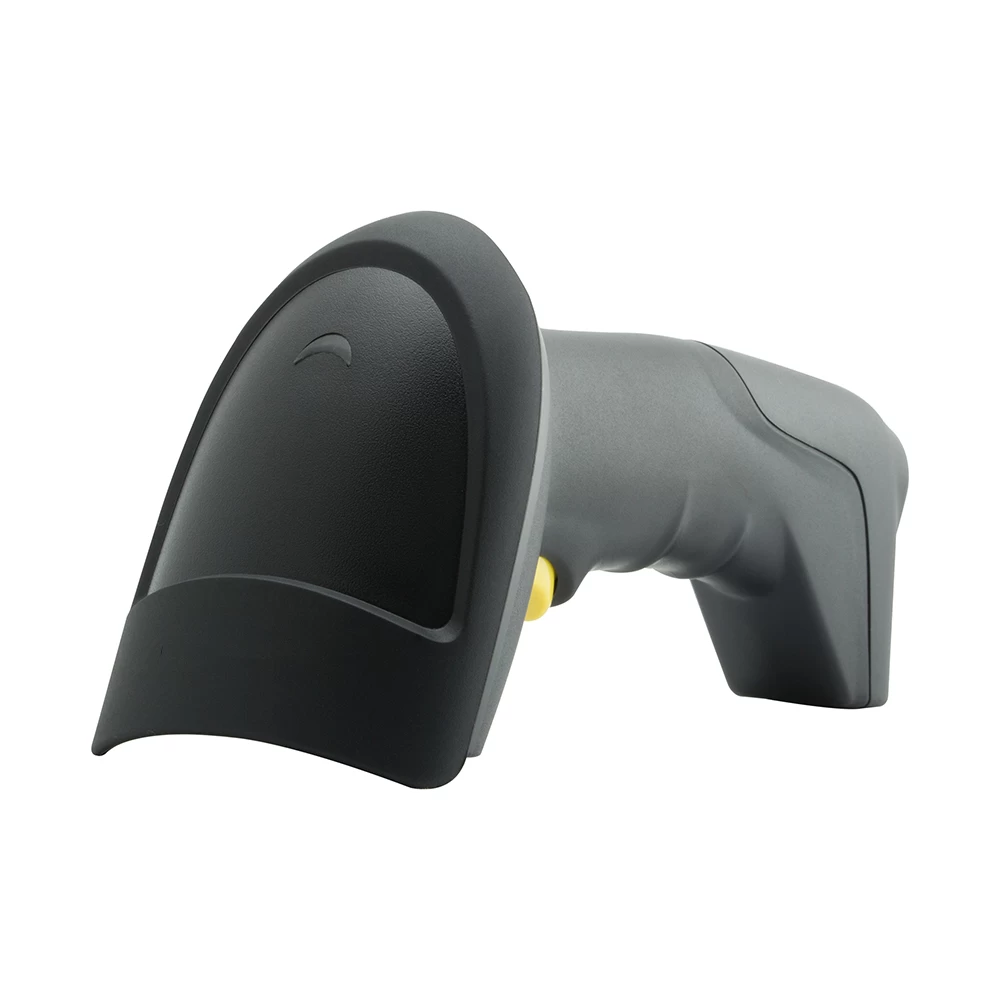

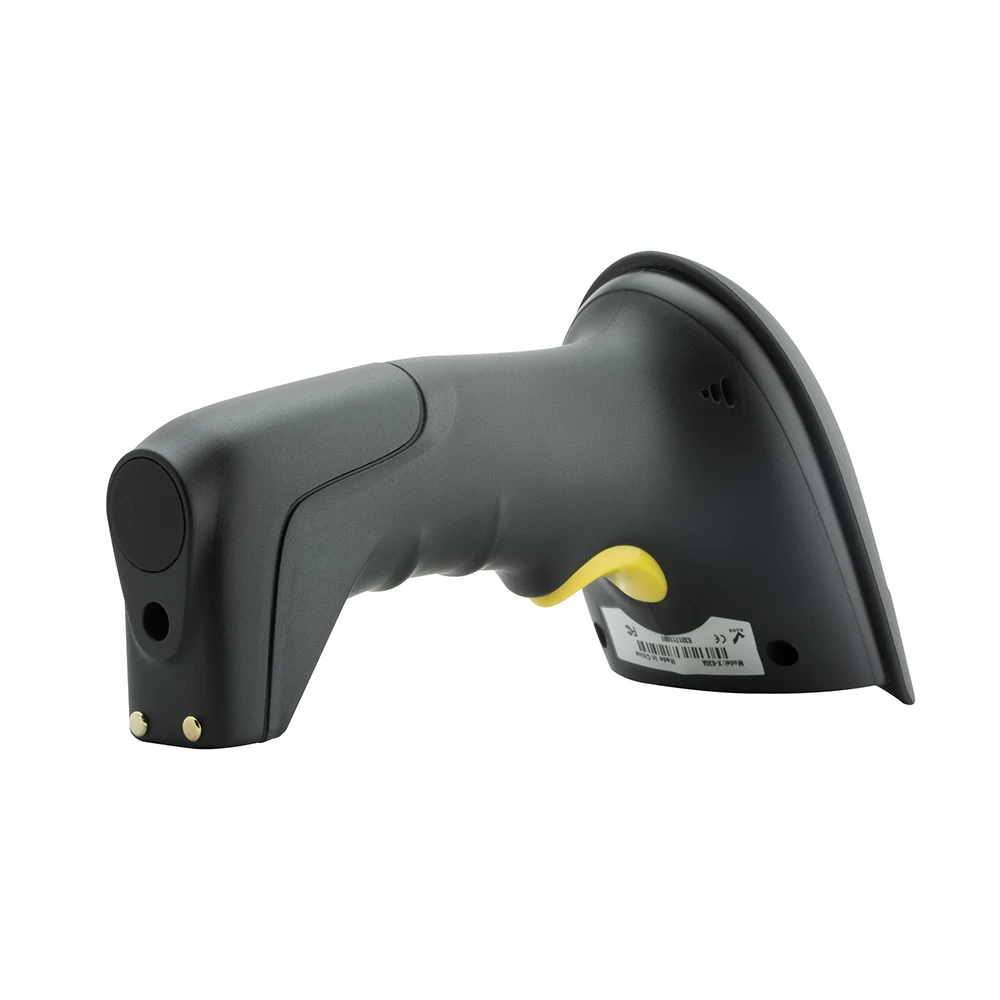

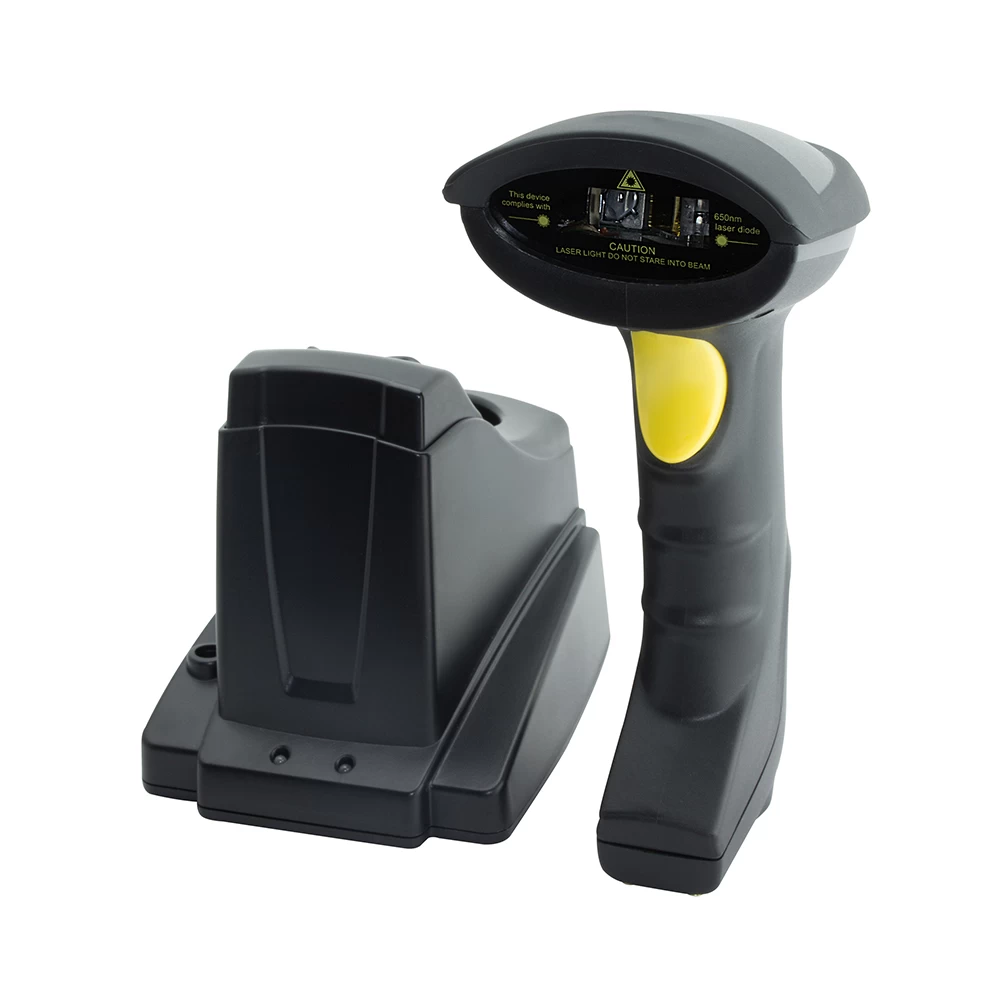

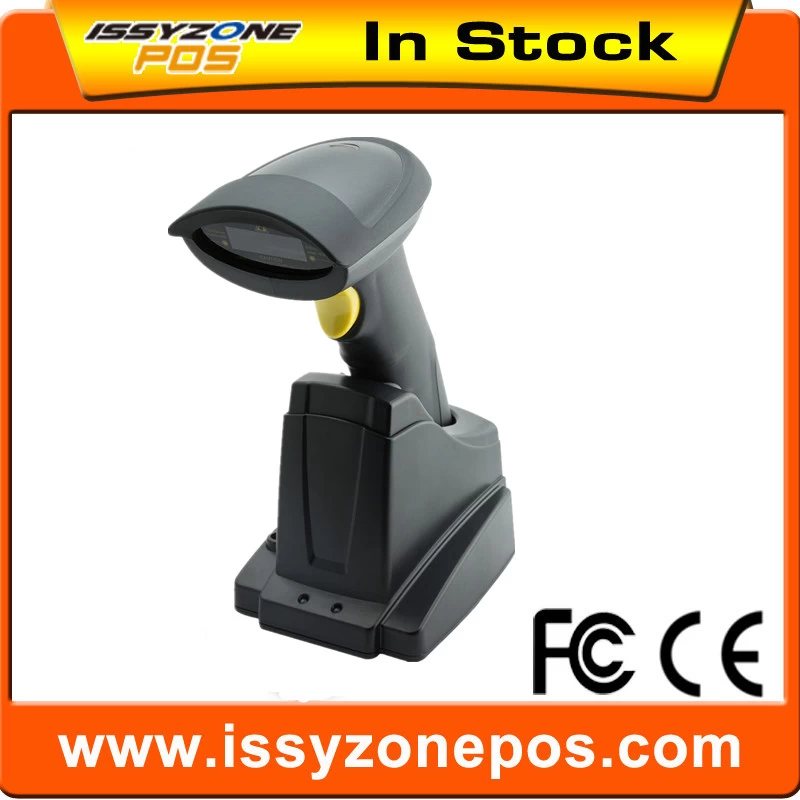

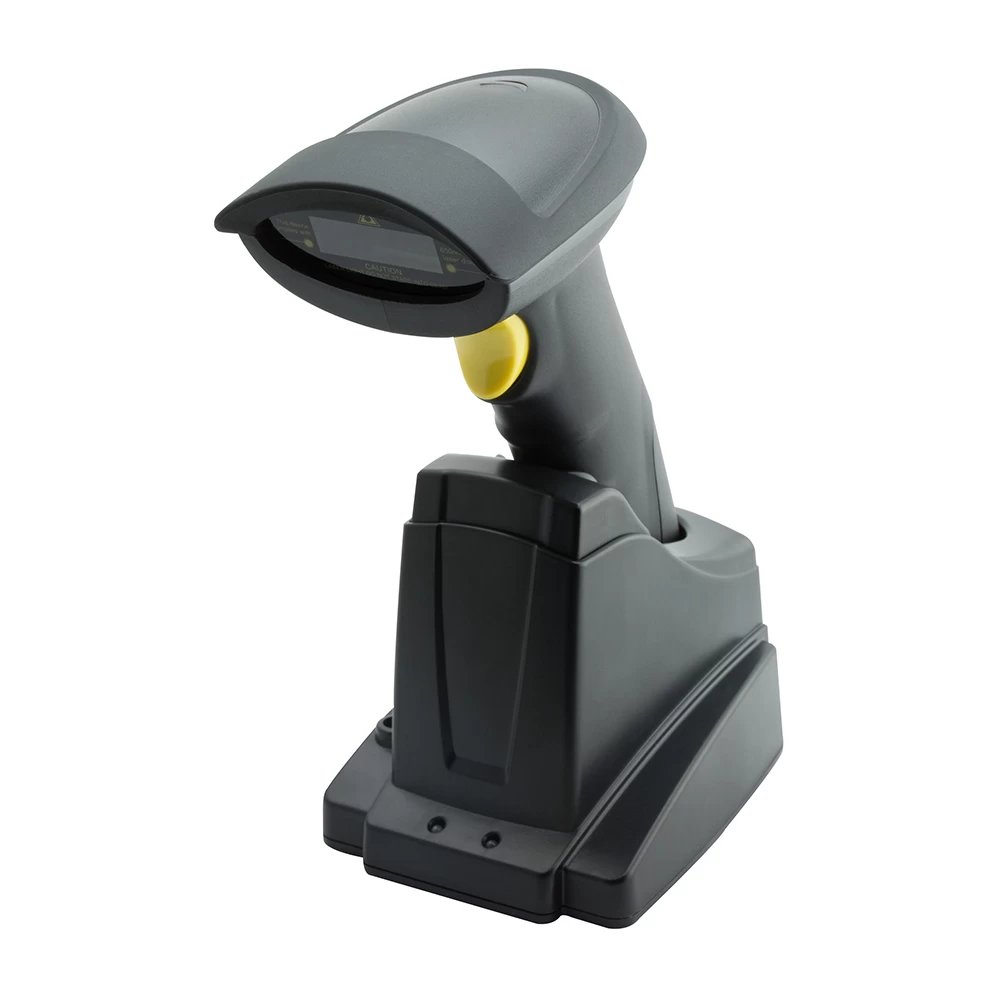

Hot Sale Wireless 1D laser Barcode Scanner IPBS062

qr reader
1.Trial order acceptable
2.High quality, reasonable
3.Reasonable Price



Parameter
Light Source Visible laser 650nm
Error Rate 1/5million
Safety Accord with China National Laser Safety
Decoding Capability

UPC-A,UPC-E,EAN-13, EAN-8, ISBN/ISSN, Code 39, CodeBar, Industrial 25, Standard 25, 2/5 Matrix,

 Code 128, Code 93, Code 11, MSI/PIESSEY,

UK/PLESSEY, UCC/EAN128, etc

Interface Standard 2.0USB
Trigger mode

Manual, Automatic induction, Continuous scanning,

 Stand Continuous scanning(Optional)

Transmission Speed RS232  baudrate: 2400-38400
Reading Width Min 0.1mm(4mils)
Scanning Depth 2-9cm(0.1mmwidth), 3-50cm(0.3mm width)
Scanning Width 5cm-30com
Scanning Speed 120times/sec
Scanning Distance 10-600mm  Roll 60º, Pitch45º
Operating Temp. -10ºC-60ºC
Storage Temp. -20℃-60℃
Operating Humidity 0-95%
Storage Humidity 5%-95%
Power Supply DC 5V±5%
Operating Current 50mA(Operating) 30mA(Standby), 100mA(Max)
Battery 3.7V 1500Ma lithium battery
Charge Time 3.5 Hours
Communication Frequency 2.4GHz(or Bluetooth)
Channel Setting 32channel and ID setting(OEM Accept)
Storage 64K(About 4500pcs 14 bit 1D Code)(OEM Accept)
Transmission Distance 30m
EDC Protection 15KV
Weight 196±5g without cradle
Prompt Mode Indicator Light LED,Buzzer
Shock Resistance 1.5m free fall on concrete surface
EMI en8001,par1
Ingress Protection iec529,ip42
Material ABS+PVC+PC
Keyboard Language multiple languages
