Description

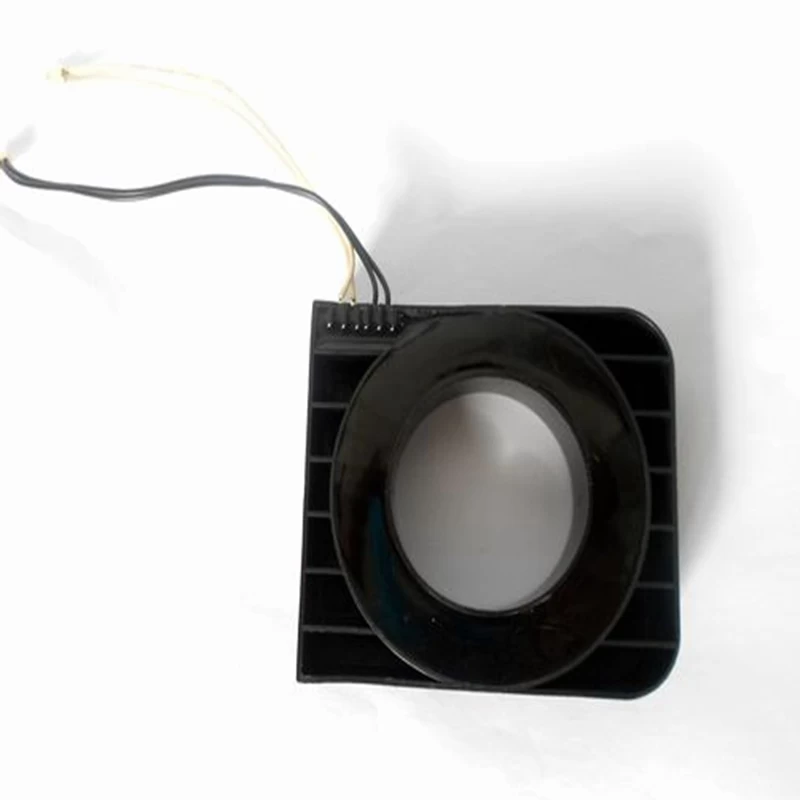

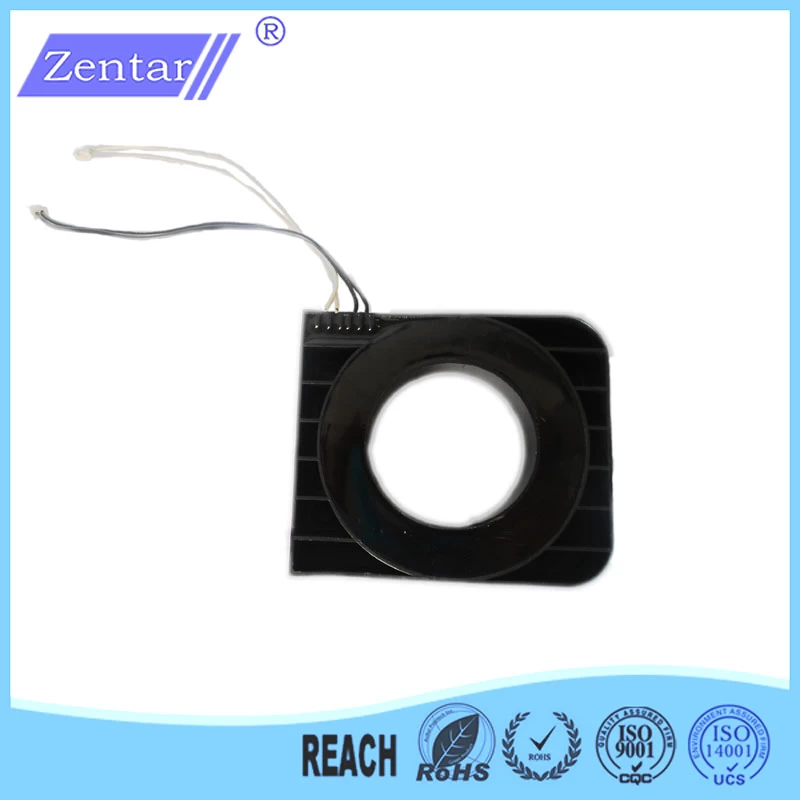

Hot sales Zero phase current transformer ZCT405

Zero phase current transformer which detects the difference between the currents flowing in a number of conductors. The current flowing to a load must equal the current flowing back from the load. If this is not the case, a potentially dangerous residual current will be flowing somewhere in the installation.

Wire lead type zero phase current transformers are easy integrated into standard PCB sub-assemblies that are compliant with IEC61008, IEC61009 and IEC62423 requirements.

Rated Current			75A
DC Resistance at 25℃			68±6Ω
Dielectric Withstanding Voltage(Hi-pot)			2500Vrms
Output Voltage Vo			17-21mV

Electrical Characteristic

Item	Rated Current(A)	Output Voltage Vo(mv)	Test Conditions	Over Leakage Characterstics	Temperature Characteristics -35~80℃	Dimensions (mm)
						ID	OD	HT
ZCT201	30	4-5.1	lin=10mA RL=510	-10%~0%	10%Max	5.9	16	6.5
ZCT202	30	5.1-6	lin=8mA RL=750	-10%~0%	10%Max	5.8	15.2	6.1
ZCT203	50	17-21	lin=22.5mA RL=1k	-10%~0%	10%Max	9.2	21	7.3
ZCT204	30	12-15	lin=22.5mA RL=1k	-10%~0%	10%Max	9.8	20.6	6.5
ZTC205	30	12.5-15.5	lin=8mA RL=4.7k	-10%~0%	10%Max	9.3	21.3	7.2
ZCT206	50	17-21	lin=22.5mA RL=1k	-10%~0%	10%Max	12.3	26	10
ZCT207	30	7.5-8.5	lin=25mA RL=1k	-10%~0%	10%Max	15.4	29.8	10
ZCT208	60	10.2-12.5	lin=20mA RL=680	-10%~0%	10%Max	7.2	19.4	7.7
ZCT209	50	8-11.2	lin=11.25mA RL=1k	-10%~0%	10%Max	7	17.2	7
ZCT210	50	8-11.2	lin=11.25mA RL=1k	-10%~0%	10%Max	6.8	16.9	7.9
ZCT211	50	8-11.2	lin=11.25mA RL=1k	-10%~0%	10%Max	10.6	25.4	8
ZCT212	60	10.2-12.5	lin=20mA RL=680	-10%~0%	10%Max	11	23.5	8
ZCT213	60	≥300	lin=25mA RL=1k	-10%~0%	10%Max	9.4	23.8	12.7
ZCT218	60	10.2--12.5	lin=25mA RL=680	-10%~0%	10%Max	7.5	18.9	7.6
ZCT220	60	≥300	lin=25mA RL=47k	-10%~0%	10%Max	10.1	24	11.5
ZCT225	60	≥300	lin=25mA RL=47k	-10%~0%	10%Max	10.9	25.5	9
ZCT401	100	17-21	lin=22.5mA RL=1k	-10%~0%	10%Max	15	29.2	10
ZCT402	100	6.3-7.5	lin=20mA RL=370	-10%~0%	10%Max	17.5	35.9	8.8
ZCT403	250	17-21	lin=22.5mA,RL=1k	-10%~0%	10%Max	29	51	12
ZCT404	250	17-21	lin=22.5mA,RL=1k	-10%~0%	10%Max	32	55.6	12
ZCT405	250	17-21	lin=22.5mA,RL=1k	-10%~0%	10%Max	42	80*69	20
ZCT406	630	17-21	lin=25mA,RL=1k	-10%~0%	10%Max	51.3	84	26
ZCT407	800	17-21	lin=22.5mA,RL=1k	-10%~0%	10%Max	51	96*89	23
ZCT408	100	125-150	lin=500mA,RL=150	-10%~0%	10%Max	19	36	11.5
ZCT409	225	125-150	lin=500mA,RL=150	-10%~0%	10%Max	24	42	12
ZCT410	400	125-150	lin=500mA,RL=150	-10%~0%	10%Max	43	90*74	16
ZCT411	800	120-151	lin=500mA,RL=150	-10%~0%	10%Max	53	96*89	23

Output voltage and Turns / resistor graph
