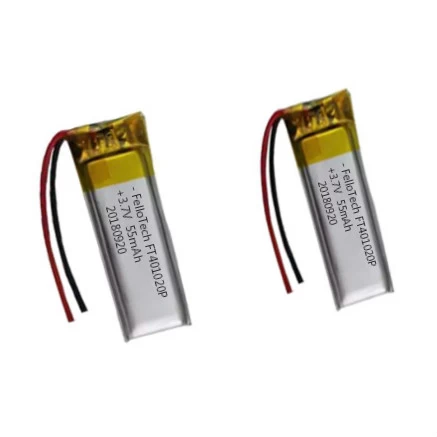

Hot selling 3.7v small lipo battery oem FT401020P 55mAh
lipo battery oem FT401020P with 3.7V 55mAh for Digital, wearable device
- Weight (g)1.4
- Height (mm)20.5
- Width (mm)10.5
- Thickness (mm)4.2
- Internal Impedance (mΩ)180
- Nominal Capacity (mAh)55
- Nominal Voltage (V)3.7
Hot selling 3.7v small lipo battery oem FT401020P 55mAh
|
S/N |
Details
|
Parameters
|
Remarks
|
|
|
1 |
Rated voltage |
3.7V |
|
|
|
2 |
Rated capacity |
55mAh |
discharge with 0.2C to 2.75V after fully charge within 1h, measuring the discharge time |
|
|
3 |
Limited charge voltage |
4.2V |
|
|
|
4 |
Internal resistance |
≤180mΩ |
|
|
|
5 |
charge mode |
C.C/C.V. |
|
|
|
6 |
Standard charge current |
11mA |
0.2C |
|
|
7 |
Max Charge Current |
55mA |
1C |
|
|
8 |
Standard discharge current |
11mA |
0.2C |
|
|
9 |
Max discharge current |
Continuous：55mA |
1C |
|
|
10 |
Working temperature |
charging |
0~45℃ |
|
|
discharging |
-10~60℃ |
|||
|
11 |
Storage temperature |
1 Month |
-10~45℃ |
Charge to 40%~50% of capacity when storage |
|
6 months |
-10~30℃ |
|||
|
12 |
Storage humidity |
45%~75％ |
relative humidity |
|
|
13 |
Weight |
Approx 1.4g |
|
|
|
14 |
Cycle life |
300 times |
capacity≥80% |
|
