Hot selling 380V 385V output 250W switching power supply for the LED beam lamp
Description:
Beam lamp series K28-UP250 250W 385Vdc or 380Vdc open frame single output switching power supply has built-in active PFC function,high efficiency up to 90%,it has 2 years warranty,used in stage lighting.
Features:
1, High efficiency 250W 385V switching power supply;
2, Built-in PFC function, low interference 250W 380VDC output power supply;
3, 385V 0.65A power supply with wide range of AC input voltage ;
4, Overload, overheating protection;
5, Single output samll size beam lamp power supply.
Parameter
|
|
Item NO
|
K28-UP250
|
|
Output
|
Output Voltage
|
+385VDC
|
|
Rated Current
|
0.65A
|
|
Current Range
|
0-0.65A
|
|
Rated Power
|
250W
|
|
Ripple & Noise
|
3Vp-p
|
|
Adjustable Output Range
|
---
|
|
Output Accuracy
|
±2%
|
|
Line Regulation
|
±1%
|
|
Load Regulation
|
±1%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
90-264V AC
|
|
Input Current
|
1.3A@220V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
＞95%@220V AC,＞90%@110V AC
|
|
Power Factor
|
---
|
|
Inrush Current
|
Cool start 15A/115V,30A/230V
|
|
Leakage Current
|
<0.3mA@240V
|
|
Protection
|
Over Load Protection
|
110~200%,Hiccup protection,automatic recovery
|
|
Short Circuit Protection
|
---
|
|
Output over-voltage protection
|
---
|
|
Over-temperature protection
|
TS1 position＞105℃ it will be protection,then automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943
|
|
Withstand Voltage
|
I/P-FG:1.5KV
|
|
Insulation Resistance
|
I/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254 EN55022 CLASS A
|
|
Others
|
Dimension
|
105*44*37mm(L*W*H)
|
|
Weight
|
0.2kg
|
|
MTBF
|
---
|
|
Fan Supply
|
---
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured;
6.Lower than AC150V, you must add 20CFM fan cooling.
|

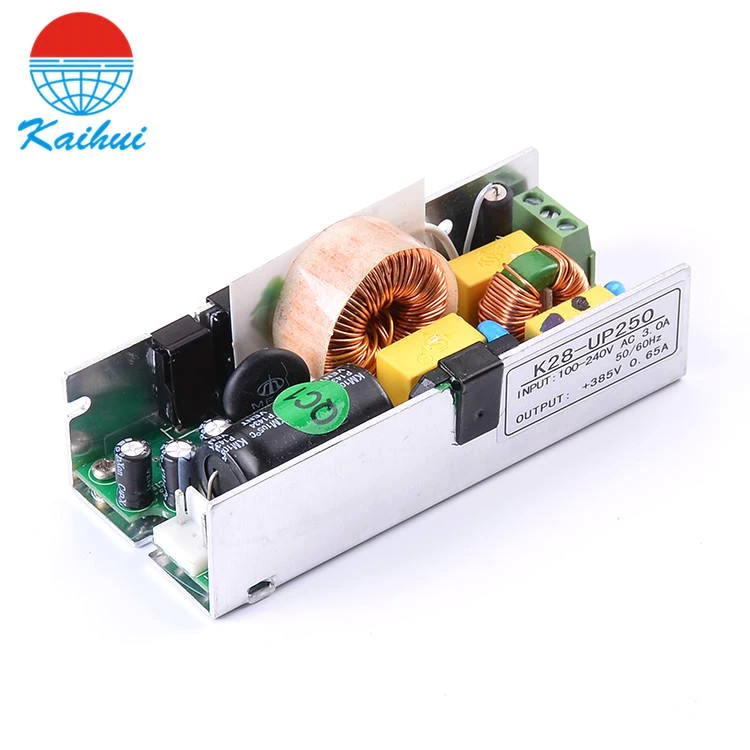

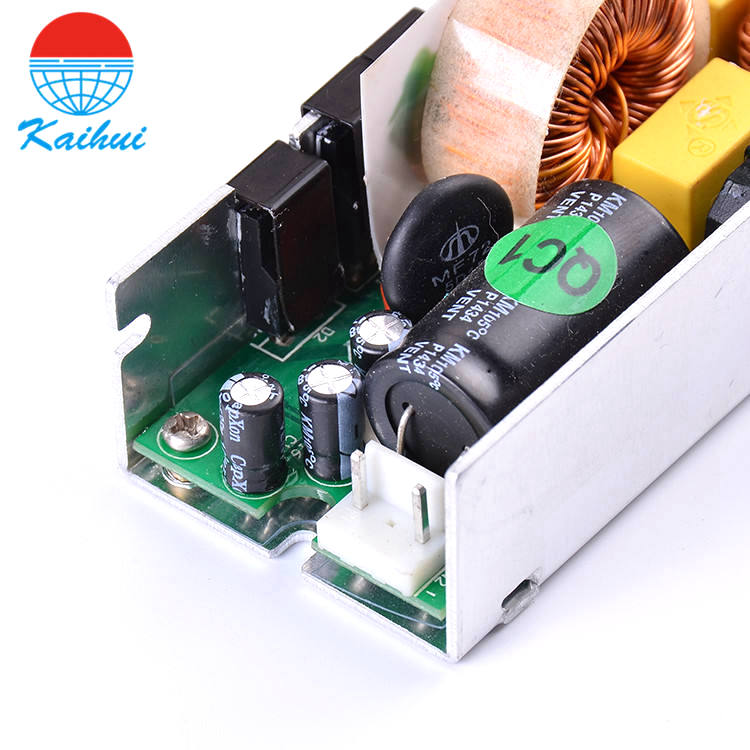

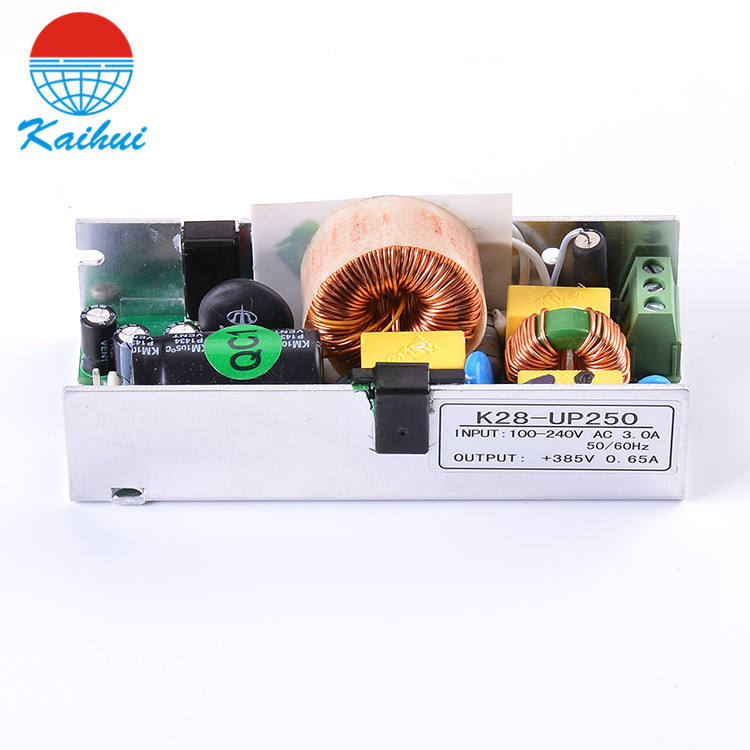

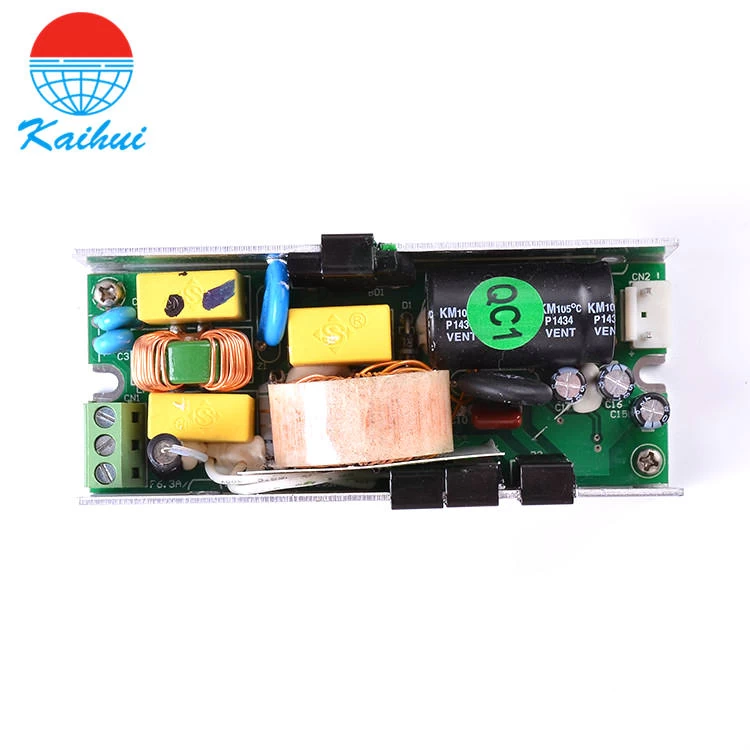

Product picture:
