ETL Approved 24V DC Switching Power Supply 48W Open Frame SMPS
Description:
This KPSH50 model switching power supply with universal AC input, operating at the high efficiency environment, is suitable for use in LED lighting，telecommunications, networking, test and measurement, IT applications, general electronics.
Features:
1,24V switching power supply with High efficiency, low temperature rise;
2, 24V DC power supply with Built-in filters, low output noise;
3, 24V 2A power supply with Wide range of AC input voltage;
4, Short circuit, overload, overvoltage protection;
5, 48W SMPS can be Used to LED light and other equipments etc.
Parameter
|
|
Item No.
|
KPSH50-12
|
KPSH50-24
|
KPSH50-36
|
KPSH50-48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
4A
|
2A
|
1.5A
|
1A
|
|
Current Range
|
0-4A
|
0-2A
|
0-1.5A
|
0-1A
|
|
Rated Power
|
48W
|
48W
|
48W
|
48W
|
|
Ripple
|
100mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
90~264V AC
|
|
Input Current
|
0.5A/220V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
82%
|
84%
|
84%
|
85%
|
|
Inrush Current
|
Cold start 15A@115V,30A@230V
|
|
Leakage Current
|
<1mA@240V
|
|
Protection
|
Over Load Protection
|
110~200%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
Hiccup,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P:3KV,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254,EN55022 CLASS A
|
|
Others
|
Dimension
|
92*46*30mm(L*W*H)
|
|
Weight
|
0.15kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

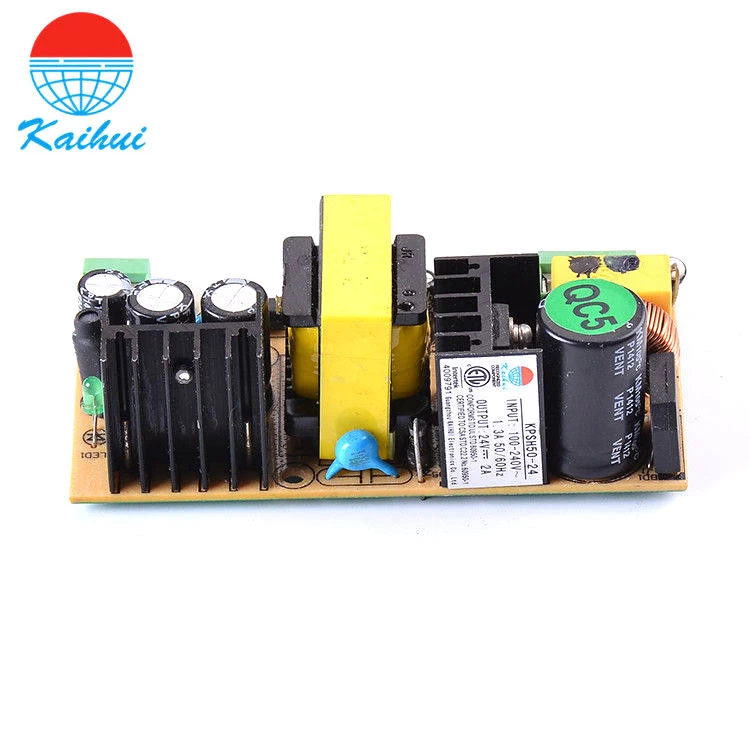

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
