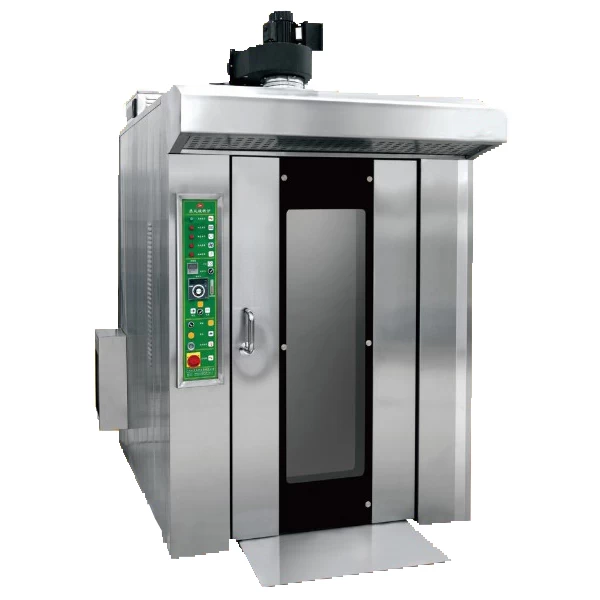

Hotel Restaurant Bakery Equipment and Pastray kitchen Diesel 16 trays rotary oven
1.
Special designs of wind duct ensure full convection and furnace
temperature distributed evenly. Besides, adjustable five-stage outlet
can meet the special requirements for different products and the baking
quality in different season.
2.
Automatic exhaust fan quickly suck heat while opening the door, which
preventing hot air hurt person or affecting the operation.
3. Antboard lift automatically when opening or closing the door, that
meets the requirements of trolley in or out but heat insulation
4. With luxurious appearance, high output, saving space, resources and manpower.
5. With135mm thickness 3-layer insulation cotton, that makes high performance in thermal insulation and low energy costs
6. With reasonable structure design, focus on selecting materials,
ensure the oven structure stable under high temperature and long service
life.
7. Japan burner "Olympia", Italy burner "Riello" (optional).
8. The electrical key parts are from Germany, Japan and Taiwan.
Technical Paremeter
|
Model
|
HX-16Y-01
|
HX-32Y-01
|
HX-64Y-01
|
|
Products Name
|
16 Trays Diesel
Rotary Rack Oven
|
32 Trays Diesel
Rotary Rack Oven
|
64 Trays Diesel
Rotary Rack Oven
|
|
Dimension(mm)
|
1900*1400*2500
|
2550*1600*2500
|
2800*2600*2500
|
|
Packing Dimension(mm)
|
2000*1500*2600
|
2650*1700*2600
|
2900*2700*2600
|
|
Power
|
5kW
|
5kW
|
7kW
|
|
Trolley
|
16 trays per trolley
|
32 trays per trolley
|
64 trays per trolley
|
|
Voltage
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
|
Net Weight
|
1600KG
|
1800KG
|
2400KG
|
|
16 Trays Rotary Oven Details:
1. Machinese warranty 1.5 year. (Free parts and express
costs).
2. Olympia (Japan) burner / Riello(Italy) burner for
optional.
3. With steaming function.
4. Heat exchanger inner material : S.S. #304
5. A/C contractor: Schneider (France)
6. Electric relay: Omron(Japan)
7. Temperature controller and timer: CHAO (Taiwan)
8. Oven body inside S.S #201 1.5mm; outside S.S. #201 1.5mm:
9. Double layer PU cotton insulation: 145 mm thickness
10. Accessory: two trolley for free. Material SS #201
11. Tray Size:600*400 mm Distance of tray to tray 100mm.
12. Temperature 25-300 degree.
13. Excellent hot air circulation system.
|
1. Inside and outside material: SS#201,
2. Two burner for optional:Olympia burner (imported Japan) or Riello burner(imported Italy)
3. System key parts from Germany/Japan/Taiwan
(AC contactor imported Germany; electric relay imported EU; temperature controller and time imported Taiwan)
4. Rise the temperature time: 10-12 mins, heating fast.
5. The temperature up to 200 degree(first time warm up)
6. Built-in steam function
7. Using heat exchanger,(material: SS#304)
8. With heat insulation: 2 layered 145 mm thickness(material:imported high temperature glass cotton)
9. Base plate thickness: 12mm
10. With high efficiency heat converter, saving energy
11. Provide trolley: 4 pcs for free (material: SS#201)
12. Tray size: 400*600mm/460*720mm
16 Trays Diesel
Rotary Rack Oven Product Warranty:
One year warranty and lifetime technical support.
Free spare parts will be shipped together with the goods.
