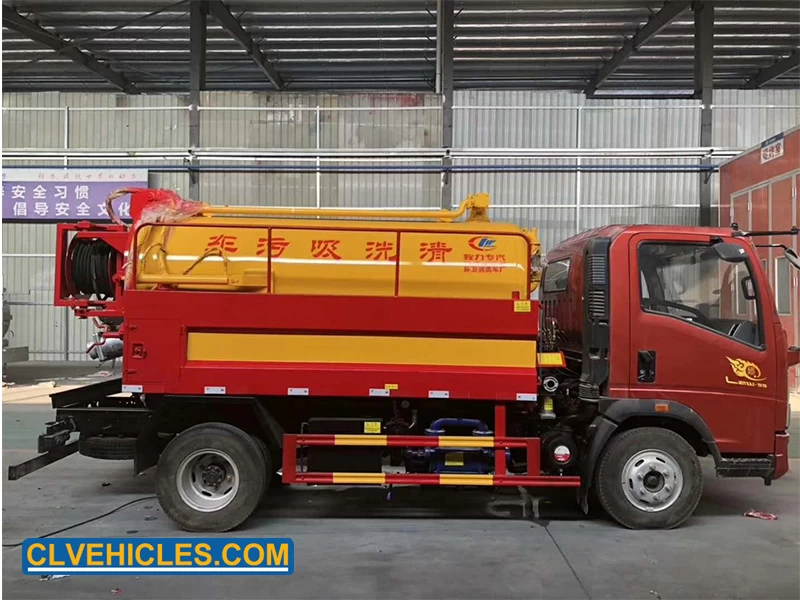

HOWO 5000 Liters Small Volume Top Quality Vacuum Jetting vehicle
The Vacuum truck models have been designed using the latest technology specifically for local operating conditions. Each model in the range is built to handle the toughest cleanups, including sewerage, line cleaning, industrial sumps and slurries, wet ash, excavation material, and toxic waste or other dangerous materials. Each is designed with focus on a specific application, and there is definitely a model available to meet your requirements.
Quick Details
|
Tank Capacity
|
5CBM
|
|
Tank Material
|
Carbon Steel
|
|
Chassis brand
|
HOWO
|
|
Horsepower of Engine
|
120hp
|
|
Vacuum Pump Brand
|
Italy BP/ Weilong/ Domestic Pump
|
|
Color
|
As requirements
|
Applications
These powerful and efficient vacuum tank truck are designed to vacuum up and recover a wide range of different materials, from liquids, solids, thick sludge , all while leaving the surface below safe and clean.
Vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.
Competitive Advantages
1, The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO).
2, The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function.
3. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.
4, The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.
5, Italy or Spain vacuum pumps ，Stainless steel， Anti-rust coating inside tank if necessary.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
Supply only upper body without chassis. According to your chassis drawing,
design function parts.
Customization
Communicate with engineer,making design drawings and produce customized products.
Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts
on trucks as tank and box.
|
|
