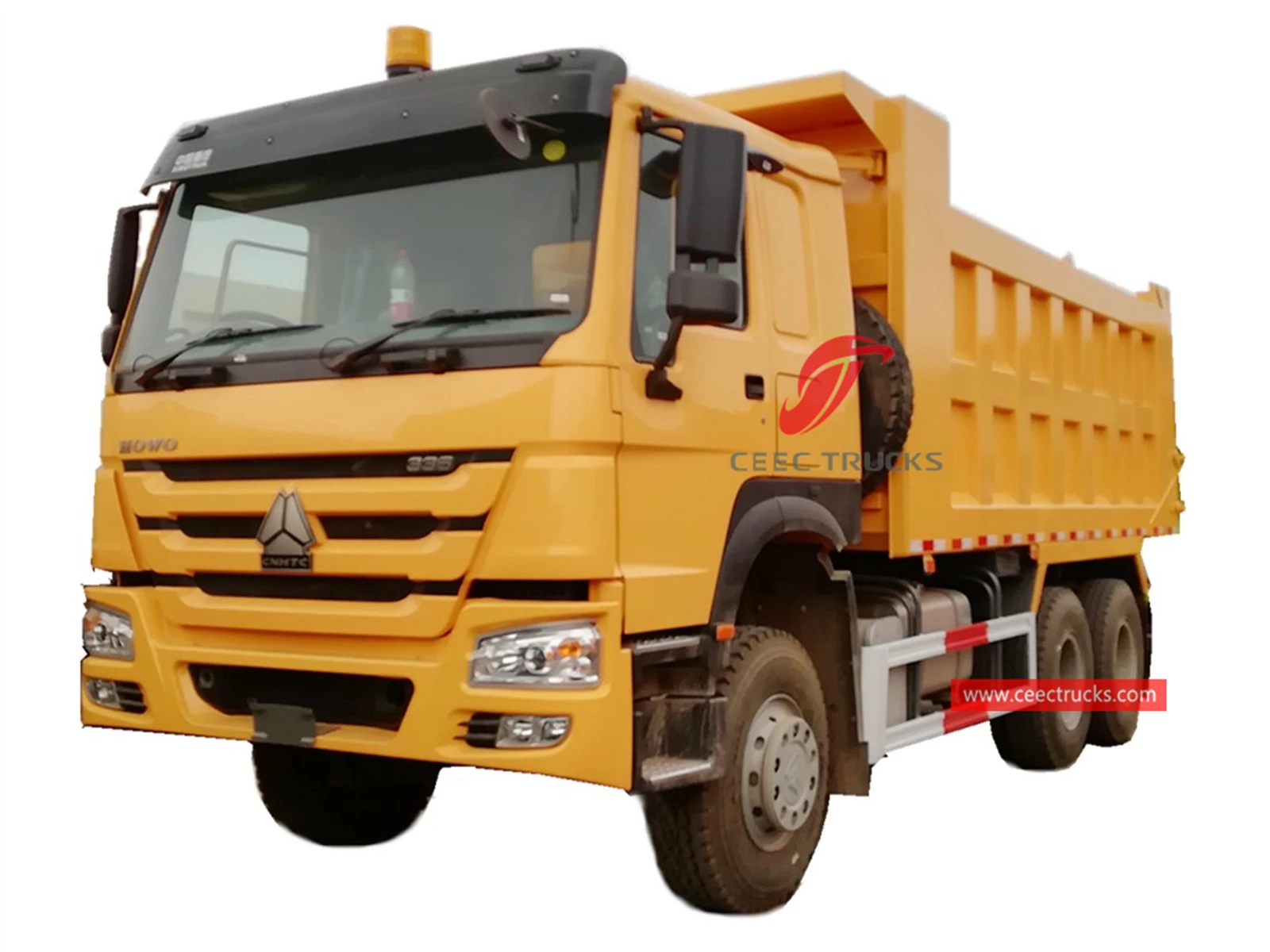

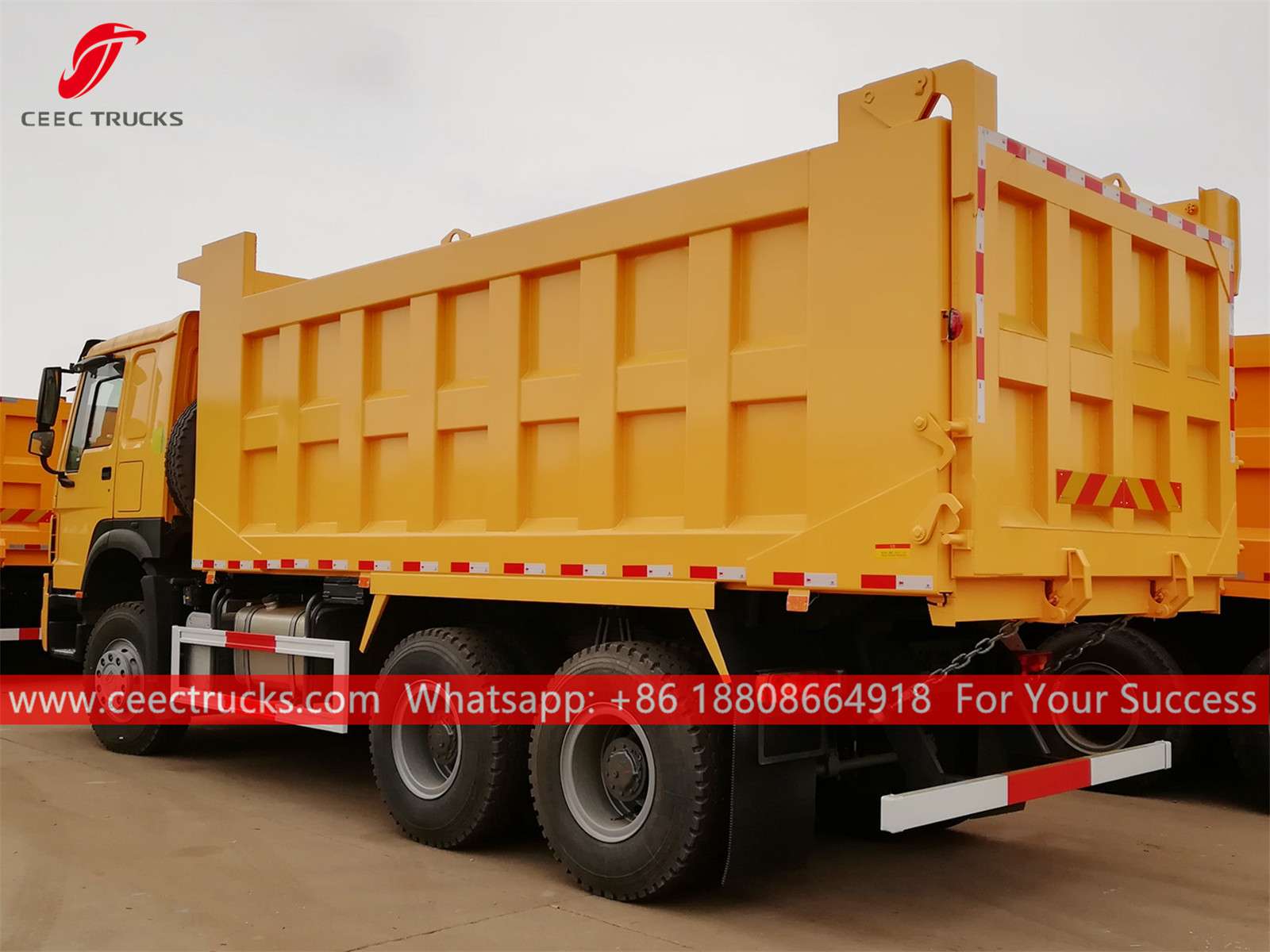

Applications:
HOWO Dump truck (also called heavy
duty dump truck, tipper truck, 40tons
tipper trucks, Hyva front lifting dump truck,
dump truck, construction sand rock dump truck, tipper lorry, tip truck, dump truck tipping, tipper and lorry, tipper lorry) is designed
for both overseas and domestic high end heavy truck markets. In order
to prevail over its rivals in the global competition, key components of
the tipper truck are designed in close collaboration with top suppliers
in the world.
CEEC TRUCKS dump
truck is manufactured using the cutting-edge technology and components
in the world such as WABCO double-cylinder air compressor, brake valve,

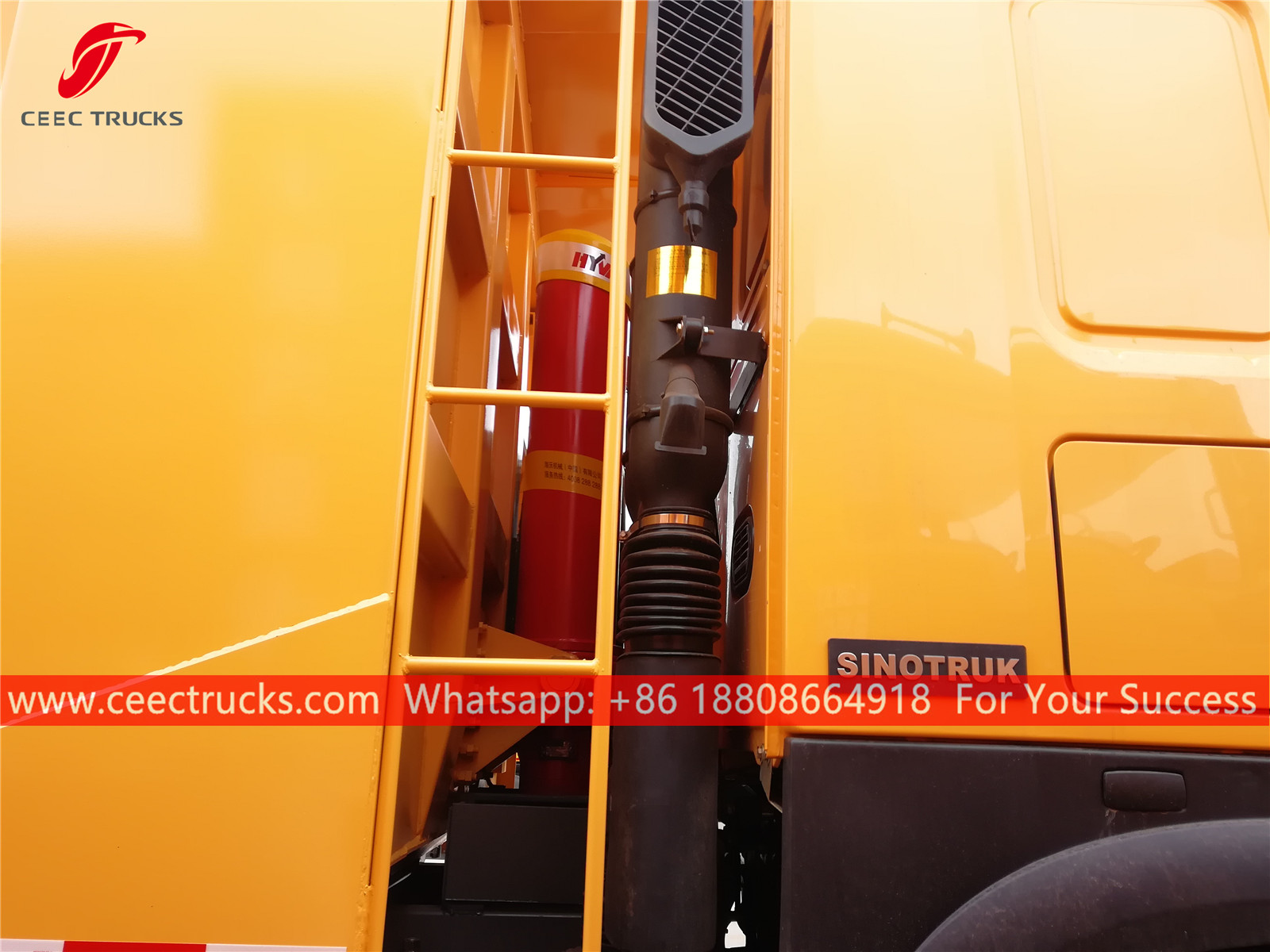

HYVA front hydraulic system, etc.
Key Features:
---- HOWO heavy duty chassis, perfect performance
---- SINOTRUK diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
Specifications:

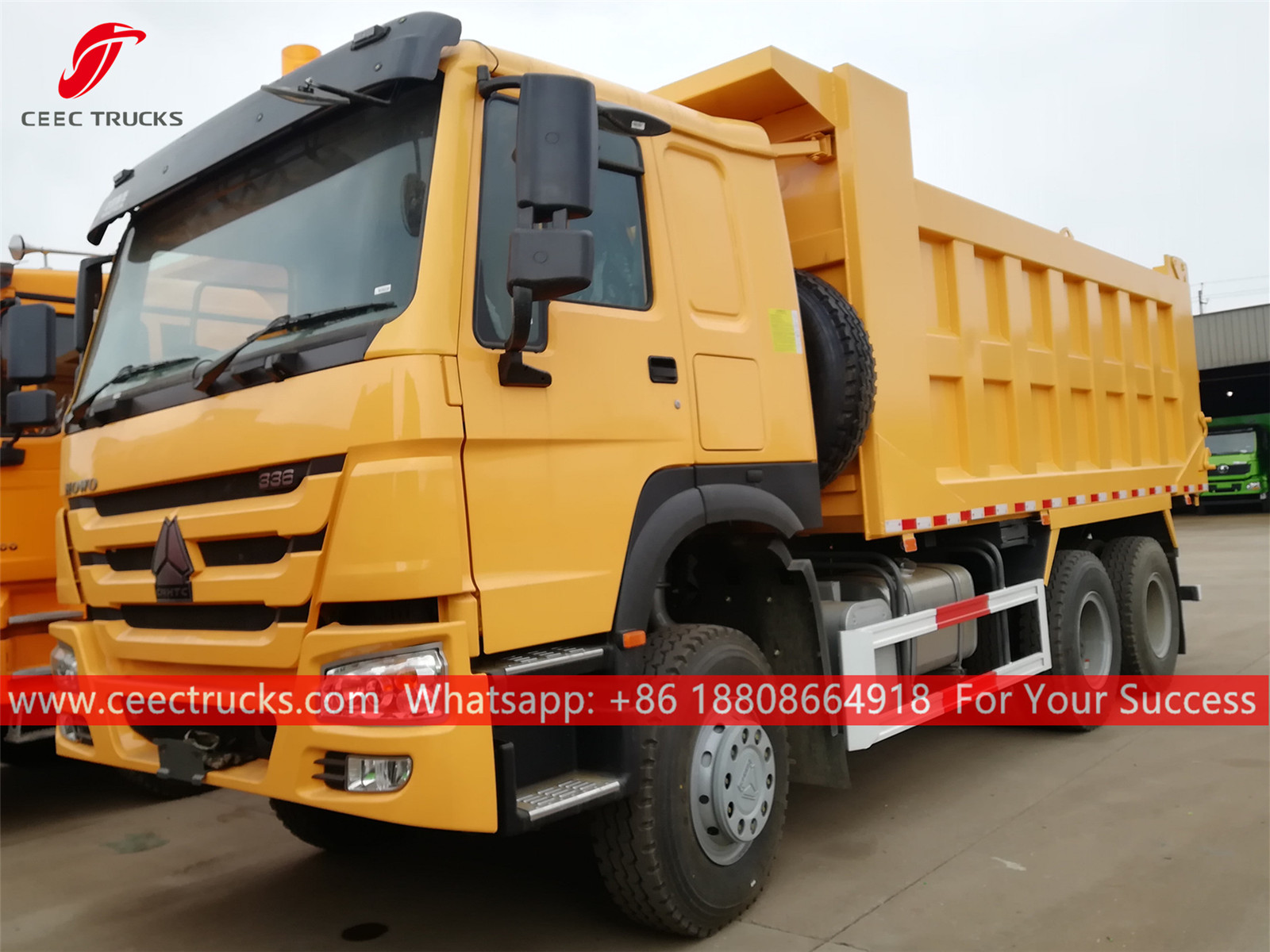

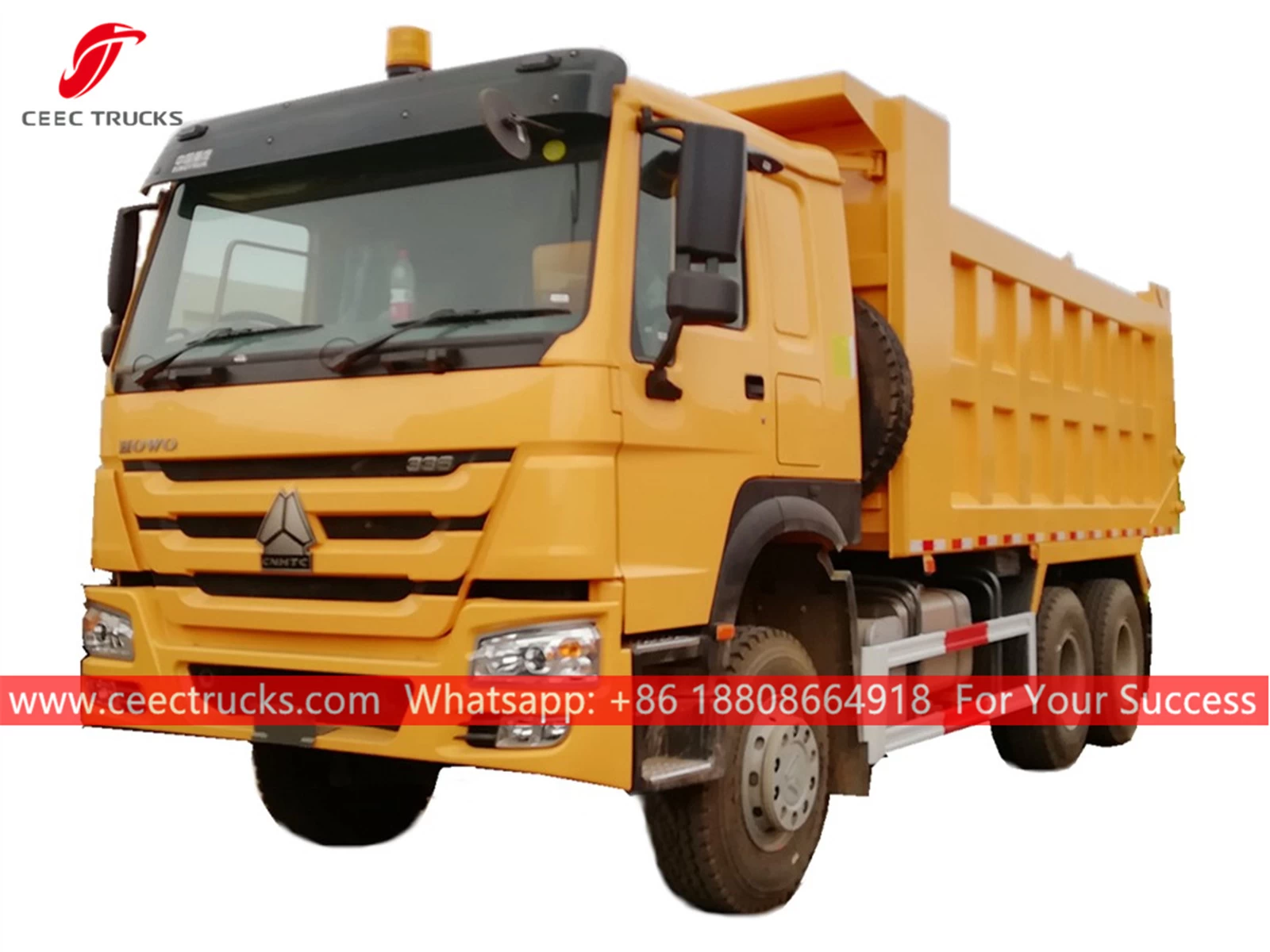

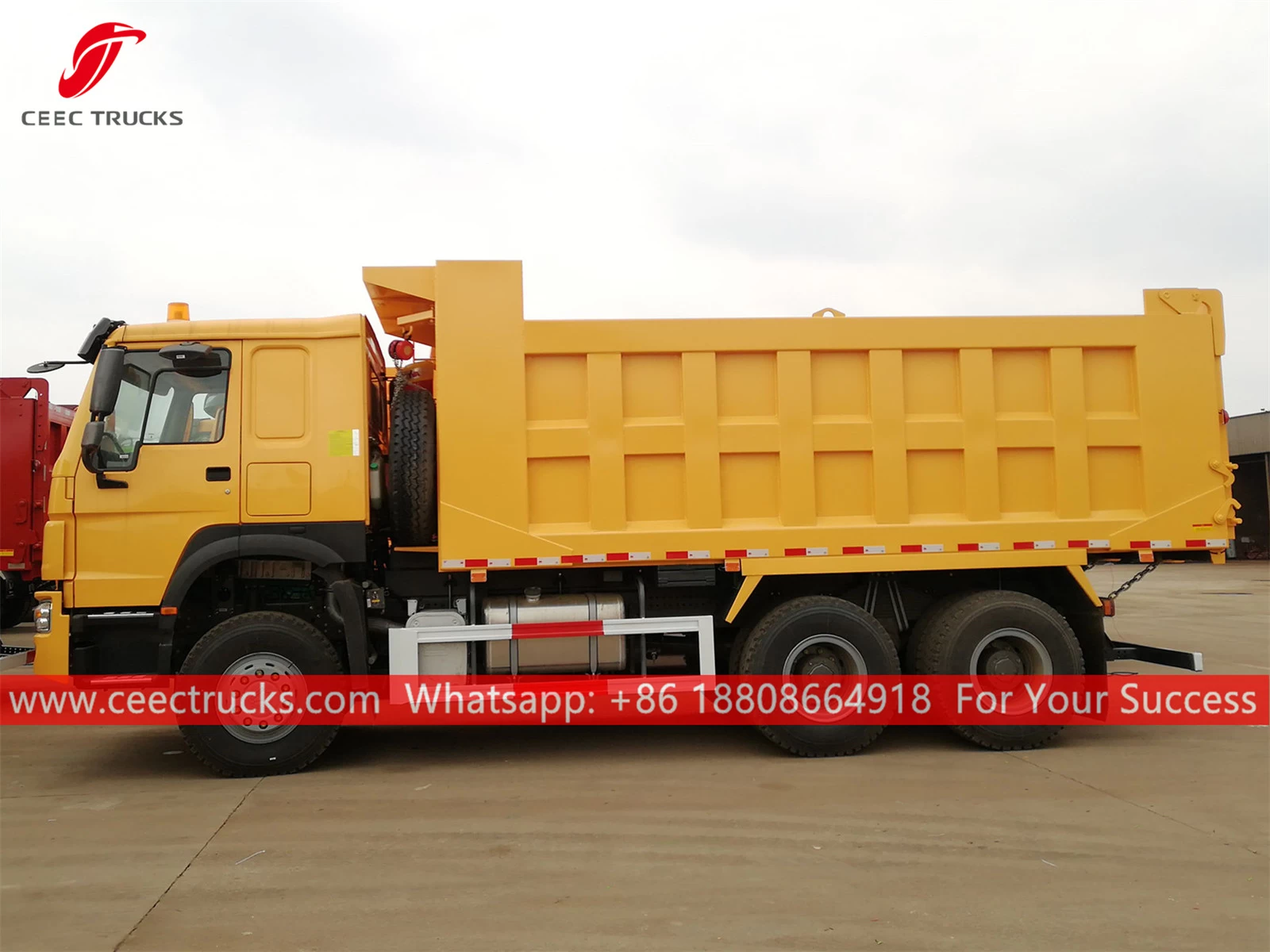

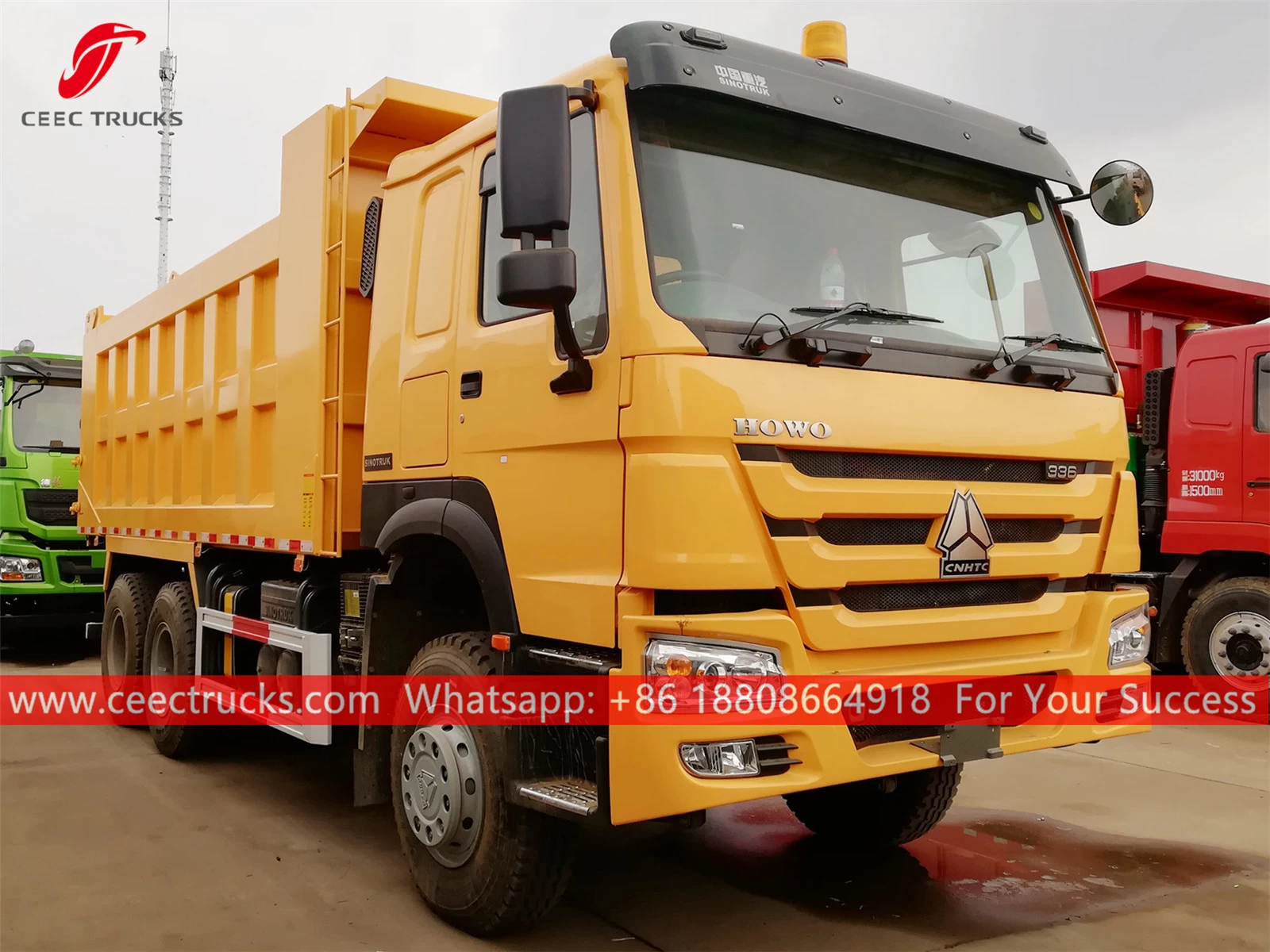

HOWO tipper truck (40 tons)
|
General
|
Vehicle Brand
|
CEEC
|
Chassis Brand
|
HOWO
|
Overall Dimension
|
8145 * 2496 * 3450 mm
|
GVW / Kerb Weight
|
25,000kg / 12,490kg
|

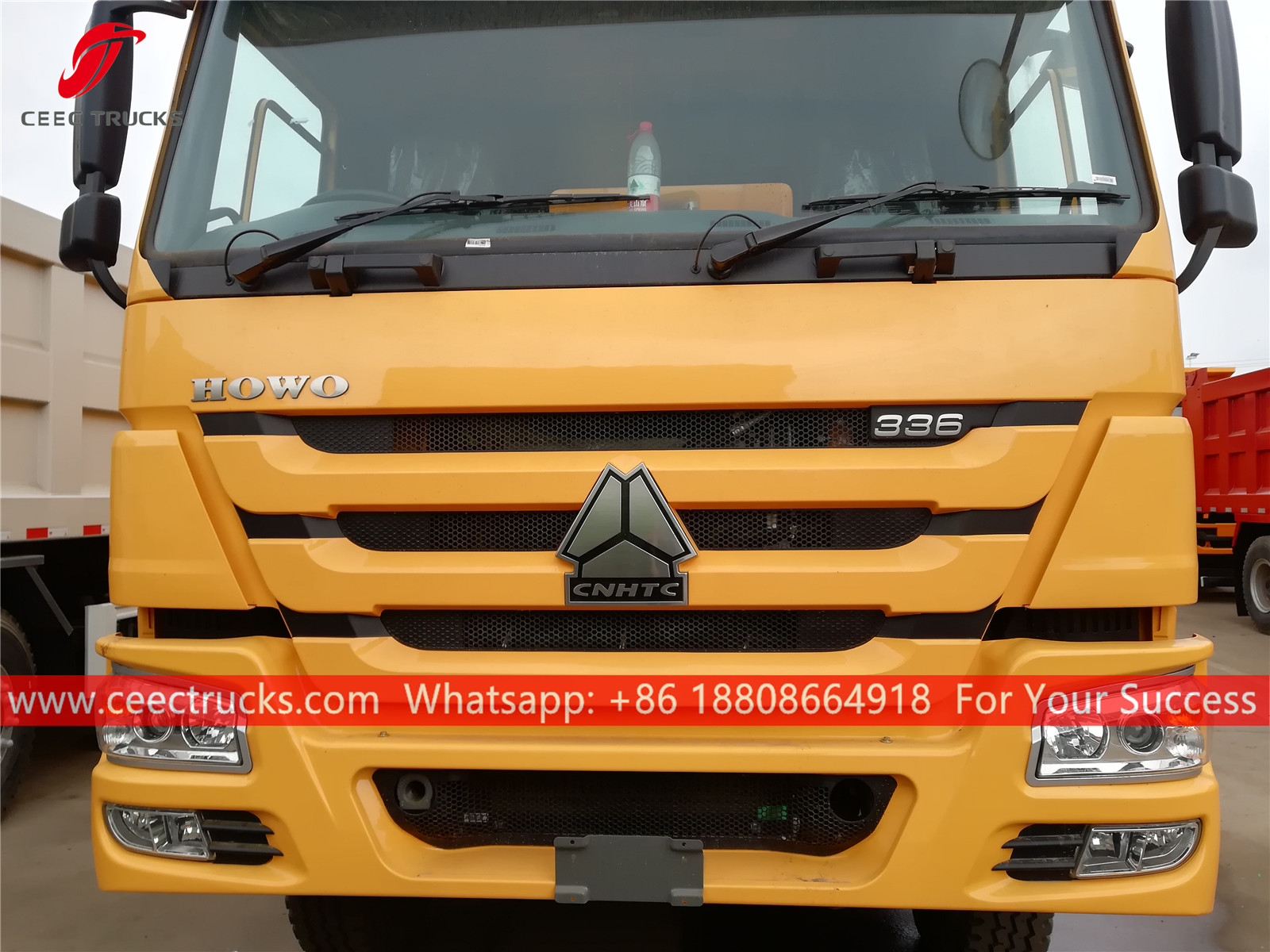

Cab
|
Cab Capacity
|
3 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
SINOTRUK diesel engine
|
Power
|
338 HP (249KW)
|
Displacement
|
9726 ml
|
Emission Standard
|
Euro 5
|
Chassis
|
Drive Type
|
6X4 (LHD or RHD)
|
Transmission
|
FAST 9 speed levers with 1
reverse
|
Wheelbase/No. of axle
|
3625+1350 mm / 3
|
Tire Specification
|
11.00R20
|
Tire Number
|
10 tires and 1 spare tire
|
Max Speed
|
95 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Pay loading capacity
|
40 Tons
|

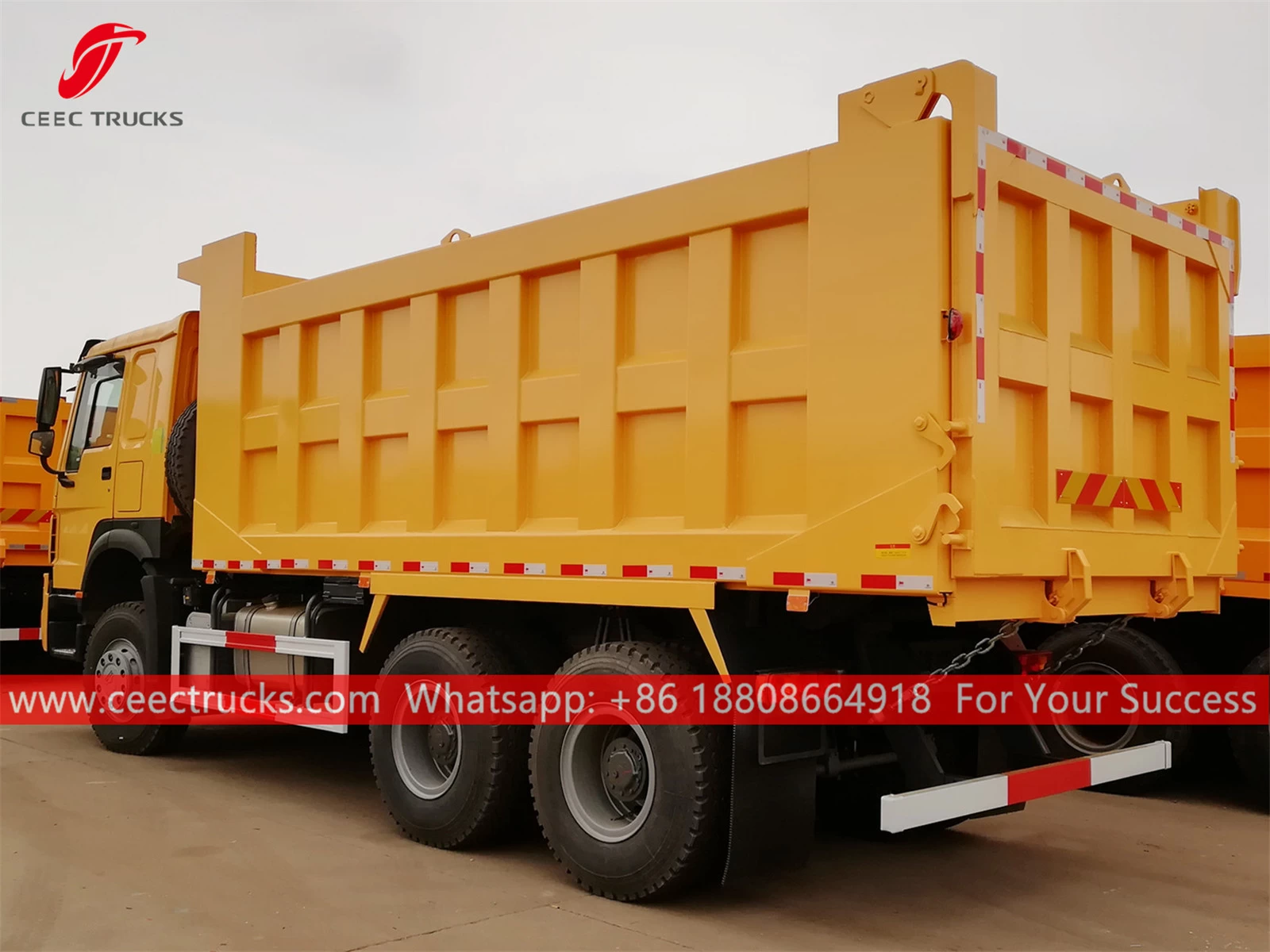

Cargo body
|
5400*2300*1500
|
Thickness of cargo body
|
Option 1: Bottom 8mm, Side 6mm
Option 2: Bottom 10mm, Side 8mm
|
Cylinder type
|
T Type or Domestic 180 or HYVA 150
|
Lifting system
|
Middle or Front
|
Control
|
in the cabin
|
Color & LOGO
|
According to wish
|

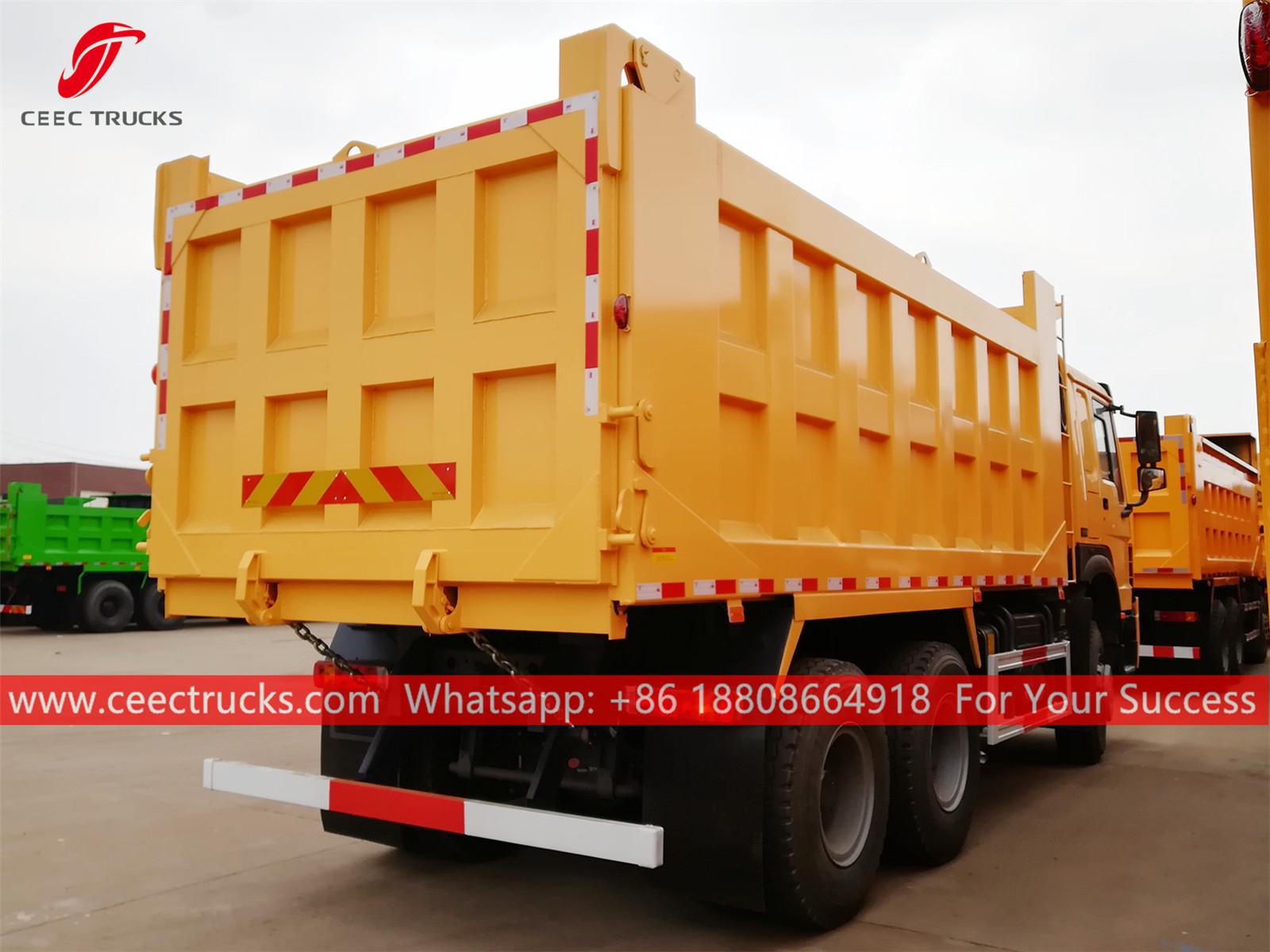

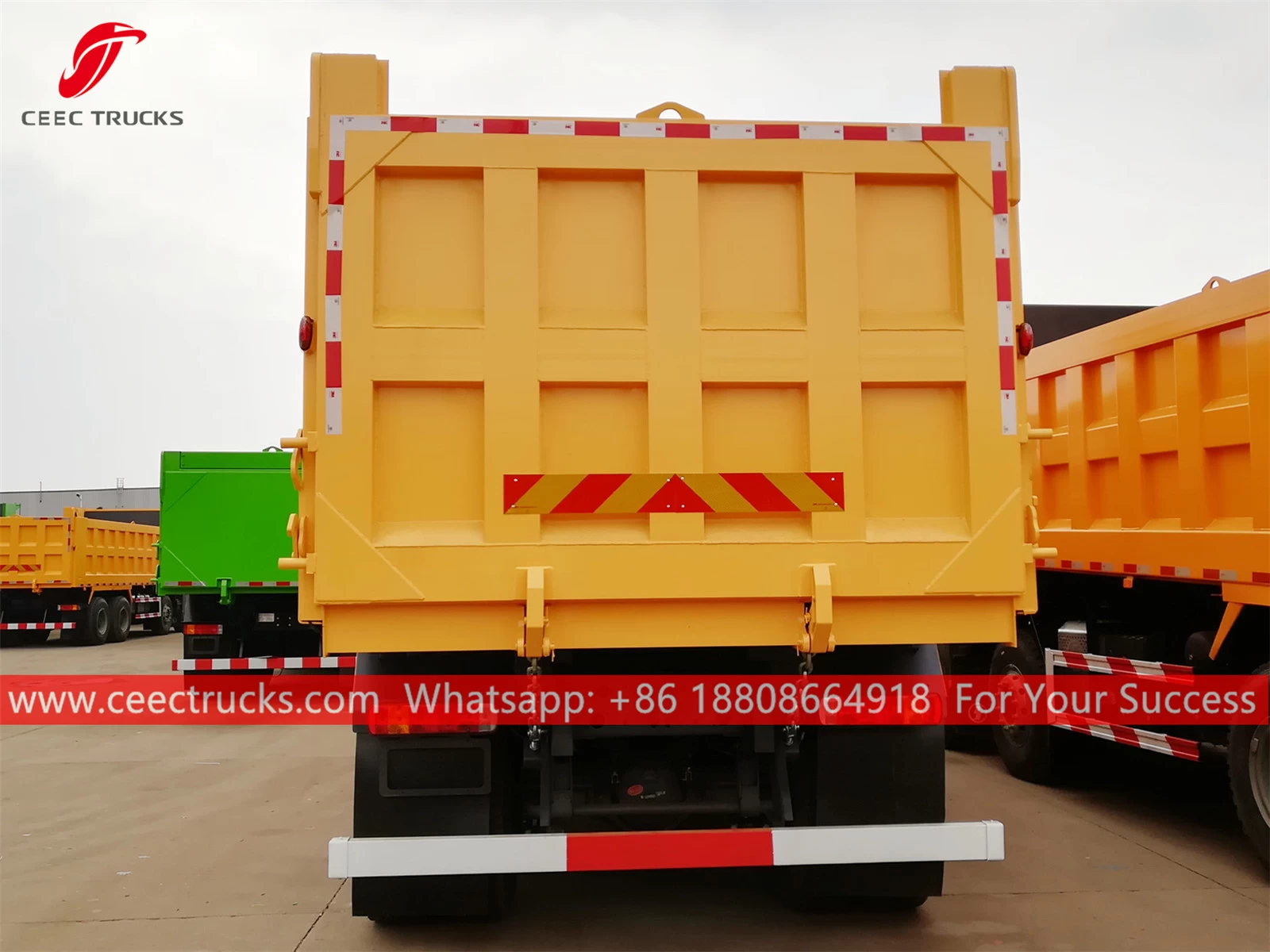

All standard accessories: All steel body with drop sides. Auto release removable tailgate.
Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
|
Optional
|
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|
