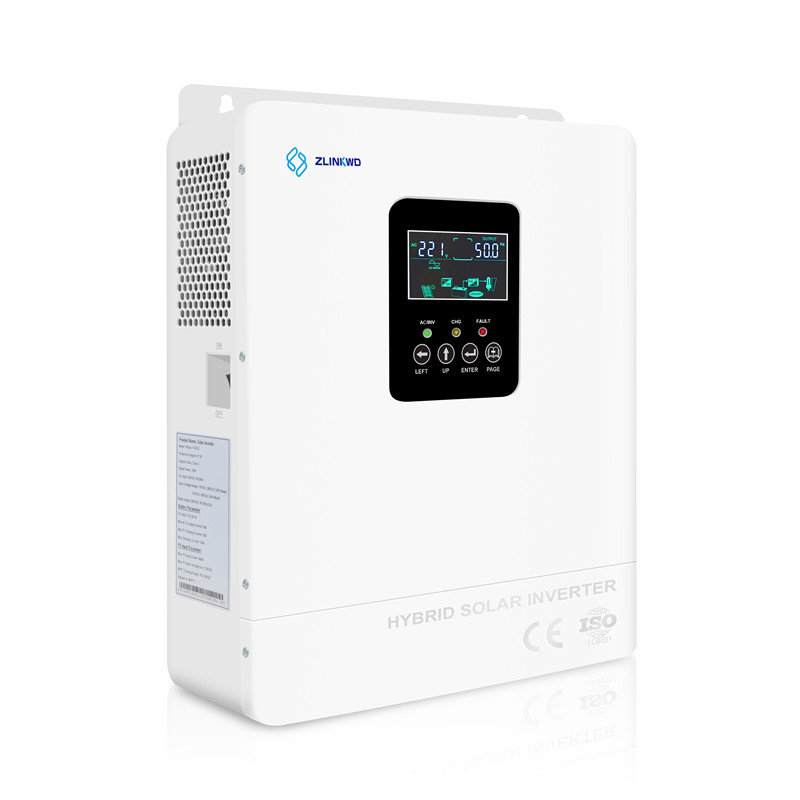

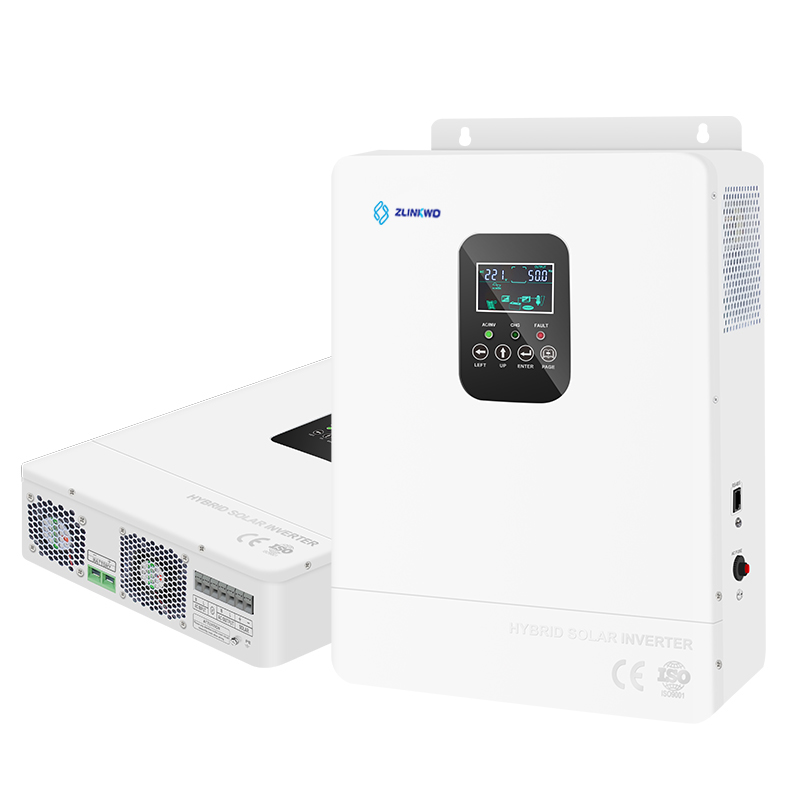

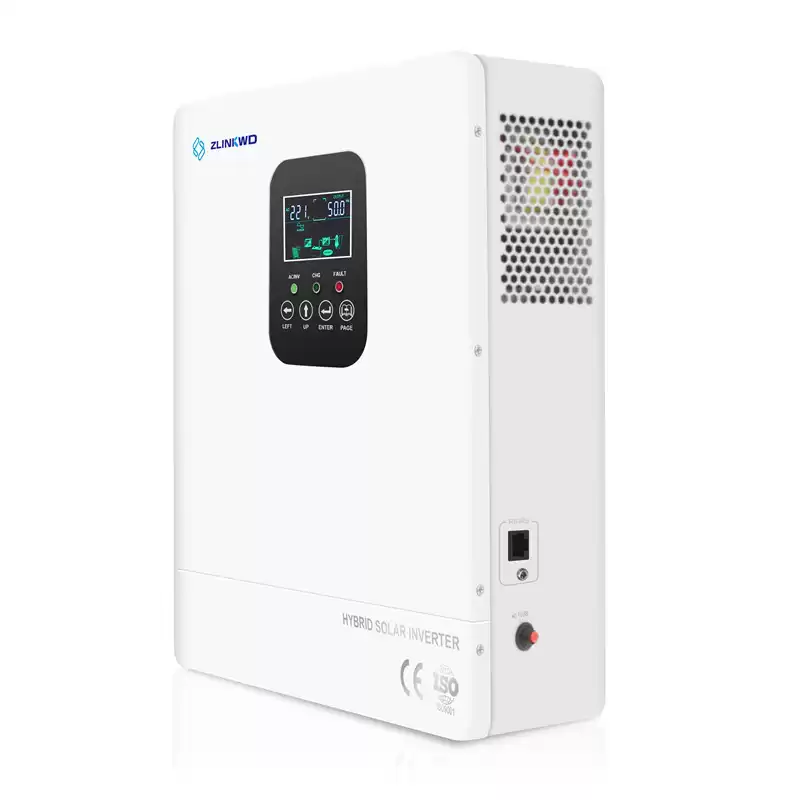

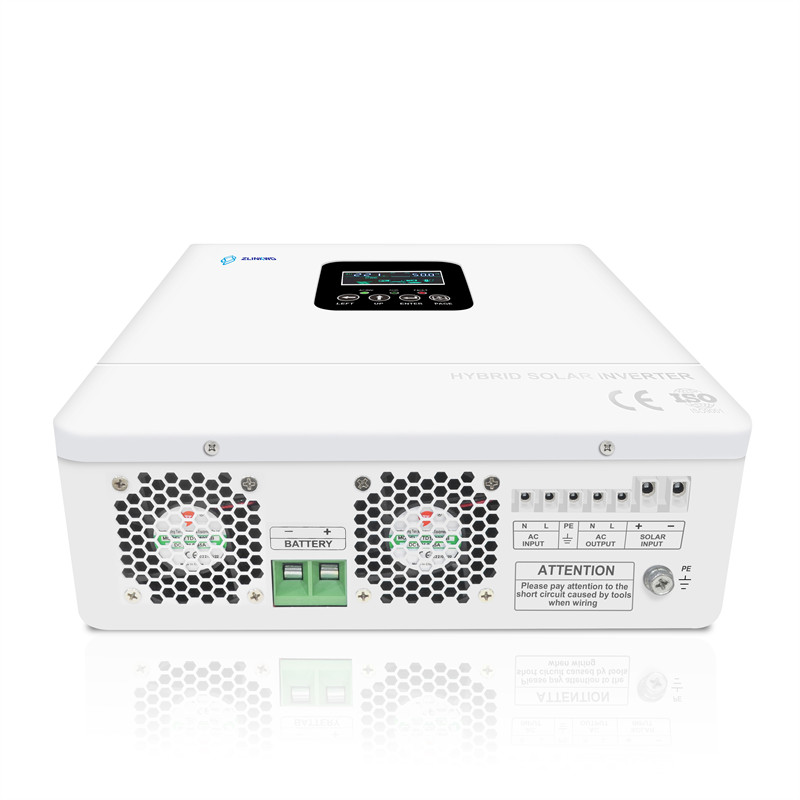

HP Pro-T hybrid solar inverter

This is a multi-function inverter/charger ,combining functions of inverter, battery charger to offer uninterruptible power with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC charger, and acceptable input voltage based on different applications.

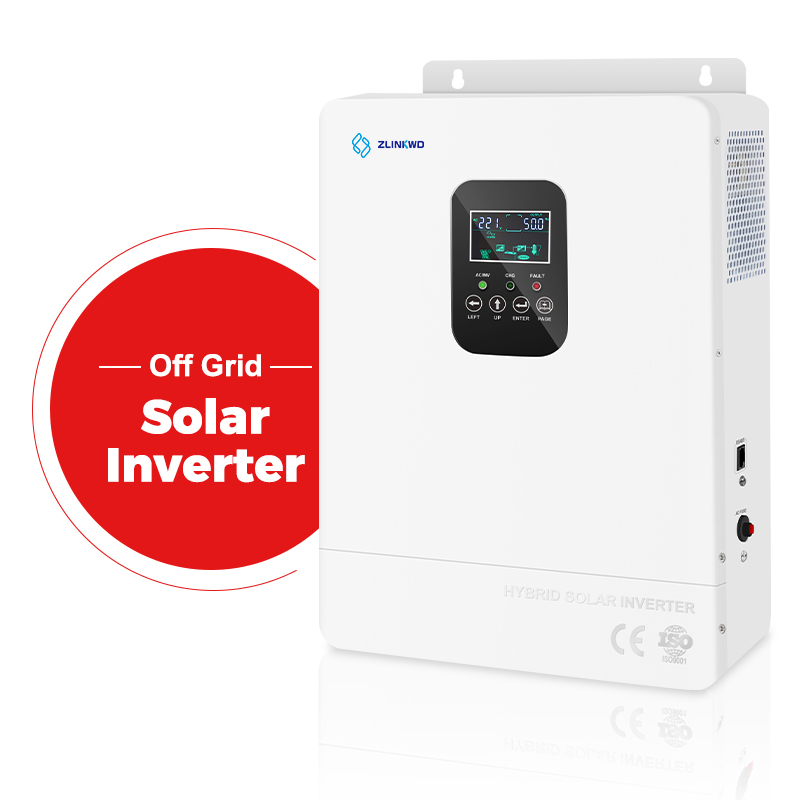

Home Use 3.2kw 5kw off Grid Solar Inverter

   Product Feature



Powerwall Household energy storage

◆ Adopt high-frequency design, high power density, small size, high efficiency and low no-load loss;

◇ Built-in MPPT controller, integrated solar charging and mains complement design;

◆ Pure sine wave output, adaptable to any types of loads;

◇ Battery charge and discharge voltage parameters adjustable, suitable for different types of        batteries;

◆ AC charge current adjustable, battery capacity configuration more flexible;

◇ Three working modes adjustable: AC first, battery first ;

◆ Output voltage/frequency adjustable function,adapt to different grid environment;

◇ Extra wide voltage and frequency input range, support mains or generator;

◆ LED+LCD display,easy operation and data checking,can set each function and data directly;

◇ Multi-protection function(overload,over temperature,short circuit protection and so on);

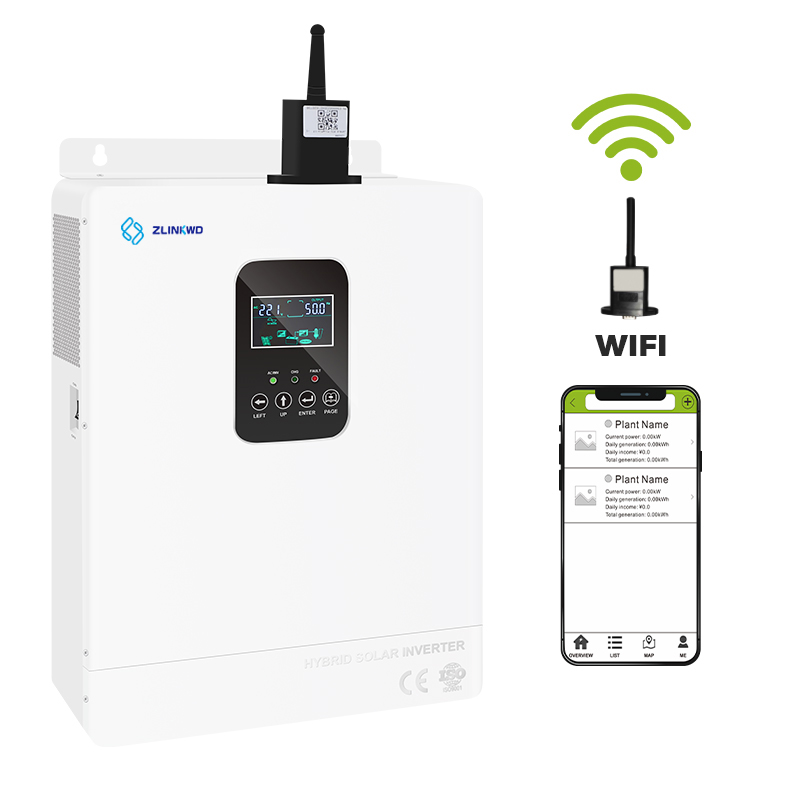

◆RS485 communication port/APP optional.

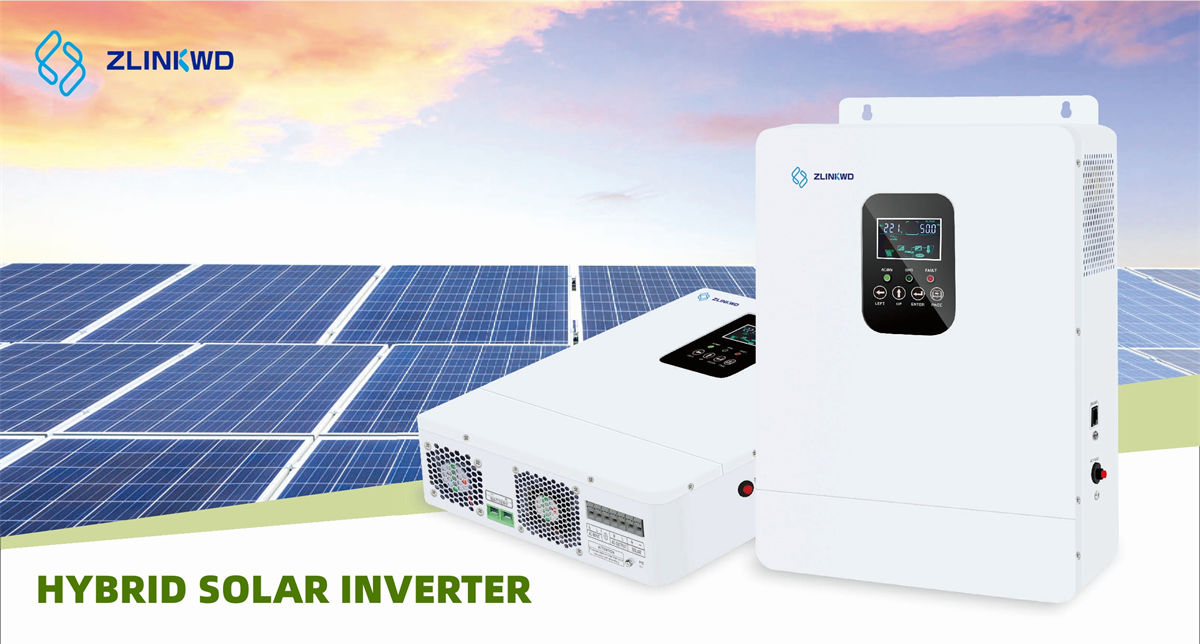

--Pure Sine Wave Solar Inverter Powerwall Household Storage BatterySolar System off Grid Solar SystemHybrid Solar Charge InverterHP Pro-T HYBRID SOLAR INVERTER

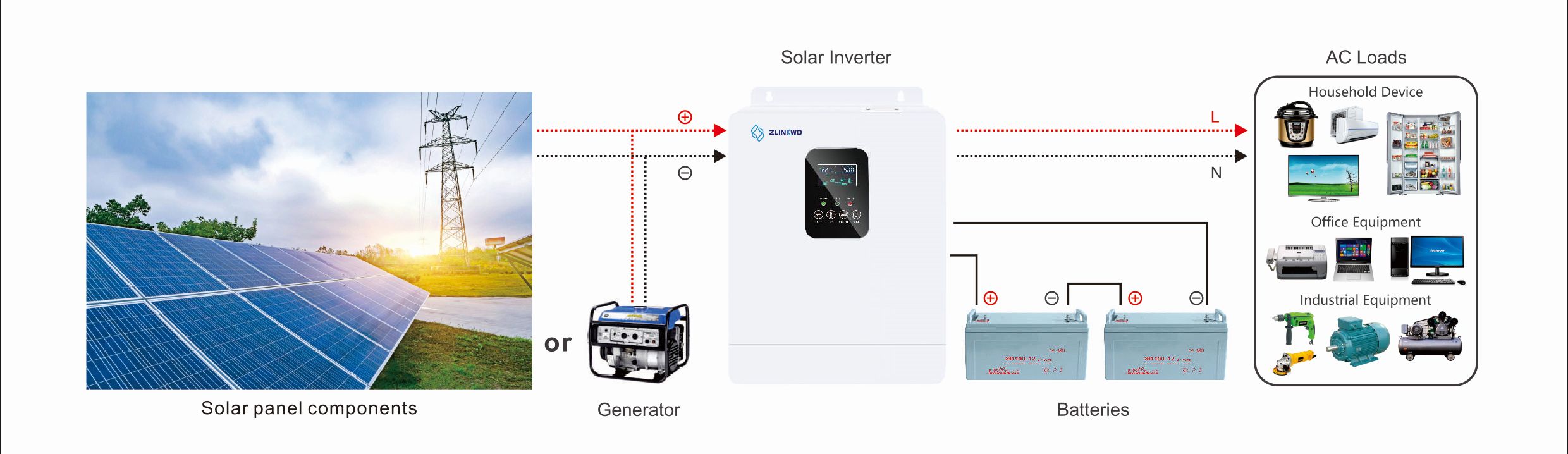

  Application Scenarios

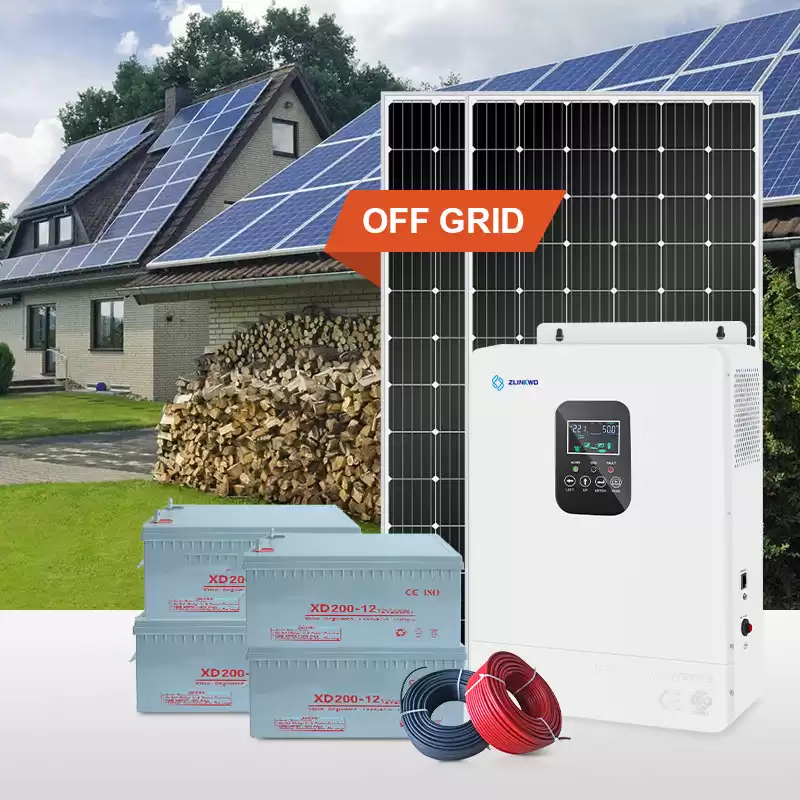

1. Off-grid residential homes
2. Emergency backup power
3. Electric vehicle charging
4. Smart home automation
5. Commercial and industrial applications

  •  Home Energy Storage Battery System
    Household Daily Use
  •  Home Energy Storage Battery System Parameters
    Farm Facilities
  •  Home Energy Storage Battery System Parameters

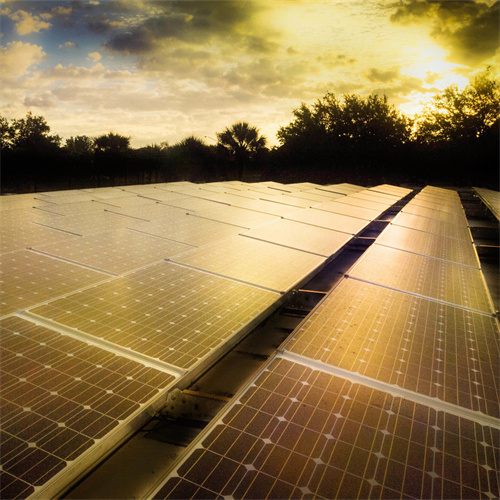

    Solar Energy Storage
  • Household New Energy Vehicles
    Household New Energy Vehicles



    Technical Parameters

Model: HP pro-T 10212 15224 20224
Rated Power 1000W 1500W 2000W
Peak Power(20ms) 3000VA 4.5KVA 6KVA
Battery Voltage 12VDC 24VDC
Product Size(L*W*Hmm) 355x272x91.5
Package Size(L*W*Hmm) 443x350x187
N.W(Kg) 6.5
G.W(Kg) 7.5
Installation Method Wall-Mounted
PV Charging Mode MPPT
MPPT tracking voltage range 15V-80VDC 30V-100VDC
Rated (recommended) operating voltage of PV array 15V-30VDC 30V-60VDC
Max PV Input Voltage Voc
(At the lowest temperature)
120VDC
PV Array Maximum Power 840W 1680W
MPPT tracking channels (input channels) 1
Input DC Input Voltage Range 10.5-15VDC 21VDC-30VDC
Rated AC input voltage 220VAC  / 230VAC  / 240VAC
AC Input Voltage Range 170VAC~280VAC (UPS mode)/ 120VAC~280VAC(INV mode)
AC Input Frequency Range 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
Output Output efficiency(Battery/PV Mode) 94%(Peak value)
Output Voltage(Battery/PV Mode) 220VAC±2%  / 230VAC±2%  / 240VAC±2%
Output Frequency(Battery/PV Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery/PV Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Follow input
Output waveform distortion
Battery/PV Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode) ≤0.5% rated power(charger does not work in AC mode)
Battery  Battery
 Type
VRLA Battery Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Maximum charging current (mains + PV) 120A 100A 110A
Max PV Charging Current 60A 60A 60A
Max AC Charging Current 60A 40A 50A
Charging method Three-stage (constant current, constant voltage, floating charge)
Protection Battery low voltage alarm Battery undervoltage protection value+0.5V(Single battery voltage)
Battery low voltage protection Factory default: 10.5V(Single battery voltage)
Battery over voltage alarm Constant charge voltage+0.8V(Single battery voltage)
Battery over voltage protection Factory default: 17V(Single battery voltage)
Battery over voltage recovery voltage Battery overvoltage protection value-1V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Working Mode Mains priority/Battery priority(Can be set)
Transfer Time ≤10ms
Display LCD+LED
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% (No condensation)
Note:  All specifications are subject to charge without prior notice.



   FAQ

Q. What's price?

A: We provide reasonable price and recommend suitable batteries to our customers.



Q. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.



Q. Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed



Q. Do you accept OEM/ODM?

A: Yes,it is available.We have OEM group to design battery case.



Q.Which certificates do you have?

A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.



Q. Can your battery be wired in series or parallel?

A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.



Q. What is your Shipping way?

A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea .
