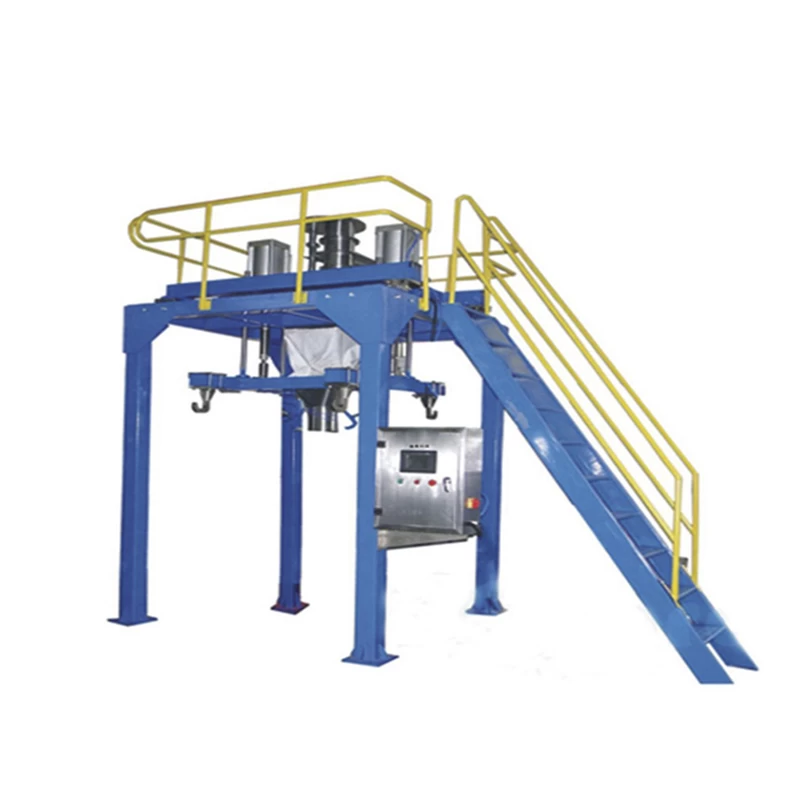

HPC-TW Auto Industrial Packaging Machine
HPC-TW Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.
Technical Data:
|
Packaging Materials
|
Particle Materials
|
|
Packaging Model
|
1T
|
|
Packaging Accuracy
|
±0.3%
|
|
Qualification
|
≥99%
|
|
Packaging Speed
|
8-10 Bag/h
|
|
Weighing Type
|
Hanging Weighting,automatic constant speed bag dropping
|
|
Packaging Bag Type
|
Foursquare bag hanging,artificial tying
|
|
Power
|
Power 380V AC 50HZ
|
|
Air Source Pressure
|
0.6-0.8MPa
|
|
Noisy
|
≤85db
|
|
Materials of Machine
|
SS used for area in direct touch with materials, and rest carbon steel spray treatment
|
|
Utility Factor
|
Over 80% (rest for regular maintenance,breakdown maintenance)
|
|
Working Environment Temp& Moisture
|
-30～40℃；Moisture≦50%
|
Features:
Tailored to characteristics of powder material, granule material and different requirements of factory.
The machine adopts different classifying and feeding types( direct flow, conveyor, vibration and belt) according to different material. It has features of stable performance, high packaging precision, and high speed packaging.
High stability during control process with programmable electric control system.
Advanced dust collecting design reduces greatly dust pollution upon working circumstance. Electric platform scale like weighing system adopts Board-characteristic adjusting, and working parameter setting, has advantages of accumulated weight display, automatic peeling, automatic falling correction, high sensitivity, and strong anti-interference capacity.
Meters equipped with communication ports, available for computer connecting and networking, capable of real time monitoring and network management.

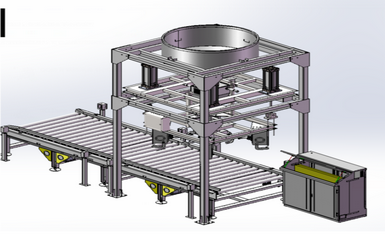

The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
