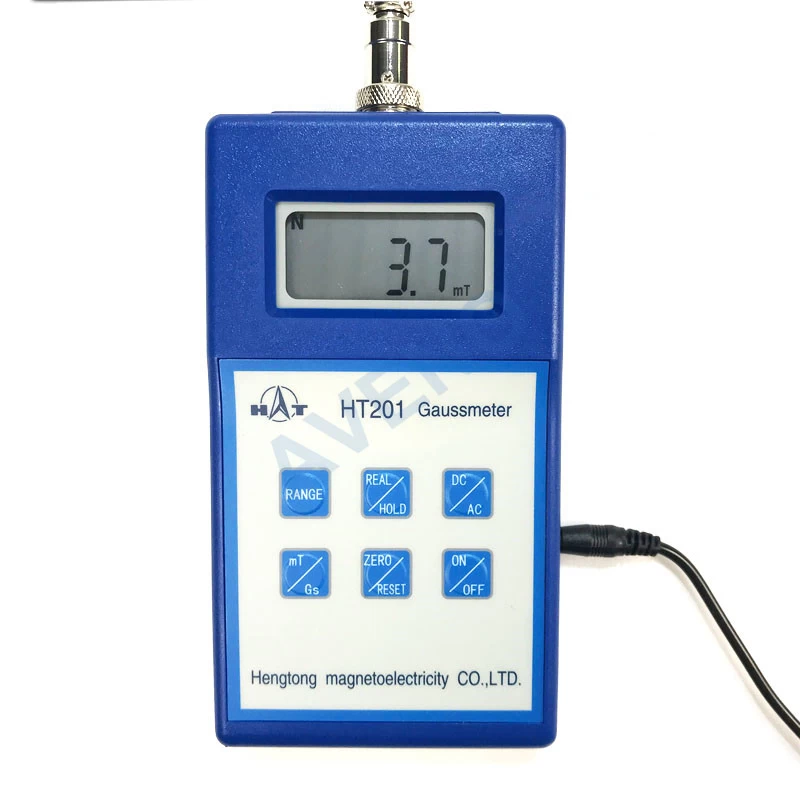

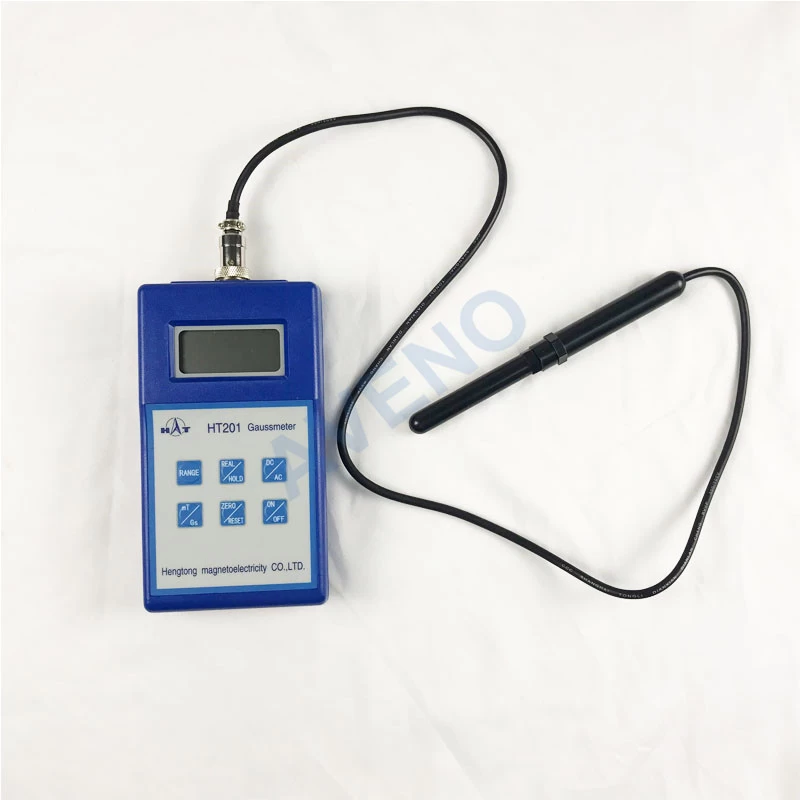

ATC05-HT201 Magnetic Flux Index Tester
Application Of HT201 Magnetic Flux Index Tester
ATC05 Magnetic Flux Index Tester is used to measure the magnetic induction intensity of DC magnetic field, AC magnetic field and other kinds of magnetic field.
Feature Of HT201 Magnetic Flux Index Tester
-
Test residual magnetism of articles after machining, magnetic pole distribution, residual magnetic field after product demagnetization.
-
Test magnetic properties of electroplated articles, Motor magnetism, and magnetic leakage detection of electromagnetic field.
Function Of HT201 Magnetic Flux Index Tester
-
Peak holding function
-
GS (Gauss) /MT (Milli Tesla) switchable
-
N / s polarity display when DC measurement
-
Keystroke fast zeroing
Standards Of HT201 Magnetic Flux Index Tester
ISO 8124-1 section 5.32
GB 6675-2 section 5.27
EN-71-1section 8.35,
ASTM F963 section 8.24.1
Key Specification Of HT201 Magnetic Flux Index Tester
|
Model
|
ATC05-HT201 Magnetic
Flux Index Tester
|
|
Test
range
|
0~200mT~2000mT (±2%)
|
|
Test
magnetic field
|
DC magnetic field
(static magnetic field)
AC magnetic field
(dynamic magnetic field)
|
|
Unit
|
mT/Gs (1mT=10Gs)
|
|
Power
supply
|
1pc 9v Battery/9v
external Power supply
|
|
Dimension
|
160mm×88mm×36mm
|
|
Weight
|
0.5kg
|

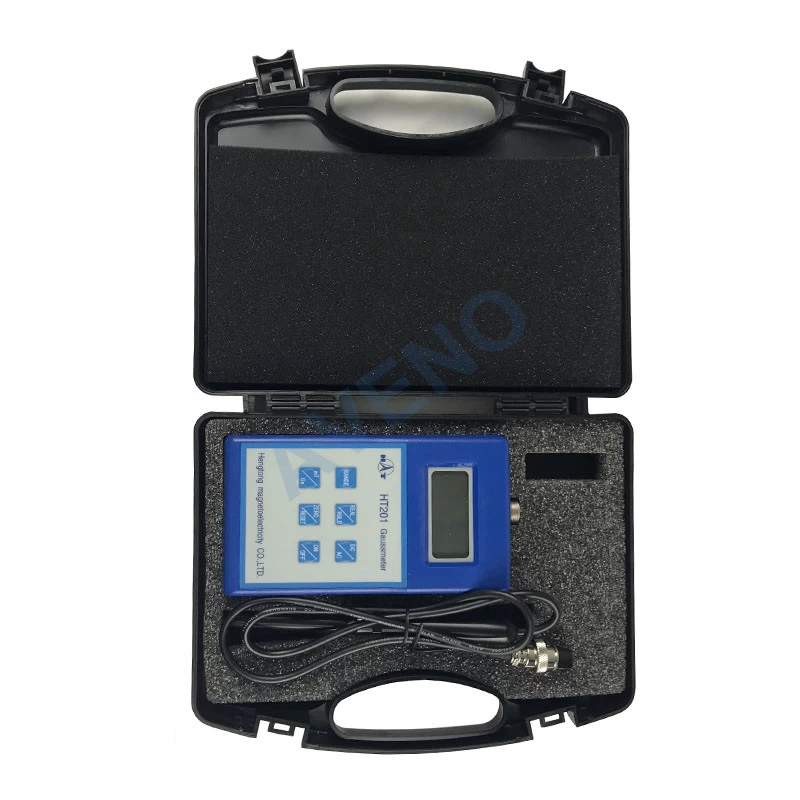

Accessories Of HT201 Magnetic Flux Index Tester
|
Standard Accessories
|
AC Power line
|
1pc
|
|

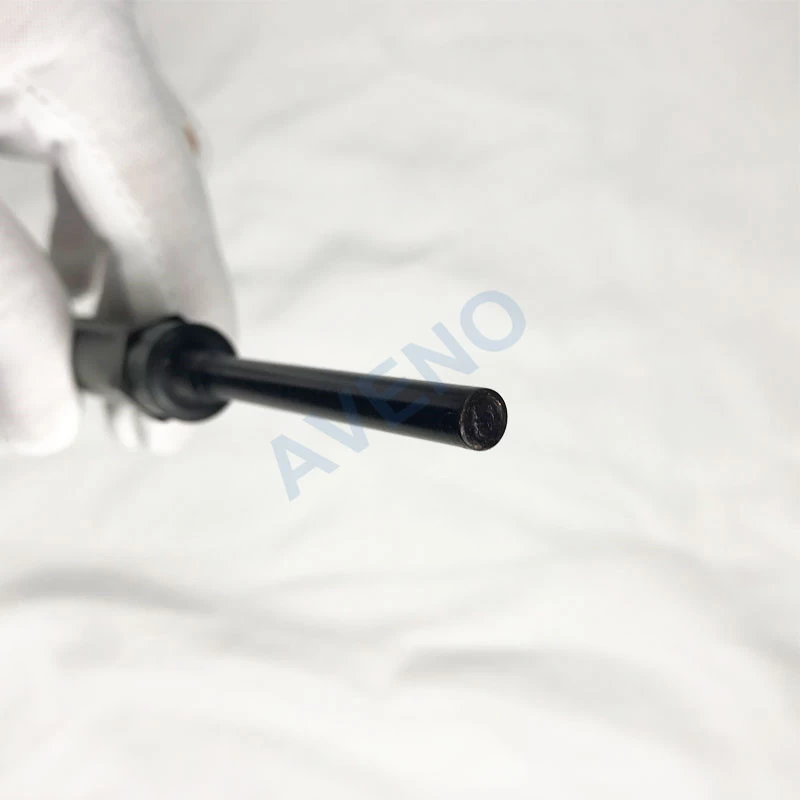

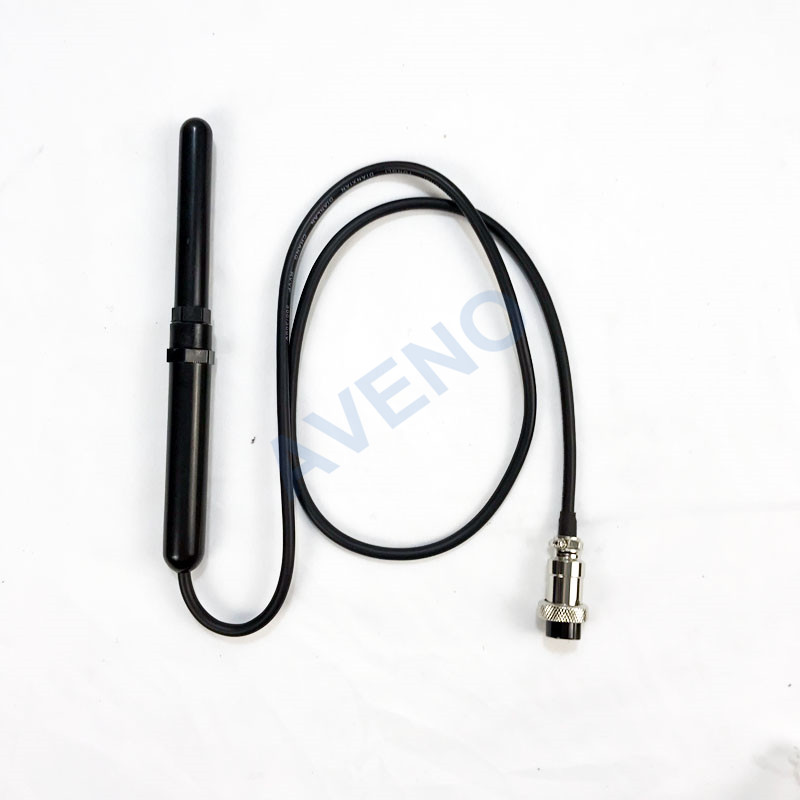

Axial direction probe
|
1pc
|
