HTN Positive Reflective COB Digital LCD Screen Module
This is a segment LCD display module product to be able to display both graphic and dynamic number. For a segment LCD display there are potivie type and negative type display. As a postive LCD display, it means the background are bright colors and the number to be dark colors. Vice versa.
Jinhua Electronics is dedicated to providing clients with the most professional display solution and 5-stars service to support clients from all kinds of industries all round the world.
Segment LCD Display Module
Product Parameters
| LCD Type |
HTN LCD/STN LCD/FSTN LCD |
| Display Type |
Reflective |
| Display Mode |
Postitive |
| View Angle |
6 o'clock |
| AA |
45.7x20.5mm |
| Driving Condition |
VDD 3.6V |
| Duty 1/4 |
| Bias 1/3 |
| Connetor |
Pin |
| Display Technology |
COB |
| Control IC |
None |
| Interface |
None |
| Operating Temperature |
0-50°C, custom |
| Requirements On Environmental Protection |
ROHS HSF |

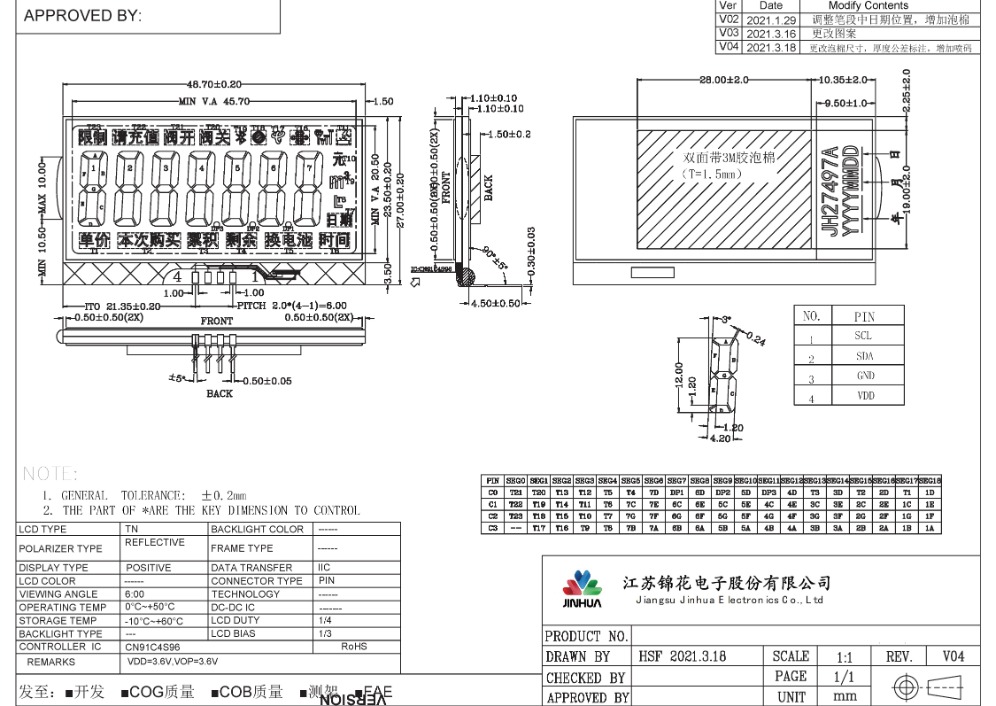

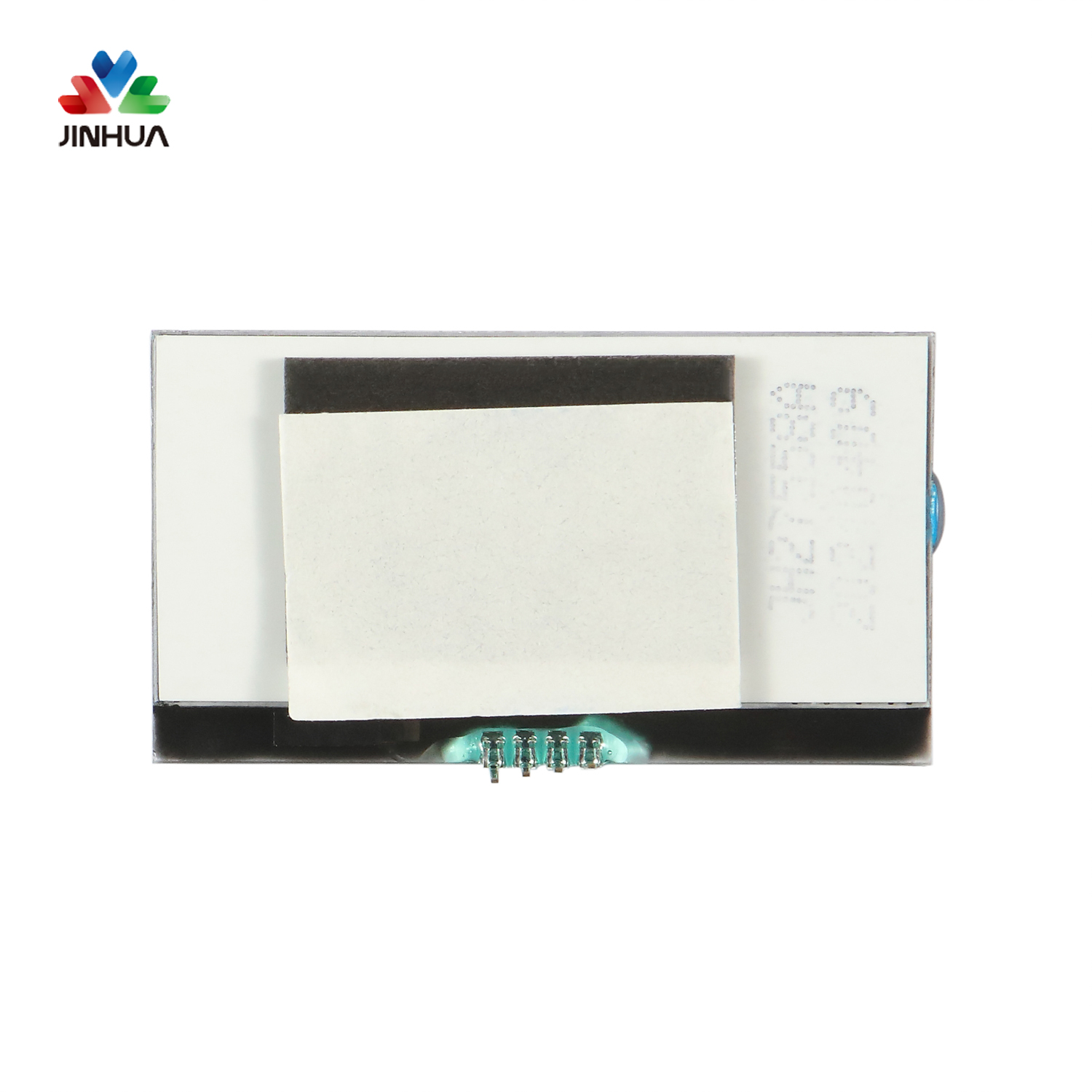

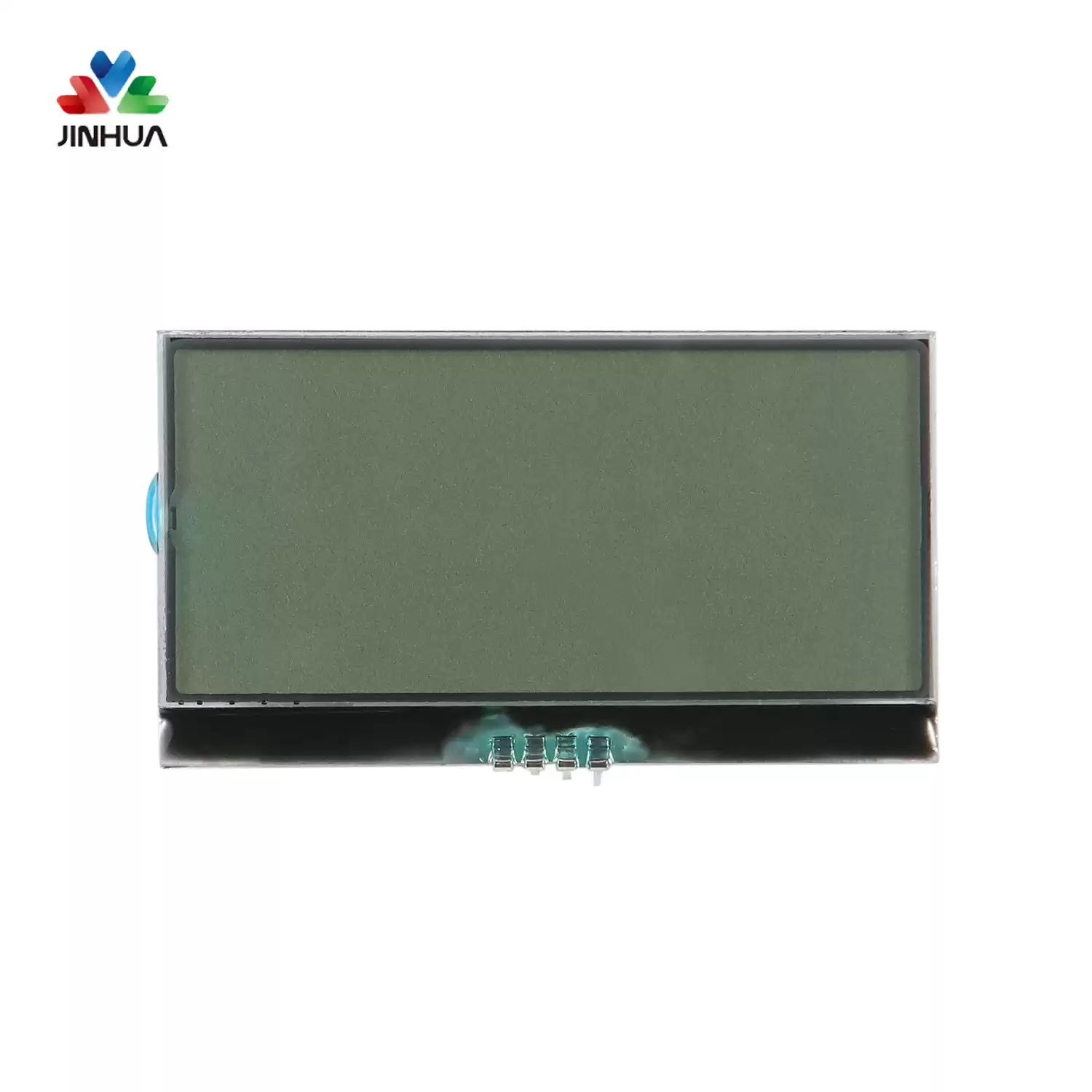

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Positive Digital HTN COB LCD Screens are commoly applied to many ocassions. Both indoors and outdoors application, such as industrial equipment, meters&measuring devices, medical equipment, instrumentation products, fiscal products, communication & hand-held device, automotive products and smart home products, etc.
Production Line And Equipment
Company Profile
Why Choose Us
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
