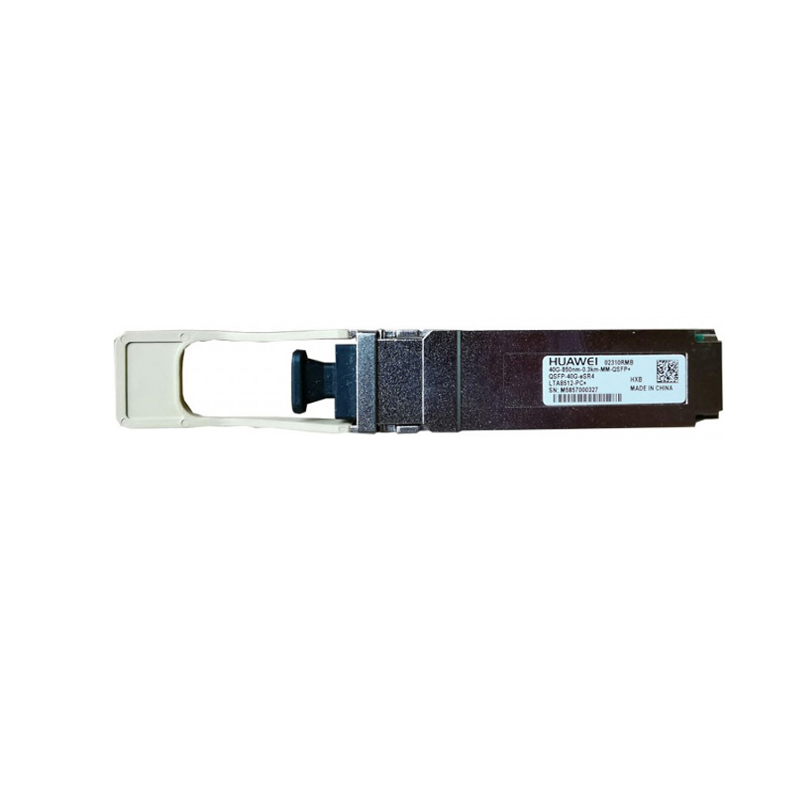

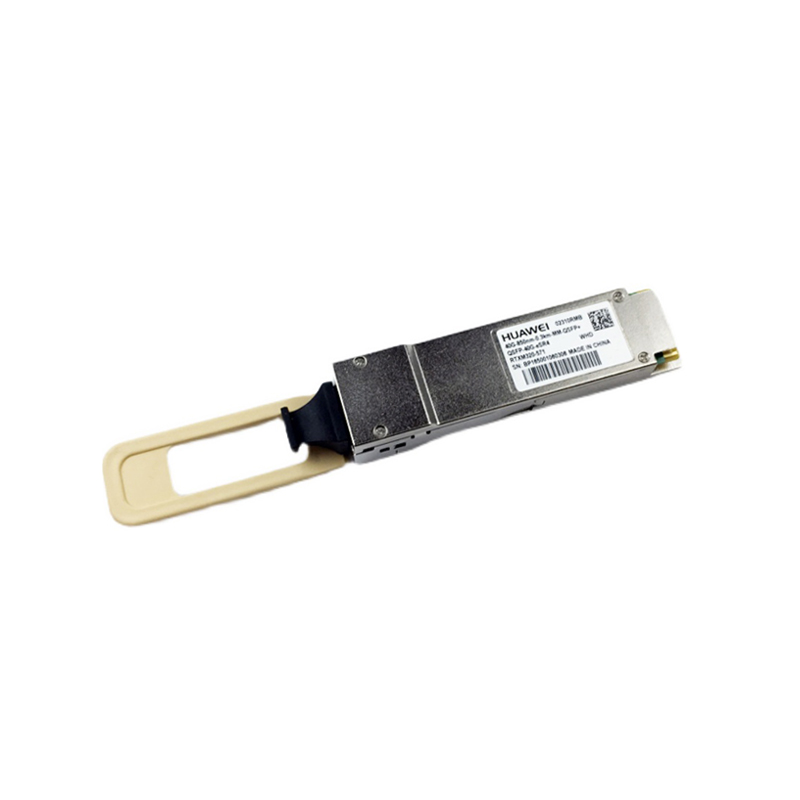

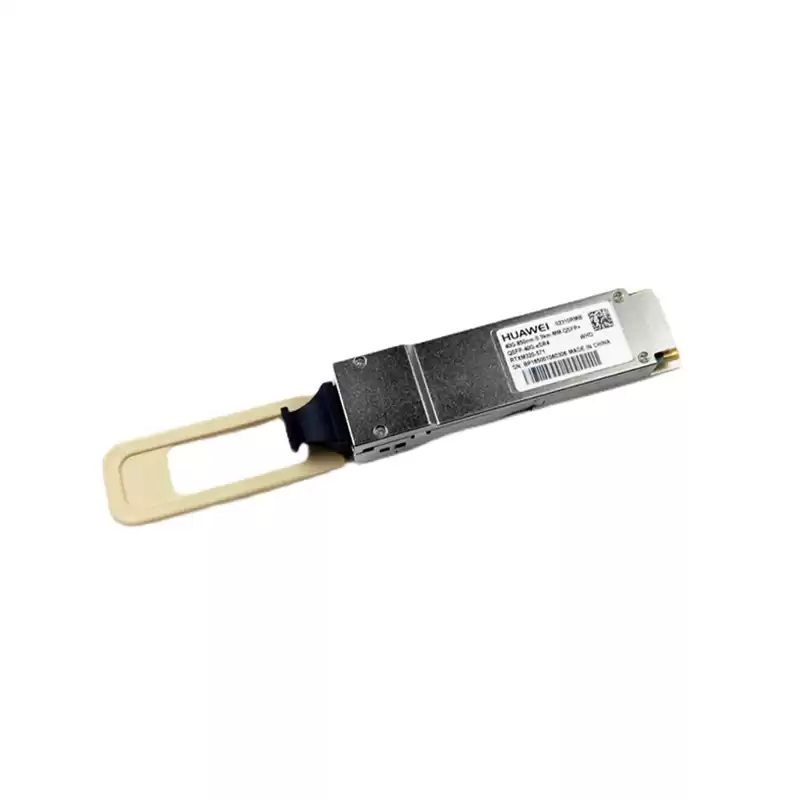

Huawei 02310RMB QSFP-40G-eSR4 Optical Transceiver
Product Description
|
Part number
|
02310RMB
|
|
Transceiver form factor
|
QSFP+
|
|
Transmission speed
|
40GE
|
|
Center wavelength (nm)
|
850
|
|
Standards compliance
|
40GBASE-eSR4 (non-standard)
|
|
Connector type
|
MPO/PC (8-strand or 12-strand, type B, female connector)
|
|
Applicable cable and maximum transmission distance
|
-
Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
-
Multimode fiber (OM1): 0.033 km
-
Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
-
Multimode fiber (OM2): 0.082 km
-
Multimode fiber (OM3): 0.3 km
-
Multimode fiber (OM4): 0.4 km
|
|
Modal bandwidth
|
-
|
|
Transmit power (dBm)
|
-7.6 to +0.5
|
|
Maximum receiver sensitivity (dBm)
|
-5.4
|
|
Overload power (dBm)
|
2.4
|
|
Extinction ratio (dB)
|
3.0
|
|
Operating temperature
|
0°C to 70°C (32°F to 158°F)
|
Basic Information
Module name: QSFP-40G-eSR4
Part Number: 02310RMB
Model: QSFP-40G-eSR4
Form factor: QSFP+
Application standard: 40GBASE-eSR4 (non-standard)
Connector type: MPO/PC (8-strand or 12-strand, type B, female connector)
Optical fiber type: MMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 40 Gbit/s
Target transmission distance [km]:
Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
Multimode fiber (OM1): 0.033 km
Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
Multimode fiber (OM2): 0.082 km
Multimode fiber (OM3): 0.3 km
Multimode fiber (OM4): 0.4 km
Product Details
Our Advantages
We have Huawei 02310RMB for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei 02310RMB, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei 02310RMB represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
