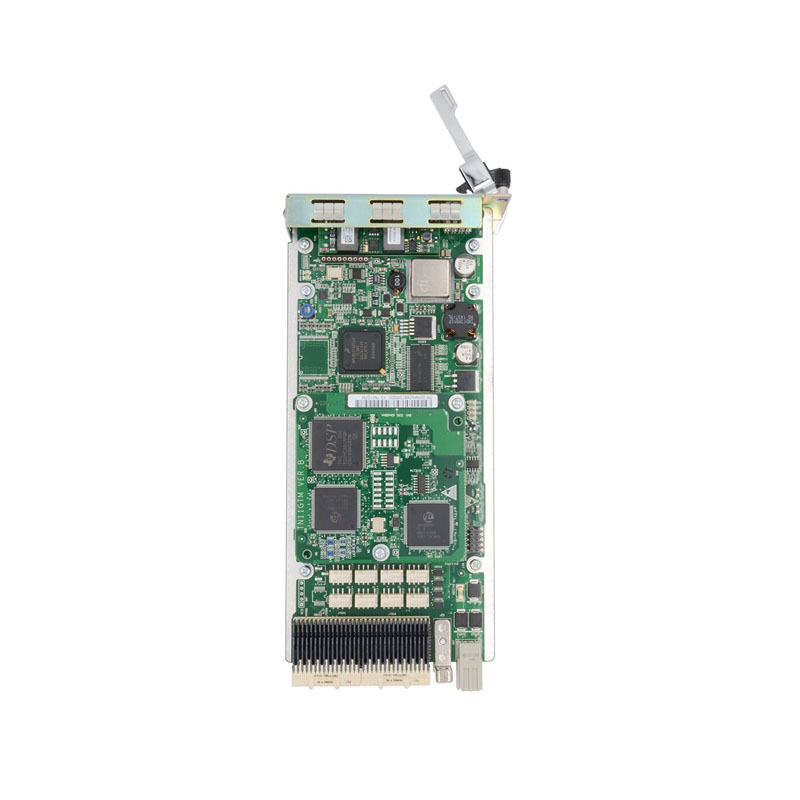

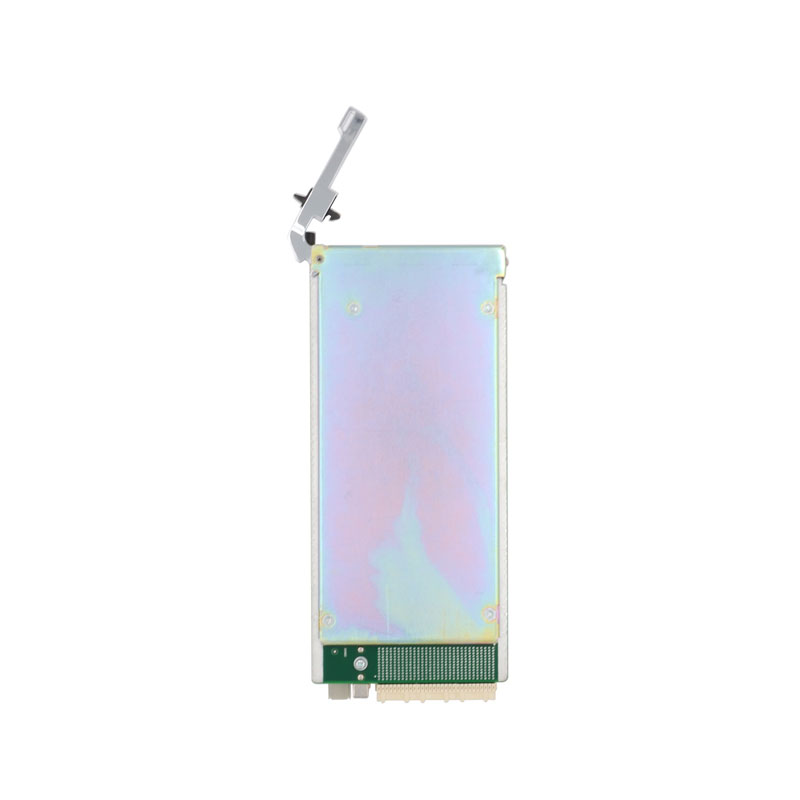

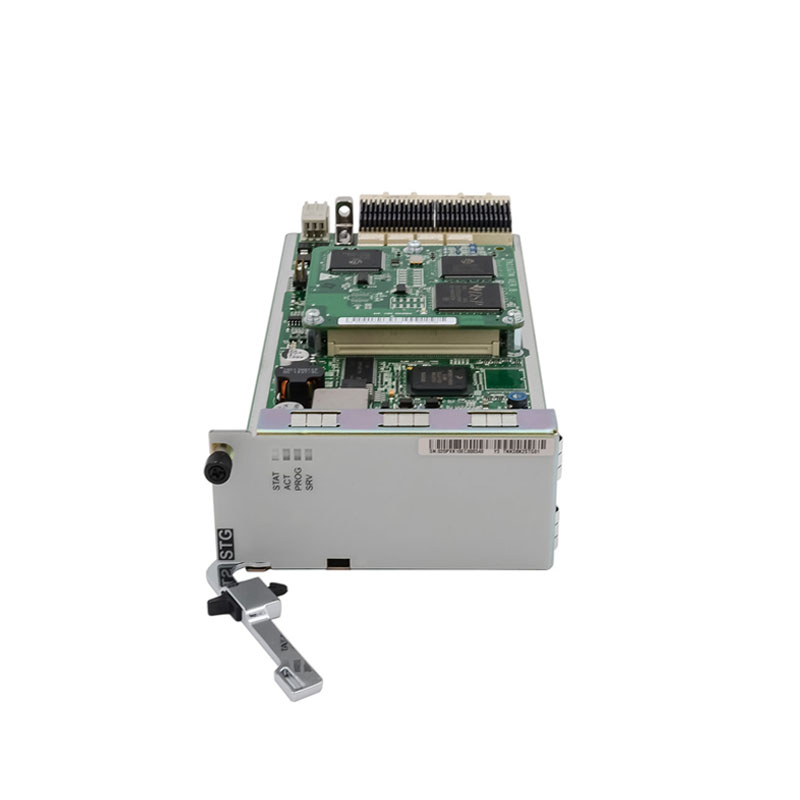

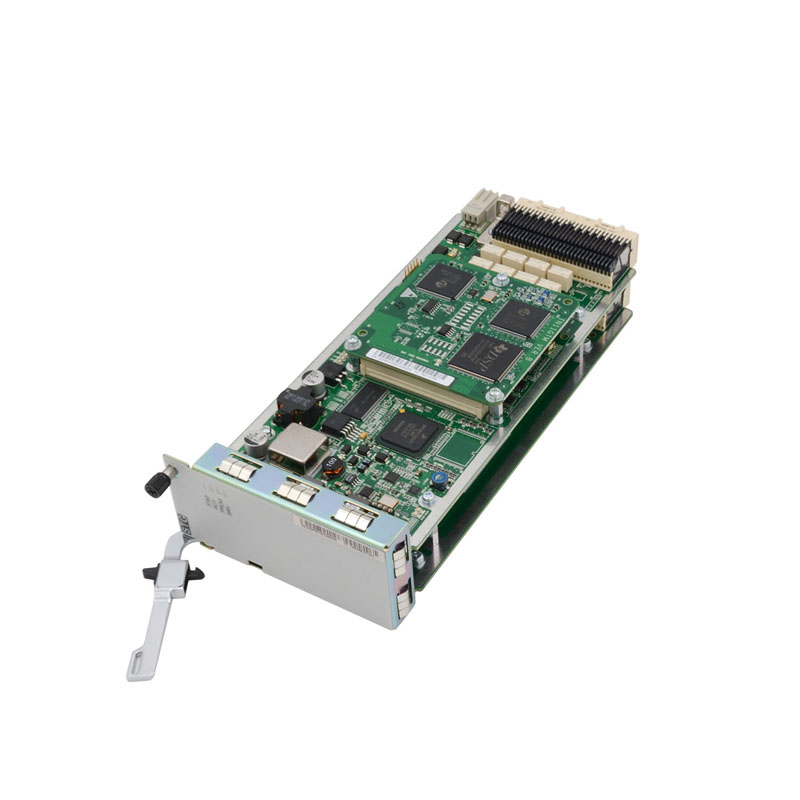

Huawei 03020PXK TNK2STG OSN8800 T64 Clock Board
Product Description
|
Function and Feature
|
Description
|
|
Basic function
|
-
Locks the reference clock source.
-
Provides the system with ITU-T clock signals that comply with G.813 and G.823 and frame signals.
-
Synchronizes the time of an NE with the time of the upstream system.
|
|
Active/standby switching function
|
The STG board uses a 1+1 hot backup scheme. The two STGs serve as mutual backups. When both of them are normal, one of them functions as the active board, and the other functions as the standby board. Service boards select the clock source according to the status of the two STGs. When the active STG is faulty, an active/standby switching occurs. Then, the standby STG becomes active, and the services boards select the clock from the current active STG according to the status of the two STGs.
NOTE:
The TN52STG and TN54STG boards can back up each other. That is, a TN52STG board and a TN54STG board can work in 1+1 hot backup mode.
The TN13STG and TN11STG (or TN12STG) boards can back up each other. That is, a TN13STG board and a TN11STG (or TN12STG) board can work in 1+1 hot backup mode.
The TNK3STG and TNK2STG boards can back up each other. That is, a TNK3STG board and a TNK2STG board can work in 1+1 hot backup mode.
|
|
Clock source selection function
|
Traces the external clock source, service clock source, or local clock source, to provide the synchronization clock source for itself and the system.
|
|
Time synchronization function
|
Synchronizes the time of an NE with the time of the upstream NE.
|
|
G.8275.1
|
Supported. For details, see the Synchronization in the Feature Description.
|
|
G.8273.2
|
Supported. For details, see the Synchronization in the Feature Description.
NOTE:
Only supported by the TN54STG board of the VER.C.
|
TNK2STG is mainly used to lock the reference clock source and provide signals and frame signals to the system applied to Huawei OSN8800 T64, provide the system with ITU-T clock signals that comply with G.813 and G.823 and frame signals.
